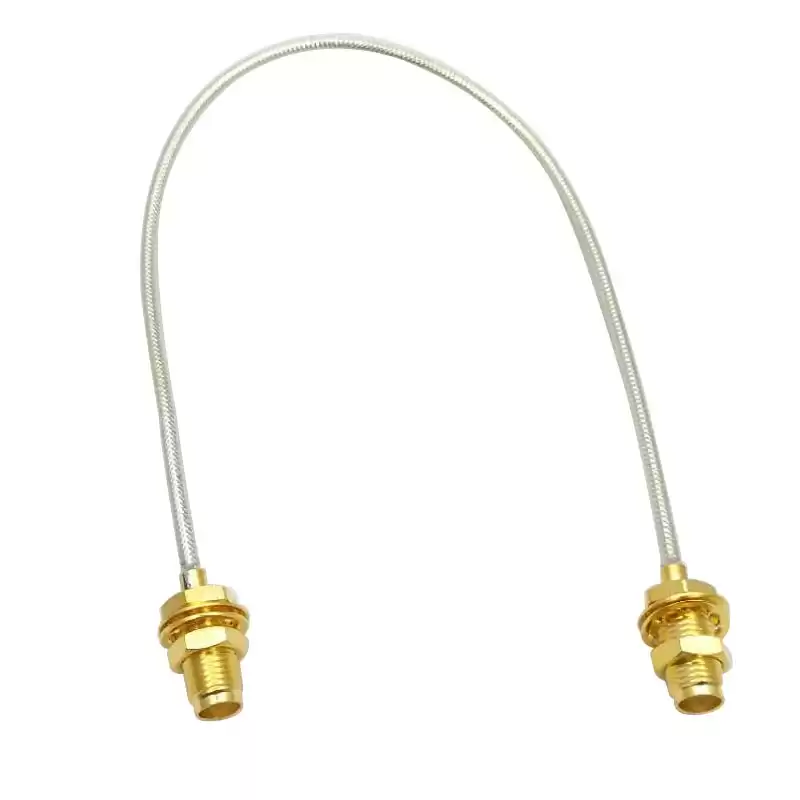

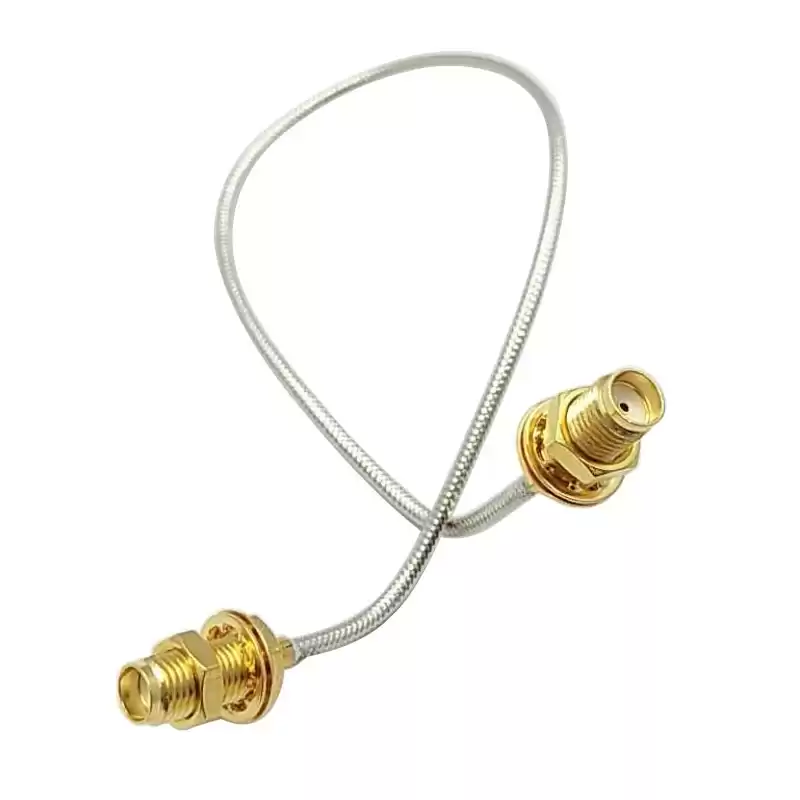

SMA Bulkhead Female to SMA Bulkhead Female Connector Cable Assembly with RG405 Cable
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to SMA cable assembly is right angle or straight connectors which is female to female, female to to male or male to male gender. This SMA female to SMA female cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight SMA for connector 2, Cable is 50ohm RG405.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
SMA |
| Connector 1 Style |
Str Male |
| Cable Type |
RG405 |
| Connector 2 Series |
SMA |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
