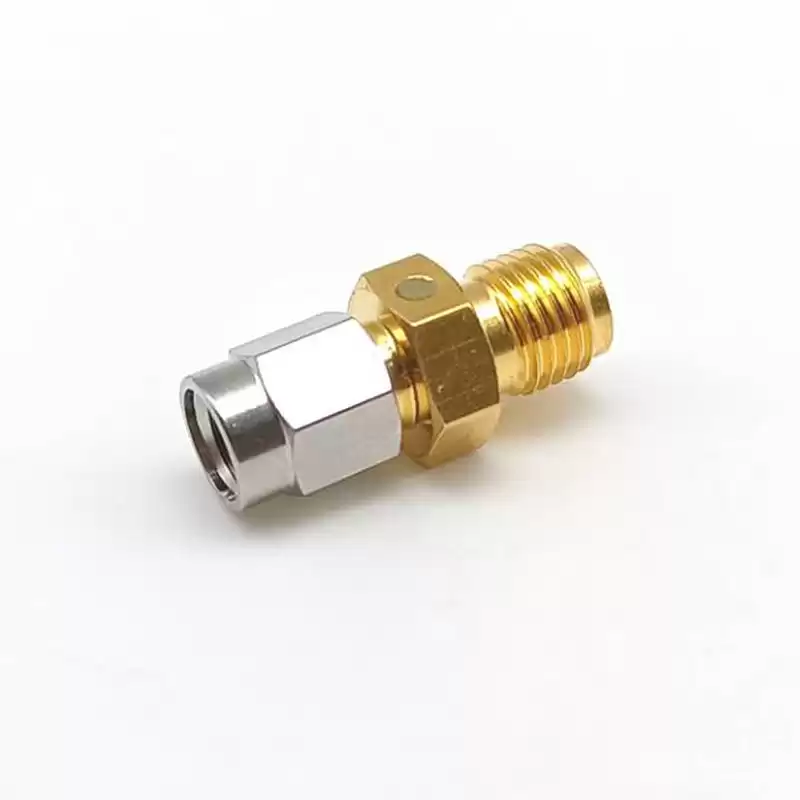

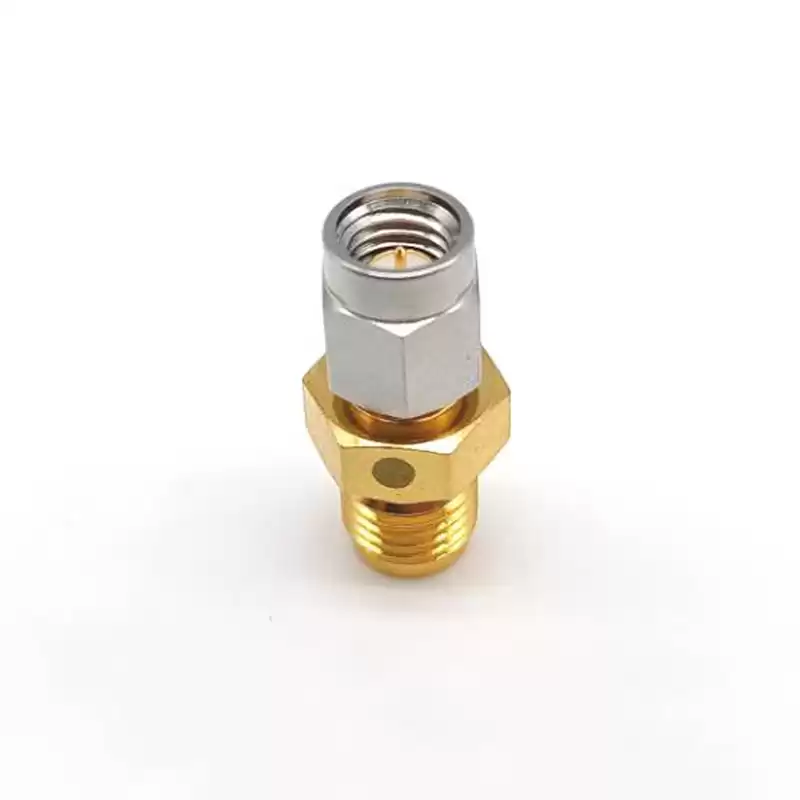

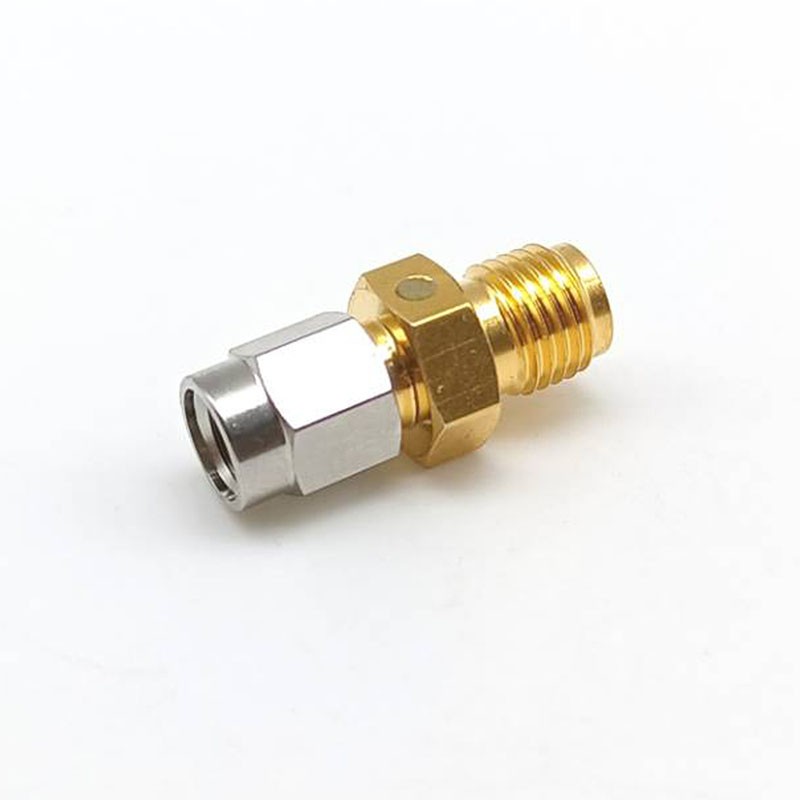

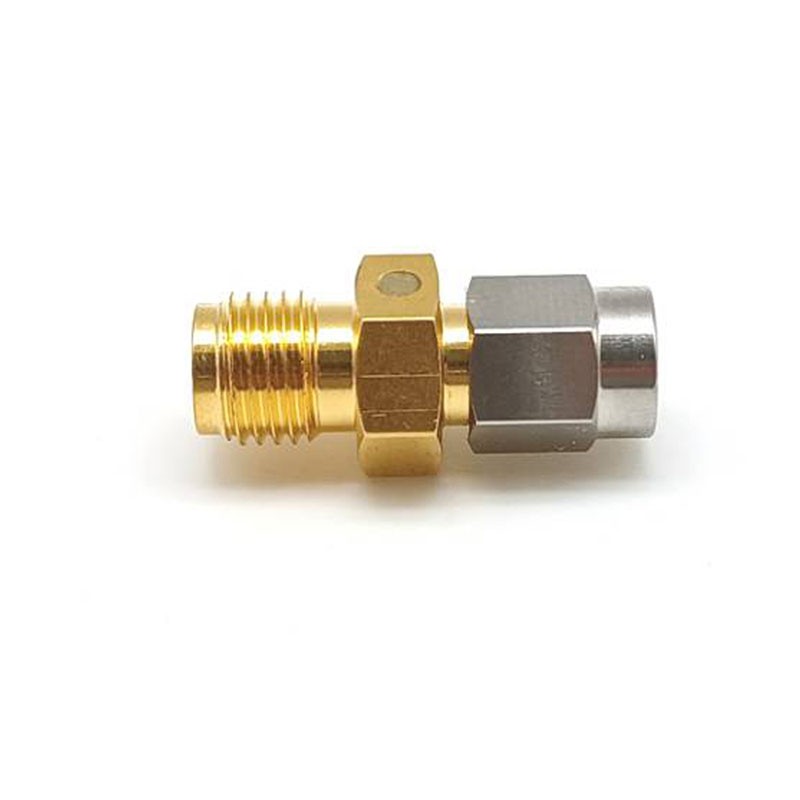

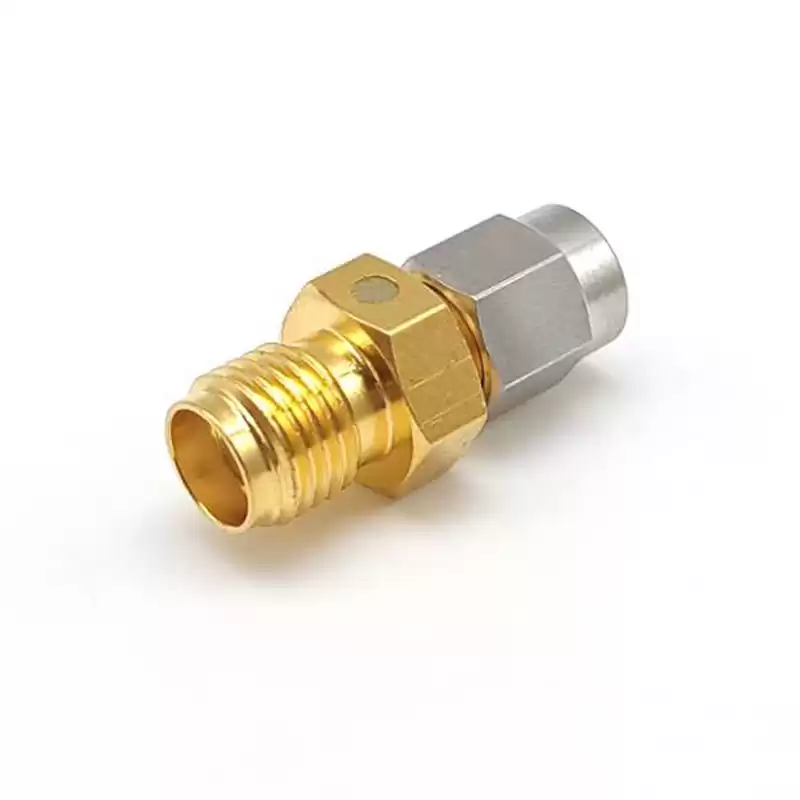

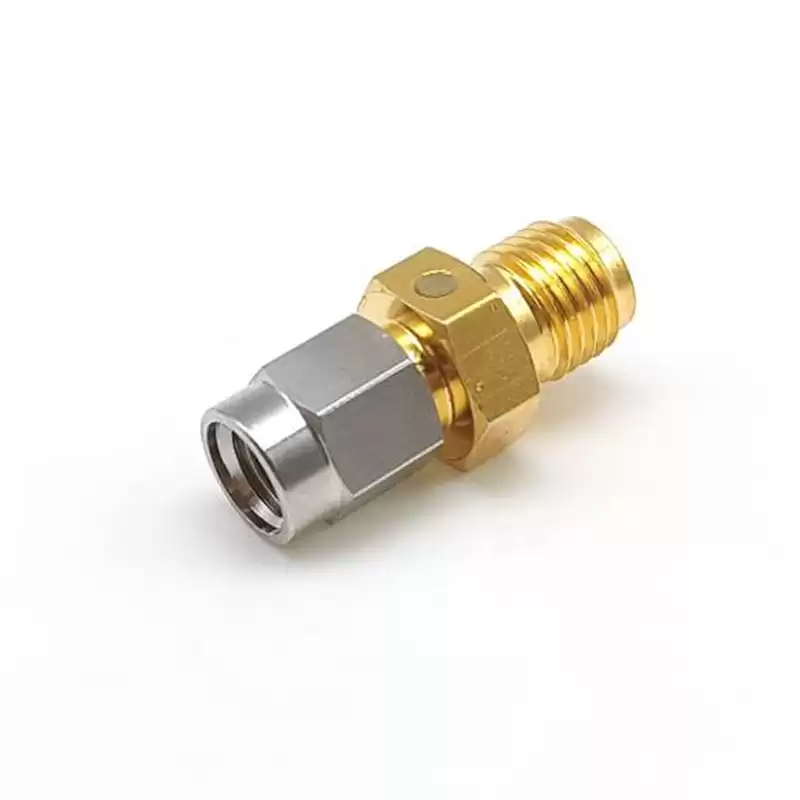

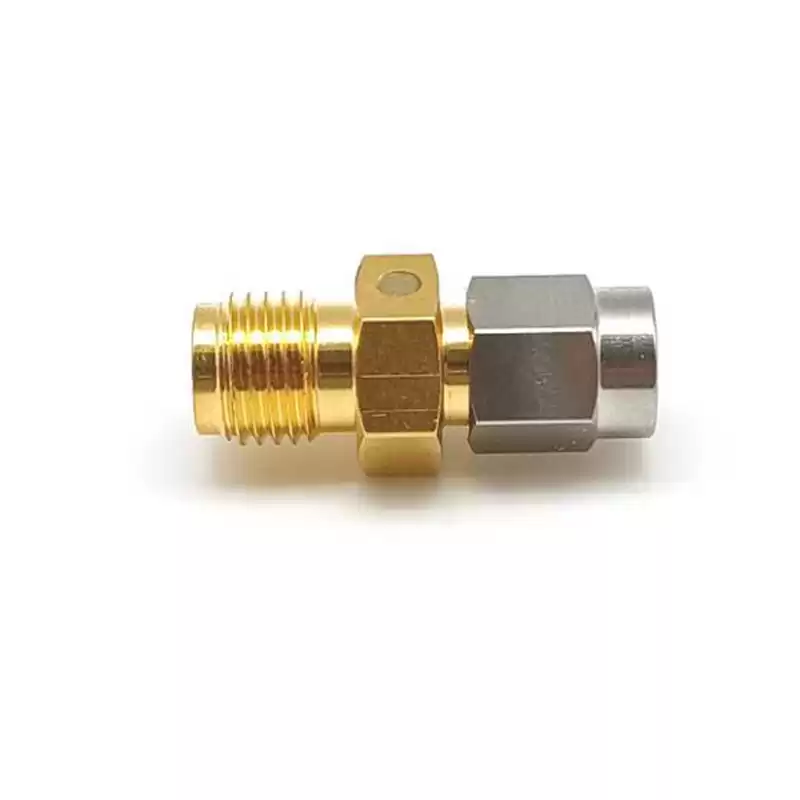

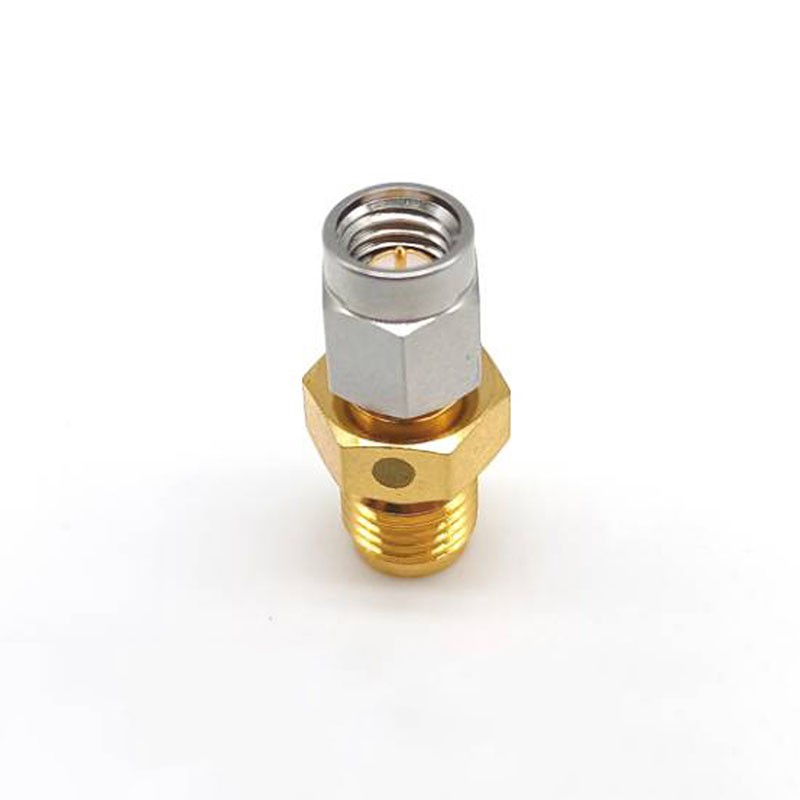

SMA Female to SSMA Male Plug RF Coaxial Connector Adaptor
The SMA Adapter has different SMA to SSMA adapter gender. that is between a series coaxial adapter, The SMA to SSMA adapters has female to female, female to male, male to female or male to male gender. This SMA female to SSMA male adapter has a maximum frequency of 18GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
SMA |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
SSMA |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
18 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- 5G Solutions
- Measurement Systems
- Civil & Military Aeronautics
- Microwave Systems Telecommunications
- Mobile Telephone WiFi Antennas Systems
- Military Equipment, Space
