SMA Male to SMA Male Straight RF Connector Adapter
SMA adapters Features：
- Allow to interface SMA connectors with 1.0-2.3, 1.85mm, 2.4mm, 3.5mm, 7-16 DIN, BNC, F, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, TNC, UHF or U.FL connectors;
- Has female to female, female to jack, female to male, female to plug, female to receptacle, female to sexless, male to female, male to jack, male to male, male to plug, male to receptacle or male to sexless gender designs;
- Has standard polarity or reverse polarity SMA (RP-SMA) options;
- Has bulkhead, 4 hole panel or mountless configurations;
- Has quick disconnect (QD) or standard interfaces.

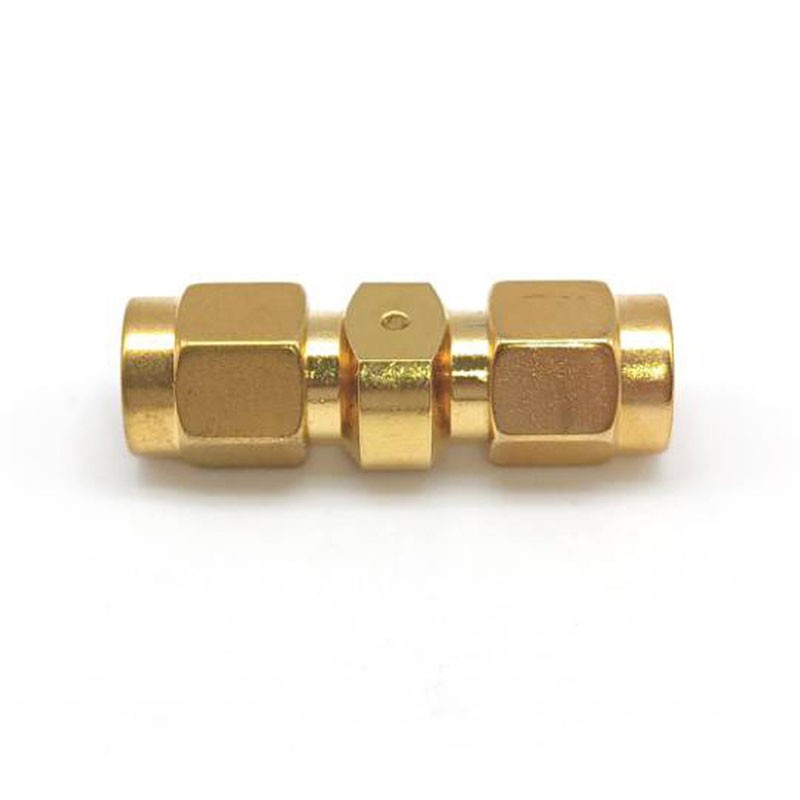

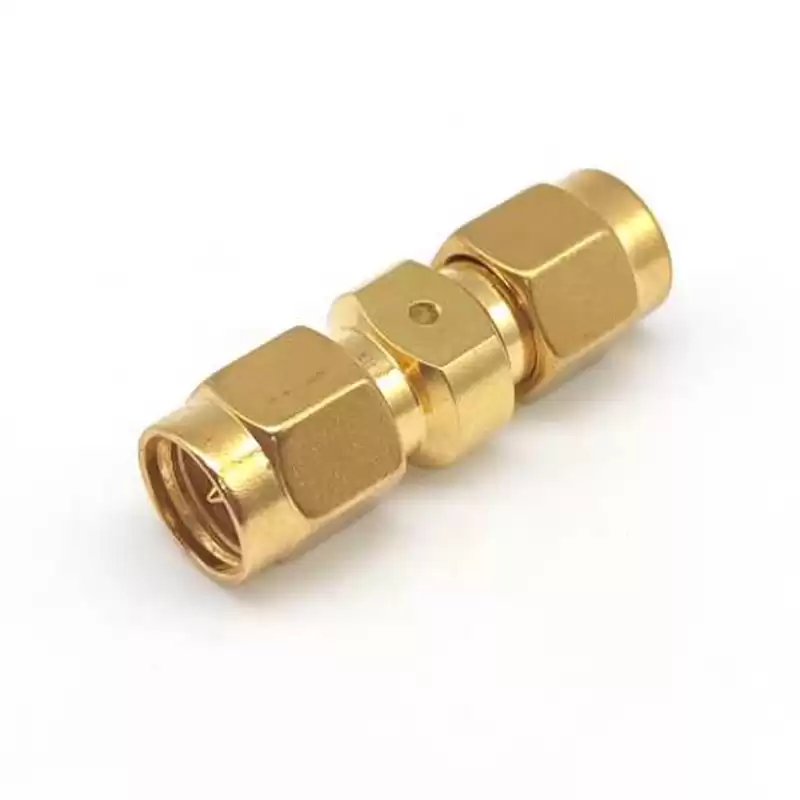

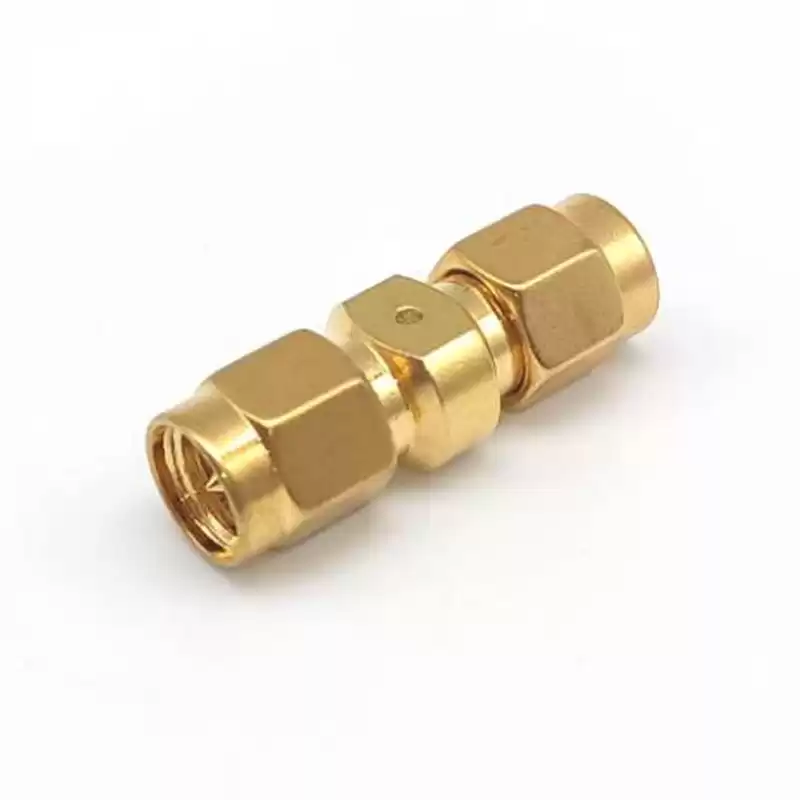

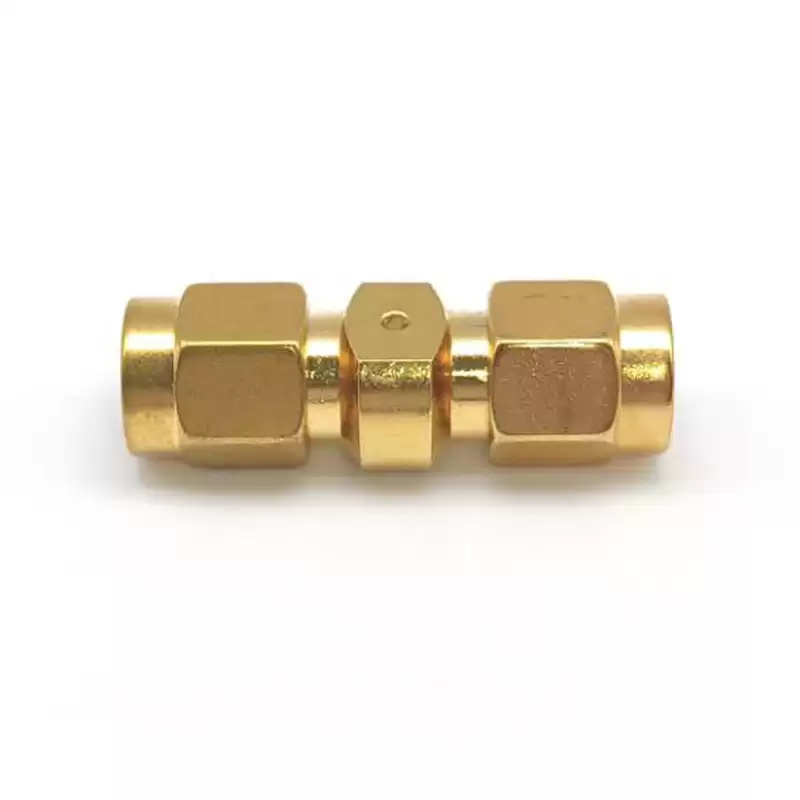

SMA Male to SMA Male Straight RF Connector Adapter
The SMA Adapter has different SMA to SMA adapter gender. that is between a series coaxial adapter, The SMA to SMA adapters has female to female, male to female or male to male gender. This SMA male to SMA male adapter has a maximum frequency of 18GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA | |
| Adapter Side 1 Series | SMA |
| Adapter Side 1 Style | Male |
| Adapter Side 2 Series | SMA |
| Adapter Side 2 Style | Male |
| Frequency (Max GHz) | 18 |
| Impedance (Ohms) | 50 |
| Low PIM | No |
| Orientation | Straight |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| MATERIAL DATA | |
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material | PTFE |
Applications
- 5G Solutions
- Measurement Systems
- Civil & Military Aeronautics
- Microwave Systems Telecommunications
- Mobile Telephone WiFi Antennas Systems
- Military Equipment, Space
