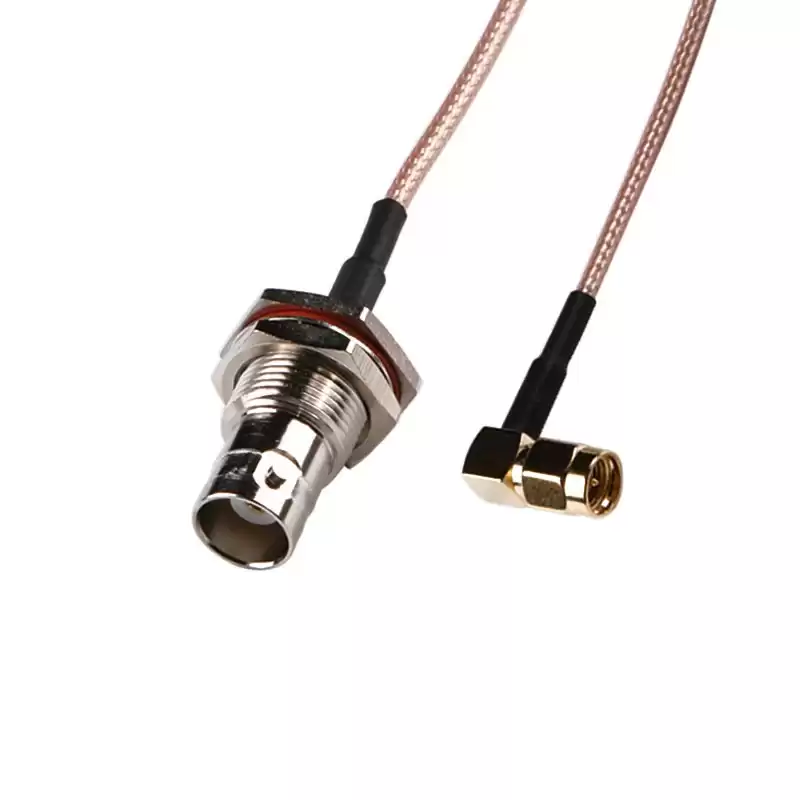

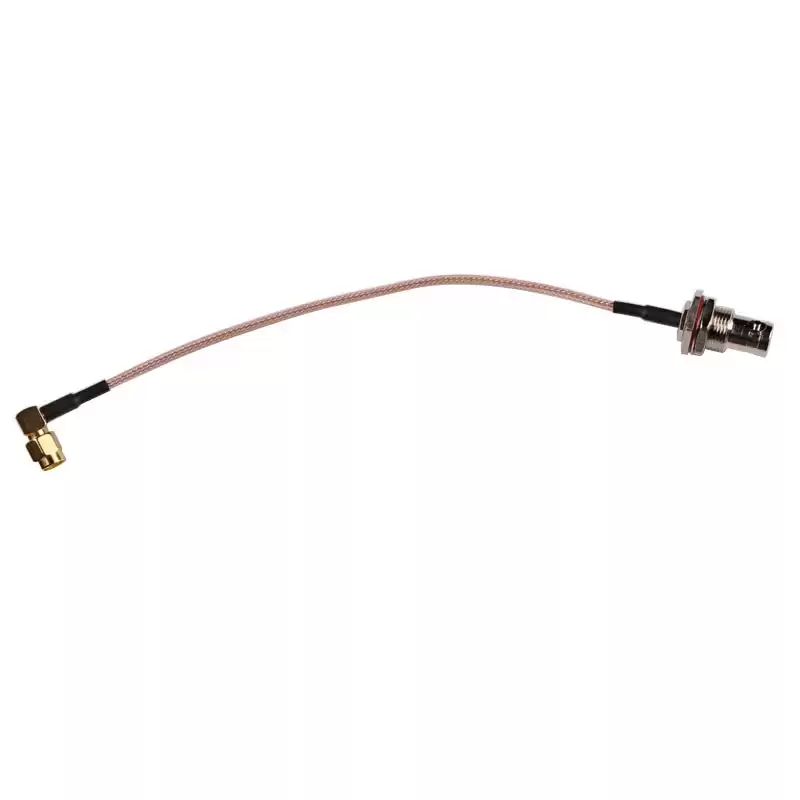

SMA Right Angle Male to BNC Female RF Coaxial Connector Cable Assembly with RG316 Cable
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to BNC cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This SMA female to BNC female cable assembly uses a 50ohm right angle SMA for connector 1 and a 50ohm straight BNC for connector 2, Cable is 50ohm RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |

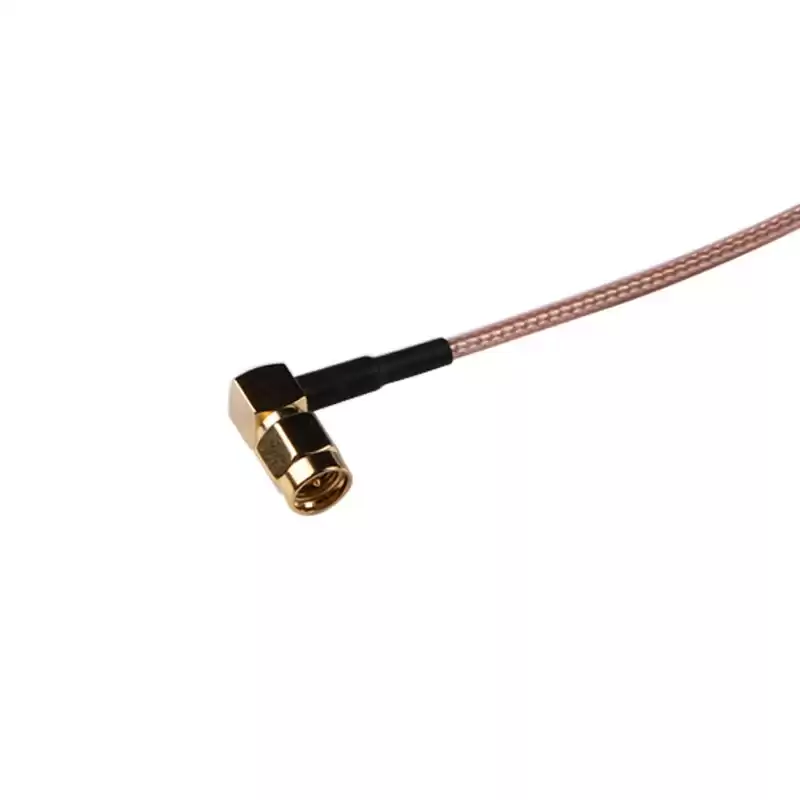

SMA |
| Connector 1 Style |
RA Female |
| Cable Type |
RG316 |
| Connector 2 Series |

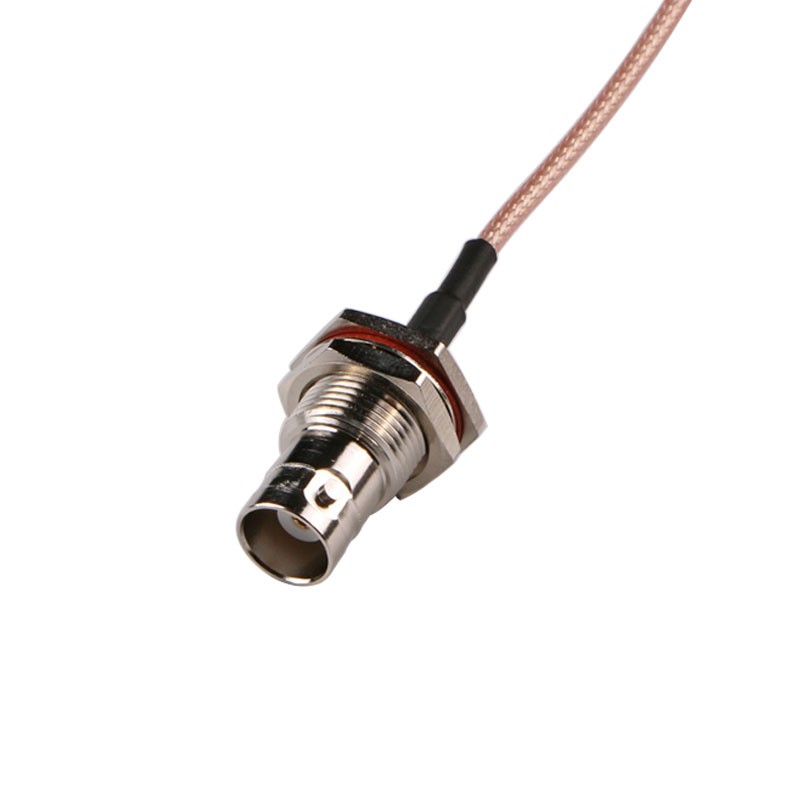

BNC |
| Connector 2 Style |
Str Female |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
5GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
