Small 3Phase Inverters 4kw 5kw 6kw 8kw 10kw 380v 400v On Grid Inverter for Power System


EU standard 3phase 380v, 400v, 415v 50hz, string inverter for home use



  • Warranty5-10 years
  • Lead Time10days
  • CertificationCE, TUV, IEC, UL, VDE,,,,etc
  • Item NoThree Phase
  • Output Voltage 380-415V
  • TypeOn Grid


Greensun Grid Tie String Solar Inverter for Home

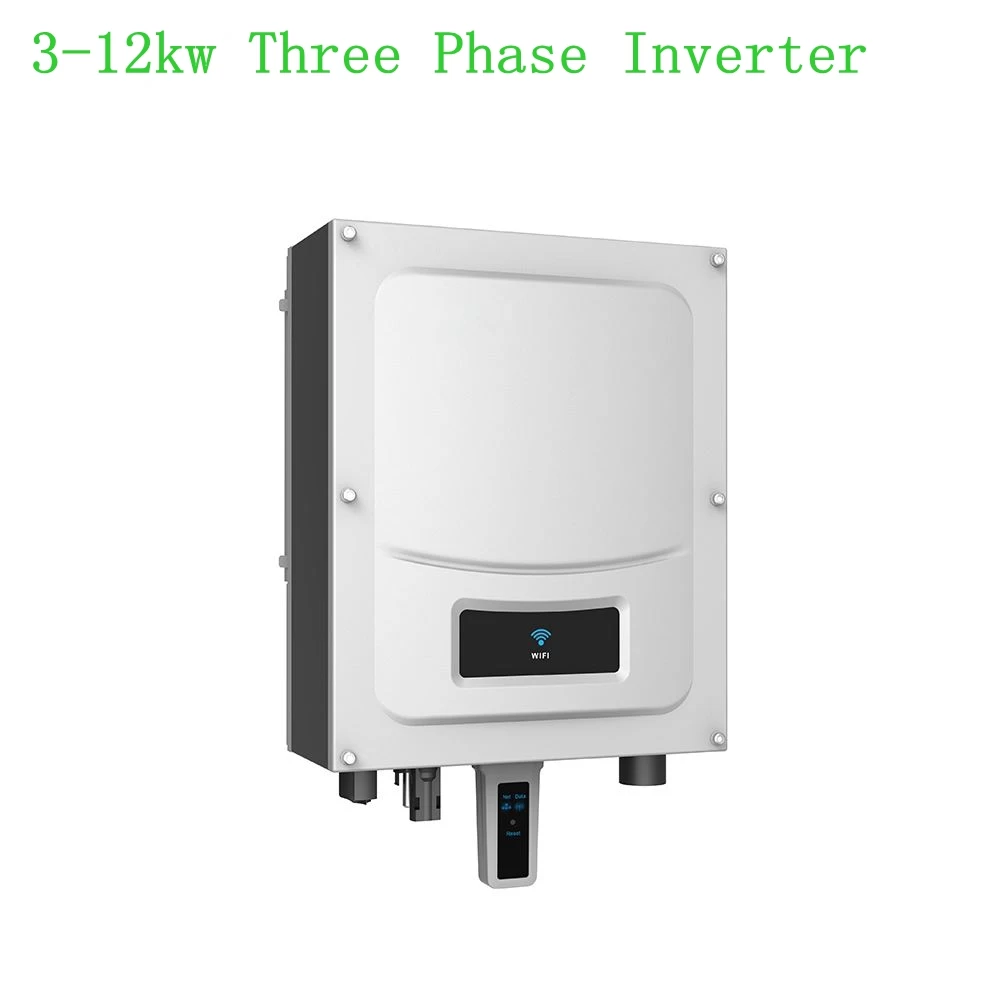

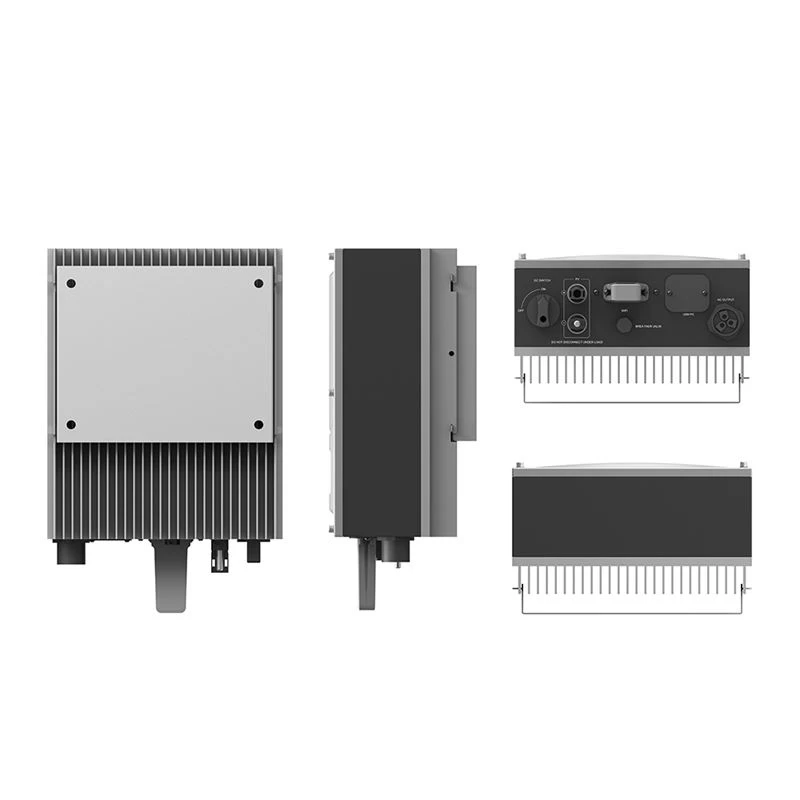

Small 3Phase Inverters 4kw 5kw 6kw 8kw 10kw 380v 400v On Grid Inverter for Power System

on grid inverter


Model
3KW
4KW
5KW
6KW
8KW
11KW
12KW
Max Input Power
3600W
4800W
6000W
7200W
9600W
12000W
14400W
Max DC Input Voltage
1000V
Start-up Input Voltage
180V
180V
180V
180V
180V
180V
180V
Nominal Grid Voltage
                             3/N/PE,220/380         3/N/PE,220/400            3/N/PE,220/415
Nominal Frequency
50Hz
Grid Frequency Range
                                 50Hz, +/-5Hz(According to local standard)
Grid Connection
                                            Three Phase
Max Efficiency
98%
98%
98%
98%
98.3%
98.3%
98.3%
MPPT Efficiency
                                                >99.9%
Protection
PV array insulation protection, PV array leakage current protection, Ground fault monitoring, Grid Monitoring, Island protection, DC monitoring, Short current protection etc.
Communication Interface
                                                          RS485(standard); WIFI
Certification
IEC 62116, IEC61727, IEC61683, IEC60068, CE, CGC, AS4777, VDE4105, C10-C11, G83/G59
Warranty
   5years, 7years, 10years
Temperature Range
-25℃ to +60℃
DC Terminal
Waterproof Terminals
Demension(H*W*D mm)
470*442*200
2470*442*200
470*442*200
480*450*200
480*450*200
480*450*200
480*450*200
Approx Weight
19.5kg
19.5kg
22.5kg
22.5kg
23kg
23kg
23kg

Grid tie (utility tie) PV systems consist of solar panels and an on grid inverter, without batteries.

The solar panel provides a special inverter that directly converts the DC voltage of the solar panel into an AC power source matching the power grid.

Extra power can sale to local city grid to reduce your home electricity fee.

On-grid inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v ,240v 60hz and three-phase 480v.
