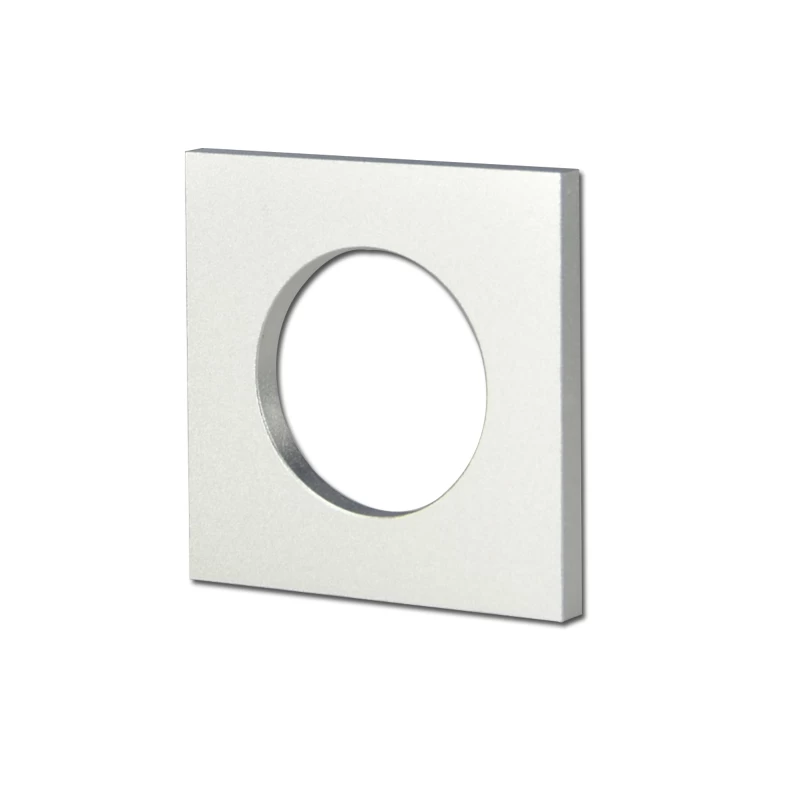

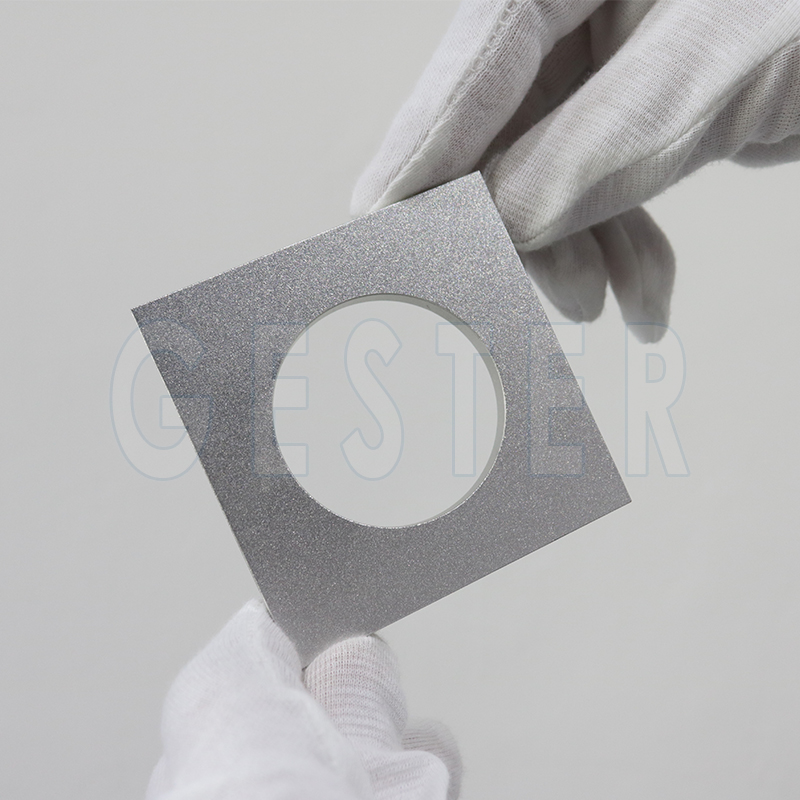

Small Ball Test Template GT-M47

Small Ball Test Template is use to examine a toy up of whether small ball accessories may result in the child swallow, stop breath way and esophagus to cause choking danger or not.

  • standardEN-71-1, ASTM F963, ISO 8124-1, GB6675-2
  • certificateISO 9001, UKAS, CE
Facebook Twitter Pinterest LinkedIn 分享


Small Ball Test Template

Applications:

Small Ball Test Template is use to examine a toy up of whether small ball accessories may result in the child swallow, stop breath way and esophagus to cause choking danger or not. mainly used to test suction cups toy and ball toy or toys parts.



Standards:

EN-71-1

ASTM F963

ISO 8124-1

GB6675-2



Test Method



  • Position and clamp Template C so that the axis of the slot is substantially vertical and the slot is unobstructed at its top and bottom openings.
  • Place the ball or the suction cup or the toy with an attached suction cup without compressing it, in any orientation in the slot so that the force on the ball or suction cup or toy with an attached suction cup is only the force due to its mass.
  • Determine whether the ball or suction cup or toy with an attached suction cup passes entirely through Template C.


Key Specifications


Model

GT-M47

Material

Aluminum metal alloy, surface oxidation

Inner diameter

44.5mm

Dimensions (L x W x T)

72.6 x 72.6 x 6.35 mm

Weight

30g

Standards

EN-71-1 section 8.32

ASTM F963 section 4.34 and 4.35

ISO 8124-1section 5.4 and 5.5

GB6675-2 section 5.4 and 5.5

Optional accessories

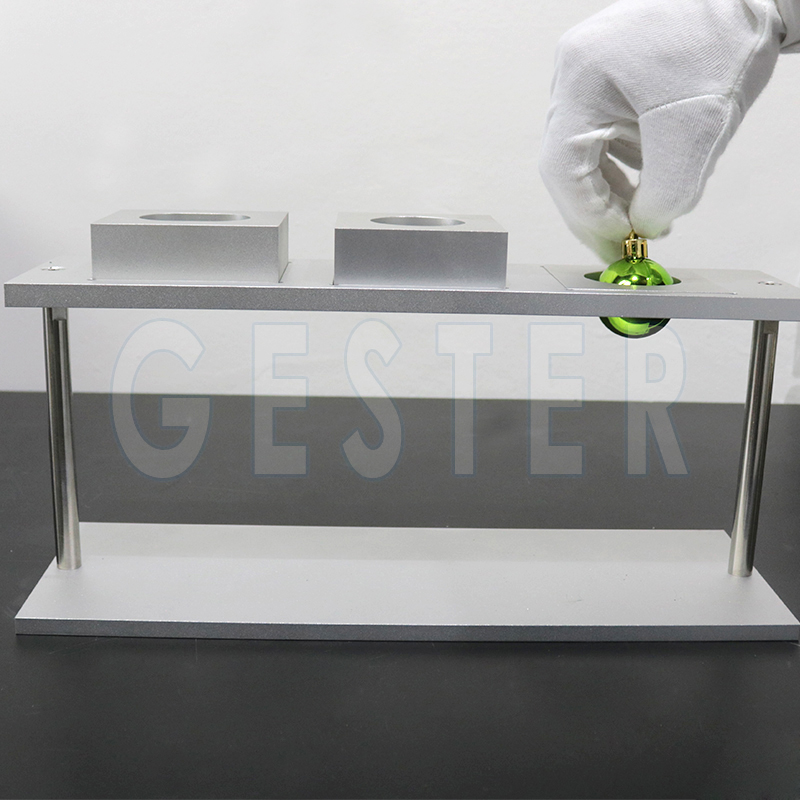

GT-MB60 Rattle Test Template Stand



Small Ball Test Template GT-M47


Applications Industry
Many kinds of ball toys can be tested on Small Ball Test Template.

Small Ball Test Template GT-M47



Why Choose Us

Small Ball Test Template GT-M47
