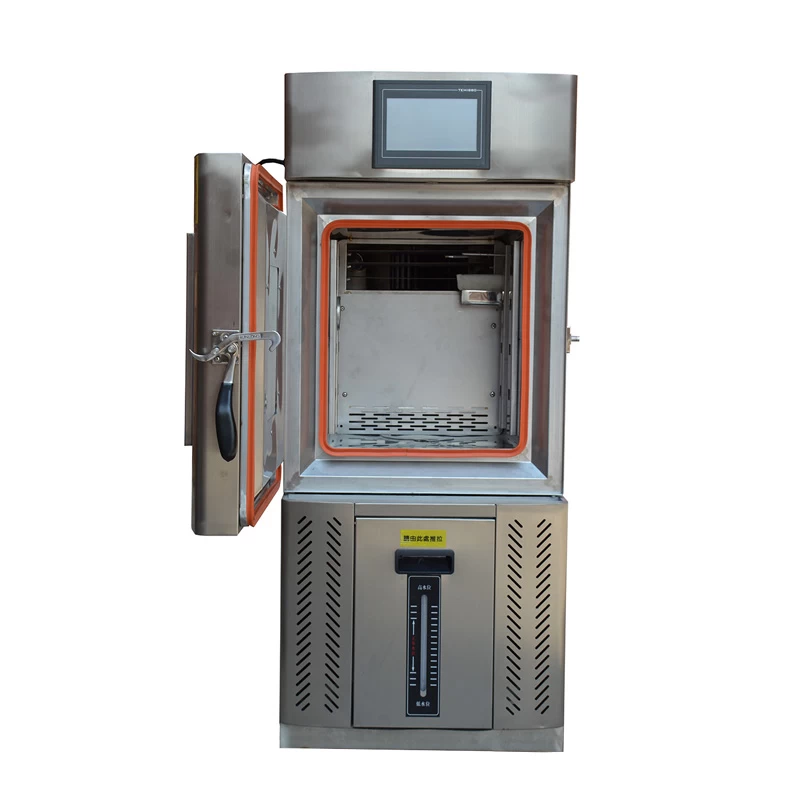

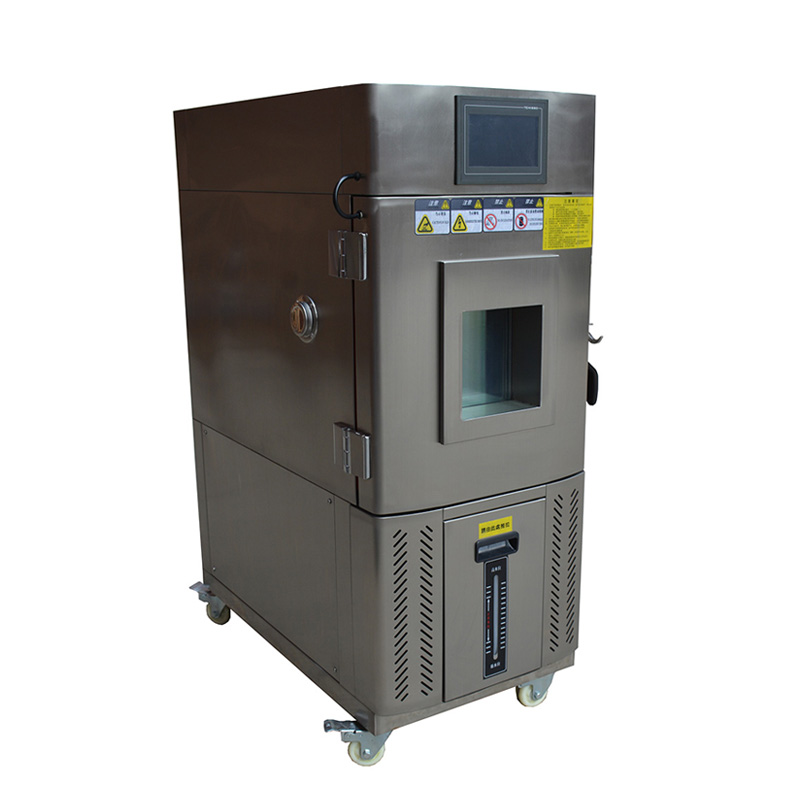

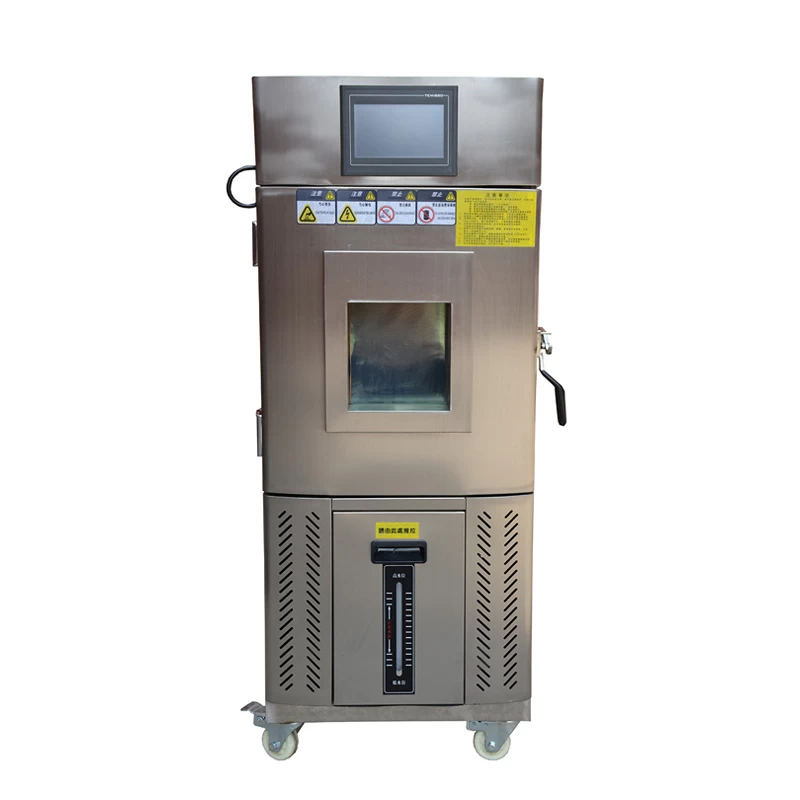

Small Constant Temperature and Humidity Chamber for Lab Battery Testing

This constant temperature and humidity test chamber is mainly for laboratory simulate the battery life in different climate environment.



1 This constant temperature and humidity test chamber is mainly for laboratory material performance analyzing and factory testing and inspecting quality of product. In lithium ion battery industry, it is for ready-made battery cell charging, discharging, cycle, capacity performance testing in different temperature and humidity, simulate the battery life in different climate environment.



2 The system consists of the following: refrigeration system, heating system, humidification system, dehumidification system, waterway system, air duct system, control system, system safety protection device, etc.



3 Specification:

Model

Constant Temperature and Humidity Test Chamber AOT-HLC-42L

ACSource

AC 220V±10%50HZ (custom voltage available)

Power

3.5KW

Warranty

One year warranty with life time technical support

Temperature range

-20℃ to 150℃

Temperature rise

From 20℃ to -20℃, about 40 minutes

Temperature fall

From 20℃ to 100℃, about 40 minutes

Temperature fluctuation

Less than±0.5℃

Temperature uniformity

Less than±1℃

Temperature deviation

Less than±2℃

Humidity range

20% -98%R.H (AT+25℃~+85℃)

Humiditydeviation

+2/-3% R.H (above 75%R.H ) ;±5% R.H (under 75%R.H )

Wind speed

From1.7m/s to2.5m/s

The parameter mentioned above is measured under temperature≤25℃, normal pressure, no-load and no-load conditions, 1/6 space from the inner wall of the cabinet.

Inner box size(L*W*H)

350mm*300mm*400mm

Dimension(L*W*H)

550mm*870mm*1400mm

Cable hole

One 50mm diameter hole on the side of chamber(can be customized)

Workshop material

SUS304 mirror stainless steel plate

Box shell material

SUS304 stainless steel

Box door

A multi-layer insulating glass observation window is installed on the gate, and a heating anti-frost device is provided.

Lighting

A (AC12V) 20W halogen lamp is installed on the chamber door.

Safety device

With over temperature protection, grounding etc

Shelf

Two-layer adjustable height stainless steel strip shelves

Safety protection device

Safe and reliable grounding device;

Studio over temperature protection;

Heater short circuit protection;

Humidifier short circuit protection;

Fan overload protection;

Compressor overpressure protection;

Compressor overload protection;

Water shortage protection;

Leakage Protection.
