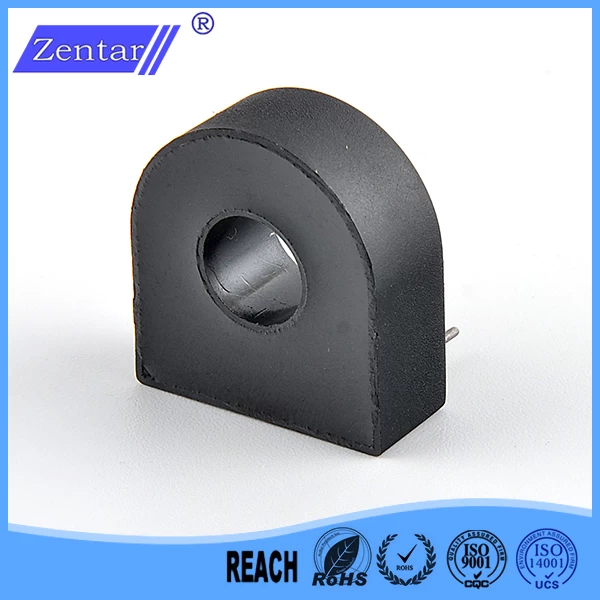

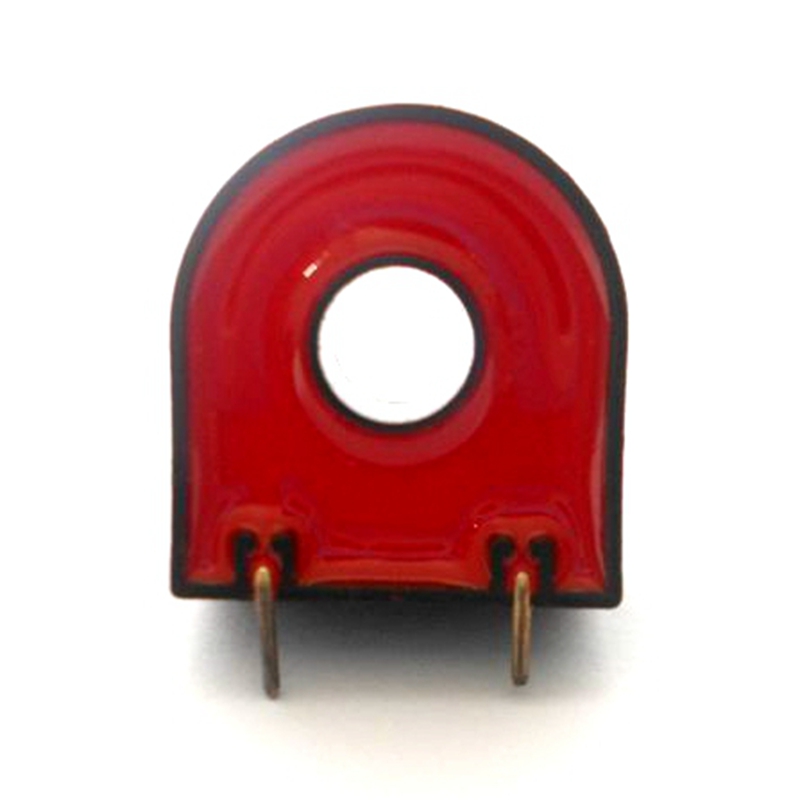

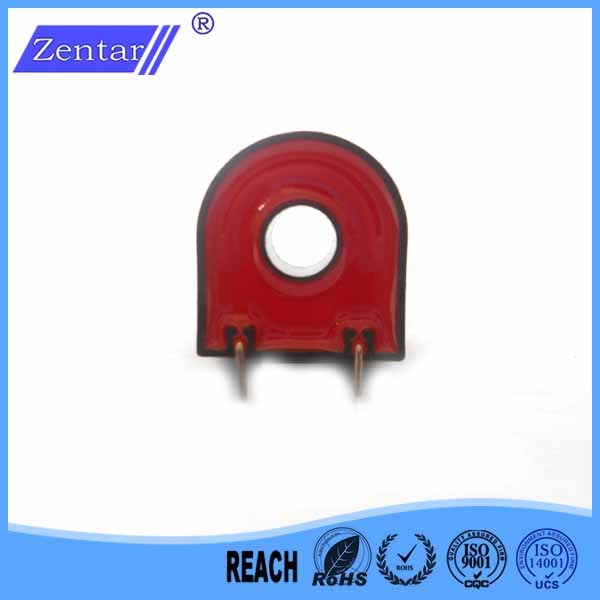

Small current transformer accuracy PCT702

﹡High precision,wide linearity range for output current ；

﹡Small size and elegant looking ；
﹡Mount directly to PCB；
﹡A variety of configuration and output characteristics；

﹡Used for electric metering；

Facebook Twitter Pinterest LinkedIn 分享

Small current transformer accuracy PCT702


Rated Primary Current 20A
Max Primary Current 80A
Rated Secondary Current 8mA
Accuracy 0.1~2.0
Electrical Strength 3000VAC 1mA60s
Load Resistance 10Ω
Rated Frequency 5060HZ
High accuracy current transformer supplier


Electrical Characteristics

Model No.

Electrical Characteristics

Dimension(Unit: mminch)

Standard PN

Current Ratio

RL(Ω)

Accuracy Class

A

B

C

D

E

F

Pin

506

10A5mA
（max10A）

10

0.5
1

5

17

9.5

20

12.5

11.5

0.8

PCT506N200

0.197

0.669

0.374

0.787

0.492

0.453

0.031

516

5A5mA
（max10A）

10

0.5
1

7

17

7

19

2.5

13.8

0.8

PCT516N100

0.276

0.669

0.276

0.748

0.098

0.543

0.031

701

10A5mA
（max60A）

10

0.2
0.5

23.5

7

11

24.75

15.2

19

1.0

PCT701N200

0.925

0.276

0.433

0.974

0.598

0.748

0.039

702

20A10mA
（max80A）

10

0.2
0.5

26

9

17

28

15

19

1.0

PCT702N200

1.024

0.354

0.669

1.102

0.591

0.748

0.039

703

20A10mA
（max150A）

20

0.1
0.2

37.2

13

14

38.6

25

32.5

1.0

PCT703N200

1.465

0.512

0.551

1.520

0.984

1.280

0.039

704

20A10mA
（max60A）

20

0.1
0.2

8

24.2

11.8

25.4

15.2

-

0.8

PCT701N200

0.315

0.953

0.465

1.000

0.598

-

0.031

710

5A2.5mA
（max25A）

10

0.1
0.2

24

8

11.8

25

15.25

10

0.8

PCT710N200

0.945

0.315

0.465

0.984

0.600

0.394

0.031

713

20A10mA
（max180A）

10

0.5%
1%

9.5

24.8

7.5

26.8

15.25

12.4

□0.64

PCT713S200

0.374

0.976

0.295

1.055

0.600

0.488

0.025


Characteristics Curve



Testing



Packing and Shipping

We are providing customized service and expertise in consulting, design and manufacturing of current transformers, RCD fused connection unit and wireless energy monitor.
