Small Glass Cutting Machine

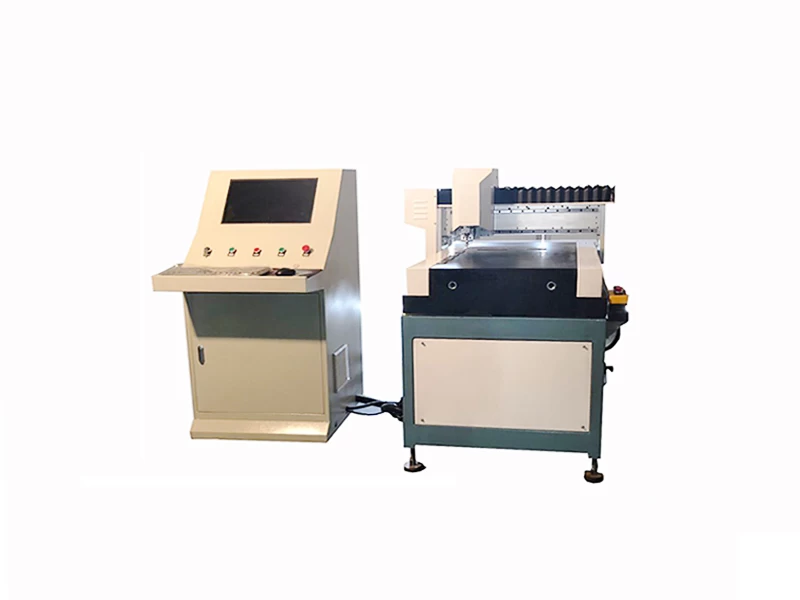

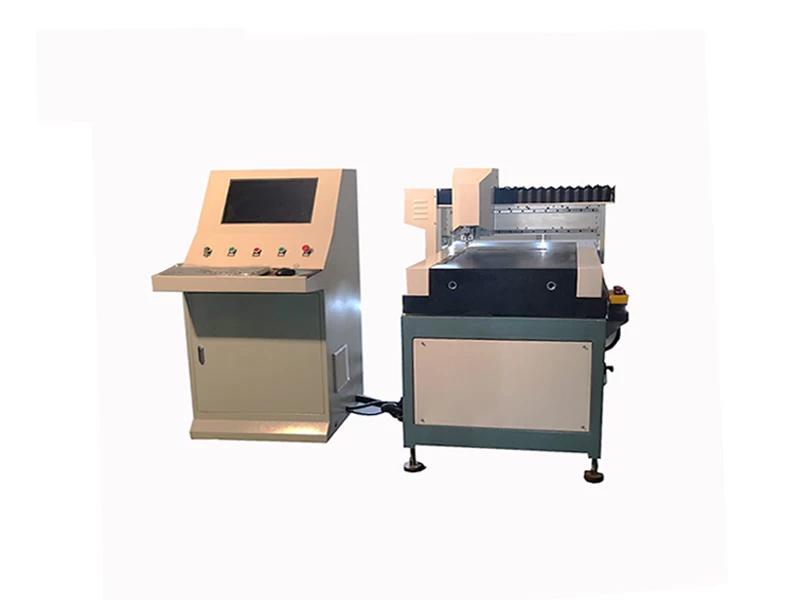

SY-6050 CNC small glass cutting machine is used for the cutting of ultra-thin glass,Suitable for cutting ultra-thin glass, such as optoelectronic glass, liquid crystal glass, display glass, mobile phone glass and conventional glass. All kinds of shapes can be cut at one time. The cutting efficiency is high, the precision is good, the finished product rate is high and the operation is simple and convenient. No technical requirements for operators. You can cut all kinds of shapes at will. Can work with ultra thin glass loading machine, to achieve ultra thin glass loading, cutting, breaking assembly line operation.  (Could add CCD positition )Can be added to the CCD positioning device to achieve positioning cutting (customized according to customer needs)


  • Processing RangeOLED Glass, Photoelectric Glass, Liquid Crystal Glass, Display Glass, Mobile Phone Glass, Touch Screen Glass
  • Size Range10*10mm-600*500mm
  • Warranty1 Year

Parameter

Cutting thickness: 0.2-5mm

Cutting maximum size: 600*500mm

Machine weight: 1000kgs

Cut parallelism: ±0.1mm / 500mm (small glass straight line tolerance can be controlled within 0.05mm)

Cut diagonal: ±0.1mm / 500mm (small glass straight line tolerance can be controlled within 0.05mm)

Tolerances for special-shaped cutters: ±0.1mm

Cutting speed: 0-75 m / min (adjustable)

Power: 4.05kw


Configure

Drive system: X,Y,Z axis adopts Yaskawa Japan servo motor

Oil supply mode: automatic oil injection device

Positioning device: pneumatic positioning device

Mechanical configuration: Taiwan imported silver guide rail, rack: Japan KHK rack

Table: Marble table, with floating device.

Pneumatic element: SMC

Electrical components: CHINT

Computer Configuration : HKC


Software

Use Galil (USA) professional glass cutting software. CAD drawing,  directly click on the thickness of the glass, automatic pressure adjustment and glass cutting distance to achieve automatic cutting.


Quick-wear part: cutter (NIKKEN)
