Small High Speed Vibrating Ball Mill Gringding Machine
Product Specification
TOB-GZQM-80 ball milling machine is a compact high speed vibrating ball mill for making small quantity of powder samples at easy and fast with improved vibration design.
It can be used for both dry and wet mill method to mill different material of solid, suspended liquid, and paste in laboratory.
It has higher impact energy created by three dimensional movement, e.g. rotation, vibration and oscillation with frequency up to 1200 cycles per minute.
|
Model
|
TOB-GZQM-80 High Speed Vibrating Ball Mill
|
|
Voltage Supply
|
110V/220V, 50/60HZ Customized
|
|
Power
|
180W
|
|
Oscillation Frequency
|
1,200 rounds/min
|
|
Timing Range
|
0 to 120 minutes for built in mechanical timer
|
|
Volume
|
Stainless steel tank 80ml
|
|
Maximum Feeding Capacity
|
1/3 of the capacity of the ball milling tank
|
|
Feeding Granularity
|
<1mm
|
|
Discharging Granularity
|
0.1 micron minimum
|
|
Overall Dimensions
|
405mm(L) x 365mm(W) x 260mm(H)
|
|
Net Weight
|
40 kg (88 lbs)
|
|
Warranty
|
one years limited warranty with life time support
|
|
Shipping Dimensions
|
26"(L) x 26"(W) x 24"(H)
|
|
Shipping Weight
|
62kg. (135 lbs)
|

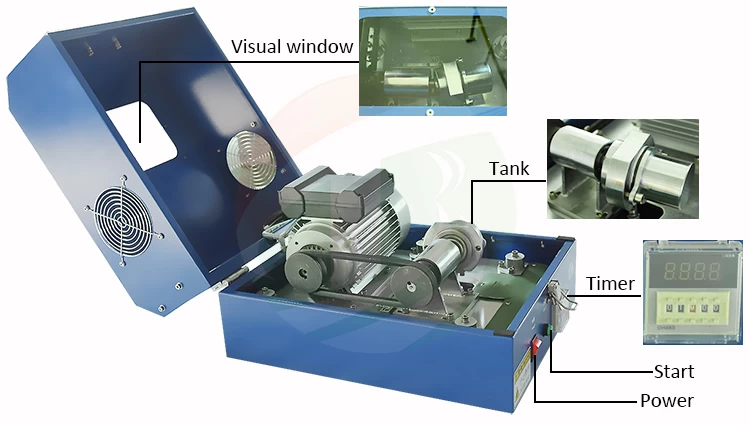

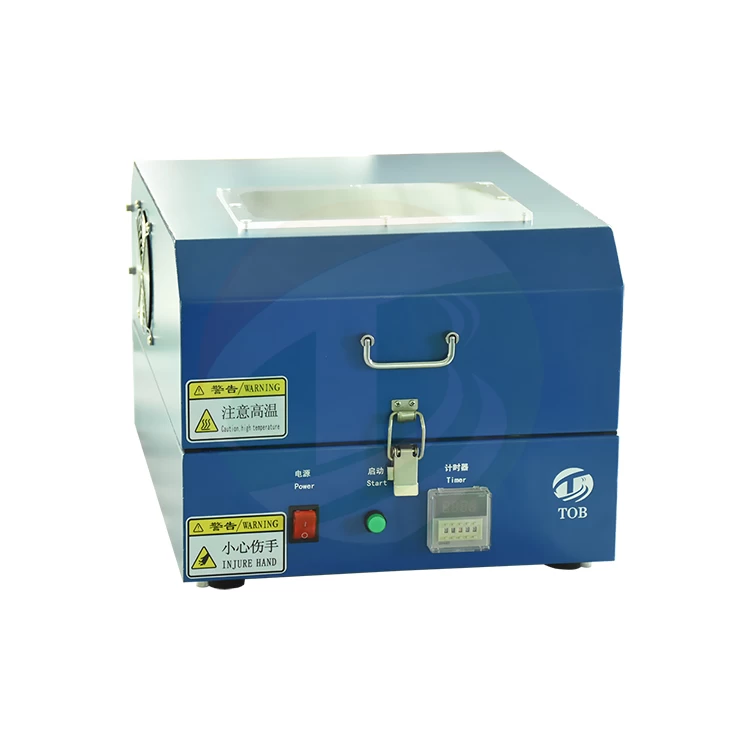

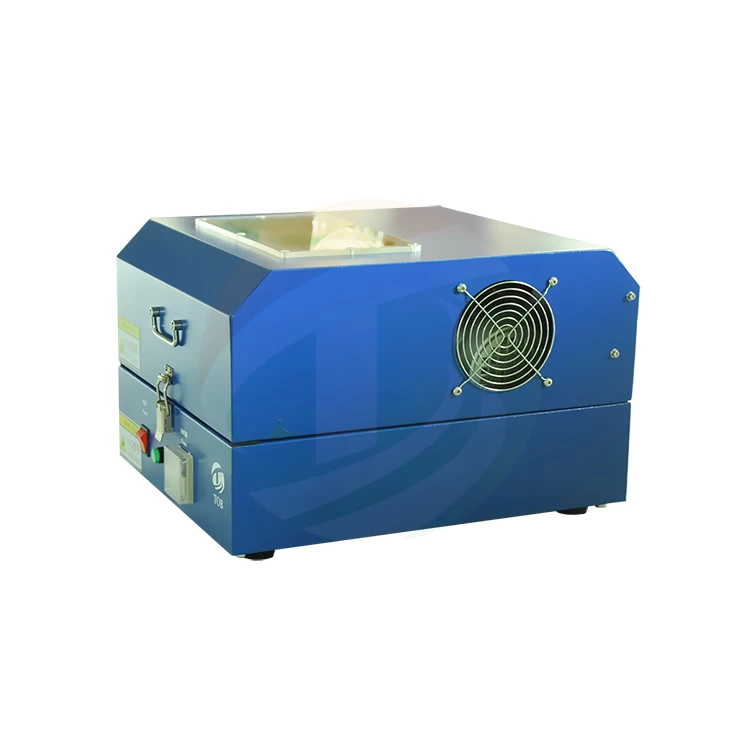

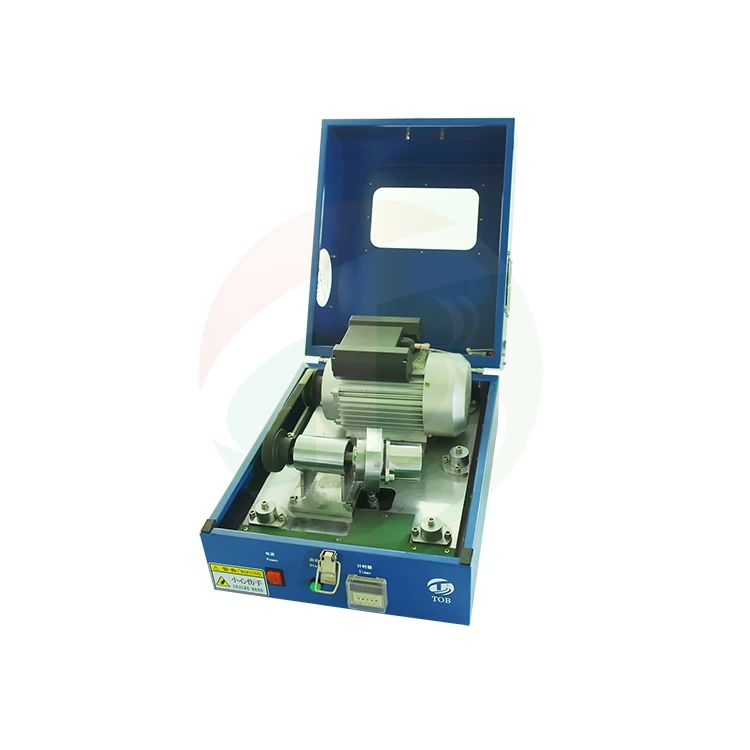

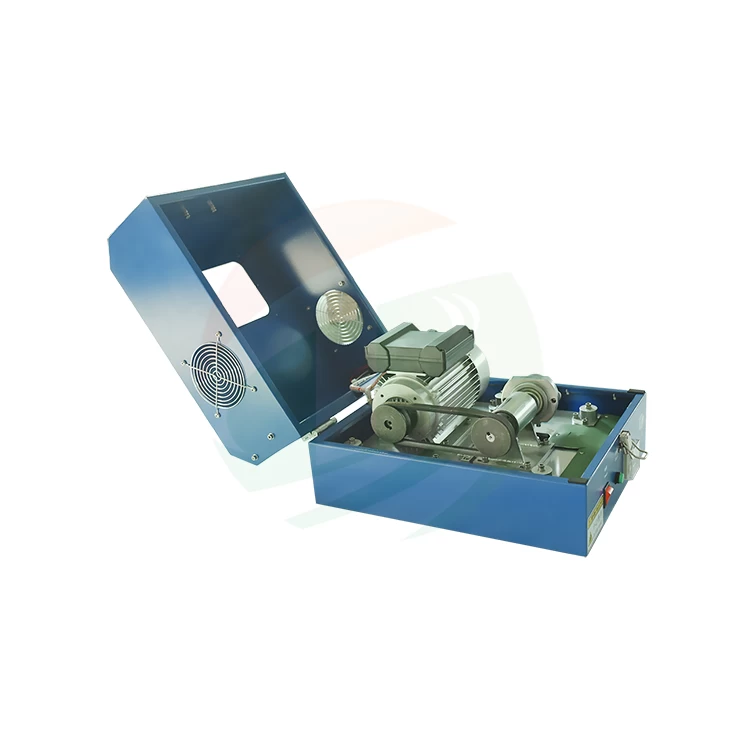

Product Image

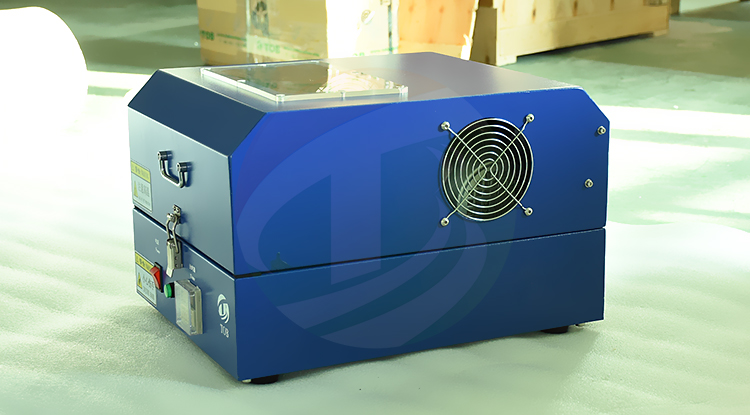

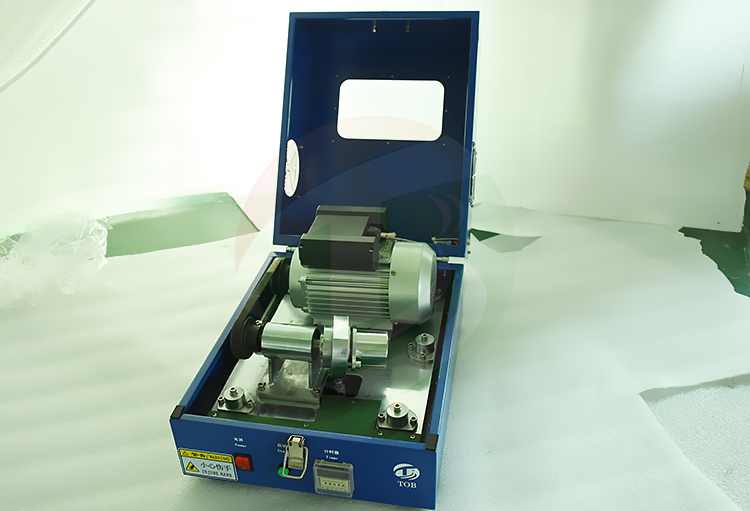

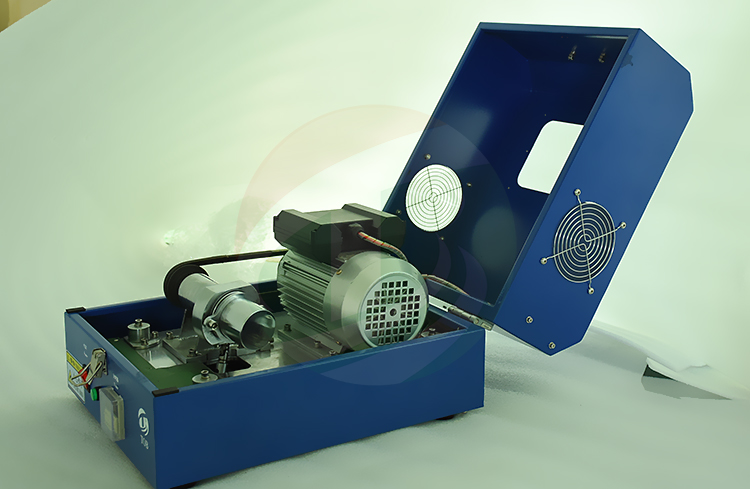

Product Packing
