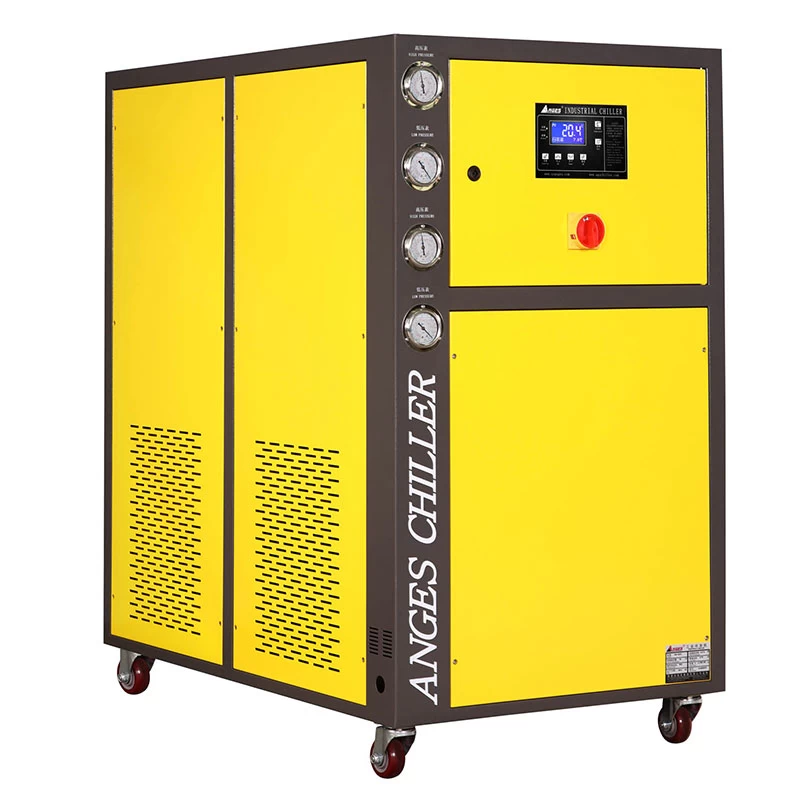

Small Industrial Water Chiller Units AWK-6
Specification
|
Model Item
|
AWK-6
|
|
nominal cooling capacity
|
kcal/h
|
16340
|
|
kw
|
19
|
|
input power
|
kw
|
4.65
|
|
power supply
|
3PH 380V 50HZ
|
|
refrigerant
|
type
|
R22/R407C/R410A/R134A
|
|
type of control
|
capillary
|
|
compressor
|
type
|
hermetic scroll type
|
|
power(kw)
|
3.9
|
|
condenser
|
type
|
shell and tube
|
|
cooling water flow(m3/h)
|
3.9
|
|
inlet/outlet pipe caliber（inch）
|
1 1/2
|
|
evaporator
|
type
|
shell and tube+water tank
|
|
chilled fluid flow(m3/h)
|
3.3
|
|
volume(L)
|
60
|
|
inlet and outlet pipe diameter(inch)
|
1
|
|
pump
|
power(kw)
|
0.75
|
|
lift(m)
|
20
|
|
safety protection
|
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
|
|
weight
|
kg
|
210
|
|
dimension
|
mm
|
1350*600*940
|
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃ Outlet chilled fluid temperature: 12℃
Inlet cooling water temperature: 30℃ Outlet cooling water temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
The temperature range of cooling water is from 18℃ to 37℃;
Temperature difference between inlet and outlet cooling water is from 3.5℃ to 10℃.
We reserve the right to modify the above dimensions or parameters without further notice.
