Small Lab Calender Machine for Lithium Battery Electrode Pressing
Product Specification
1 TOB-DR-200L Lab Roll Press Machine is a compact precision Electric Calender machine. It has dual rollers of 100mm dia. x 200mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
2 This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.
|
Model
|
200mm Width Electric Calender TOB-DR-200L
|
|
Working Voltage
|
110V / 220V AC single phase selectable
|
|
Power
|
200W Total
|
|
Warranty
|
One year limited manufacture warranty with lifetime support
|
|
Structure
|
1 Heavy duty steel frame, gears and handle
2 Φ100mm Dia. x 200mm width Rollers made from hardened tool steel (HRC > 62)
with Cr electroplated coating
3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum
|
|
Roller
|
Dimensions: 100mm(Dia.) x 200mm(W)
Material: Made from hardened tool steel (HRC > 62)
with Cr electroplated coating. With finish > 0.8
|
|
Rolling press accuracy
|
≤±0.005
|
|
Roller surface
hardening depth
|
5mm
|
|
Max pressure
|
5T
|
|
Rolling press thickness
|
0-2mm adjusted with Dial gauge
|
|
Rolling press width
|
Max 200mm, Customized
|
|
Rolling press speed
|
0-2m/min adjustable
|
|
Product Dimensions
|
700 mm(L) x 320mm(W) x 310mm(H) (28" x 12.5" x 12.2")
|
|
Weight
|
76kg
|
|
Electrode
|
Size
|
Original thickness
|
Finished thickness
|
|
LiFePO4
double sides
|
50mm Width x 260mm Length
|
0.205mm
|
0.09mm
|
|
LiMn2O4
double sides
|
50mm Width x 260mm Length
|
0.205mm
|
0.09mm
|
|
Copper foil + graphite
(single side)
|
75mm Width x 240mm Length
|
0.09mm
|
0.04mm
|
|
Sample testing is available upon customer's request
|

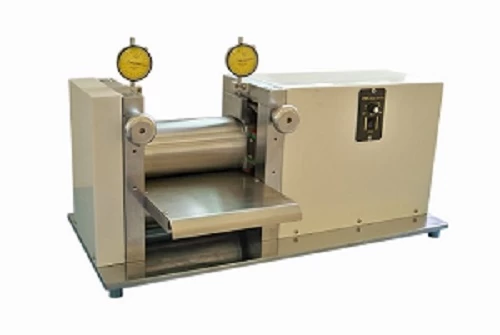

Product Image
