Transmission
|
Gear transmission
|
|
Work
|
Two or four tanks simultaneously milling
|
|
Max sample loading capacity
|
2/3 of Tank volume
|
|
Tank volume
|
Each tank :0.05L-50L, total volume :0.2L-20L
|
|
Feed size
|
Soil material ≤10mm, other material ≤3mm
|
|
Discharge size
|
Mix 0.1um
|
|
Speed ratio (revolution: Rotation)
|
1：2
|
|
Speed (rotation)
|
0-900 r / min (ordinary), 0-1400 rev / min (high-speed type);
|
|
Velocity modulation way
|
Stepless speed regulation
Speed Accuracy 0.2 rev / min;
|
|
Programmable control
|
Ball mill using high-tech micro-computer chip control,
can set the program forward and backward alternately
run (0-999min) and forward, pause, reverse, pause,
forward (0-999min) alternate operation, particularly
suitable cooling or if you need to run it intermittently
|
|
Maximum continuous working time (full load)
|
72 hours (timer 0-9999h)
|
|

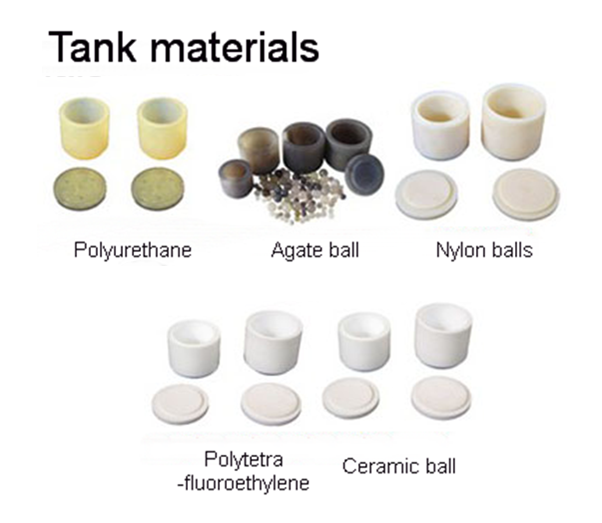

Various optional materials of milling tank
|
Agate, alumina corundum ceramics, zirconia ceramics,
silicon nitride ceramic, silicon carbide ceramic,
stainless steel, high wear-resistant steel,
manganese steel, nylon, PTFE,
polyurethane, carbide, crystal glass,
and other special metal materials and so on;
|
|
Optional milling media
|
Agate, alumina, zirconia, silicon nitride, silicon carbide,
stainless steel, high wear-resistant steel, manganese steel,
nylon, polyurethane, carbide, glass, and other special metals, etc.
|
|
Optional milling environmental conditions
|
Vacuum ball milling, the inert gas milling,
cold milling, ball milling high temperature
|
