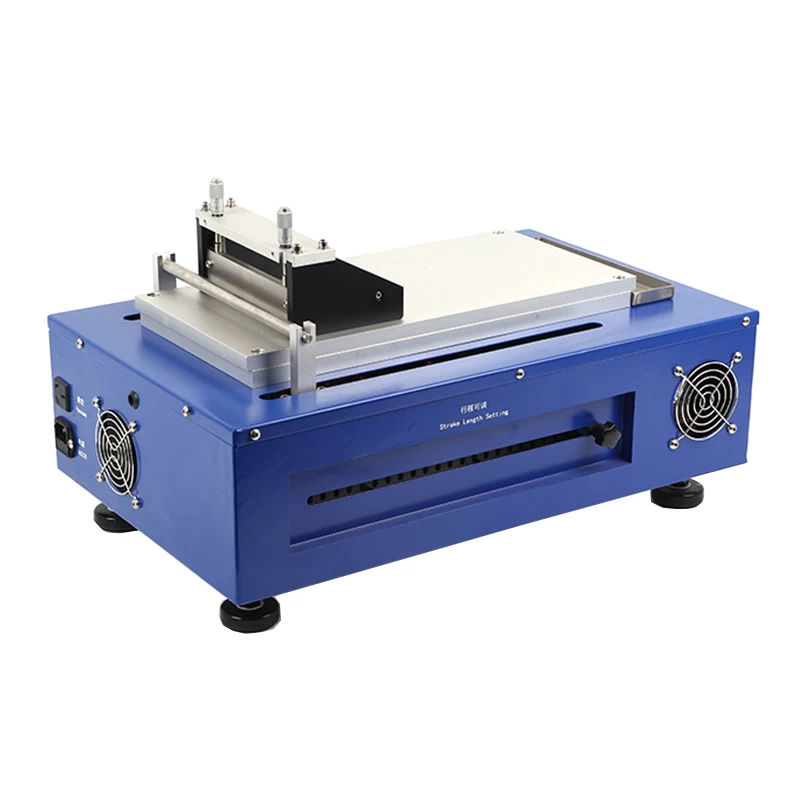

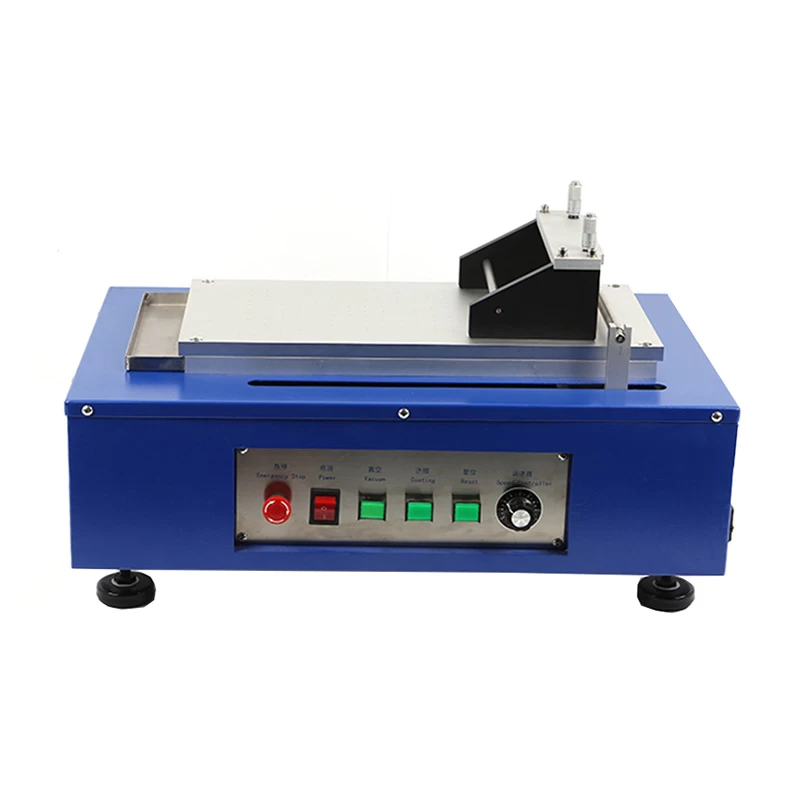

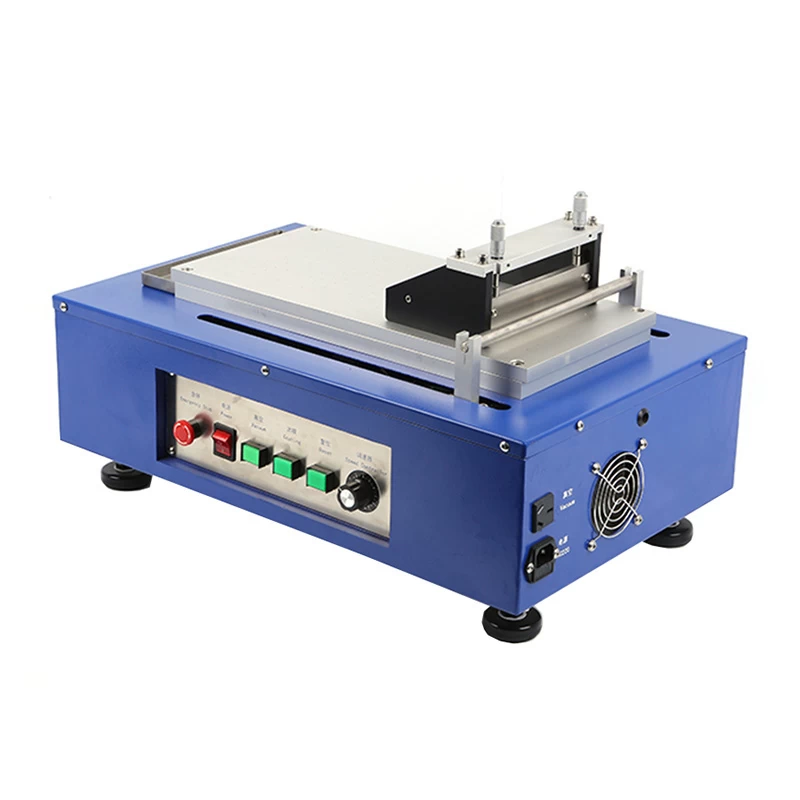

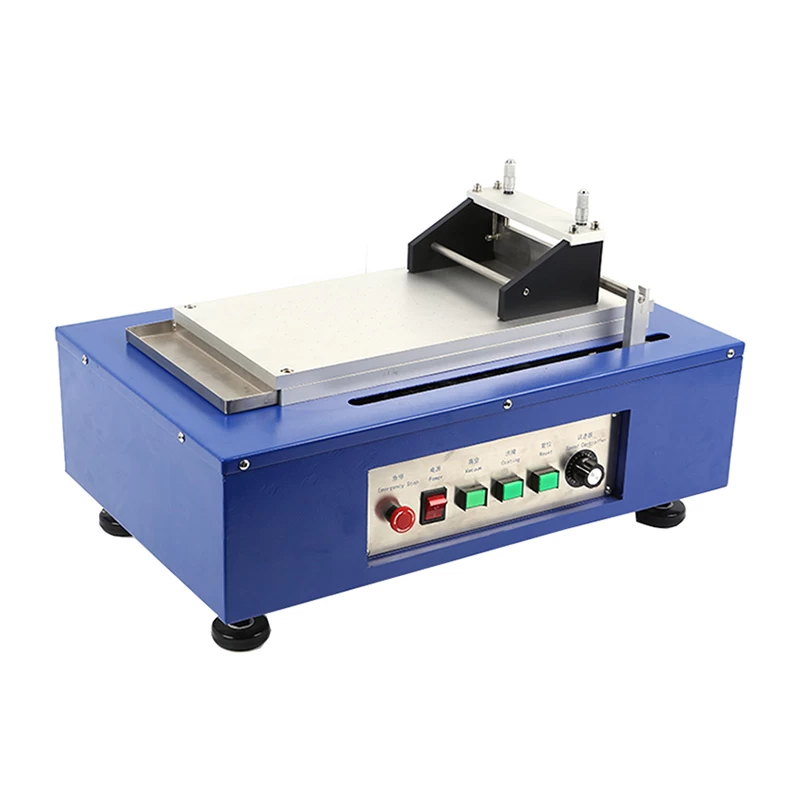

Automatic LabVacuumCoater Machine with Film Applicator for Various Materials
Battery cell lab equipment ( VACUUM COATER MACHINE ) :
This equipment is widely used for research of all kinds of film coating,
like ceramic films, crystal films, battery material films, and special nano-films.
Features :
1. Coating speed is at the range of 0~100mm, adjustable.
2. Vacuum aluminum plate, used to place and take off the substrate in quick.

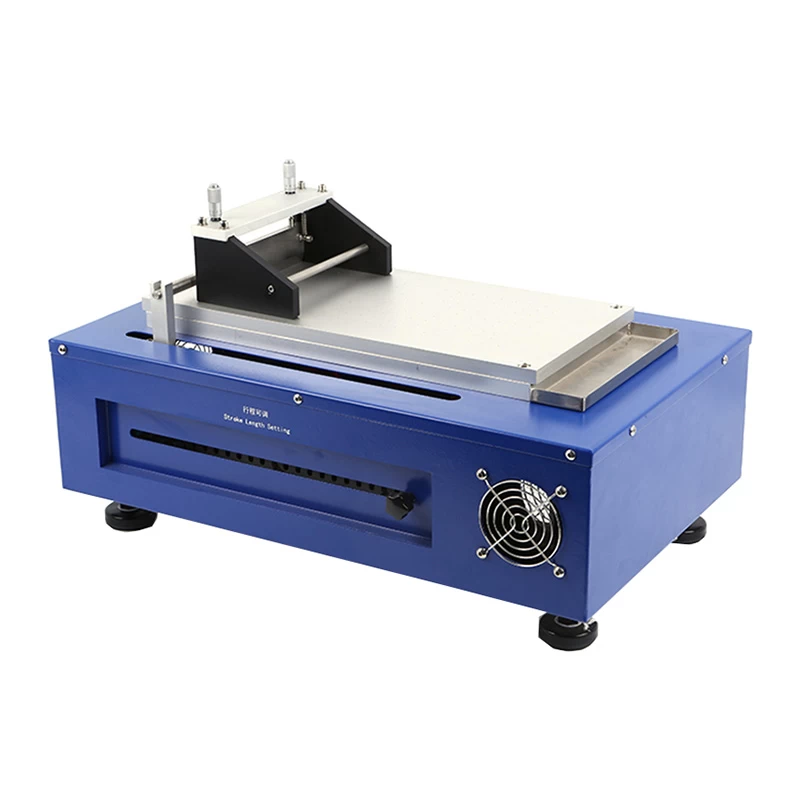

3. Stroke can be regulated by travel switch at the range of 0~300mm.
4. Accuracy of adjustable coating machine is 0.01mm.
5. Small dimension saves space.
|
Item Name
|
BatteryCellVacuumCoating Machine AOT-FCM-100-B
|
|
Voltage
|
AC 110/220V, 50/60HZ
|
|
Power
|
200w
|
|
Coating Speed
|
0~100mm/s
|
|
Vacuum Plate
|
The machine is equipped with vacuum aluminum plate
|
|
Max Stroke
|
300mm(customized size is available)
|
|
Film Width
|
100mm
|
|
Dimension of vacuum plate
|
L410mm×W200mm×H30mm
|
|

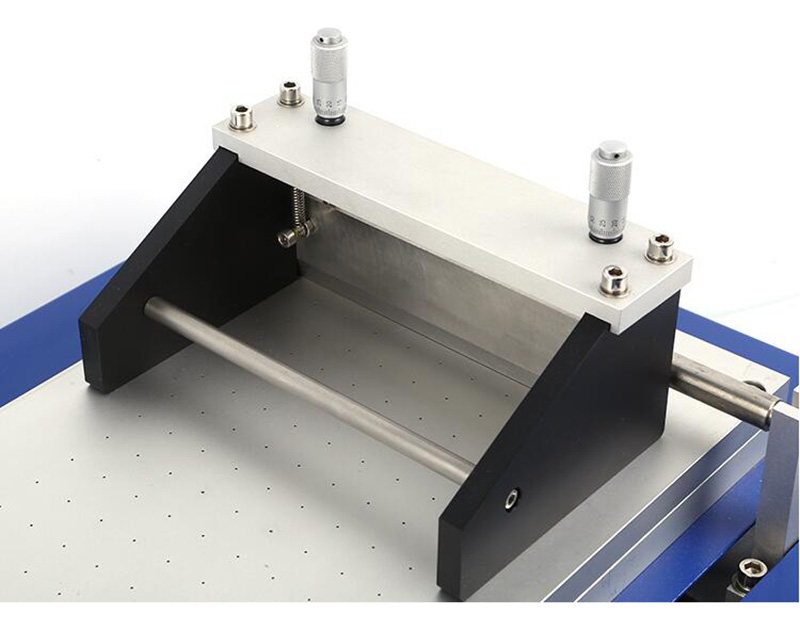

Regulating range of applicator
|
0.01~3.5mm
|
|
Weight
|
50KG
|
|
Dimension
|
L550mm×W310mm×H3200mm
|
