Small Manual Winding Machine for Cylinder Battery
Product specification
LIO-JR135-Cylinder semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.
|
Model
|
Semi-Automatic Winding Machine LIO-JR135-C
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
40W
|
|
Warranty
|
·One Year limited warranty with lifetime support
|
|
Winding Speed
|
0 - 170 RPM Adjustable
|
|
Suitable battery size
|
Less than Φ35*L90mm, or according to your requirement
|
|
Winding Mode
|
Switchable between clockwise and counterclockwise
|
|
Output
|
70-100EA/h, according to battery size and maunal
|
|
Product Dimensions
(L*W*H)
|
550*310*270mm
|
|
Net weight
|
About 20kg (45 lbs)
|
|
Package size
|
720*320*280mm
|
|
Package weight
|
40kg
|
|
Application Notes
|

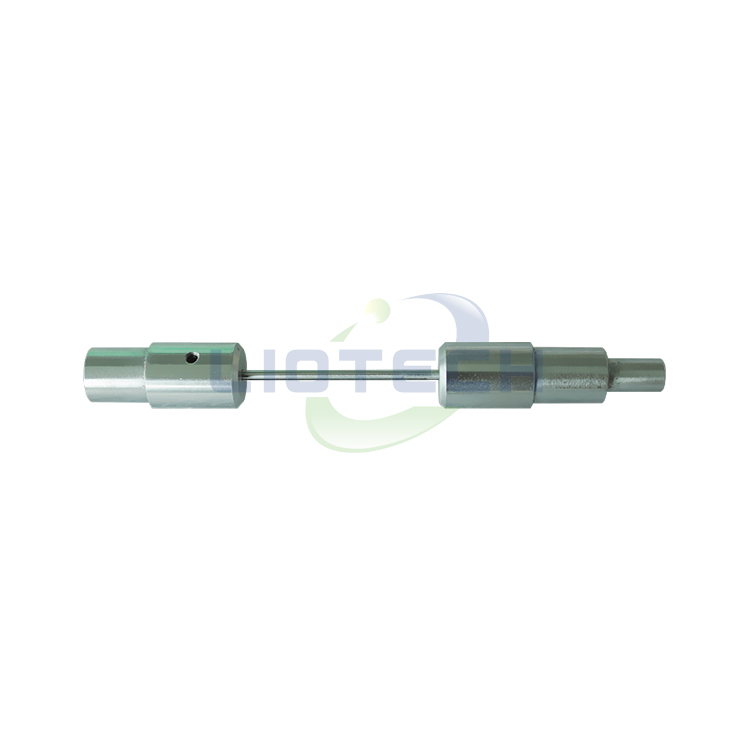

This machine can be used for cylinder battery with round winding shaft,
and you can also choose the square winding shaft for pouch cell core winding,
We will supply with the suitable winding accessories according to your battery model
|
