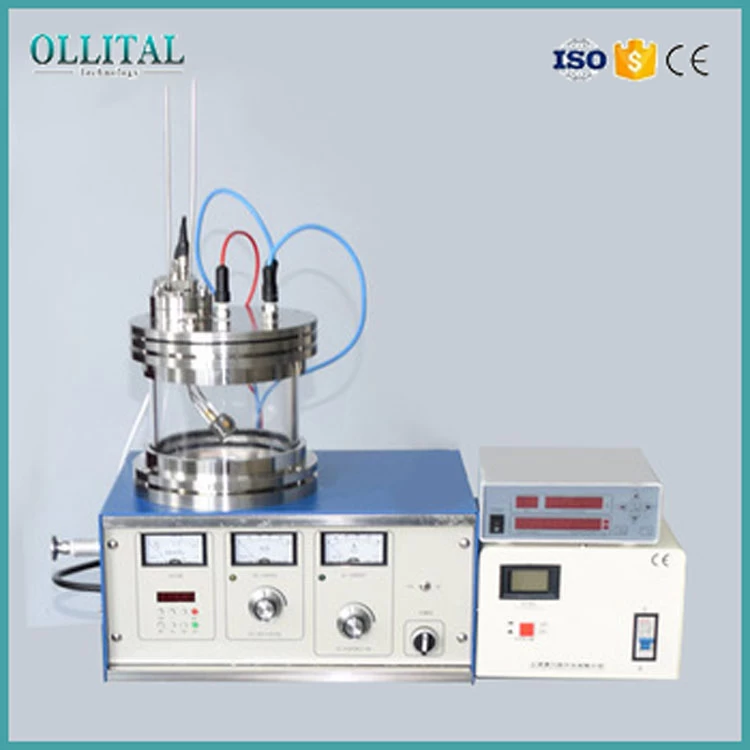

OLT-1100X-DSC-15E is a Evaporating coating system featuring single target sources:
OLT-1100X-DSC-15E is a compact evaporating coater, which is suitable for coating light metal, Al. Mg, and Li as well as carbon film to sample upto 2" wafer
|
Input voltage
|
AC 108V-220V
|
|
Input Power
|
< 2000W (including pump)
|
|
Output Power
|
1600VDC
|
|
50mA max.
|
|
Specimen chamber
|
Fused glass tube, 160 mm Dia. x 120mm Height
|
|
Specimen stage
|
One 50 mm Dia.sample stage
|
|
Max. coating area: 45 mm
|
|
Accessories included
|
156 L/m Double Stage Rotary Vane Vacuum Pump with Exhaust
|
|
Filter, Bellows & KF-D25 Inlet -EQ-FYP
|
|
Stainless steel bellows with KFD-25 adapter and clamps
|
|
10L/min recirculating water chiller is included to cool
|
|
magnetron head.
|
|
Gas Atmosphere
|
One needle valve installed to allow Ar gas inlet to achieve better
|
|
plasma coating
|
|
Target
|
One Au target: 50 mm dia. x 0.12 mm, 1pcs is included
|
|
Optional targets:
|
|
Pt target (50mm dia.x0.12mm, 4N) available
|
|
Ag target (50 mm dia. x 0.5mm, 4N) available
|
|
Overall Dimensions
|
L360mm x W300mm x H380mm
|
|
Net Weight
|
50 kg
|
|
Warranty & Certificate
|
One year limited with lifetime support
|
|
CE certified
|
|
Knowledge of Sputter Coating
|
For the best film strength, please use plasma cleaner to clean
|
|
sample surface before coating
|
|
For coating Al. Zinc and graphite light weight metallic material,
|
|
the sputtering coating is not efficient due to low energy,
|
|
please consider to use thermal evaporating coater
|
|
The system requires an Ar gas tank with pressure regulator
|
|
which is not included
|
1. Equipped with Rotary Vane vacuum pump, the system vacuum degree can match 10-2 Torr
2. Equipped with KF 25 Bellows and clamp, can connect with vacuum pump
3. Multi-function, can coat various metal and Carbon
