Small Size 1.22 Inch Round 240X240 High Resolution IPS TFT Touch Screen Factory Price
It is a IPS TFT LCD screen product with touch panel available. As mentioned TFT LCD, it means thin-film-transistor liquid-crystal display technology which improves image qualities such as contrast and addressability. A TFT LCD is an simple, direct-driven LCDs with a few segments or active matrix LCD, in contrast to passive matrix LCDs.
There are many adavantages for IPS TFT LCD including: high resolution, quick response, high brightness, etc.
IPS/TN TFT LCD Screen
Product Parameters
| Display Type |
TFT Display |
| Display Size |
1.22 Inch |
| View Angle |
IPS/TN |
| Resolution |
240x240 |
| Backlight Color |
White LED |
| Brightness |
450cd/m2 |
| Interface |
I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
| Control IC |
ST7789H2 |
| Connector |
FPC |
| Operating Temperature |
-20-70°C |
| Operating Voltage |
2.8V |
| Touch Panel |
Capacitive/Resistive |
| Requirements On Environmental Protection |
ROHS HSF |

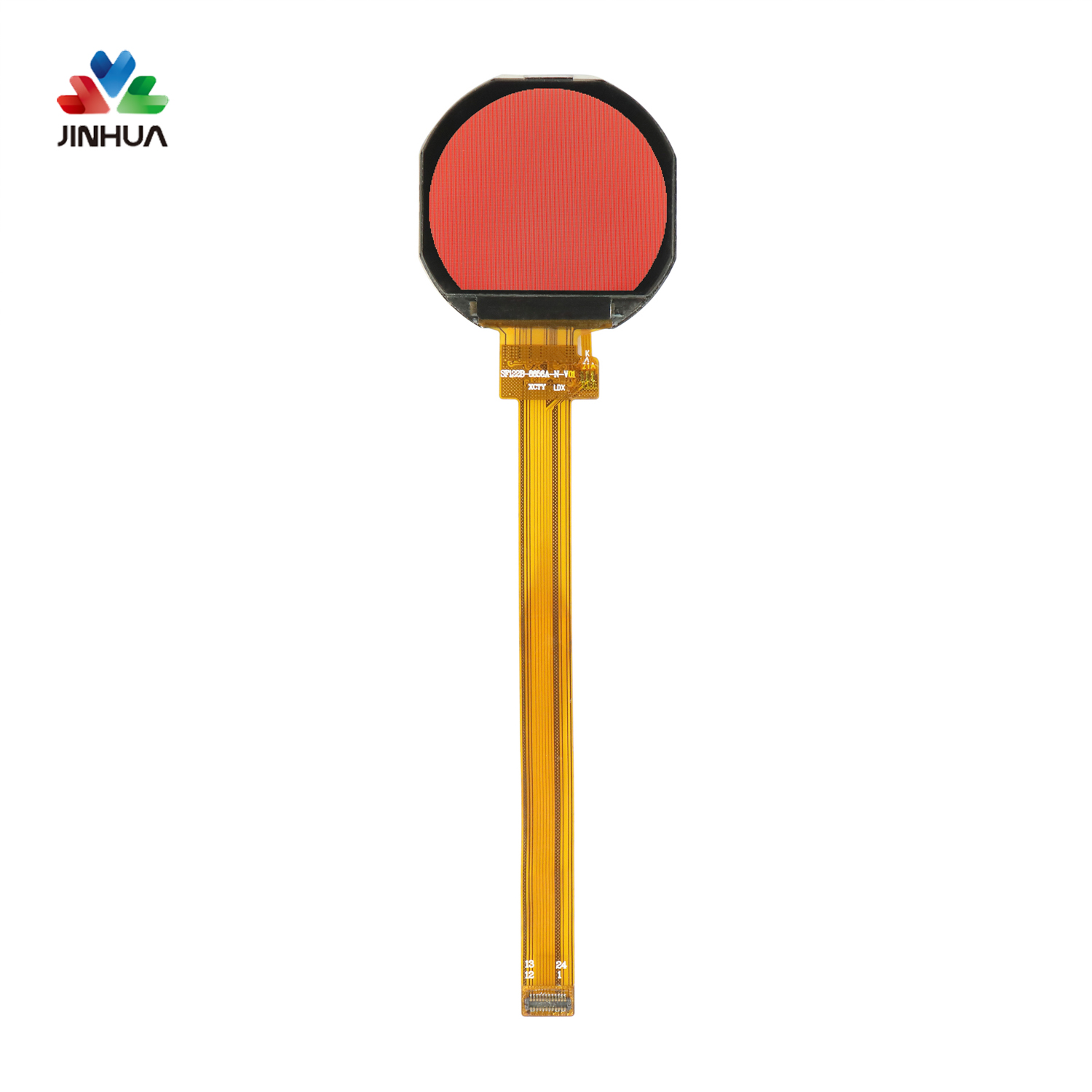

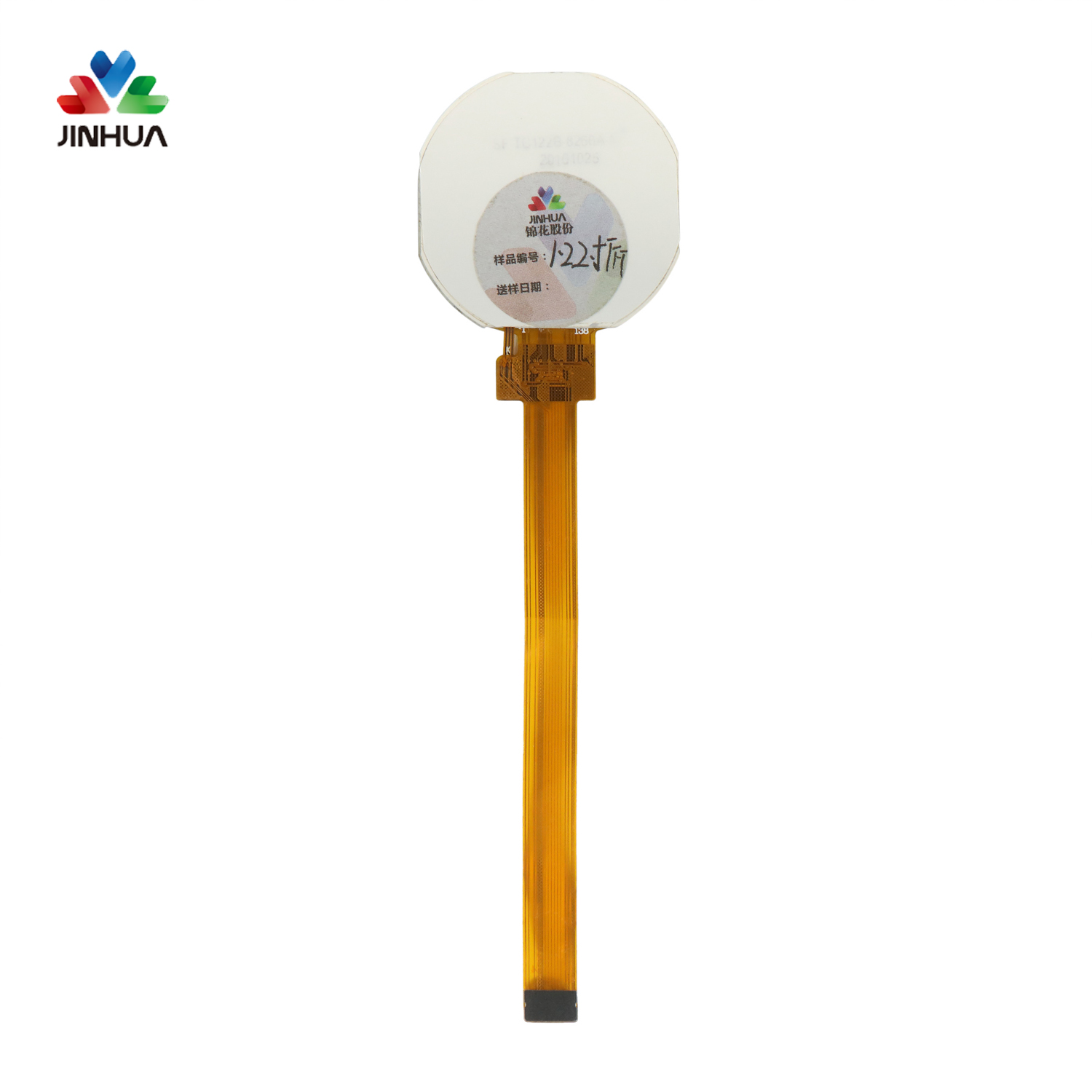

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
IPS/TN TFT LCD normally has a large wide range of opearting temperature from -40° to the lowest and 80° to the higest according to its design and process. It's widely used in all kinds of application such as smart home, smart medical, face recognition, smart phone, conversation terminal, instrument&meter, hand-held terminal, smart hardware, car network terminal, etc.
Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
