small size AC to DC 200W 24V 8.3A switching power supply open frame single output
Description:
K18S-UP200S series 200W 24V 8.3A smps belongs to 100-240vac input voltage and open frame switching power supply with PFC function, high quanlity,it is used in medical monitors and amplifier equipment.
Features:
1, 200W high efficiency 24V 8.3A switching power supply;
2, Wide range of AC input voltage,24V 200W single output power supply open frame;
3, Over load, over voltage and over temp.,protection;
4, 200W 24V small size power supply built-in active filter,low output niose.
Parameter
|
|
Item NO
|
K18S-UP200S24
|
K18S-UP200S36
|
K18S-UP200S48
|
K18S-UP200S63
|
|
Output
|
Output Voltage
|
+24V
|
+36V
|
+48V
|
+63V
|
|
Rated Current
|
8.3A
|
5.6A
|
4.2A
|
3.2A
|
|
Current Range
|
0-8.3A
|
0-5.6A
|
0-4.2A
|
0-3.2A
|
|
Rated Power
|
200W
|
200W
|
200W
|
200W
|
|
Ripple & Noise
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
630mVp-p
|
|
Adjustable Output Range
|
±5%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 200ms, 200ms
|
|
Input
|
Input Voltage Range
|
100-240V AC
|
|
Input Current
|
2A@115V AC
|
|
Input Frequency
|
50-60Hz
|
|
Power Factor
|
＞0.95@115V,＞0.99@230V
|
|
Efficiency @230Vac
|
91%
|
92%
|
92%
|
92%
|
|
Inrush Current
|
Cold start 15A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~180% Automatic protection
|
|
Short Circuit Protection
|
---
|
|
Over Temp., protection
|
---
|
|
Environment
|
Working Temp.,Humidity
|
-20~40℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943
|
|
Withstand Voltage
|
I/P-O/P:3KV; I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55022B
|
|
Others
|
Dimension
|
100*82*38mm(L*W*H)
|
|
Weight
|
0.4kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

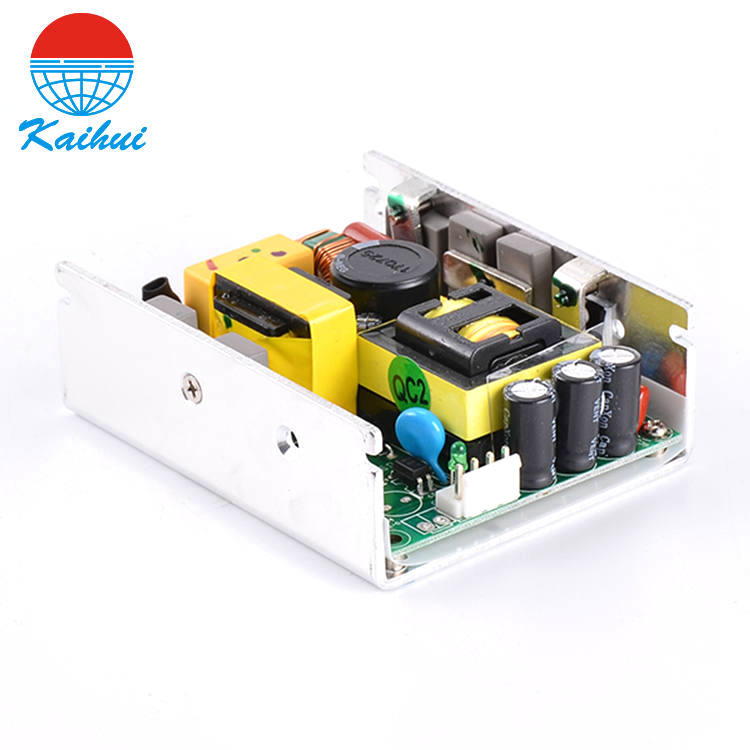

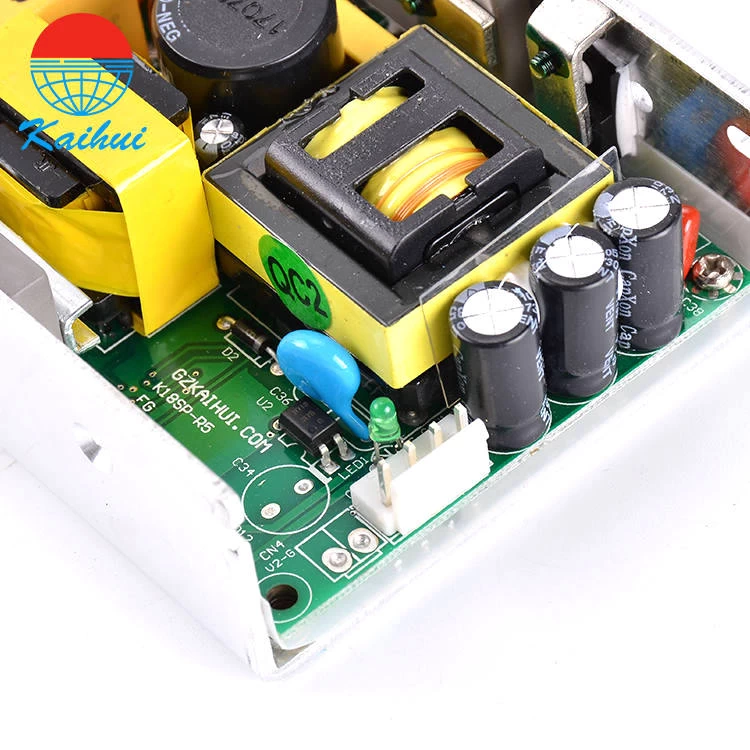

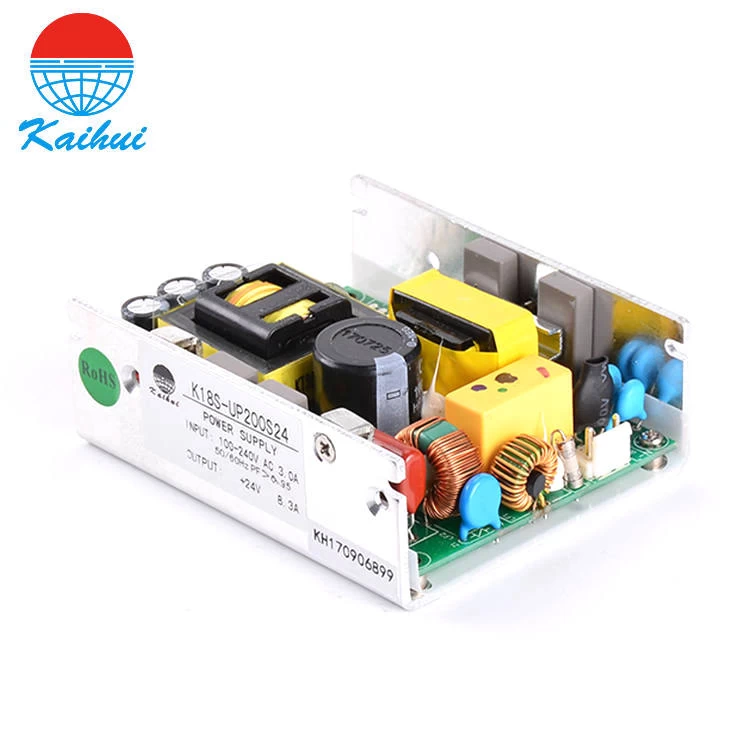

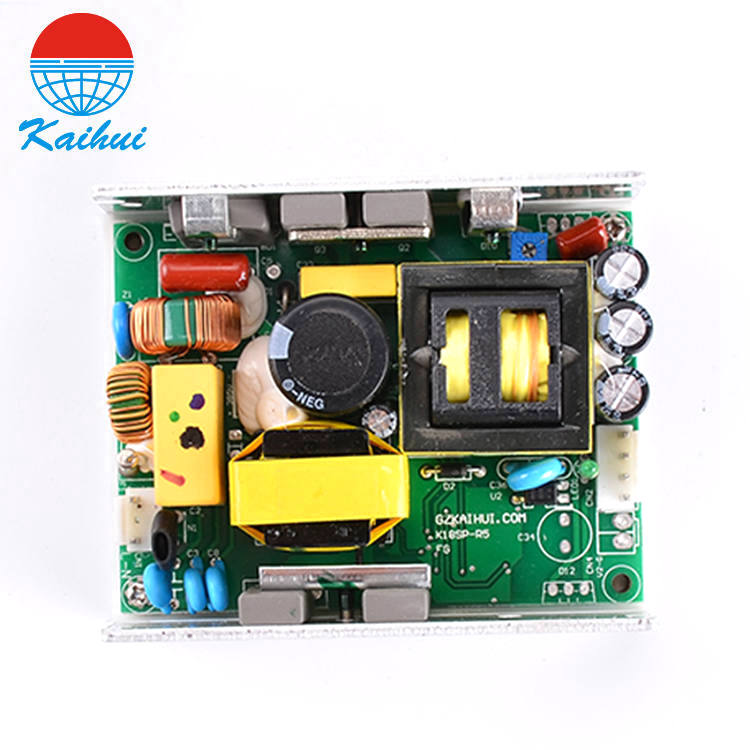

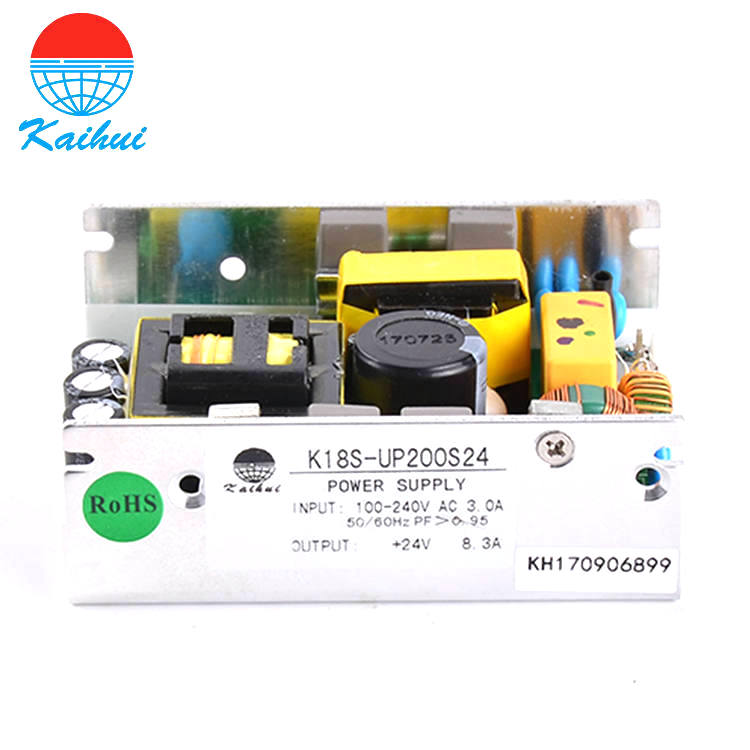

Product picture:
