HC01 series temperature switch for auto parts
Motor temperature switches can be used in many places in the car,such as car seat motors,window motors,wiper motors,car air conditioners,car water tanks,etc.These parts will be installed with temperature control switches.The temperature control switches used in these different parts is also different.We can classify the car seat motors,wiper motors and window motors into one category. The temperature control switches used in these types of motors are basically the same as small temperature control switches，such as HC01 series motor bimetallic temperature switches.
Features
Small size, long life and high reliability.
High level bimetal ensure that it can withstand the current of normal circuit.
The combination of bimetal and heater strip can action snappily.
Accurate trip off time can prevent motor from overheating.
Both temperature and current sensitive.
Each type of parts strictly implemented European ROHS environmental standards.
Terminals are optional and customized.
Available terminal specifications: A. same insert B. opposite insert C. same terminal D. opposite terminal E.
Wires are optional and customized.
Specifications
|
Item No.
|
HC01/6AP
|
|
Electrical specifications
|
45 amps/15 volts DC
|
|
15 amps/30 volts DC
|
|
28 amps/250 volts AC
|
|
30 amps/125 volts AC
|
|
Operating temperature range
|
30°C-180°C (optional and customized)
|
|
Temperature tolerance
|
±5°C,±8°C,±10°C
|
|
Trip off current range
|
1-45A
|
|
Trip off time
|
4-10s
|
|
Case material
|
Metal
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |

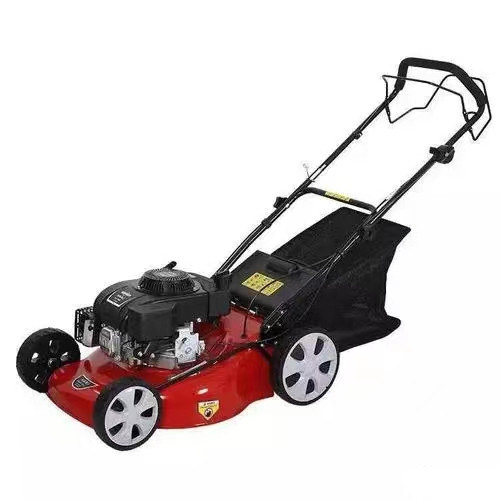

| Lawn mowers |

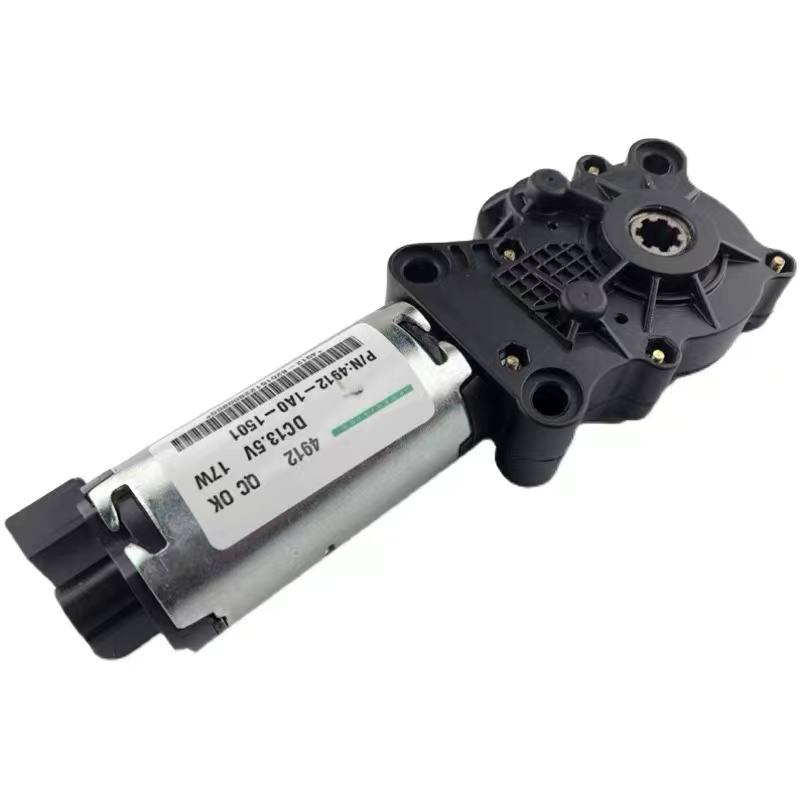

Seat motors |

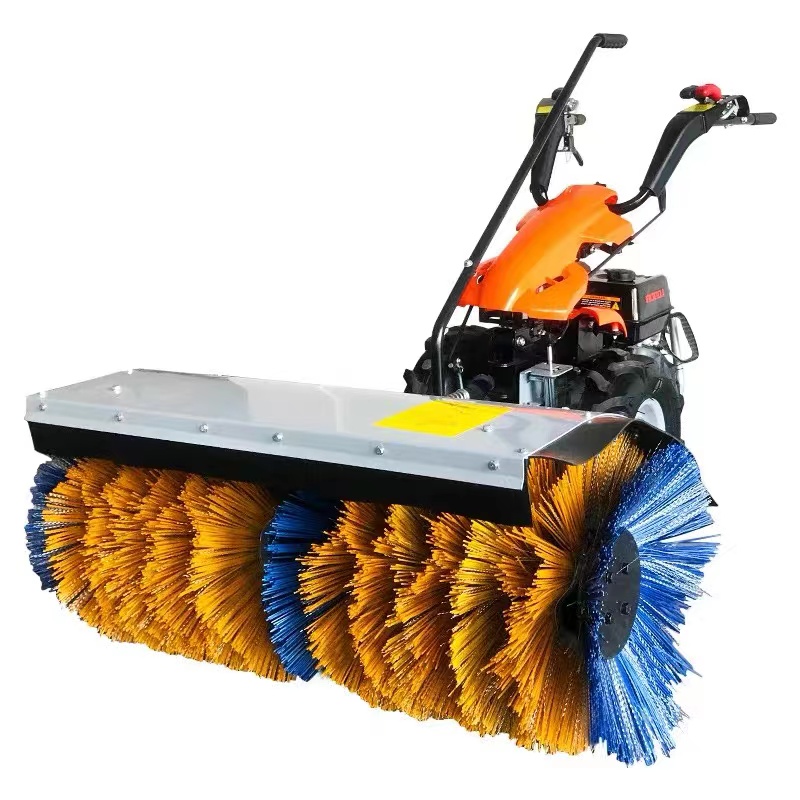

Snowplows |

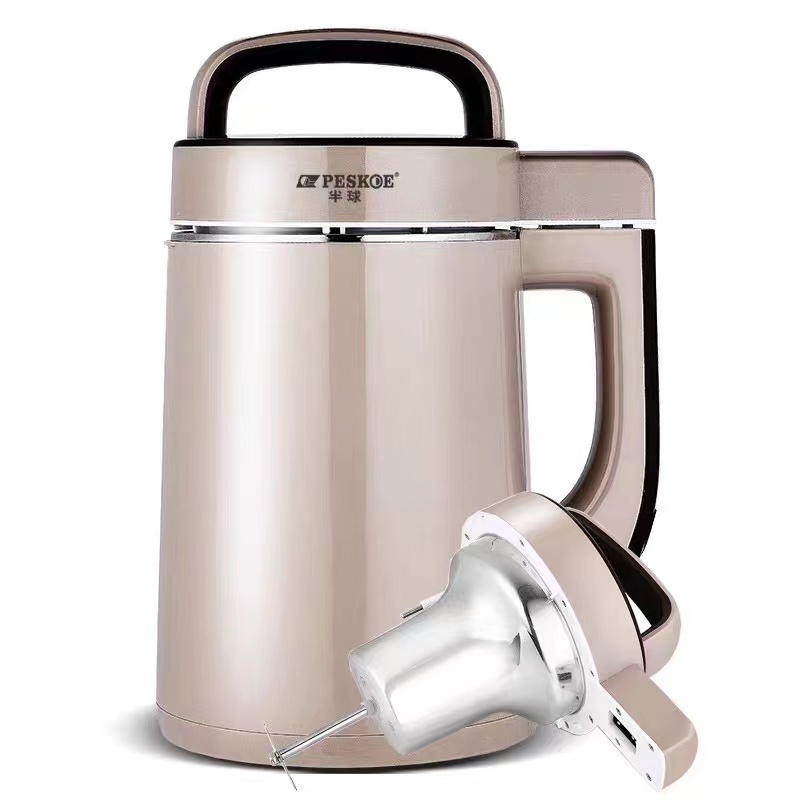

Soybean milk machines |
 |
 |
 |
 |

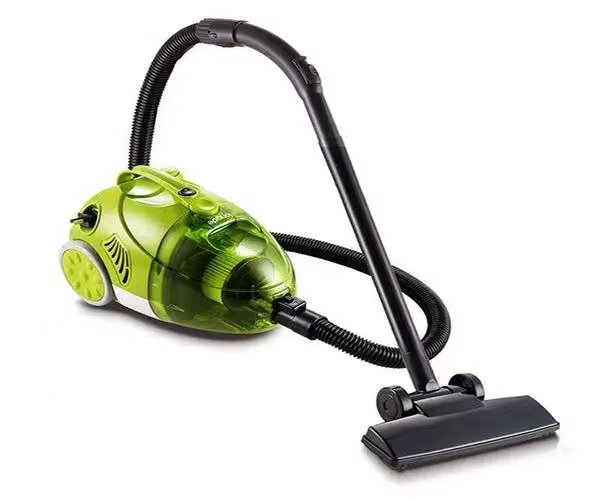

| Vacuum cleaners |

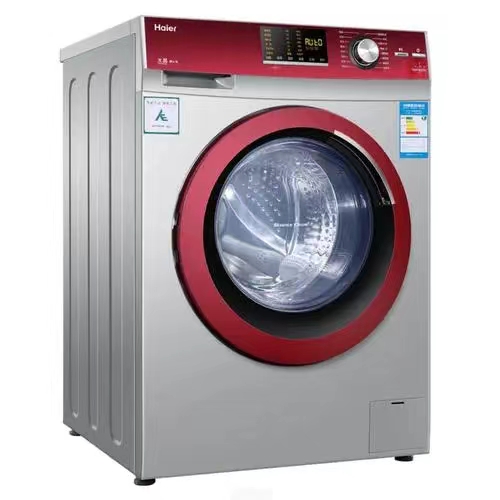

Washing machines |

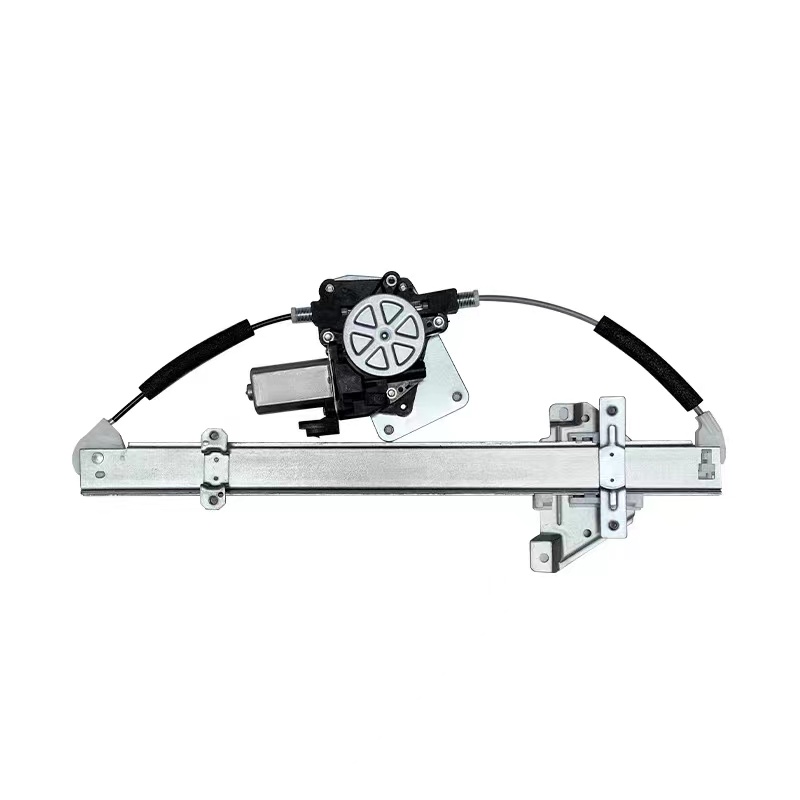

Window motors |

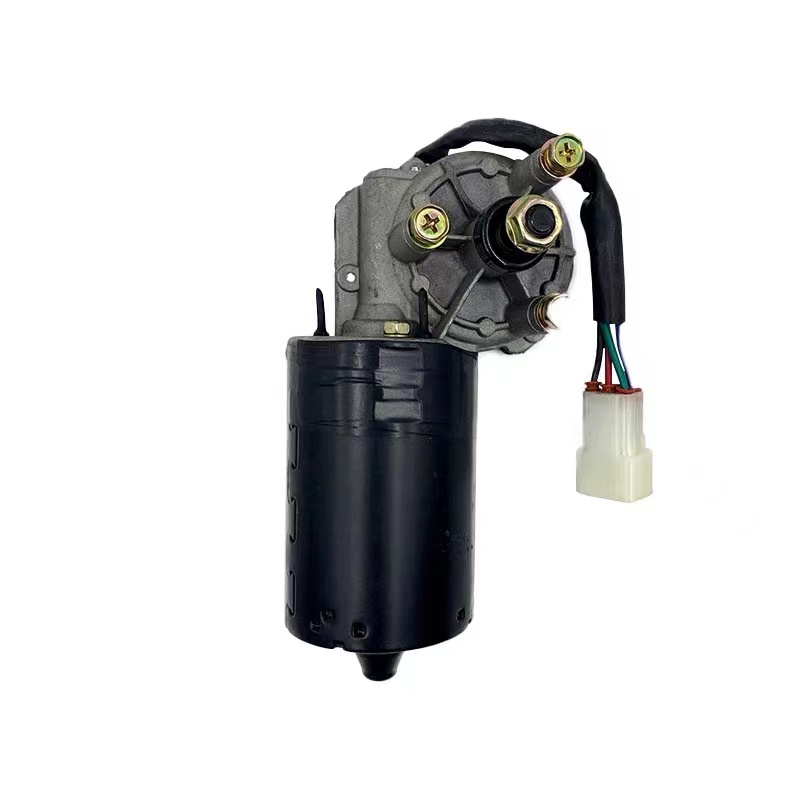

Wiper motors |

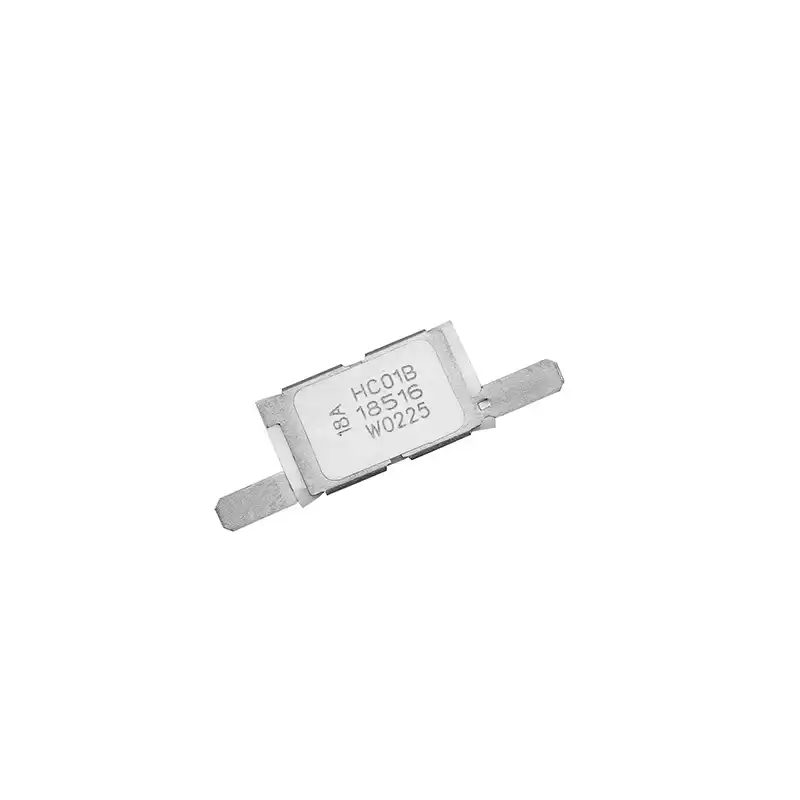

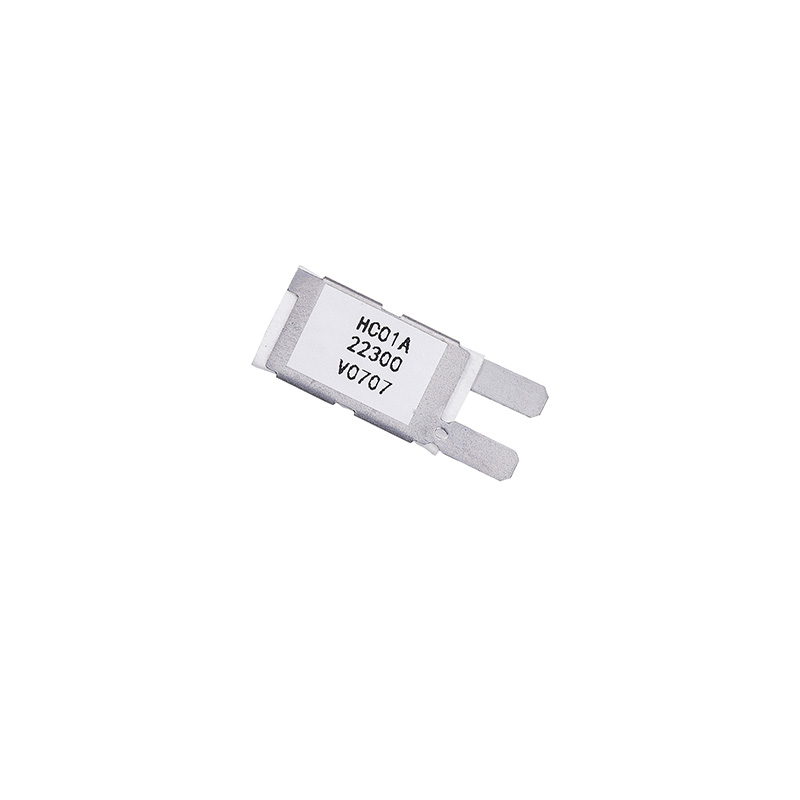

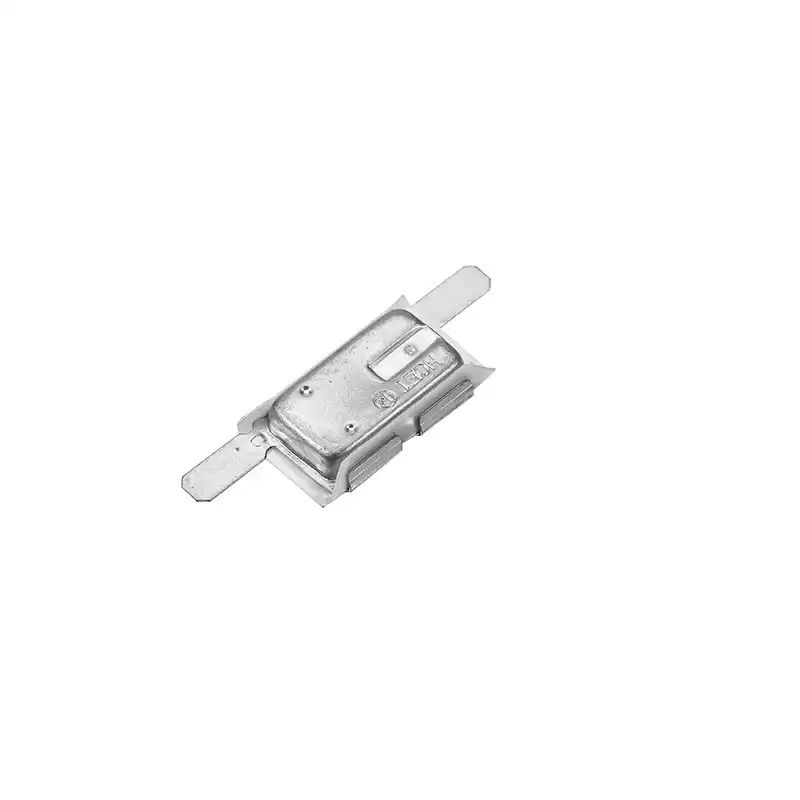

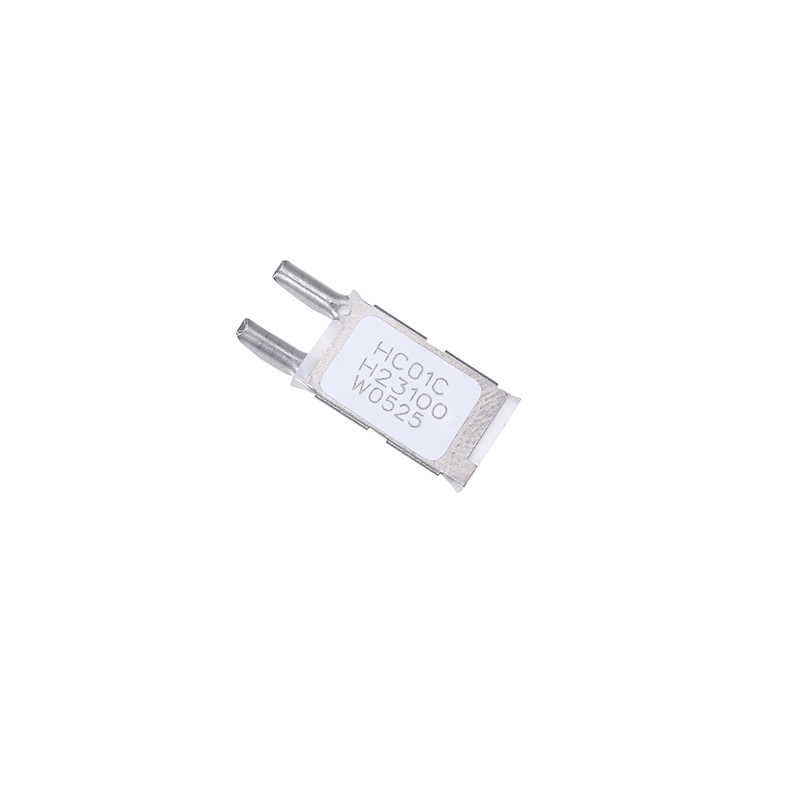

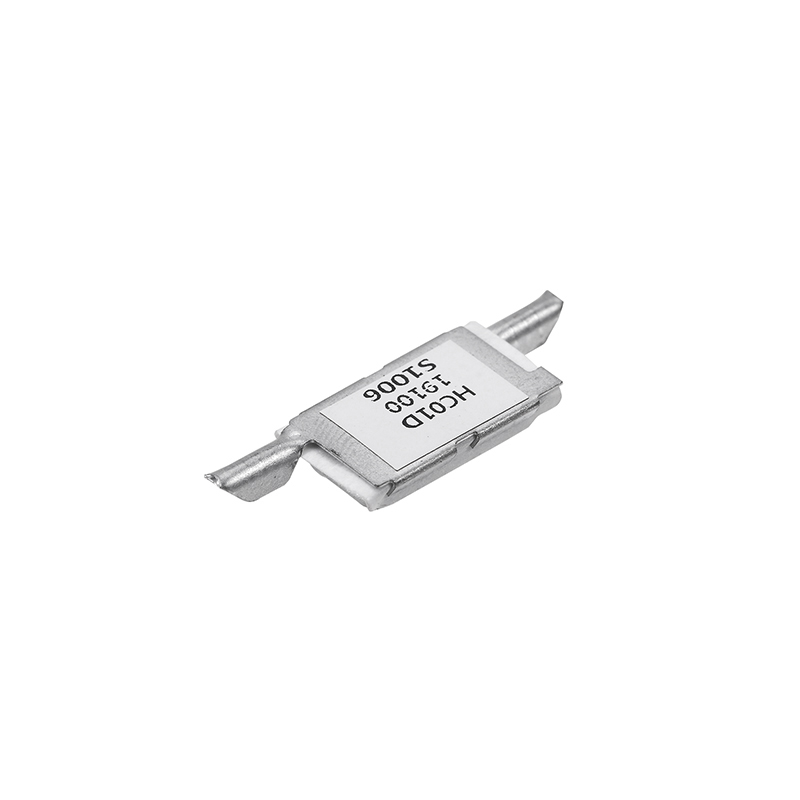

Product display

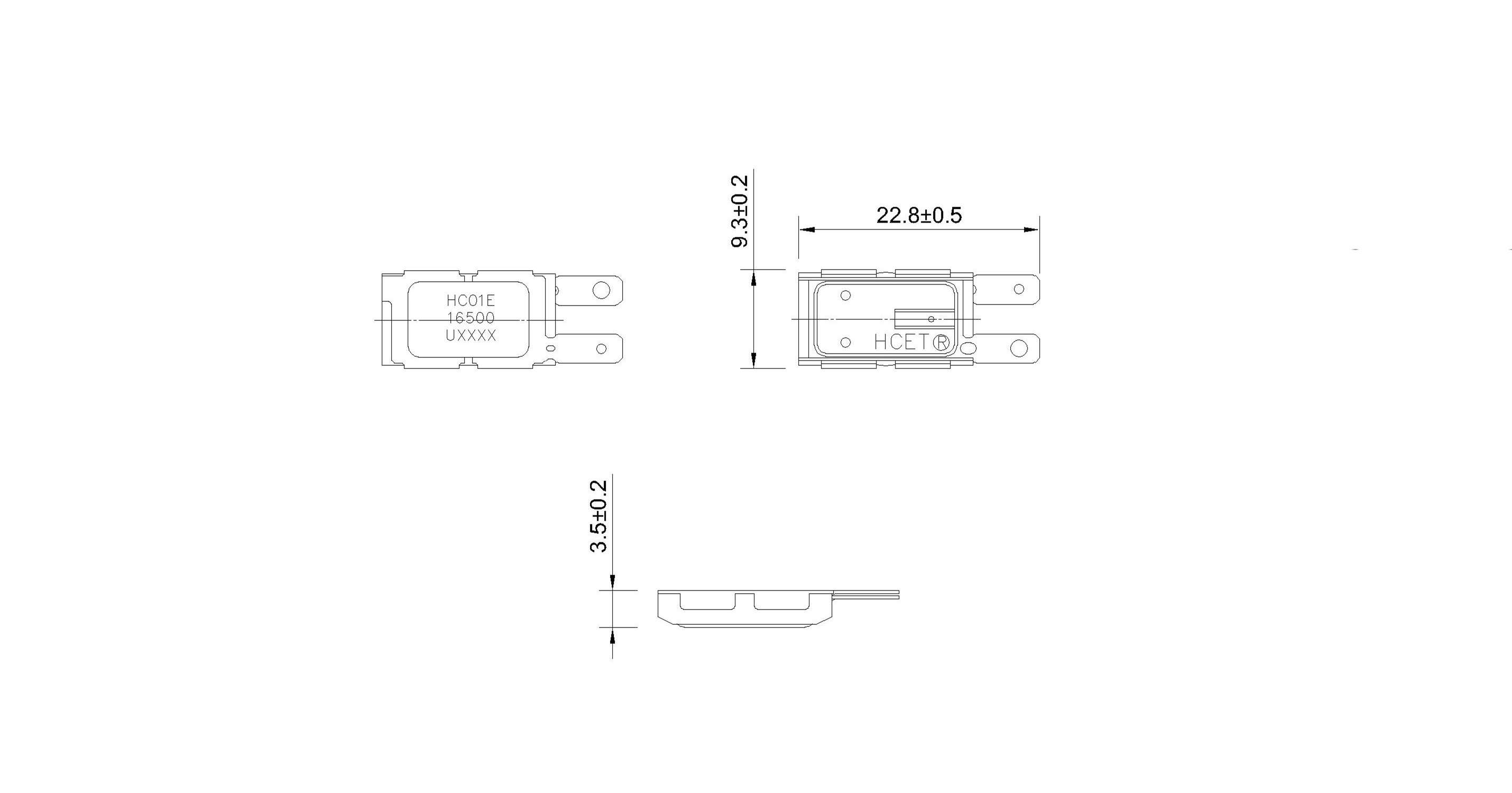

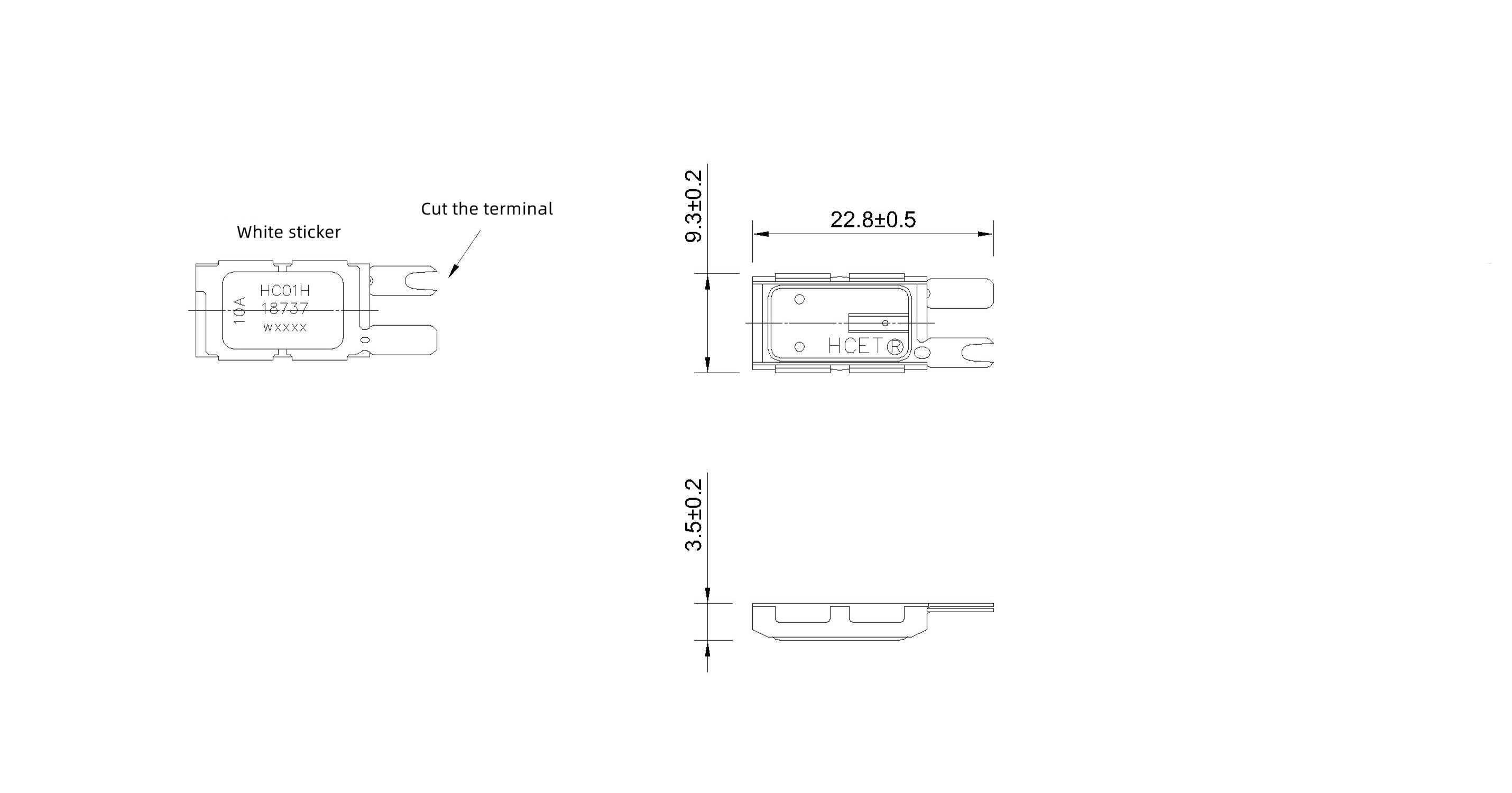

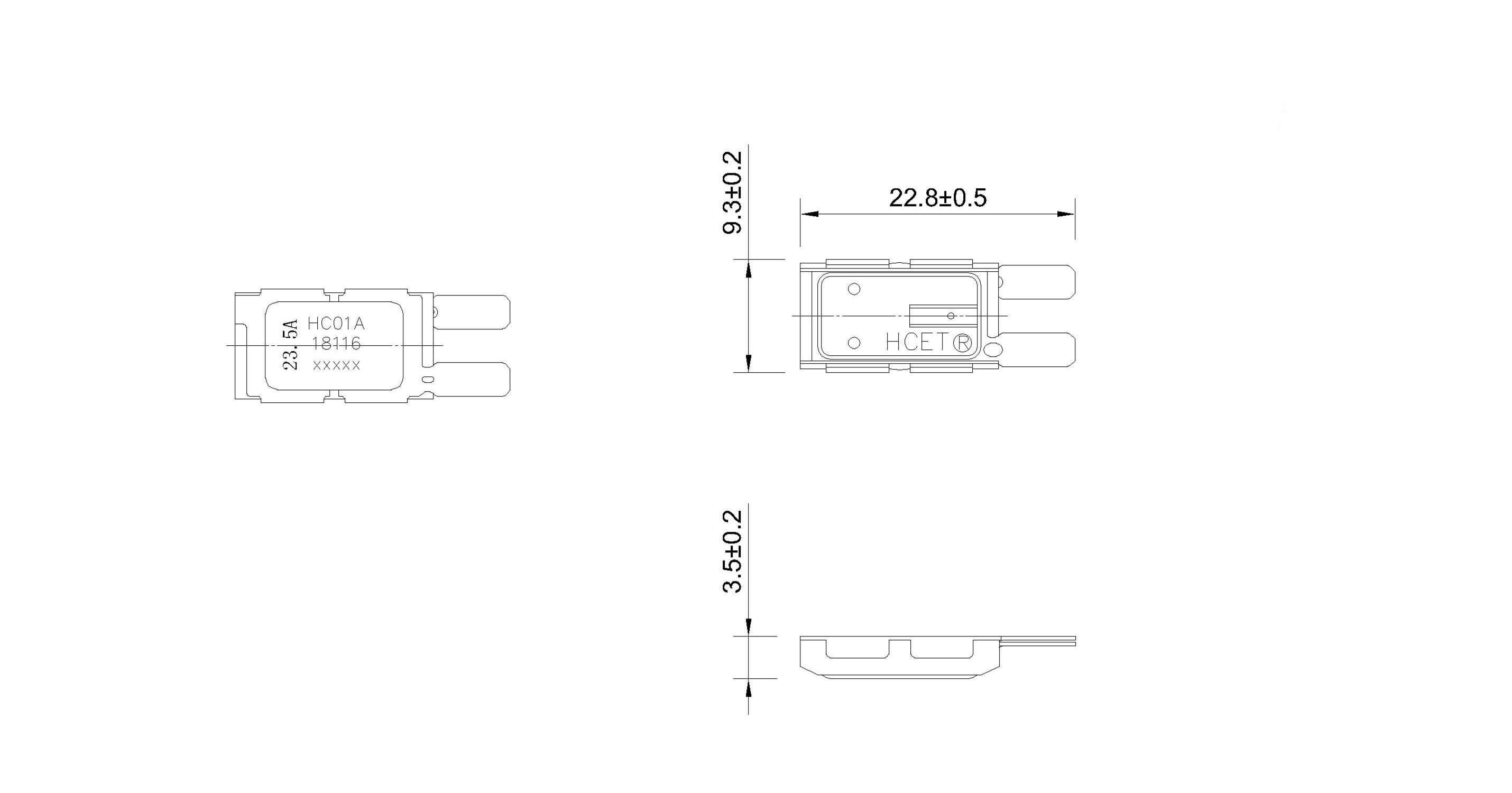

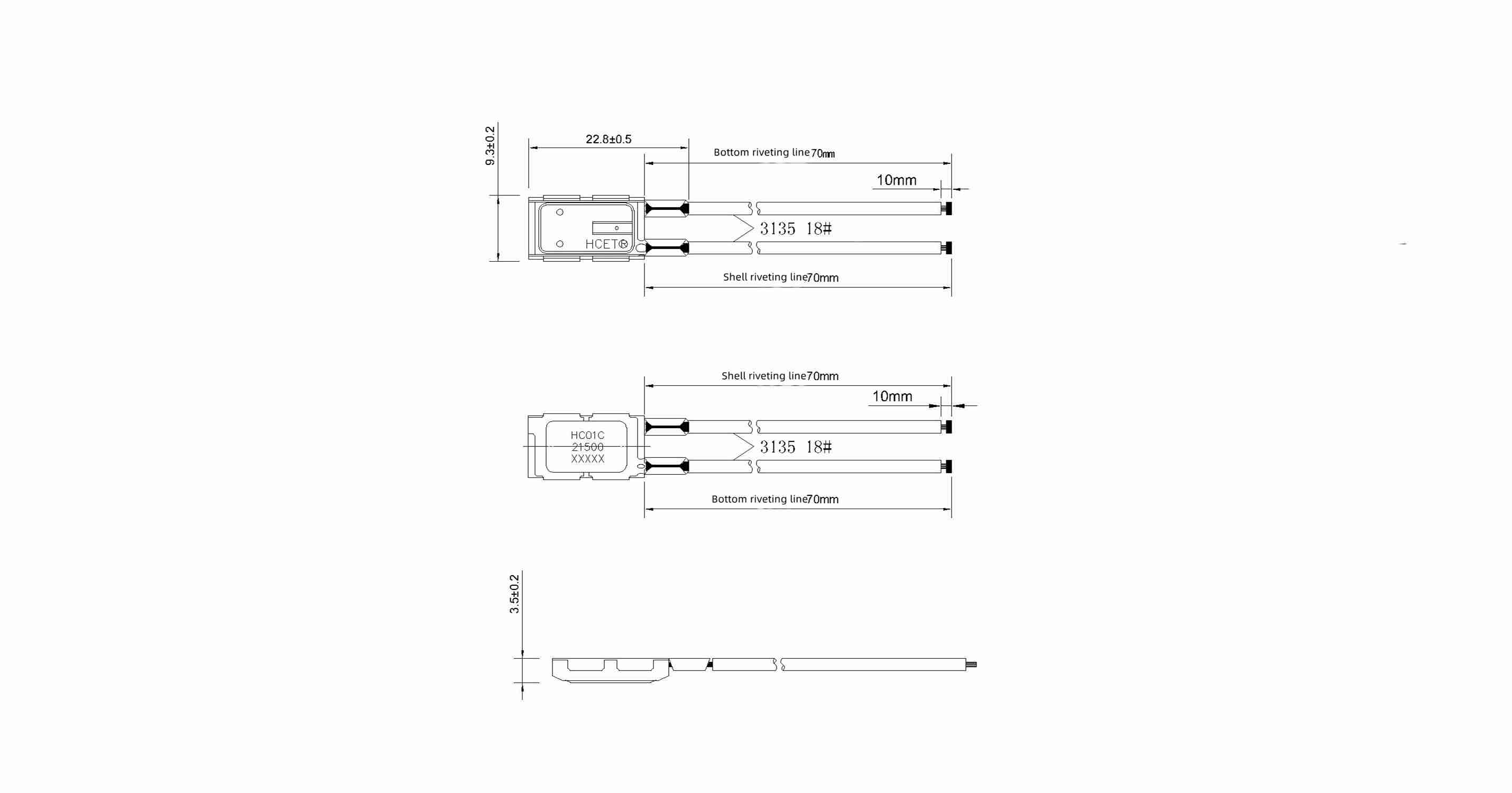

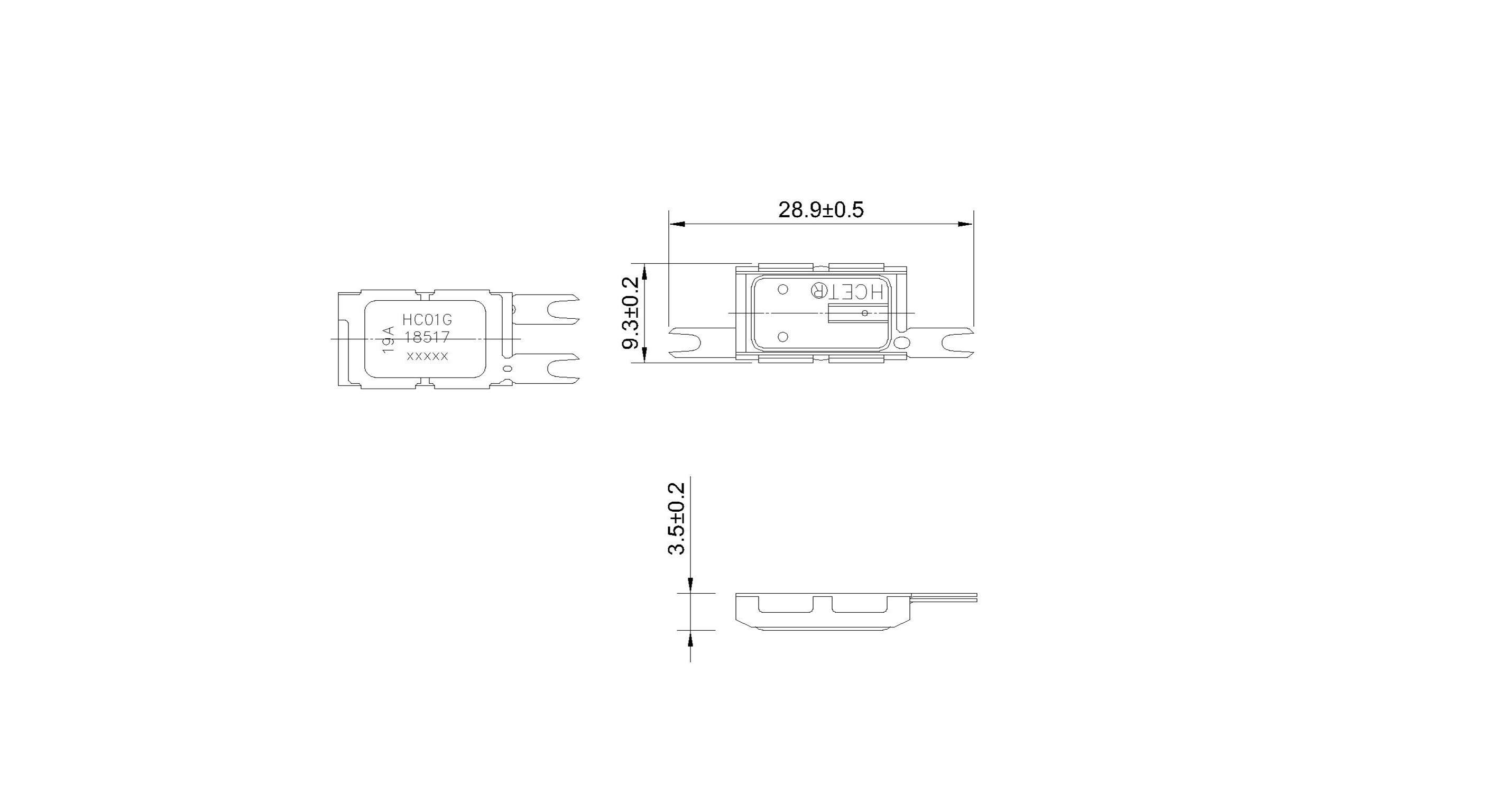

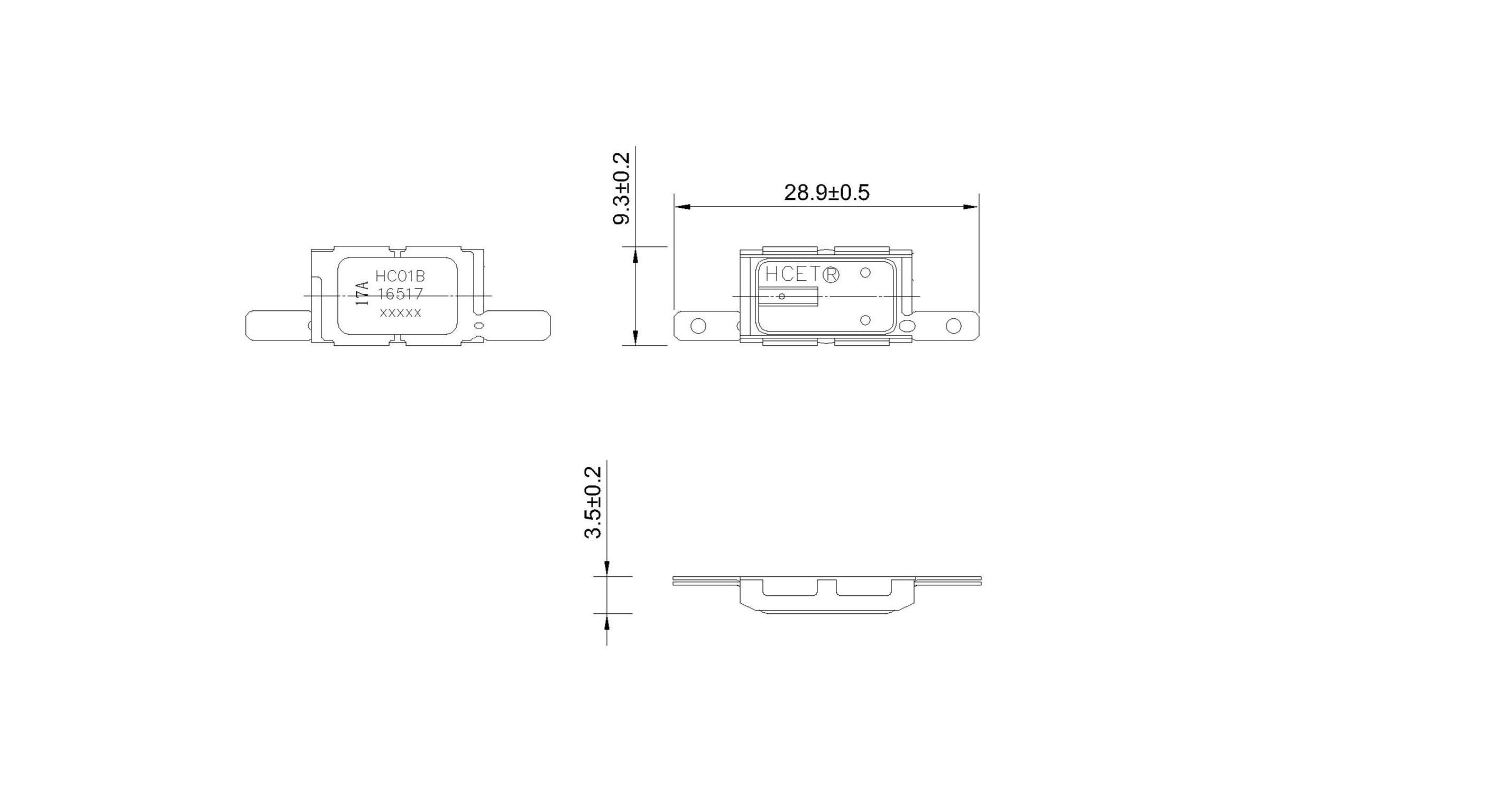

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

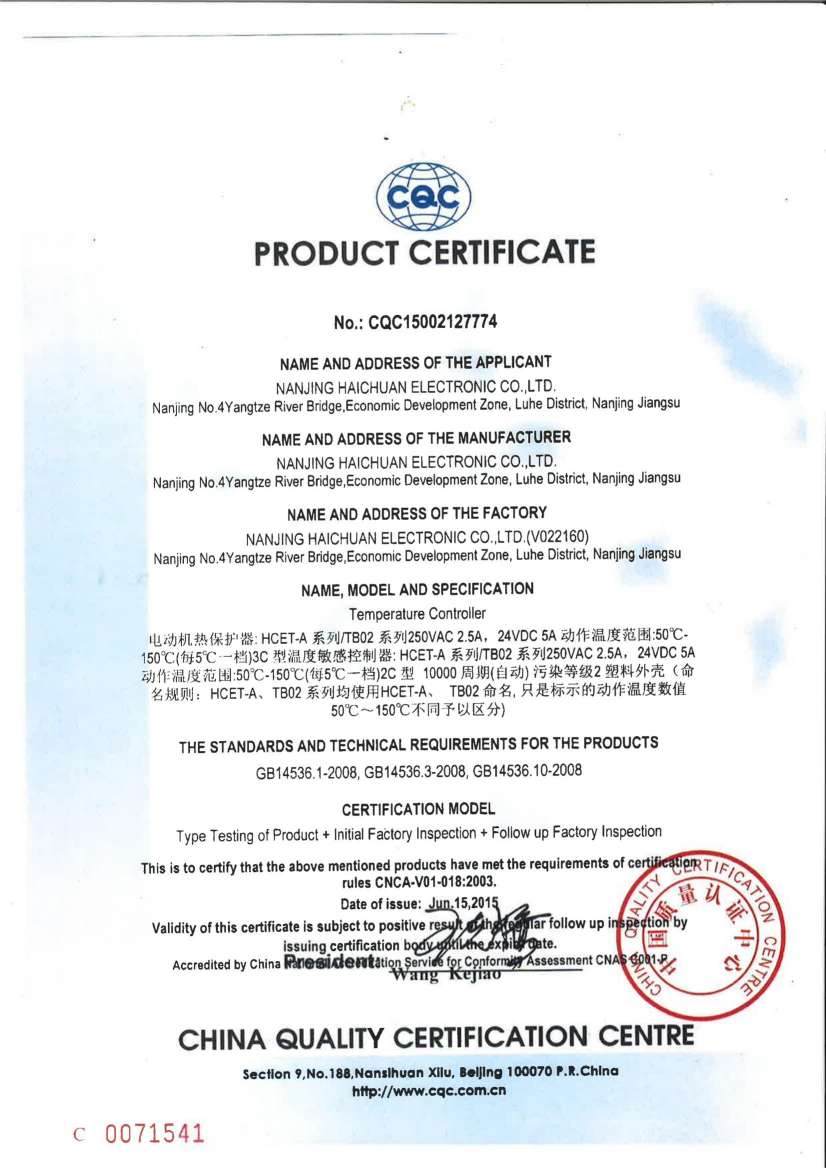

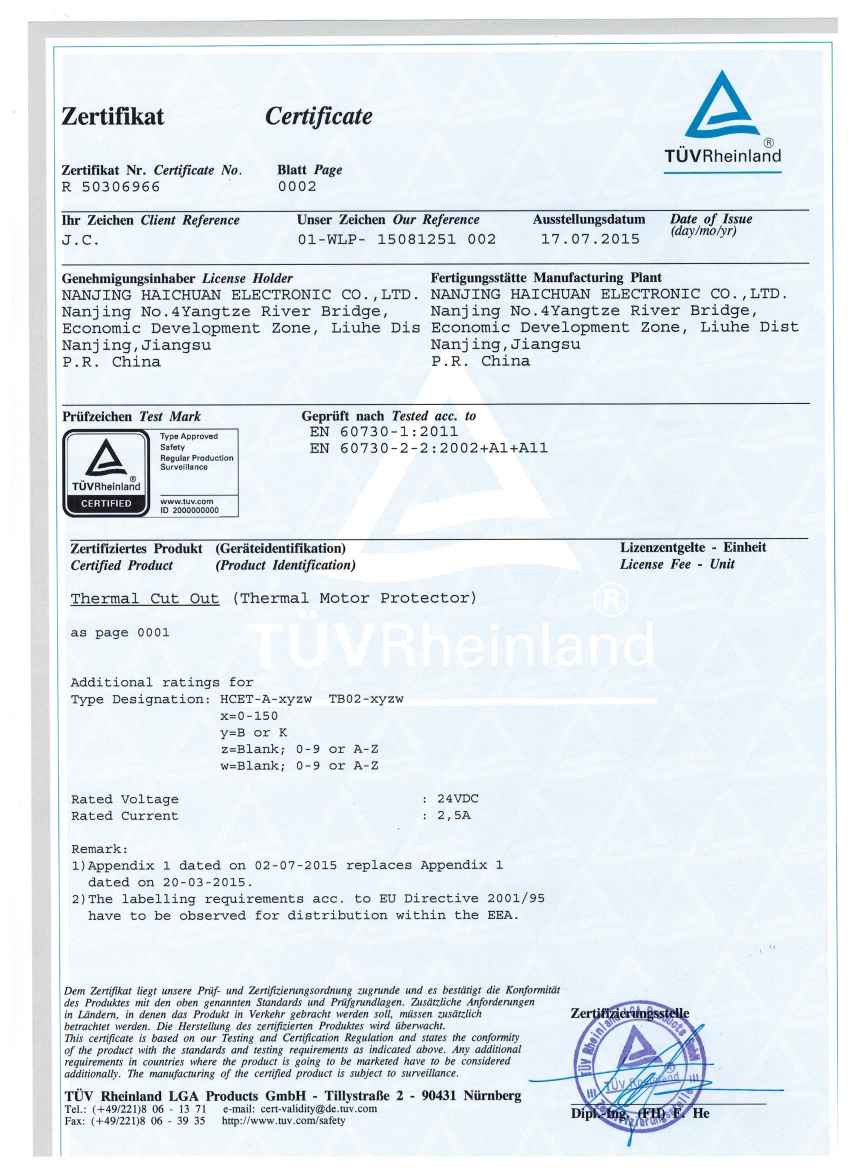

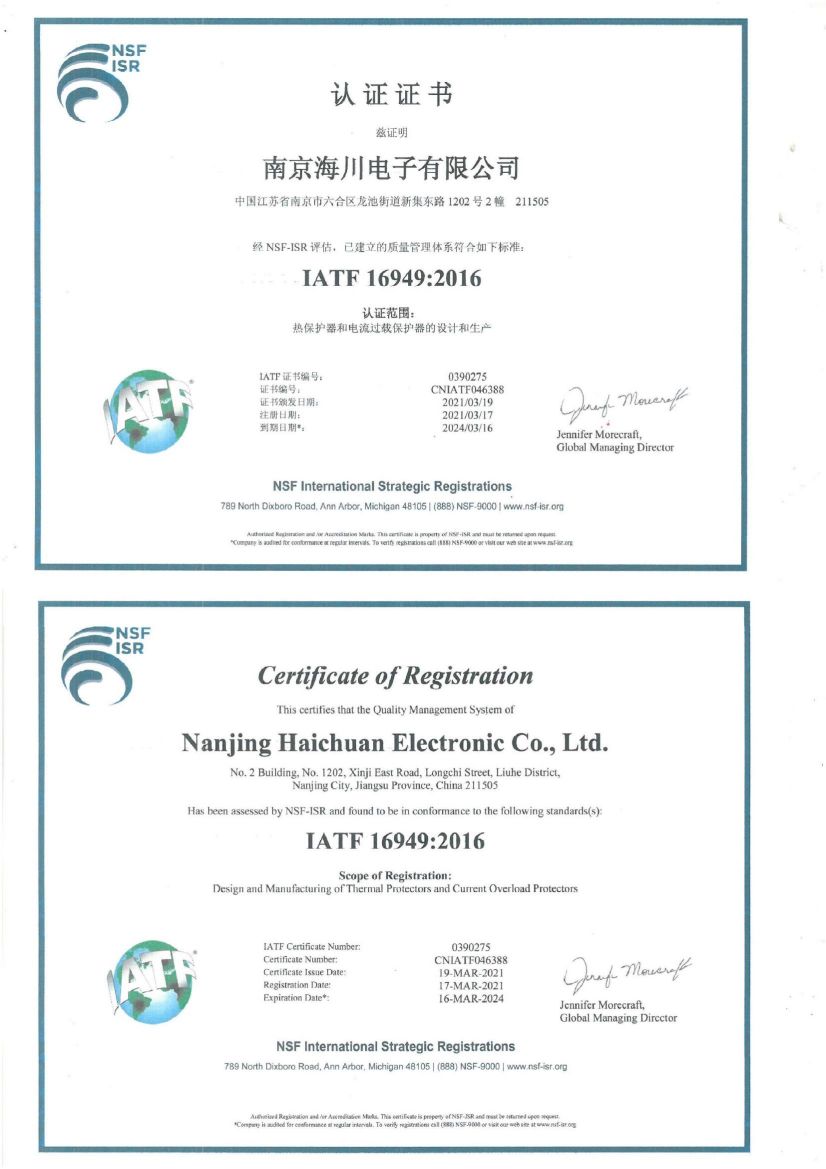

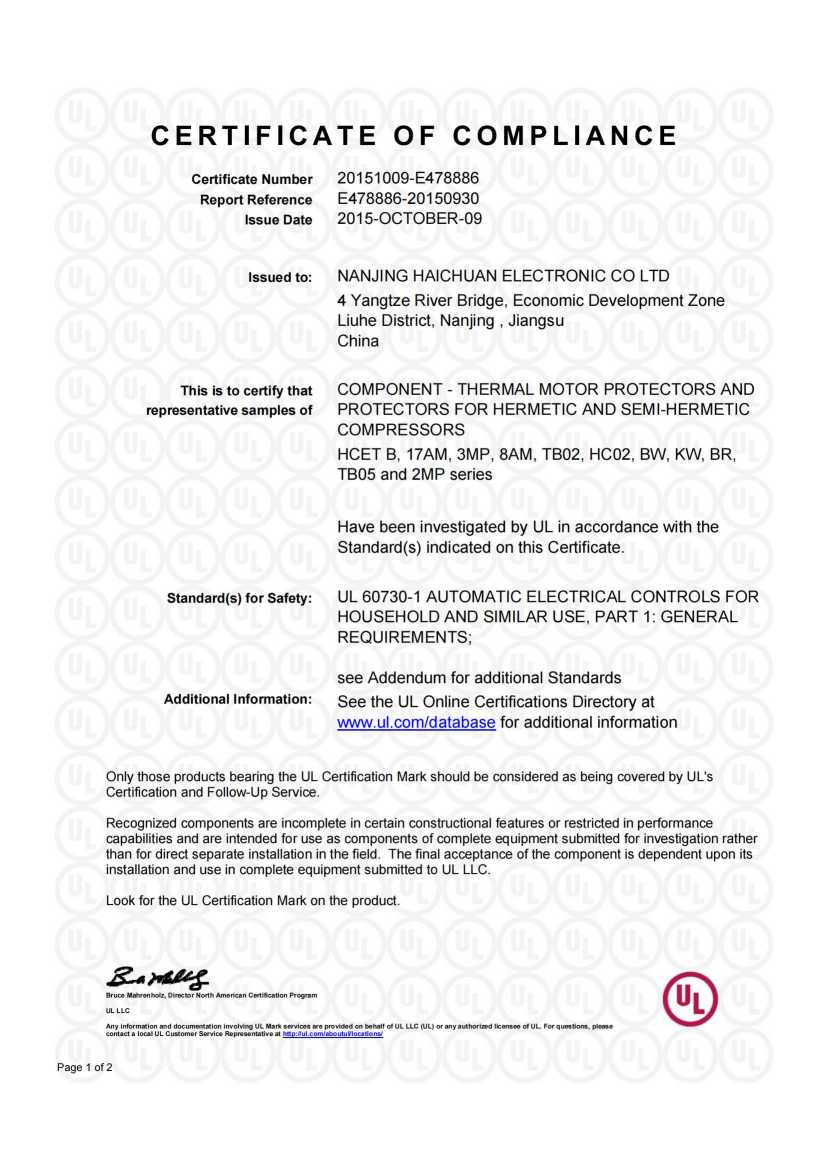

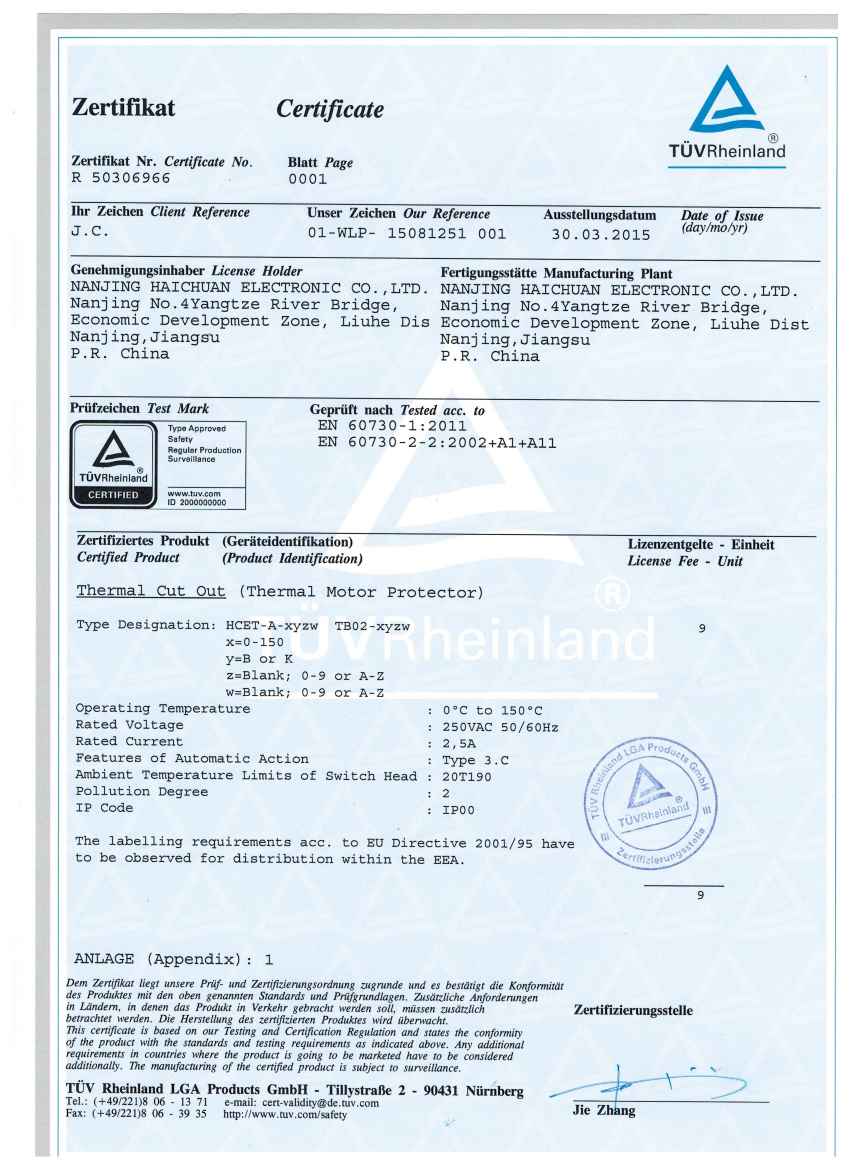

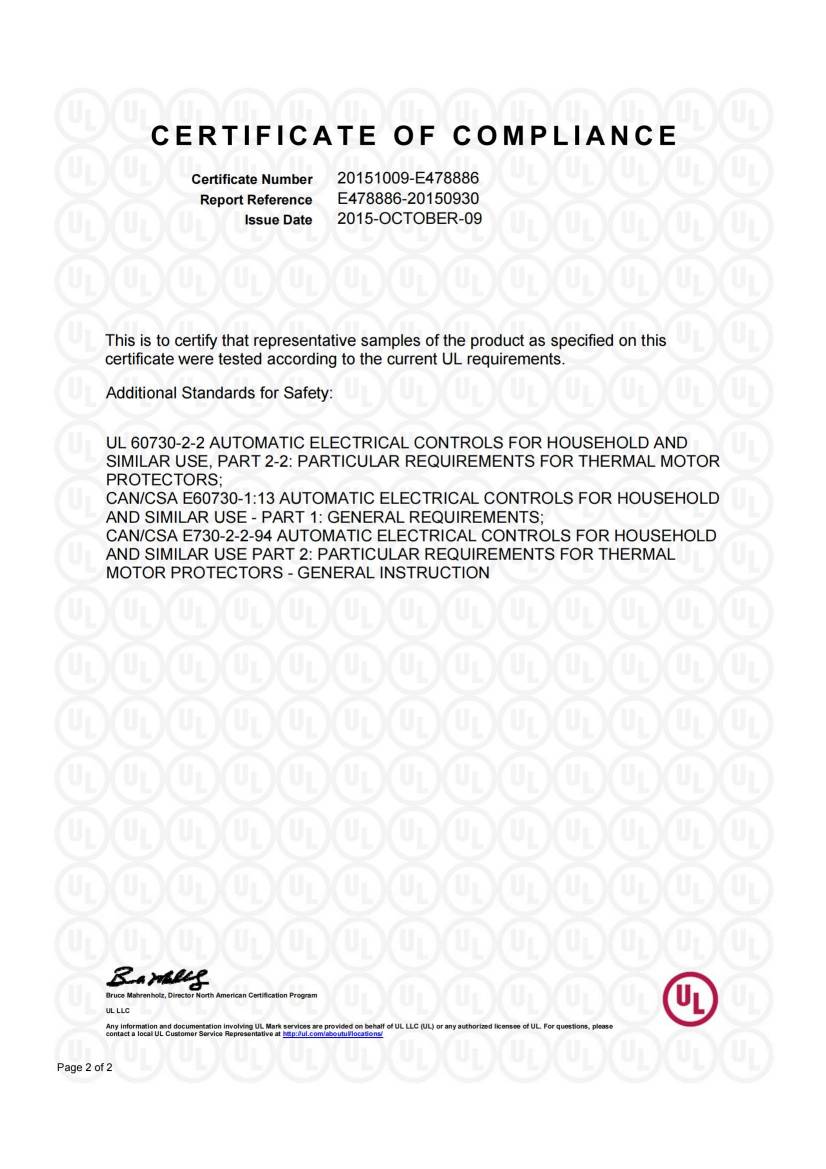

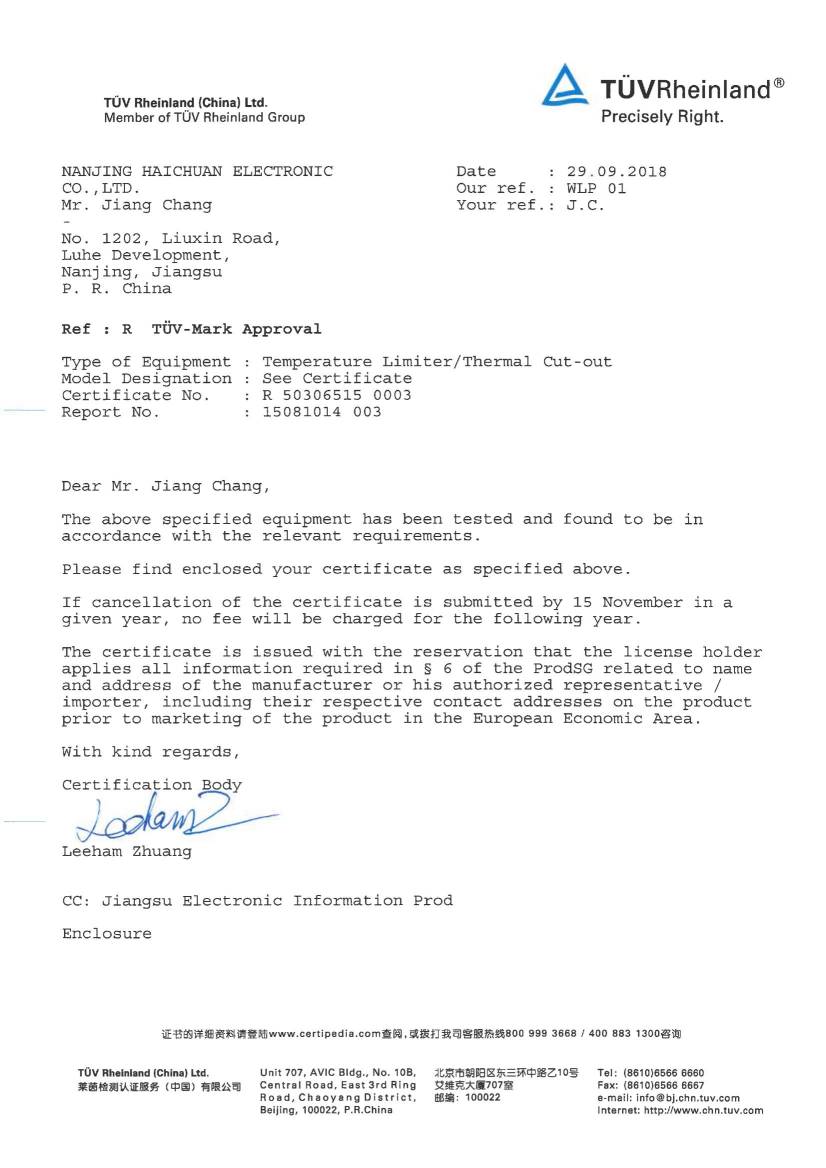

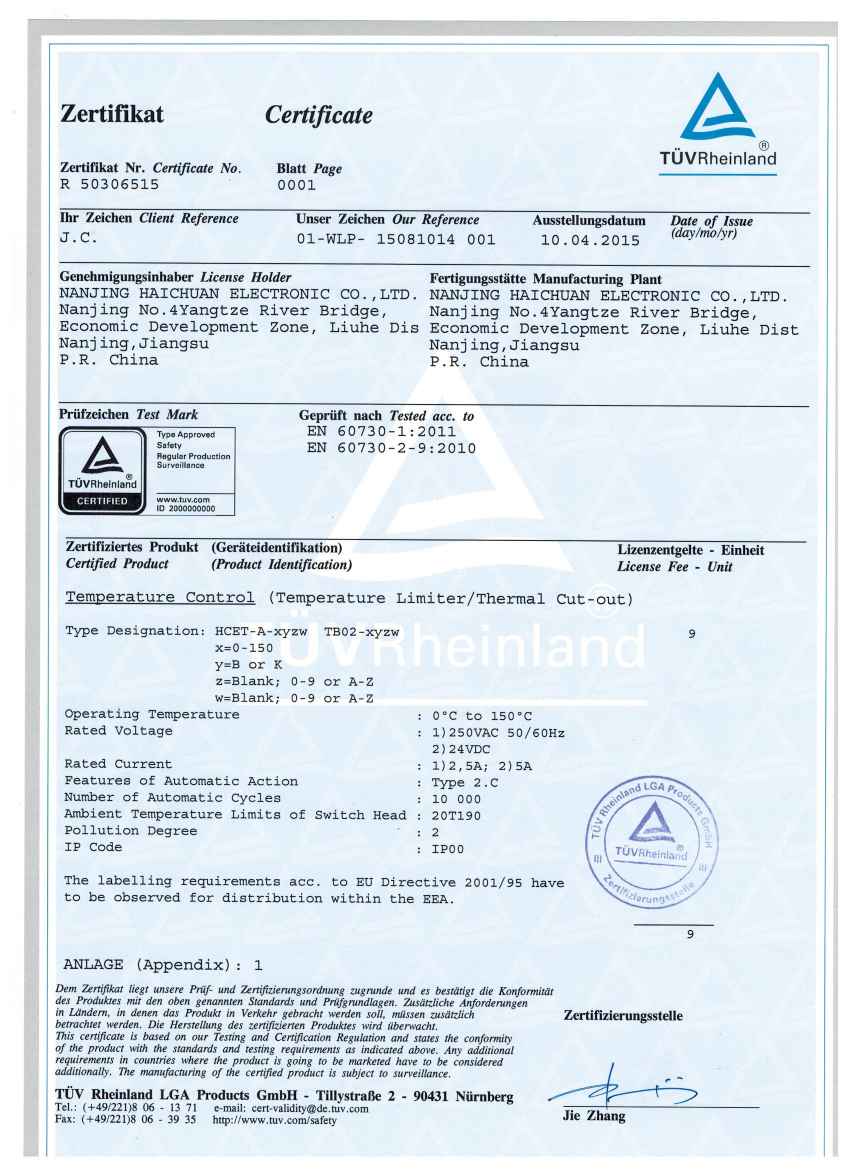

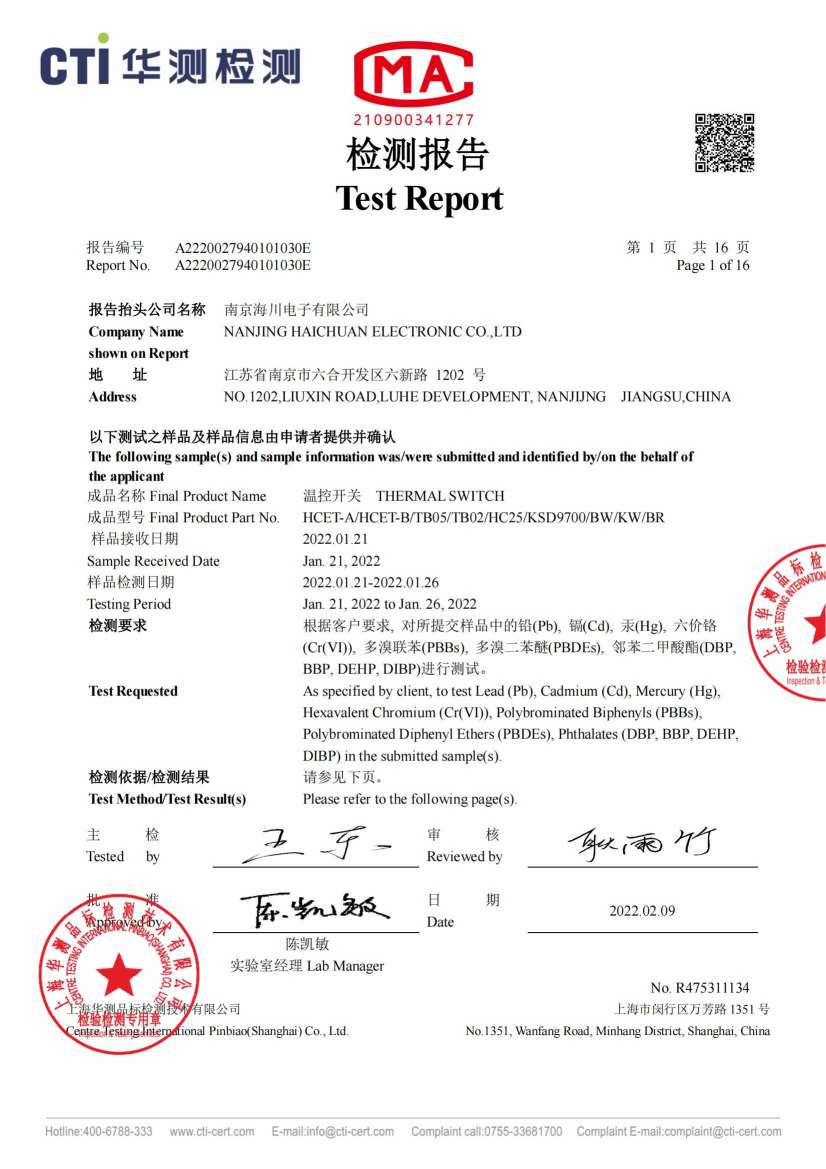

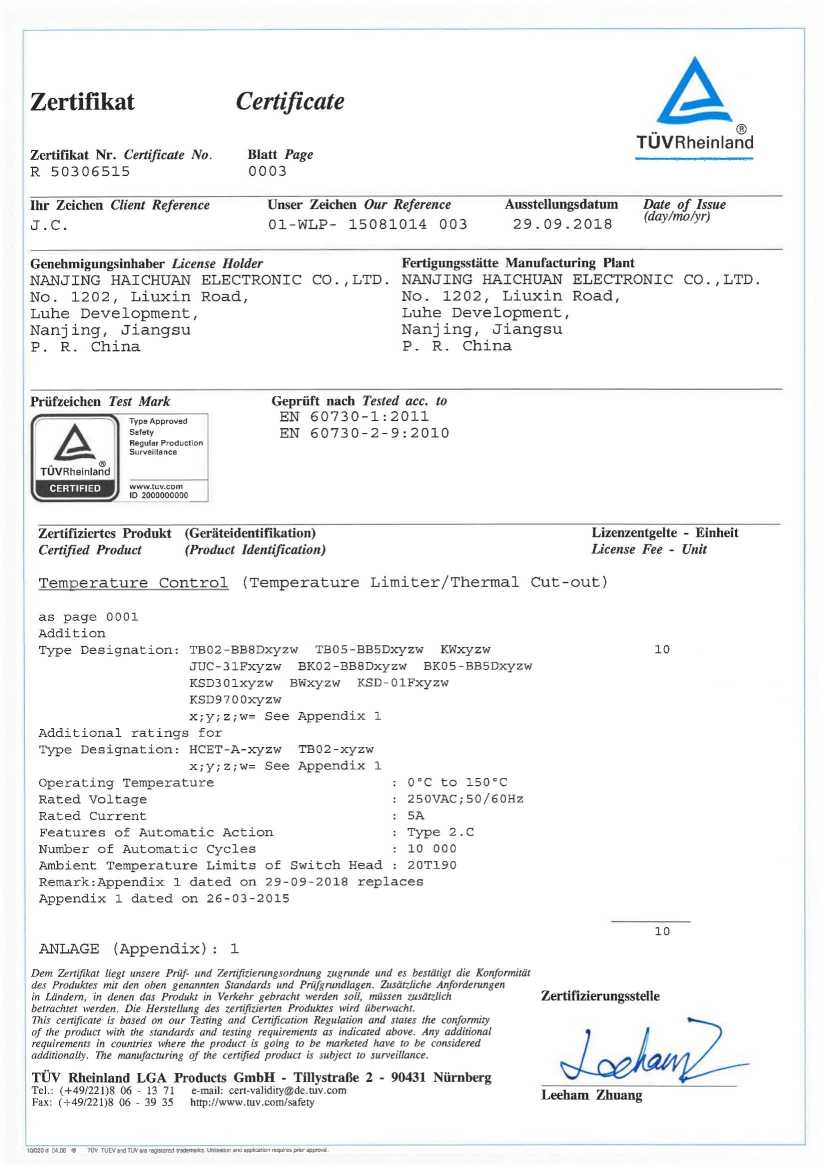

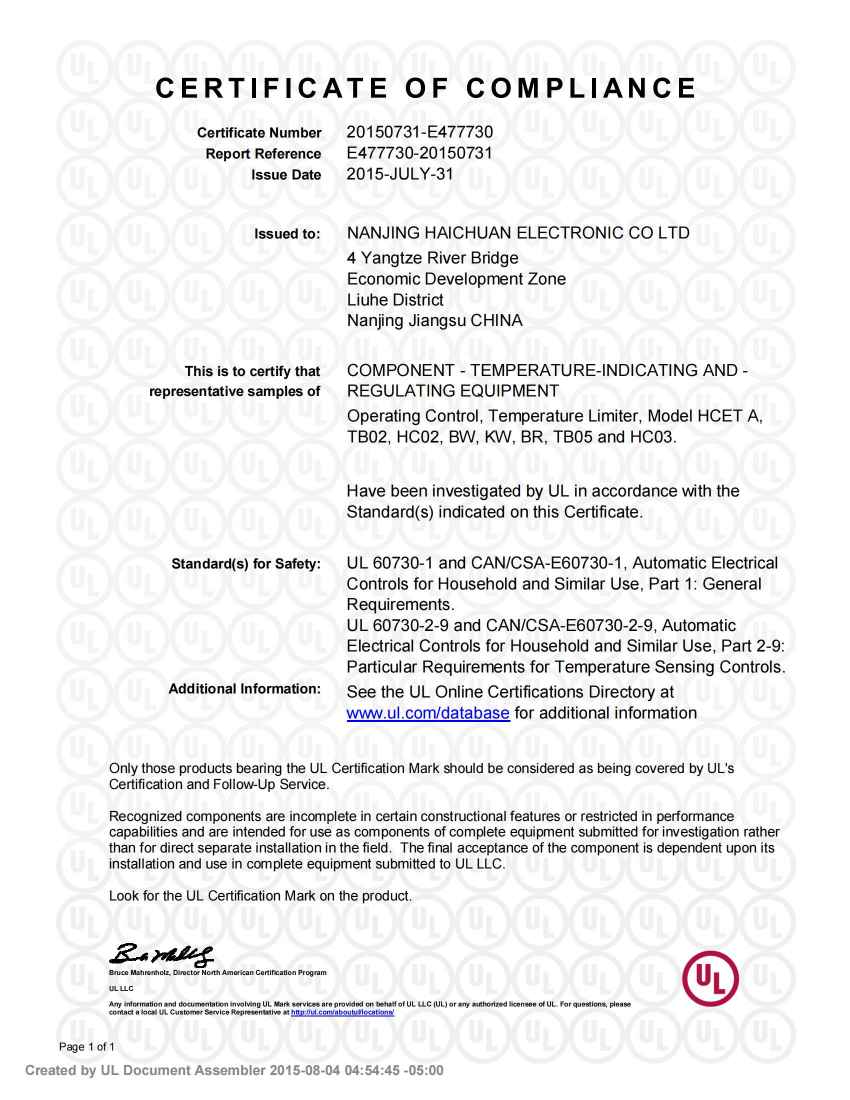

Certificates
Nanjing Haicheng Electronic Technology Co., Ltd. is a national high-tech enterprise which has passed the ISO/TS16949 quality management system certification. It has a number of independent patents, and its products have passed the UL, TUV, CQC, PSE multinational international safety regulations certification.
