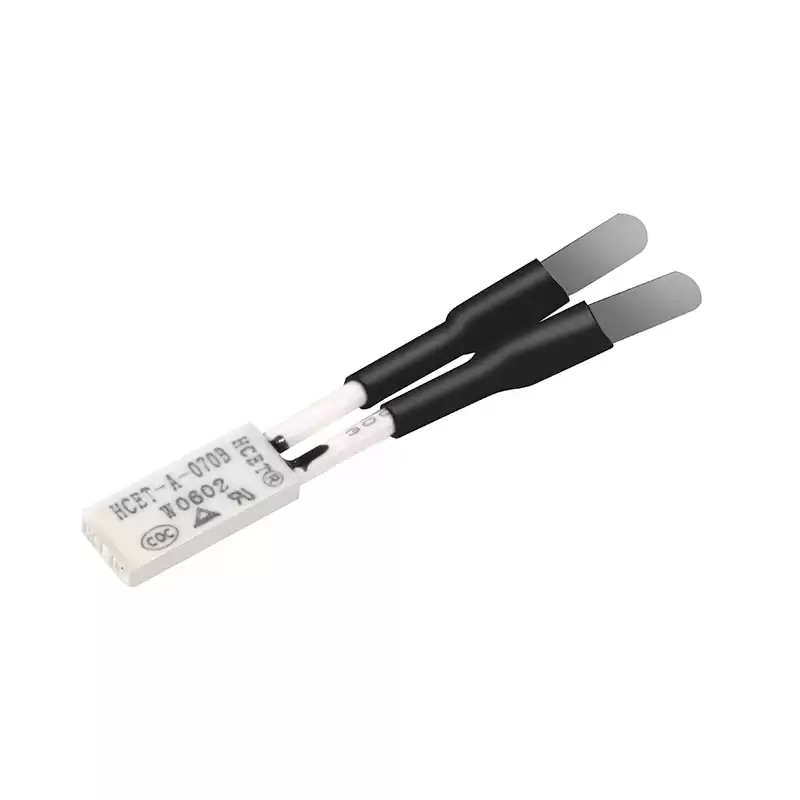

HCET-A small size thermal protector for lithium battery
With the continuous development of new energy technology,lithium batteries are currently used in various products,ranging from buses,new energy vehicles,electric bicycles,to household notebooks,mobile phones,digital cameras,iPad,etc.,all of which are inseparable from lithium batteries.However,the important problem in the use of lithium batteries is the safety issue.Once used improperly,the performance and life of the battery will be affected in the lightest case,and the battery may be burned or exploded in serious cases.For this reason,it is necessary to add protective measures to the battery during the production process.The battery protection board is a product that prevents some illegal operations in the use of lithium batteries from destroying the normal function of the battery.The HCET-A thermal cutoff switch is an essential part of the battery protection board.
Features
Small size.
Installation is more flexible and convenient.
Snap action.
Nickel and wires are optional.
Each type of parts strictly implemented European ROHS environmental standards.
Contacts are optional with normally closed Model B and normally open Model K.
Specifications
|
Item No.
|
HCET-A/TB02
|
|
Electrical specifications
|
2.5A/250VAC
|
|
5A/120VAC
|
|
10A/12VDC
|
|
5A/24VDC
|
|
Operating temperature range
|
30°C-155°C
|
|
Temperature tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Plastic and metal
|
|
Case size(mm)
|
12*5.4*2.4
|
|
Wire No.
|
3398 22#
|
Applications
 |
 |
 |
 |

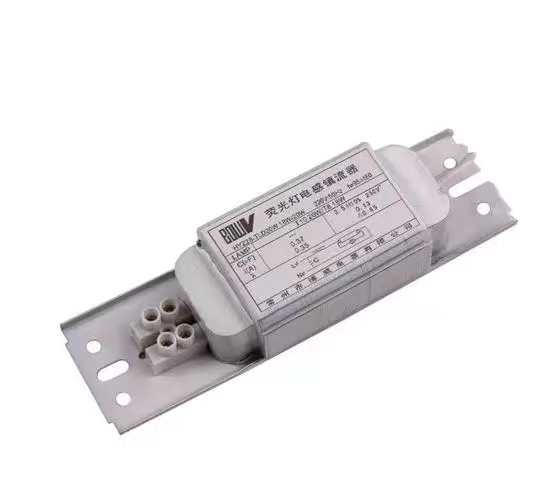

| Ballasts |

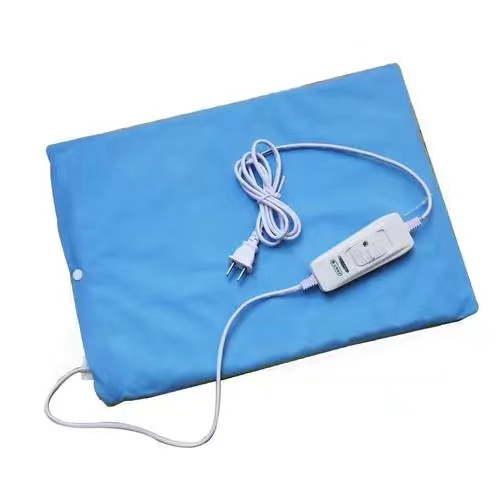

Heating pads |

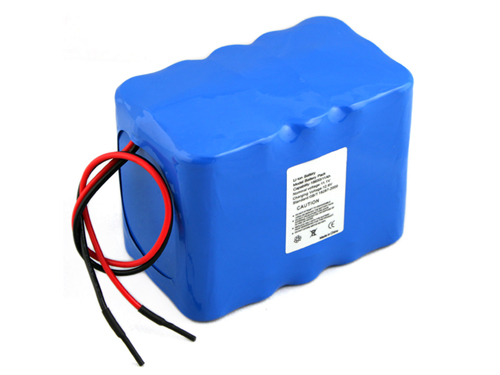

Lithium batteries |

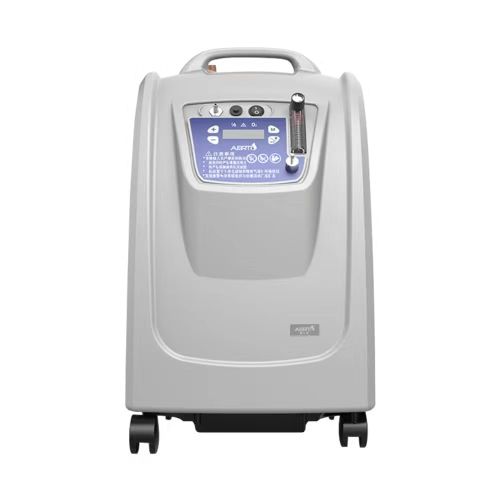

Oxygen machines |
 |
 |
 |
 |

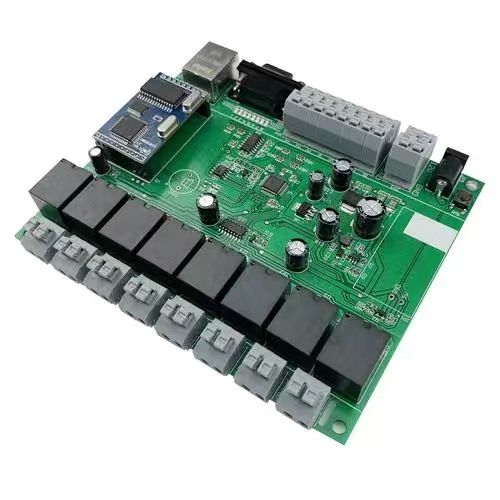

| PC circuit boards |

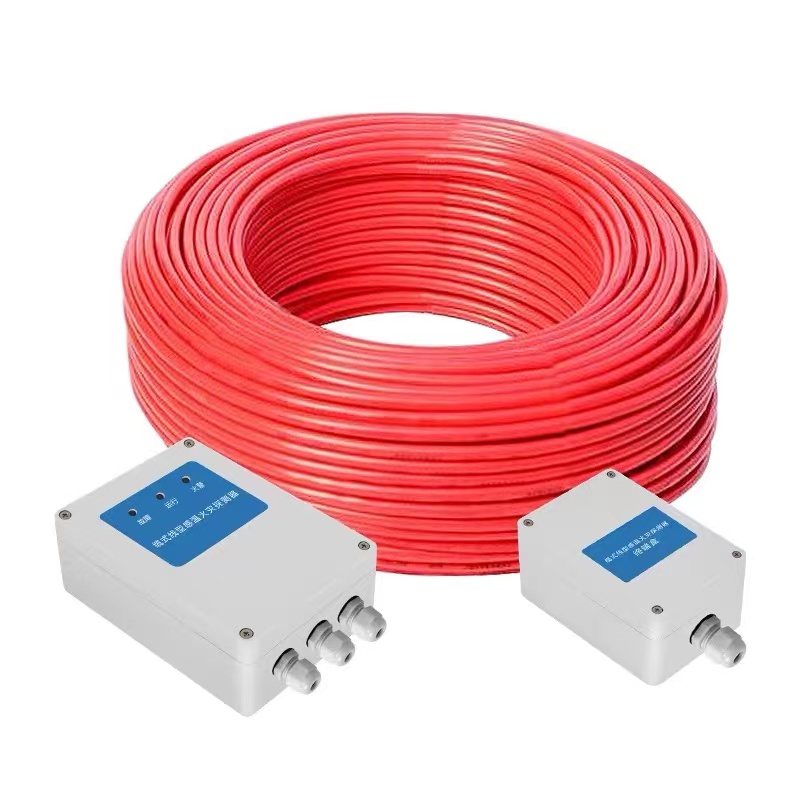

Temperature sensing cables |

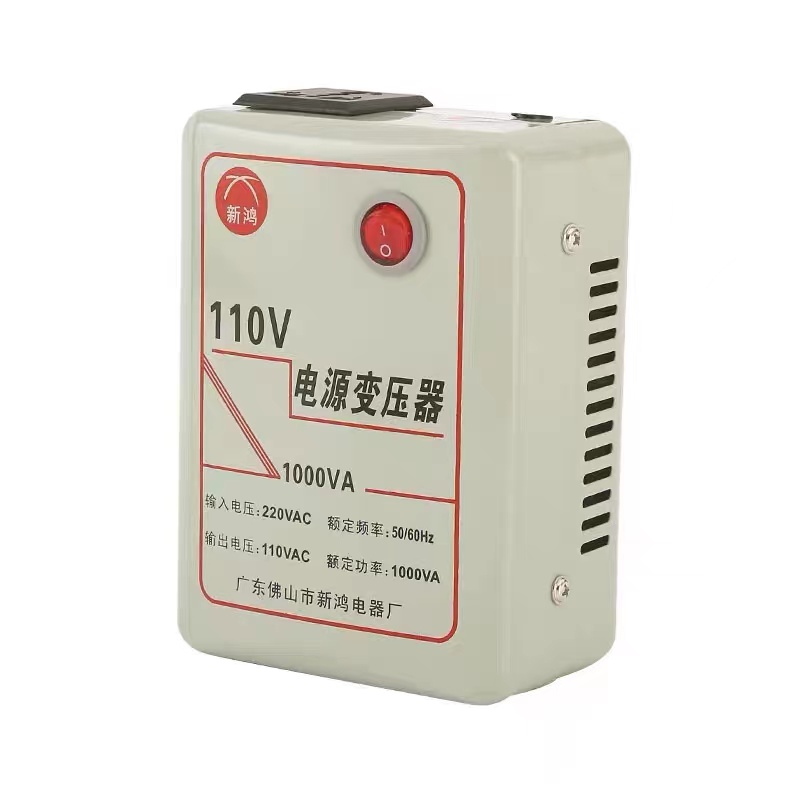

Transformers |

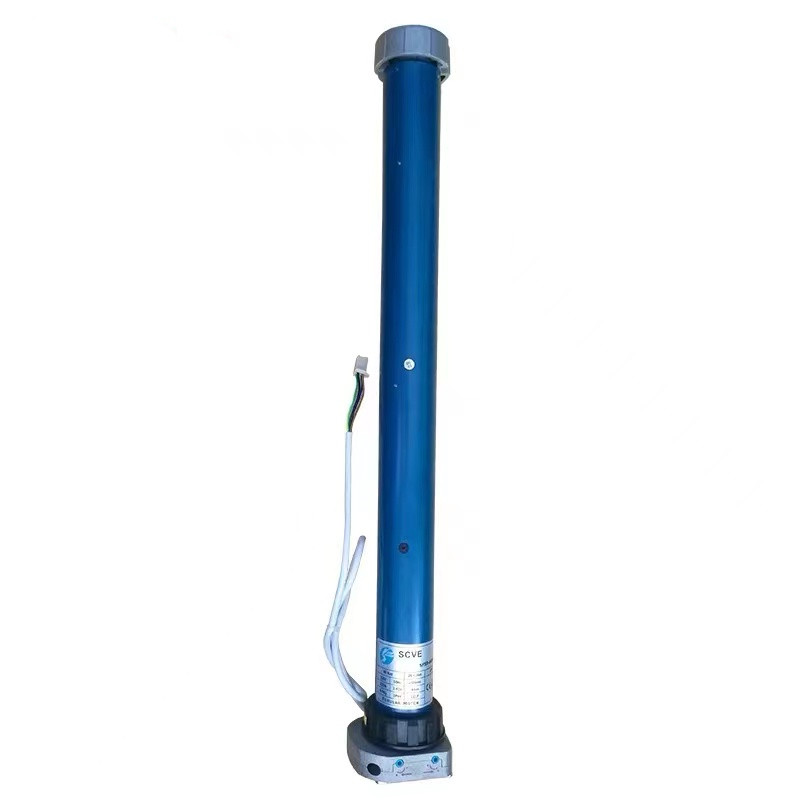

Tubular motors |

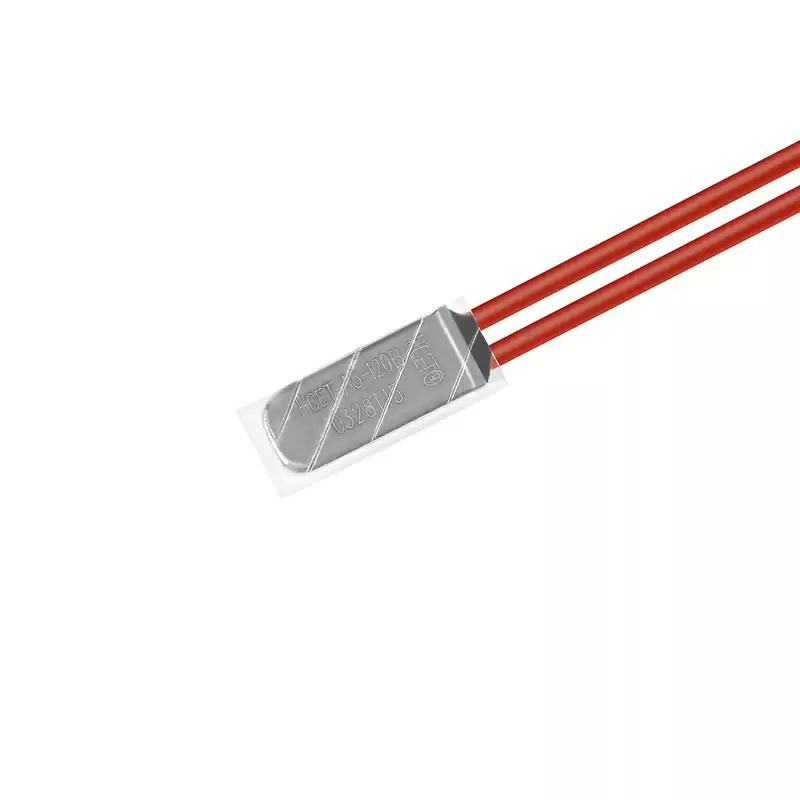

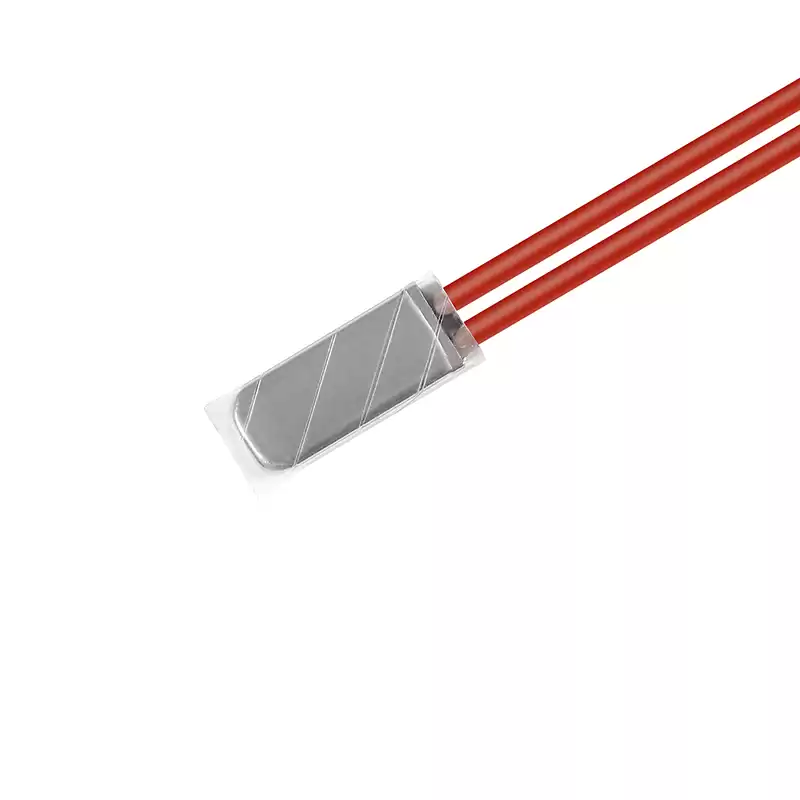

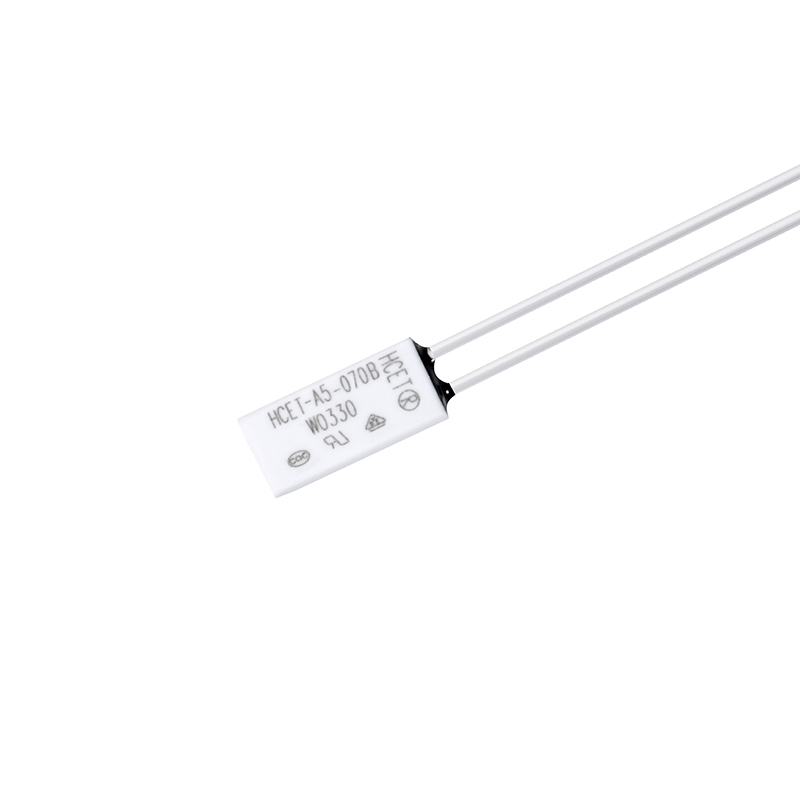

Product display

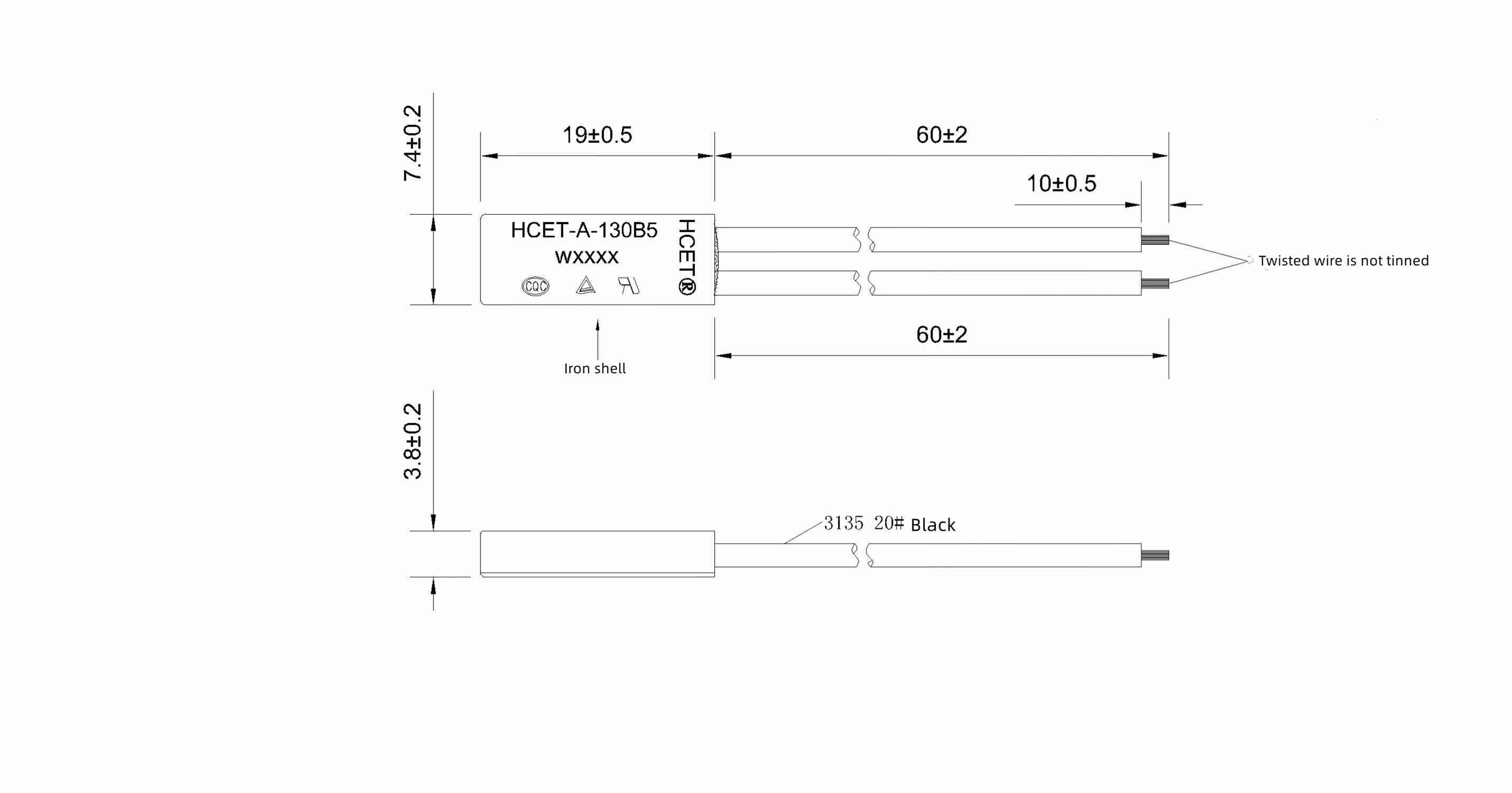

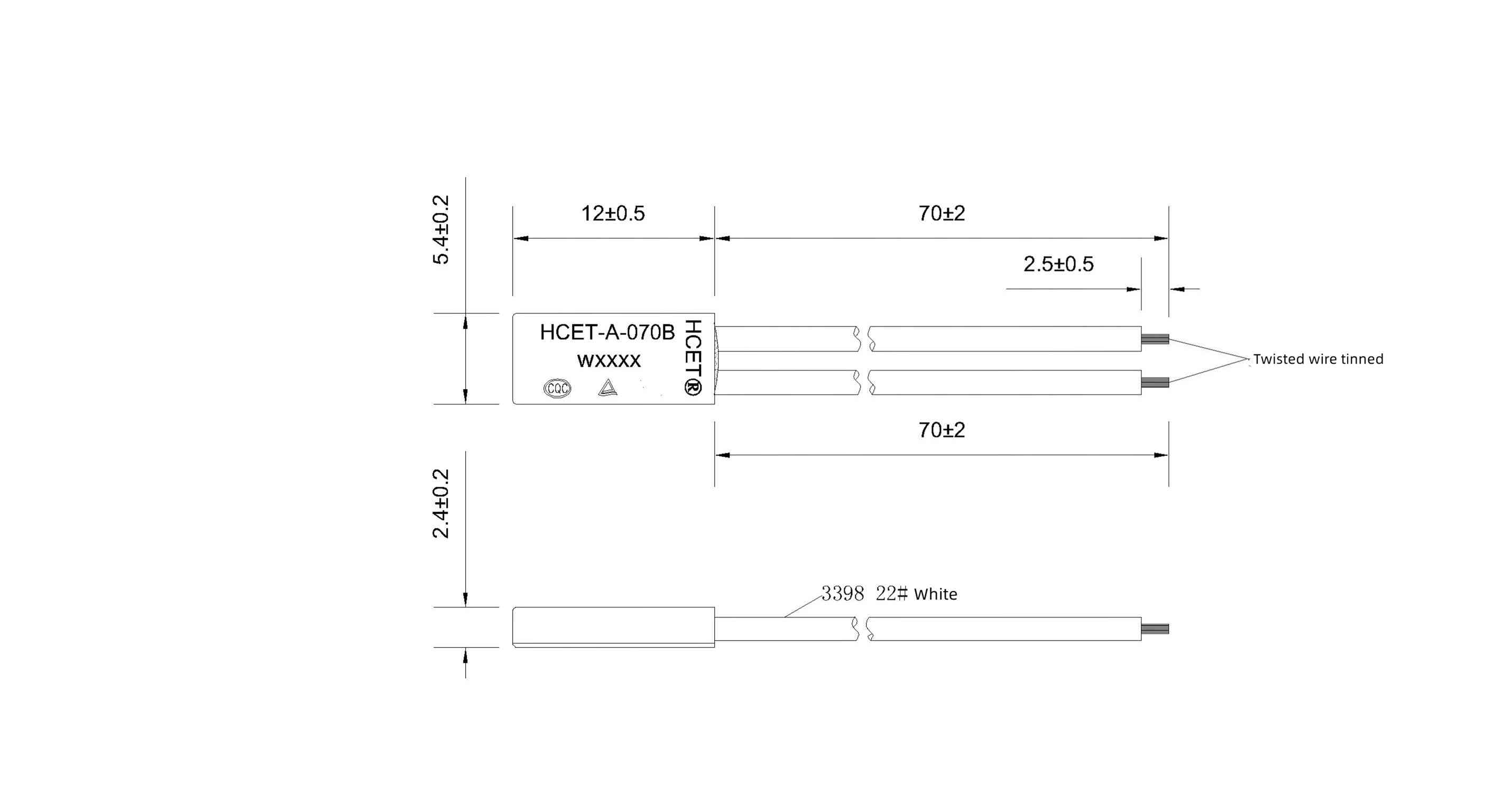

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
Why choose HCET
1. We have our own R&D team and have obtained dozens of patents.
2. Our products have passed UI, TUV, CQC, ISO/TS16949, CTI, SGS and other international authoritative certifications, and the quality is stable and reliable.
3. Our products have complete functions and specifications, and can also be customized according to customer requirements.
4. We have complete equipment, high productivity and can deliver quickly.
