17AM thermal protector for various motors,pumps and electric tools
The 17AM series thermal protector is widely used in power tools and high-power motors.And also generally applicable to a variety of pumps, such as water pumps, oil pumps, submersible pumps and so on. It is a responsive, safe and reliable thermal switch.17AM-P thermal protector is based on 17AM with heating elements, so that it has the function of power-off protection, and the function is more reliable and complete.
Features
Small size design.
Temperature is 100% calibrated.
Snap action.
Both temperature and current sensitive.
Types and length of wires are optional.
Multiple terminals are available.
100% comply with ROHS.
Specifications
|
Item No.
|
17AM
|
|
Electrical specifications
|
20 amps/16 volts DC
|
|
10 amps/250 volts AC
|
|
20 amps/125 volts AC
|
|
Operating temperature range
|
50°C~180°C
|
|
Temperature Tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Metal
|
|
Case size(mm)
|
24.2*9.5*4.5
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |
| Ballasts |

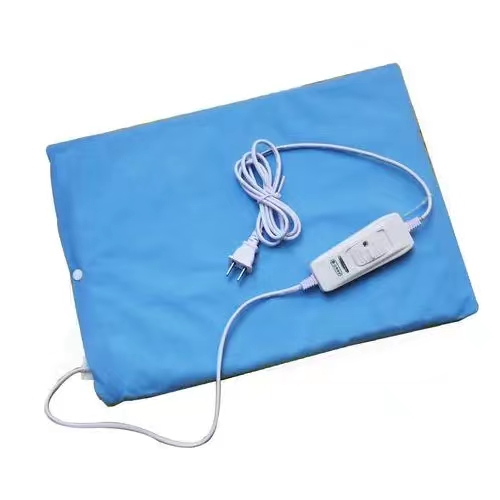

Heating pads |

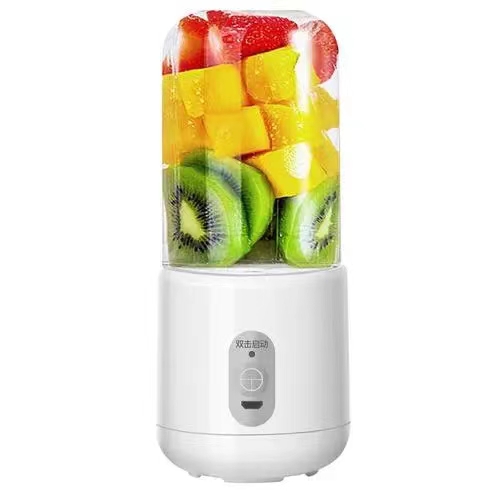

Juicers |

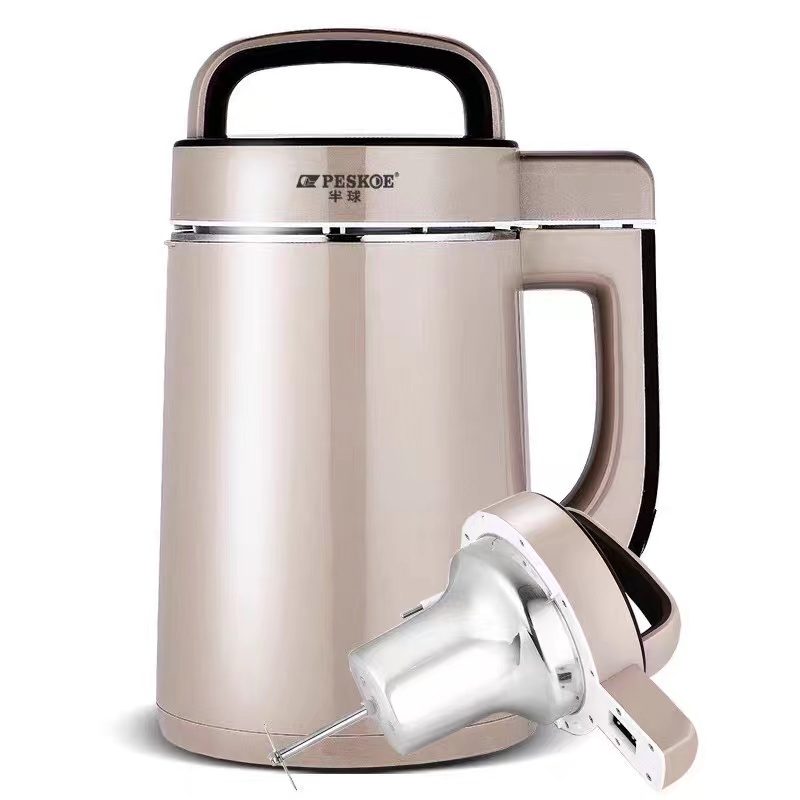

Soybean milk machines |
 |
 |
 |
 |

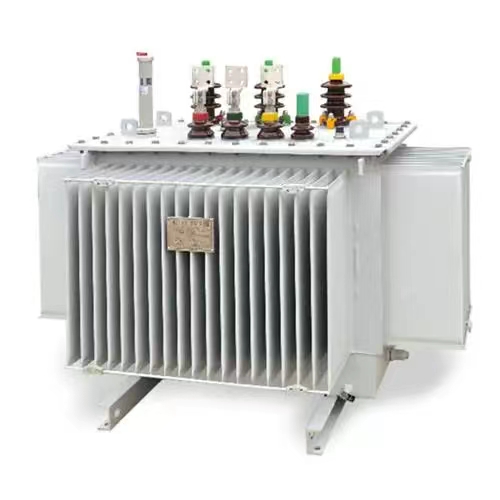

| Transformers |

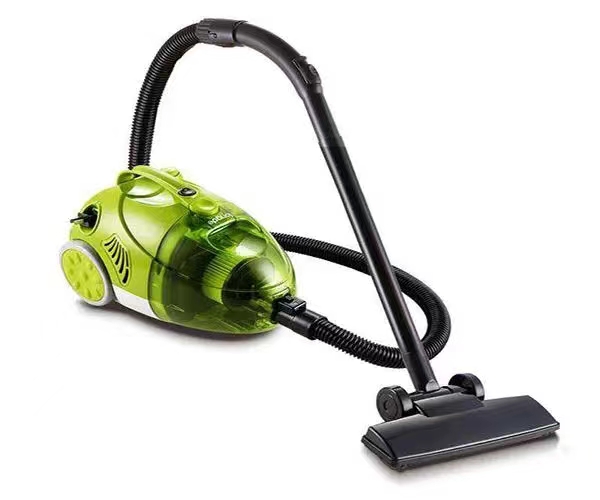

Vacuum cleaners |

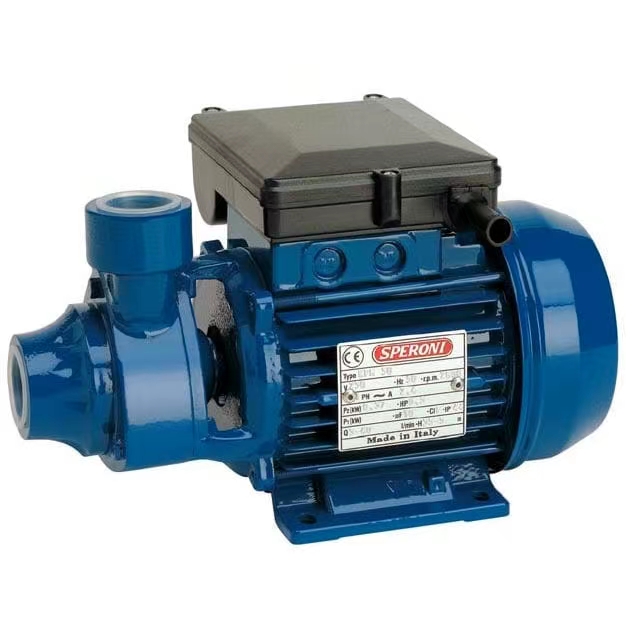

Water pumps |

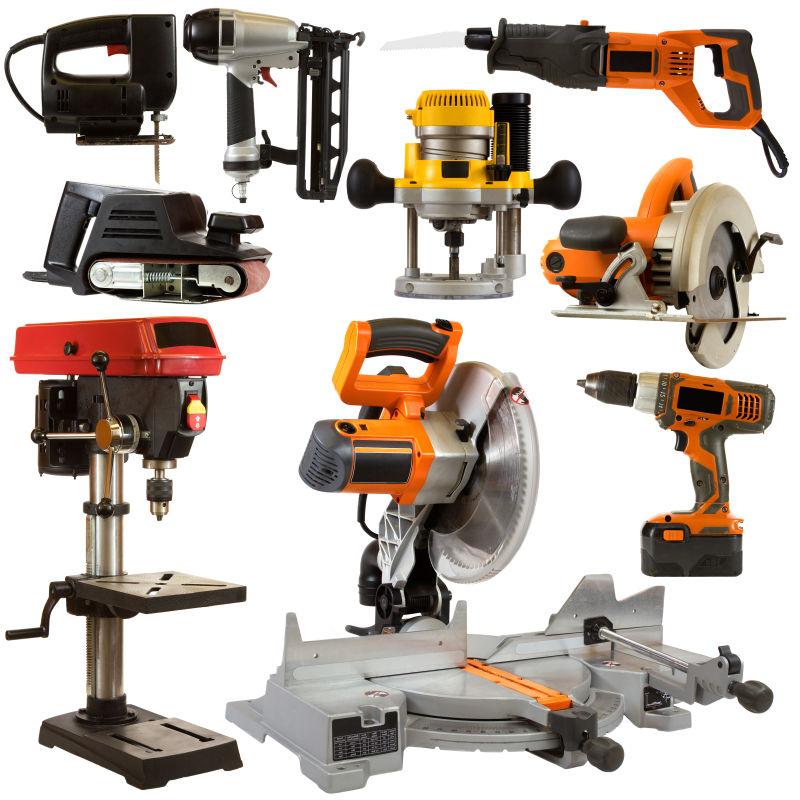

Electric tools |

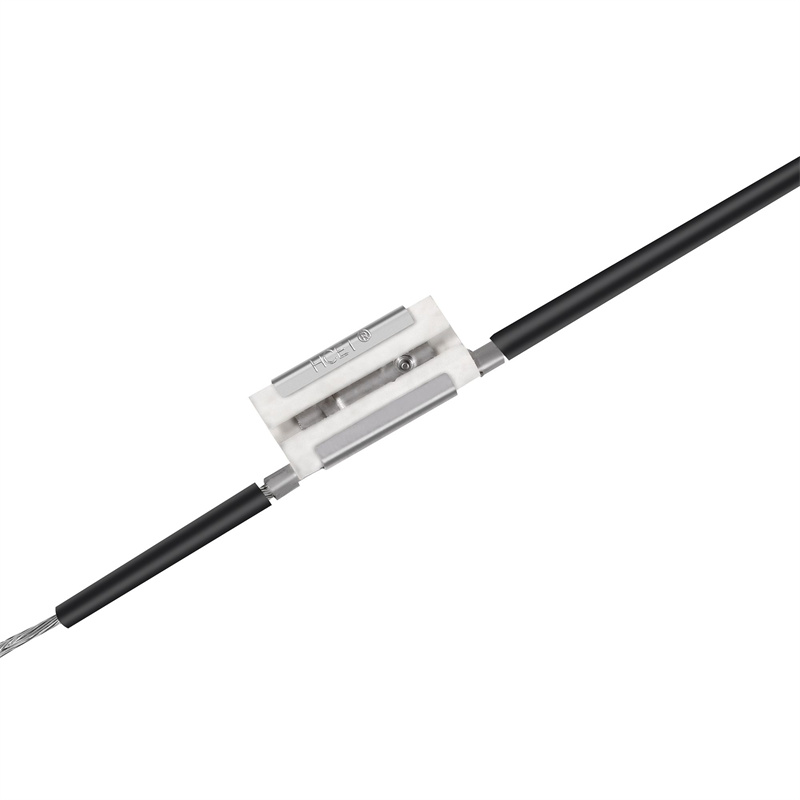

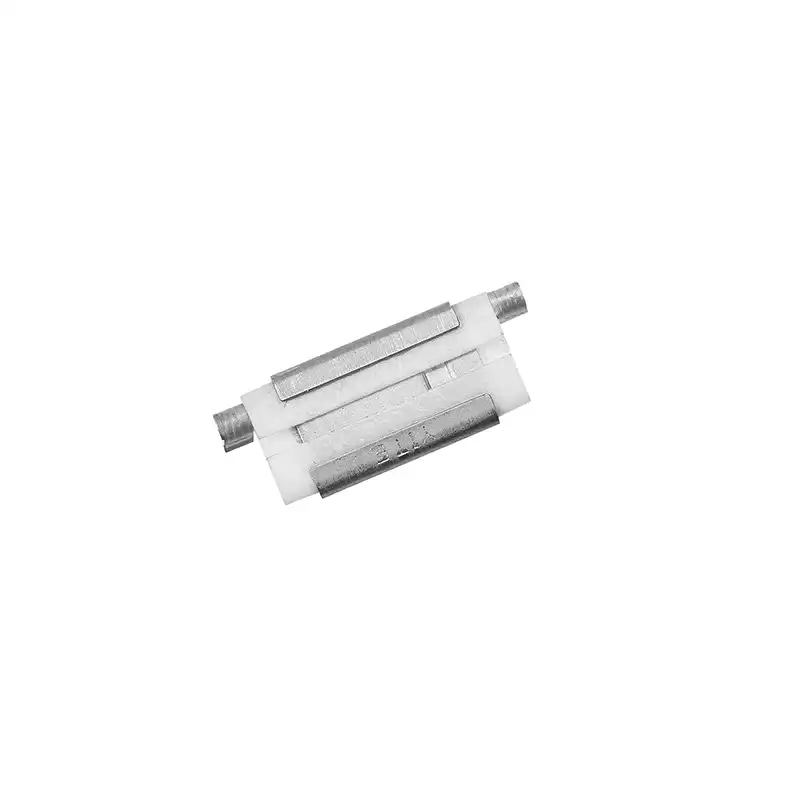

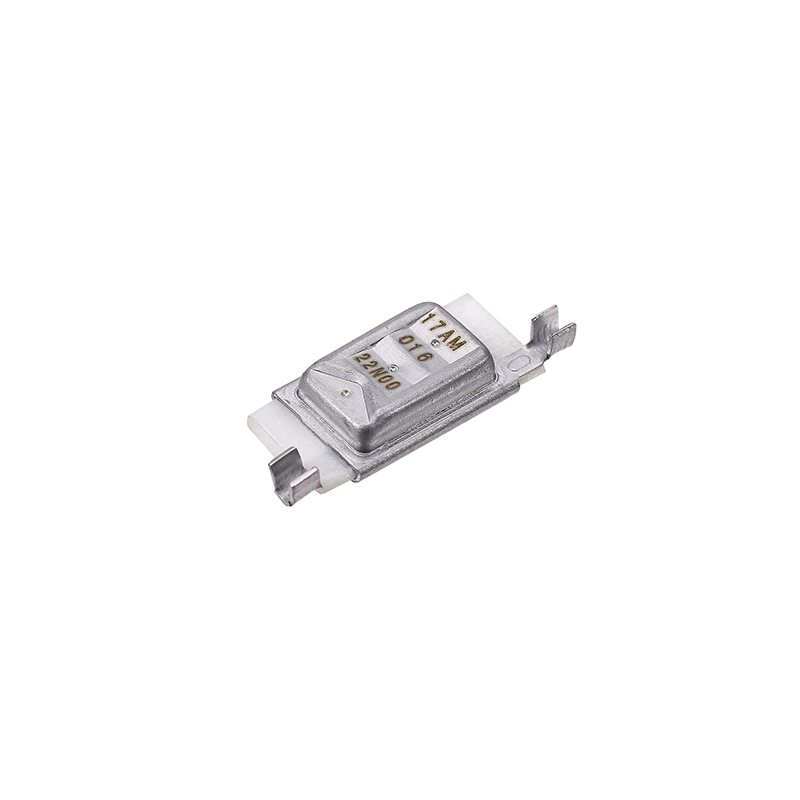

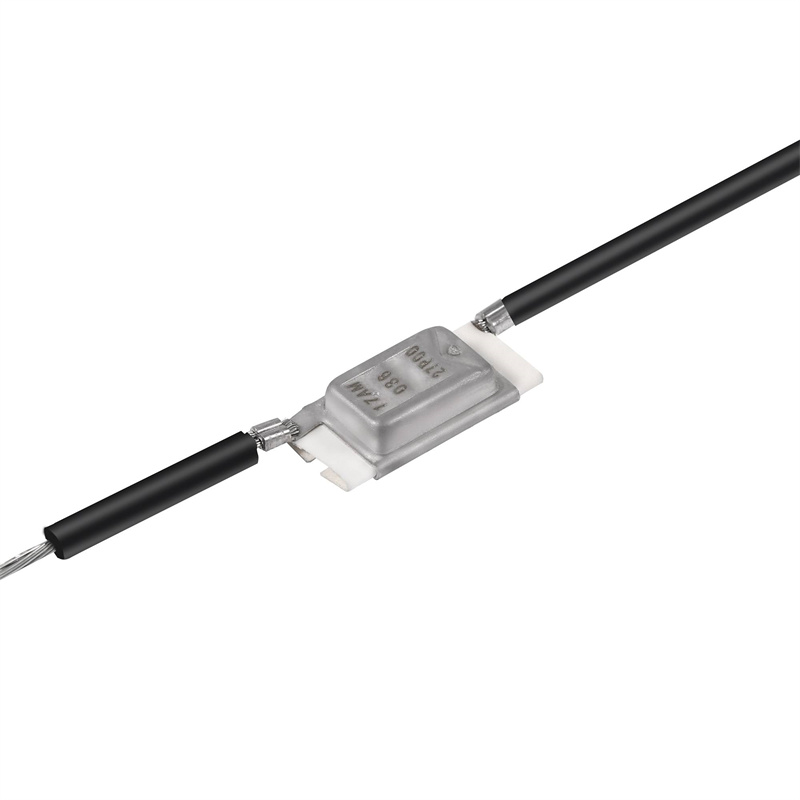

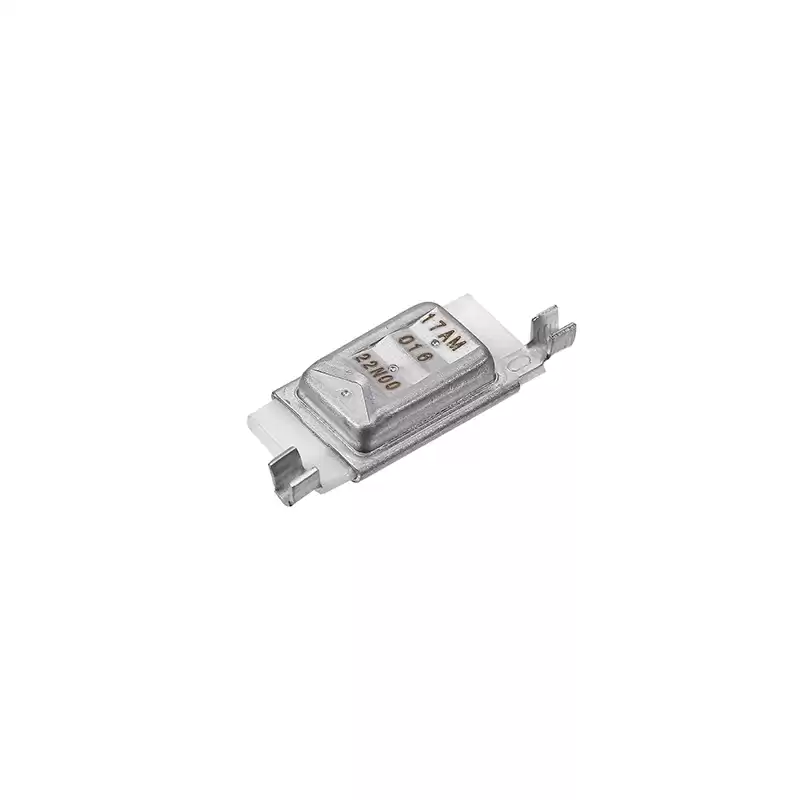

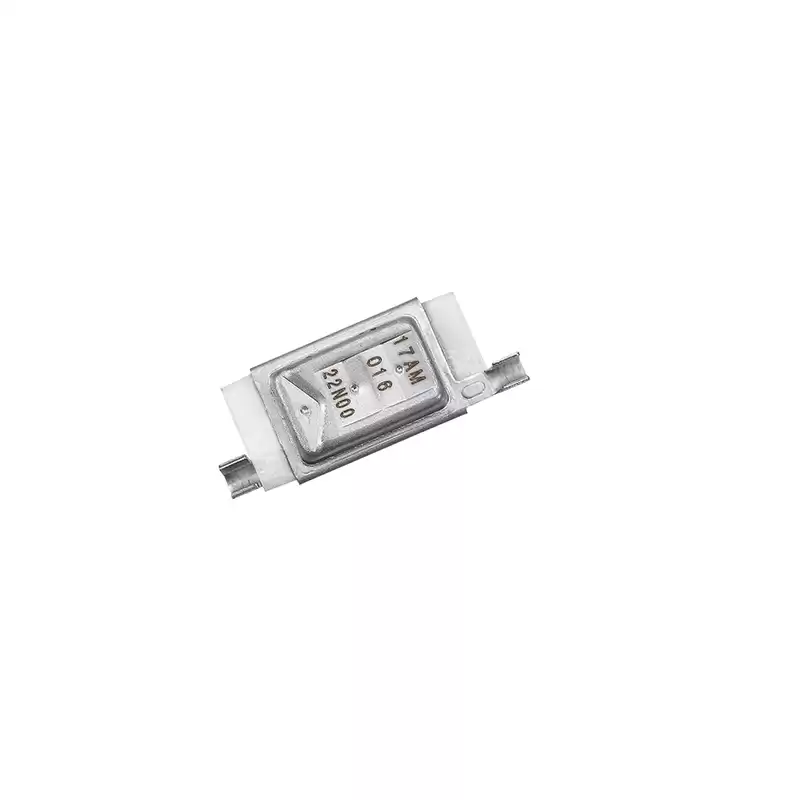

Product display

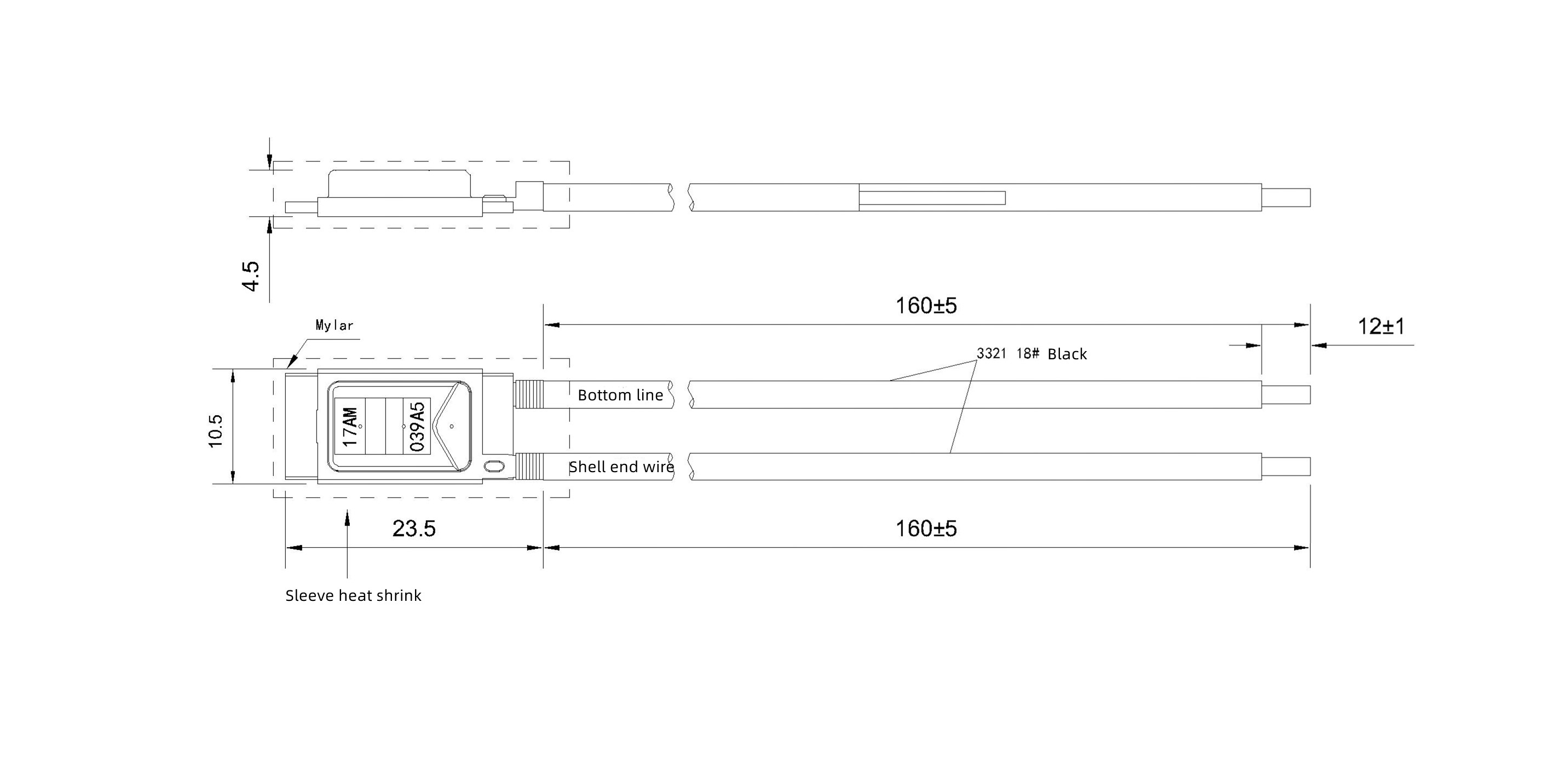

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
FAQ
Q:Are you a product supplier or a factory?
A:Yes, we are a factory. Located in Nanjing, Jiangsu Province. We've been making them for 12 years.
Q:How can I get a free sample?
A:We can provide 5-10 pcs samples for free, but the overseas shipping cost will in your side.
Q:What is the shipping term of bimetal thermal protector?
A:The bimetallic thermal switches we produce are all small size, so the mode of transportation should be subject to the order quantity. For a single order of more than 50,000 pieces, sea transport is the most economical option.If the order quantity of thermal switches is less than 10000 pieces each time, express delivery is the best way, because the weight of 10000 pieces will be less than 50Kg, which is the minimum order quantity of air freight. If the quantity is between 10,000 and 50,000 PCS,express or air transport can be chosen freely according to the weight of different thermal switches.
Q:What parameters should I provide when I want to buy a thermal protector?
A:If you want to buy a thermal protector, please prepare these parameters:
1. Rated voltage, rated current.
2. Operating temperature and rest temperature of thermal protectors.
3. Length of lead wire, color, type and temperature resistance.
4. Application of thermal protector.
5. Mounting requirements if needed, including dimensional requirements.
