Small Size Desk-Top Stepless Speed Variation Vacuum Mixer 500-1000ml With Variable Volume Design
SPECIFICATIONS
1 This SVM-1L system Vacuum Mixer is a high efficient equipment with a set of vacuum mixing and dispersion function together, it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, chemical and other industries.
2Thevacuum mixeris with handle wheel, which can uplift the cylinder by hand, without connecting with air compressor.
3 Thevacuum mixing machineis programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
4 The TOB-SVM-1L system vacuum mixing machineis excellent for preparing LiCoO3, LiFePO4, Phosphors and
ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model
|
Small Size Vacuum Mixer TOB-SVM-1L
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
750W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Mixing speed
|
0-1400 r/min, Through the inverter speed control
|
|
Effective volume
|
1L, Can also choose 500ml Mixing Jar
|
|
Mixing barrel opening mode
|
Arms straight line guide rail hand cover rising,
without connecting air compressor
|
|
Mixing barrel size
|
Φ100mm(Diameter)*140mm(Hight)
|
|
Mixing time set
|
0-99H can be set, with auto stop when time reach
|
|
Weight
|
About 60kg
|
|
Dimension(H*L*W)
|
600*500*300mm, 24″*20″*12″
|
|
Advantage
|
Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours.
Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation
Programmable controller to set time, speed, rotation direction.
With time setting function
Container is opened or closed by electric Hand (no air pump is required any more)
|

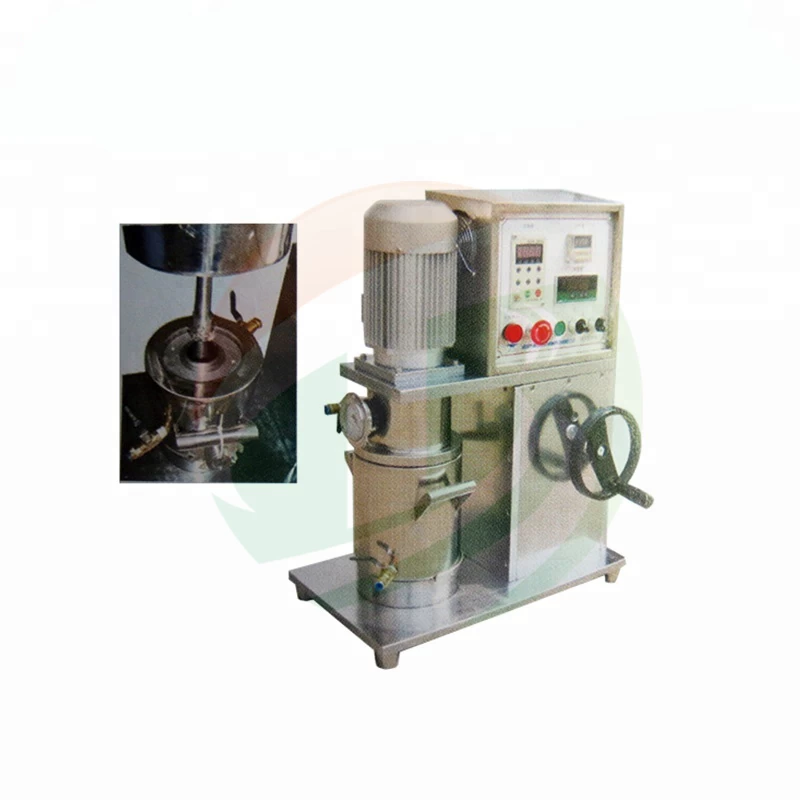

PRODUCT DISPLAY
