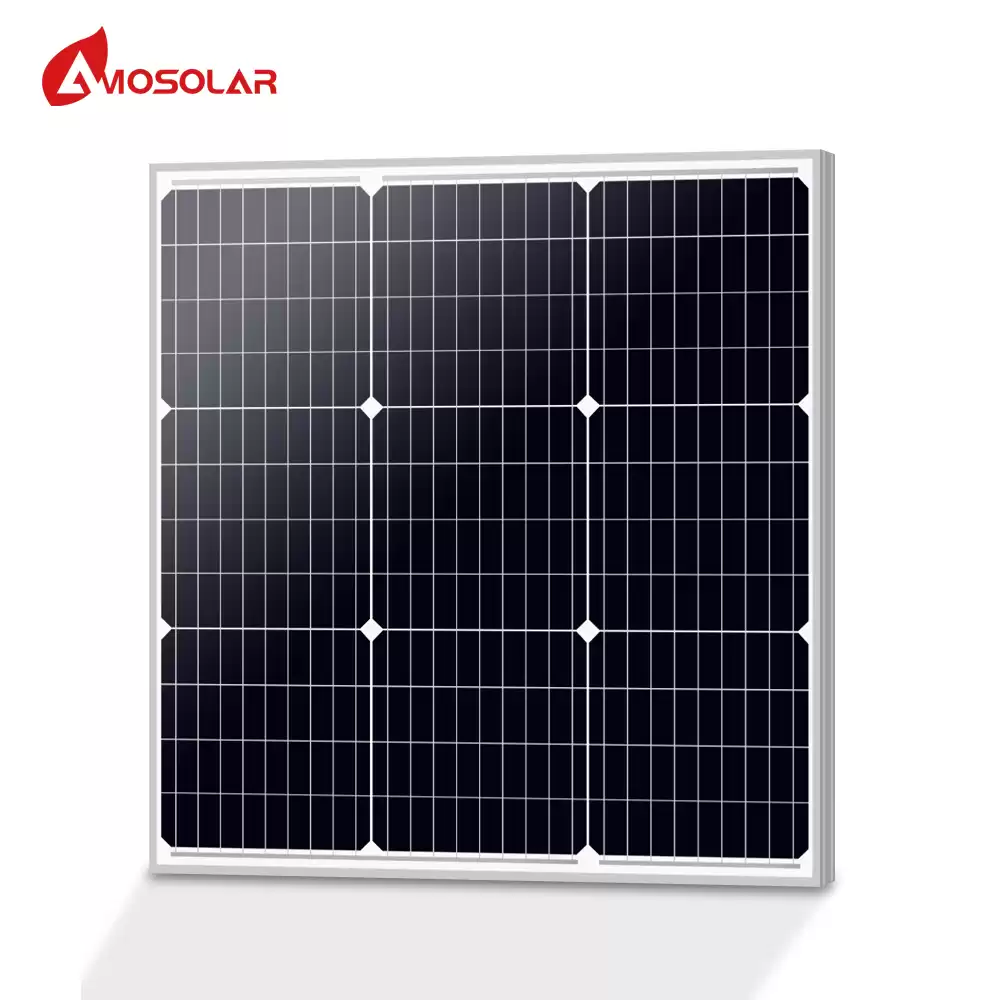

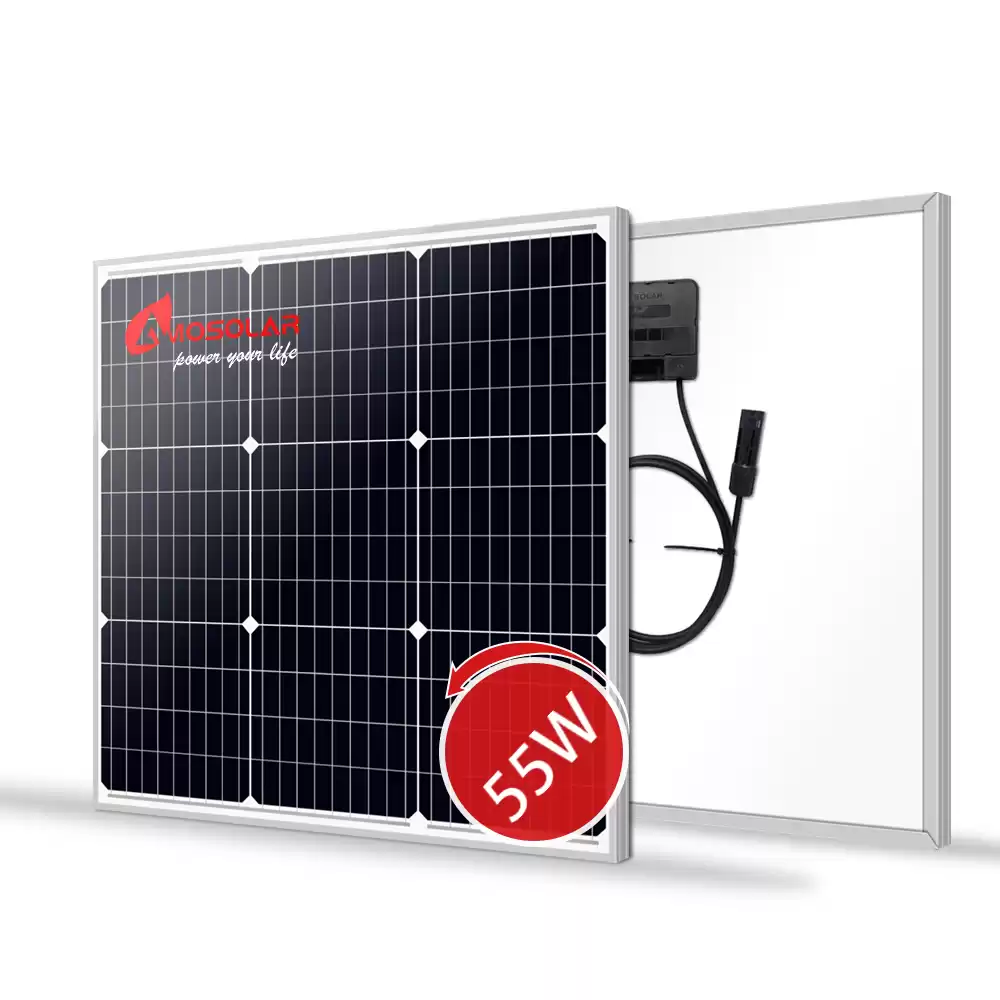

Small Solar Panel 55W Monocrystalline PV Module
AS55M6-36
Advanced technology ensures power output of solar panels, International unmanned lamination technology ensure the module quality and excellent appearance.
| Cell | Mono |
|
Rated Maximum Power |
55W |
| Maximum Efficiency | 17.87% |
| Junction Box | IP 67 |
| Maximum System Voltage | 1000VDC |
| Operating Temperature | -40℃ ~ +85℃ |
| Connectors | MC4 EVO2/QC4.10-35 |
55W Small Monocrystalline PV Panel Chinese Manufactory : Our panels are designed to provide maximum efficiency, this type of solar pv mudule is easy to install and require minimal maintenance.
|
Model |
AS55M6-36 |
||
| Rated Maximum Power at STC | 55W | |||
| Open Circuit Voltage (Voc) | 23.79 | |||
| Maximum Power Voltage (Vmp) |
2.82 |
|||
| Short Circuit Current (Isc) | 20.54 | |||
| Maximum Power Current (Imp) | 2.68 | |||
| PV Module Efficiency (%) | 17.87 | |||
| Standard |
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 |
|||
Mechanical Parameters
Layout : 36( 3 × 12 ）
Junction Box : Split junction box, IP67
Weight: 3.3KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)

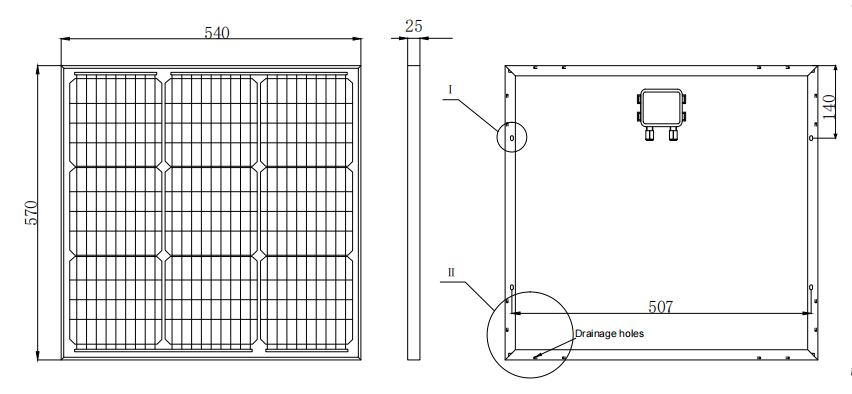

PV Size: 570×540×25mm
Packaging: 20 pcs / pallet
6400 pcs / 40HQ container
10 pcs / pallet
2520 pcs / 20FT container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
