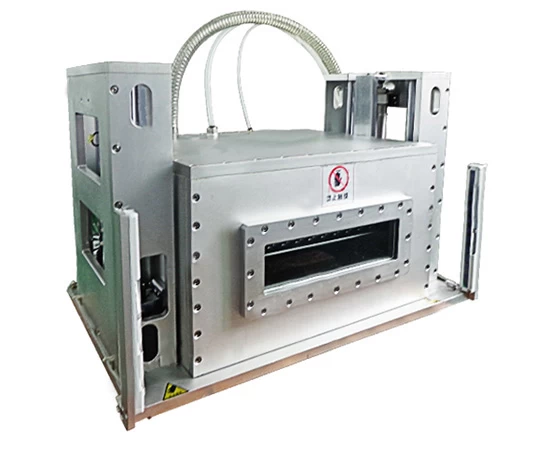

Small Vacuum Chamber Machine for Laboratory Usuage
Product Specification
1. This device is mainly used for batteries rapid and uniform absorb the electrolyte
under vacuum state;
2. Cylinder drive the chamber up and down, convenient discharge, vacuum sealing;
3. With the watching window, batteries cases can be observed;
4. Can be used in the glove box or configured to work on the assembly line;
5.PLC automatic control, standing time and frequency can be set arbitrarily;
6. Equipped with safety grating protection;
7. Adapt to different battery specifications, and easy to adjust.
|
The cavity size (L * W * H)
|
860 * 542 * 712mm
|
|
Dimensions (L * W * H)
|
900 * 620 * 800mm
|
|
Configure Power
|
AC220 / 50HZ, 0.2KW
|
|
Weight
|
100kg
|
|
The vacuum source
|
-0.098MPa, 40L / s
|
|
Vacuum degree
|
-97 ~ -90kpa
|
Product Image
Packing
