Smaller Size Vacuum Holding Box For Lithium Battery Research And Producing
SPECIFICATIONS
TOB-JZ300-S electrolyte diffusion chamberis specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell/cylinder cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries (especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.
This smaller size is designed for laboratory research for working in small glove box with a smaller dimension.
|
Model
|
Electrolyte Diffusion Chamber TOB-JZ300-S
|
|
Power Supply
|
110-240 V, Single Phase 50/60Hz
|
|
Max. Power
|
100W
|
|
Warranty
|
One year limited with life time support
|
|
Compress Air
|
0.5-0.8Mpa
|
|
Inner Chamber Size
(L*W*H)
|
290*110*170mm, Can customize the size according to glove box size
|
|
Chamber Body
|

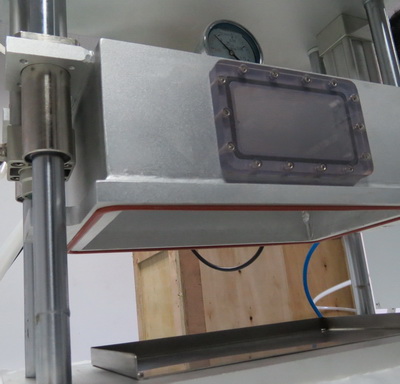

12mm thick Aluminum case with observation window
|
|
Vacuum Level
|
Vacuum condition remains stable,
vacuum degree and vacuum circulation times can be set independently
Vacuum mode (once or twice) can be selected
Easy program setting for specific vacuum condition
Vacuum degree can up to -95kpa, with good sealing,
can guarantee 1 minute air leakage is not more than 0.01 MPa
|
|
Vacuum Condition Hold Time
|
0 - 9999 sec, adjustable
|
|
Product Dimensions
(L*W*H)
|
Vacuum Box: 430*230* 370mm
Control Unit: 470*450*250mm
|
|
Application Notes
|
Please choose the vacuum pre-sealing machine and vacuum pump together for immediately use
|
|
Net Weight
|
40 kg
|

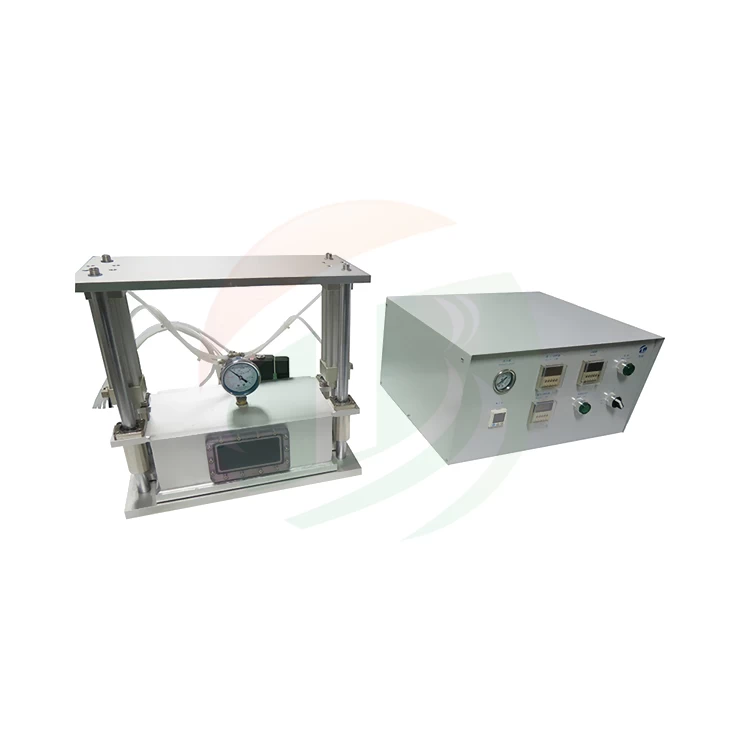

PRODUCT DISPLAY

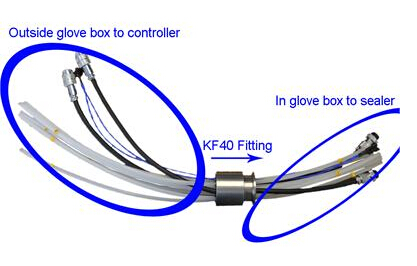

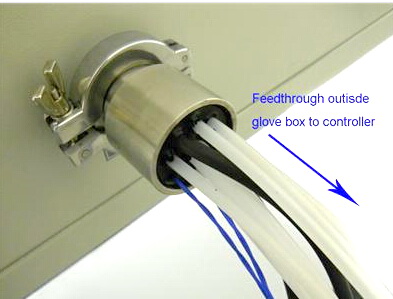

The electrolyte diffusion chamber needs work in the glove box, it has pipes to let the controller box outside the glove box and just vacuum standing box in glove box, first, it can save some space, second, it can also protect the controller box without electrolyte corrosion.
Safety light curtain For operating safety
