EC-Z01 Smart Home alarm system
Can work with ALEXA

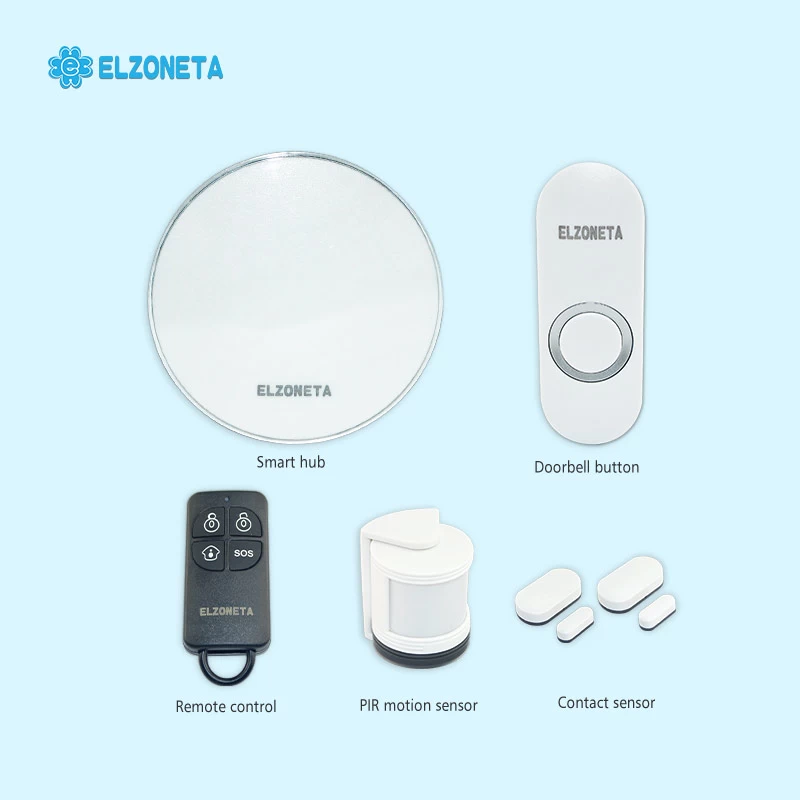

The Wireless Smart Home Security Alarm System includes Smart Wifi Hub,Contact Sensor,PIR Motion Sensor and Remote Control.
APP name:
Android: An-Home
IOS: SSG An-Home
Specifications:

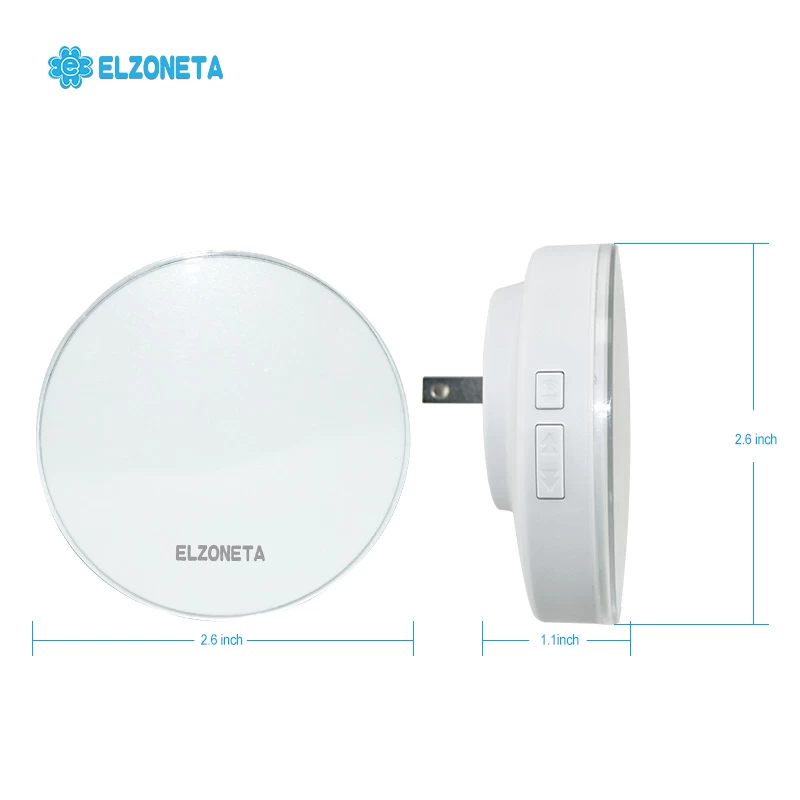

Smart Wifi Hub
The "brain" of the system, with sound & flash, get a live updates and change setting anytime anywhere.
Operating Voltage : 100-240V AC 50/60Hz
Wi-Fi standard : 2.4GHz 802.11b/h/n
Stand-by power consumption : <2W
Operating RF : 433.92MHZ
The maximum number supported for wireless accessories : 50
Material : ABS
Alarm volume : 80dB
Working temperature : -20℃~+50℃
Working Humidity : ≤85%
Built-in lithium battery : 250mA, can last about 4 hours after outage.
Contact Sensor
Wireless transmitting distance : ≤80m (in the open area)
Transmitting frequency : 433.92MHZ
Operating Voltage : 3V DC (1*CR1632 battery)
Operating current : 3uA (standby), 8mA (transmitting)
Installation gap : ≤1CM
Working temperature : -20℃~+50℃
Working Humidity : ≤85%
PIR Motion Sensor
Wireless transmitting distance : ≤80m (in the open area)
Transmitting frequency : 433.92MHZ
Operating Voltage : 3V DC (1*CR2450 battery)
Operating current : 15uA (standby), 15mA (transmitting)
Detection distance : 6M
Mounting height : 1.8~2.7M
Installation gap : ≤1CM
Working temperature : -20℃~+50℃
Working Humidity : ≤85%
Remote Control
4 keys : Arm, Disarm,SOS,Home
Wireless transmitting distance : ≤80m (in the open area)
Transmitting frequency : 433.92MHZ
Operating Voltage : 3V DC (1*CR2032 battery)
Operating current : 1uA (standby), 15mA (transmitting)
Working temperature : -20℃~+50℃
Working Humidity : ≤85%
