smart light dali led dimmer driver wall switch 220v

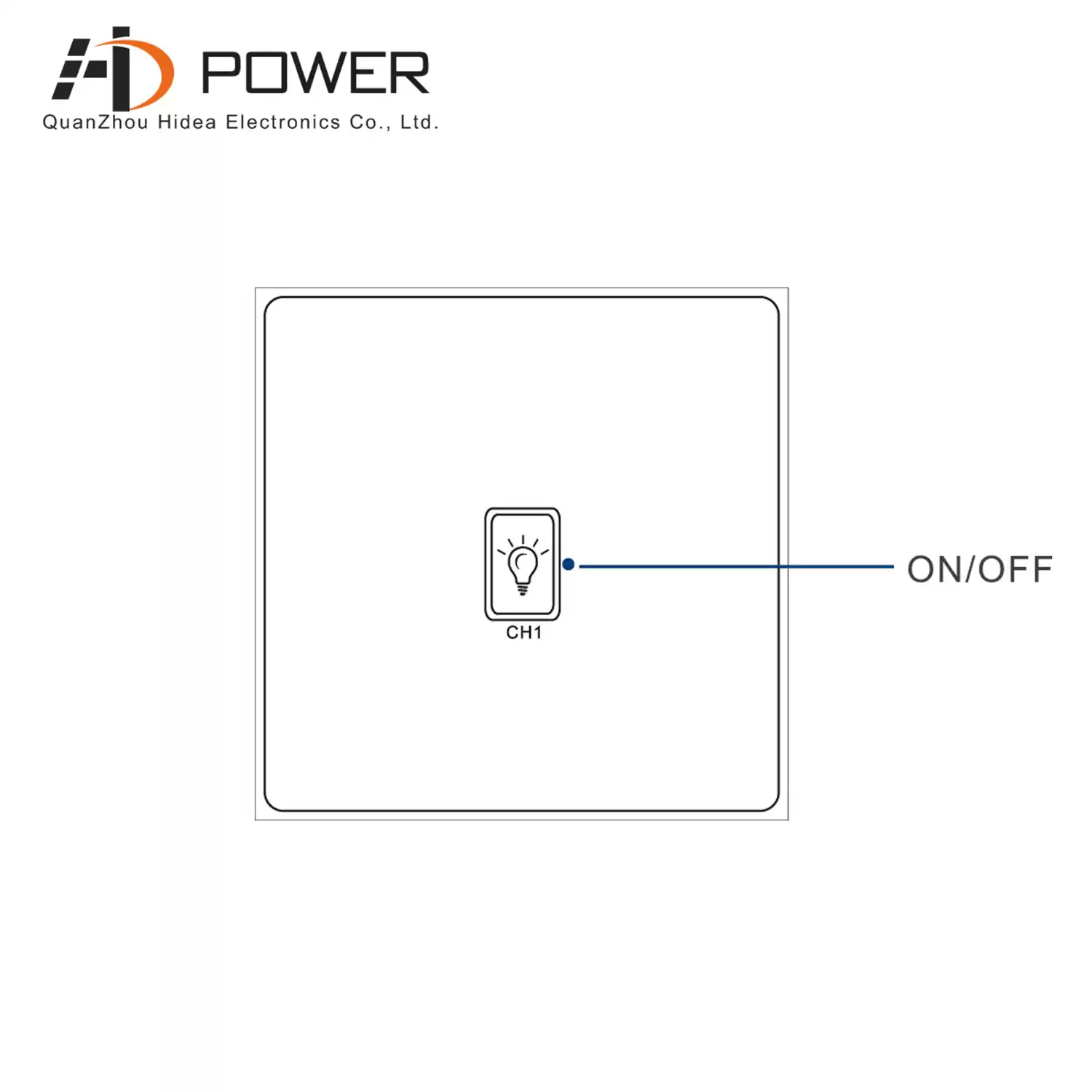

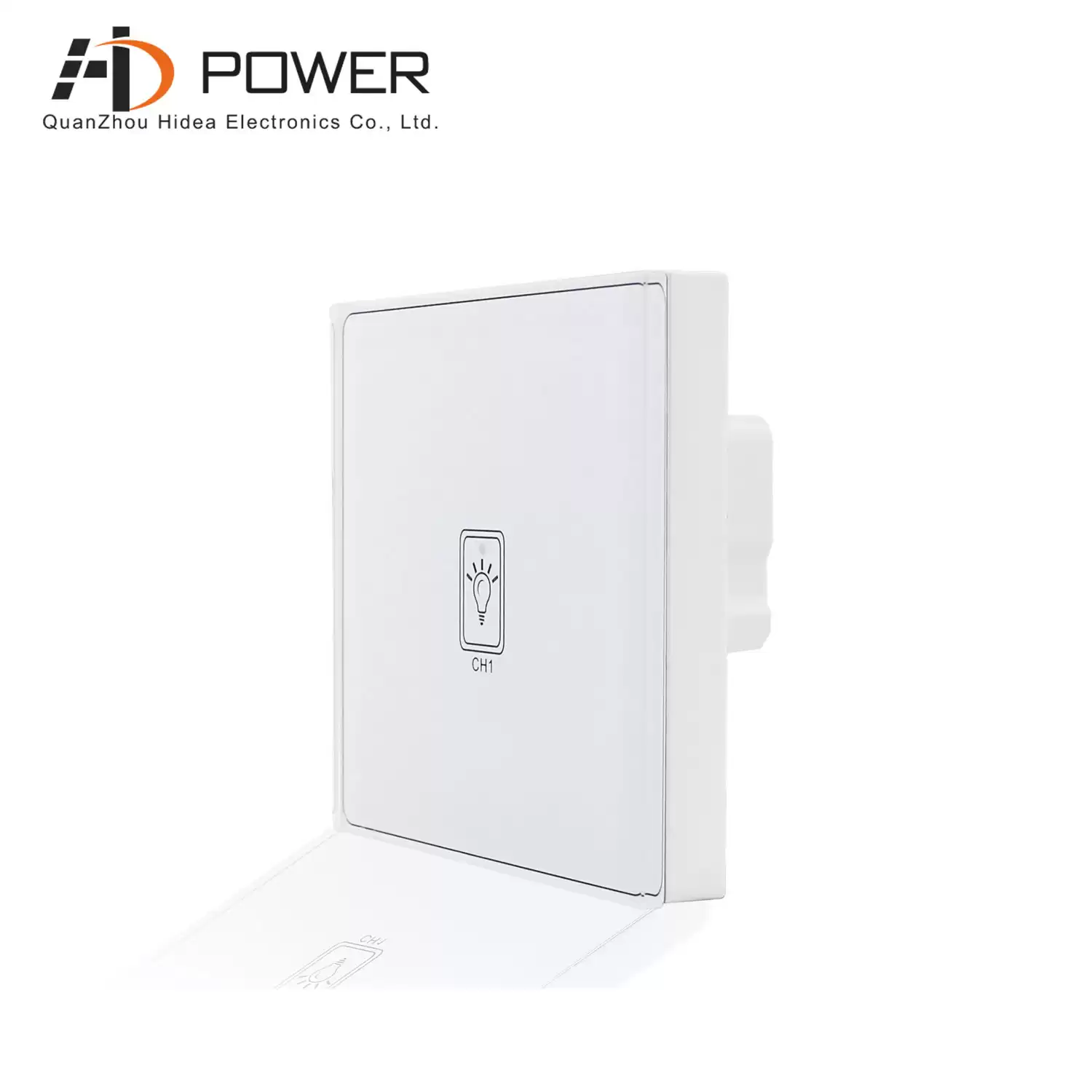

SMT-M1 is a Dali light wall-type dimmer switch used for led lights. The adjustable appearance is white, and the touch-type design pattern dimming is convenient and quick.
Technical Parameters

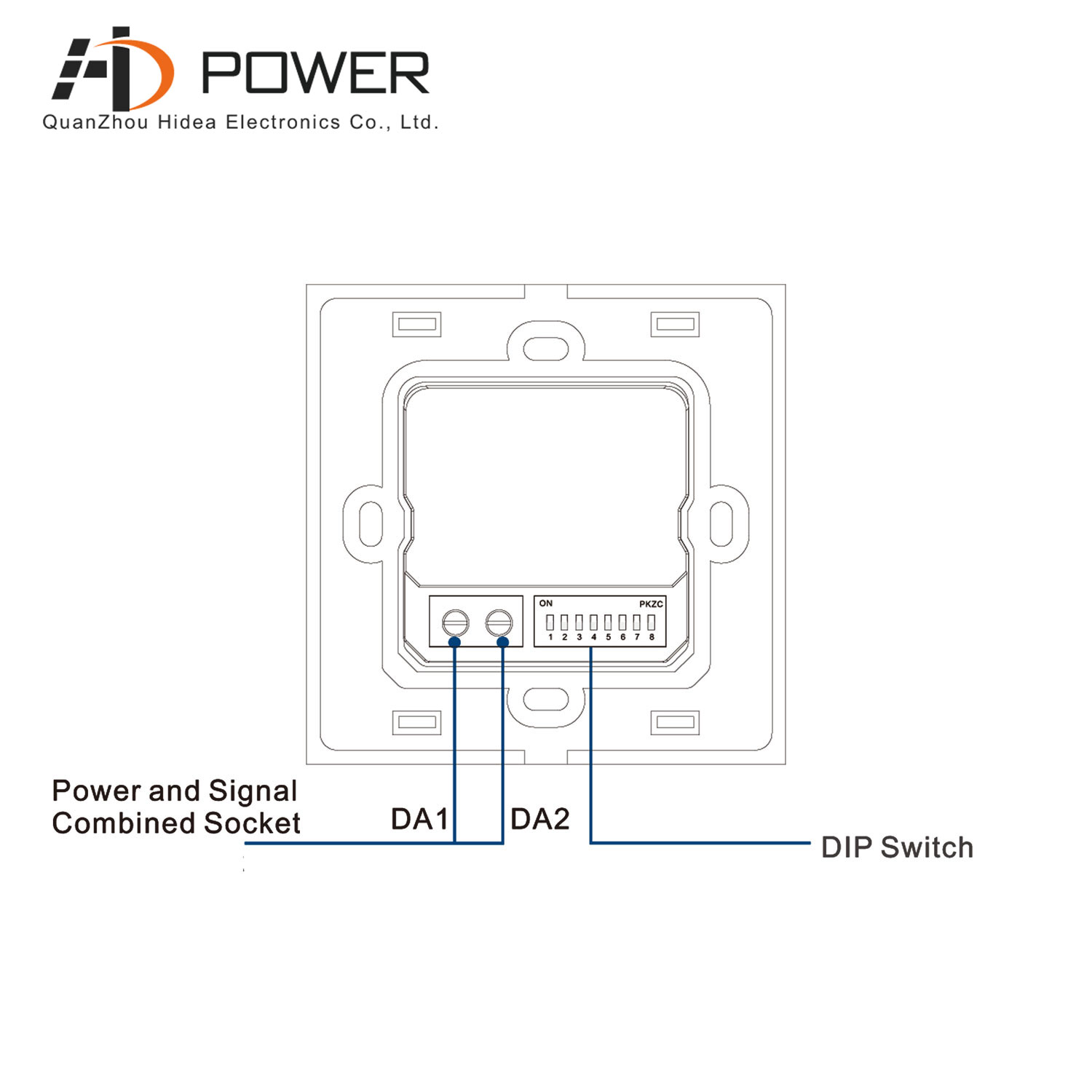

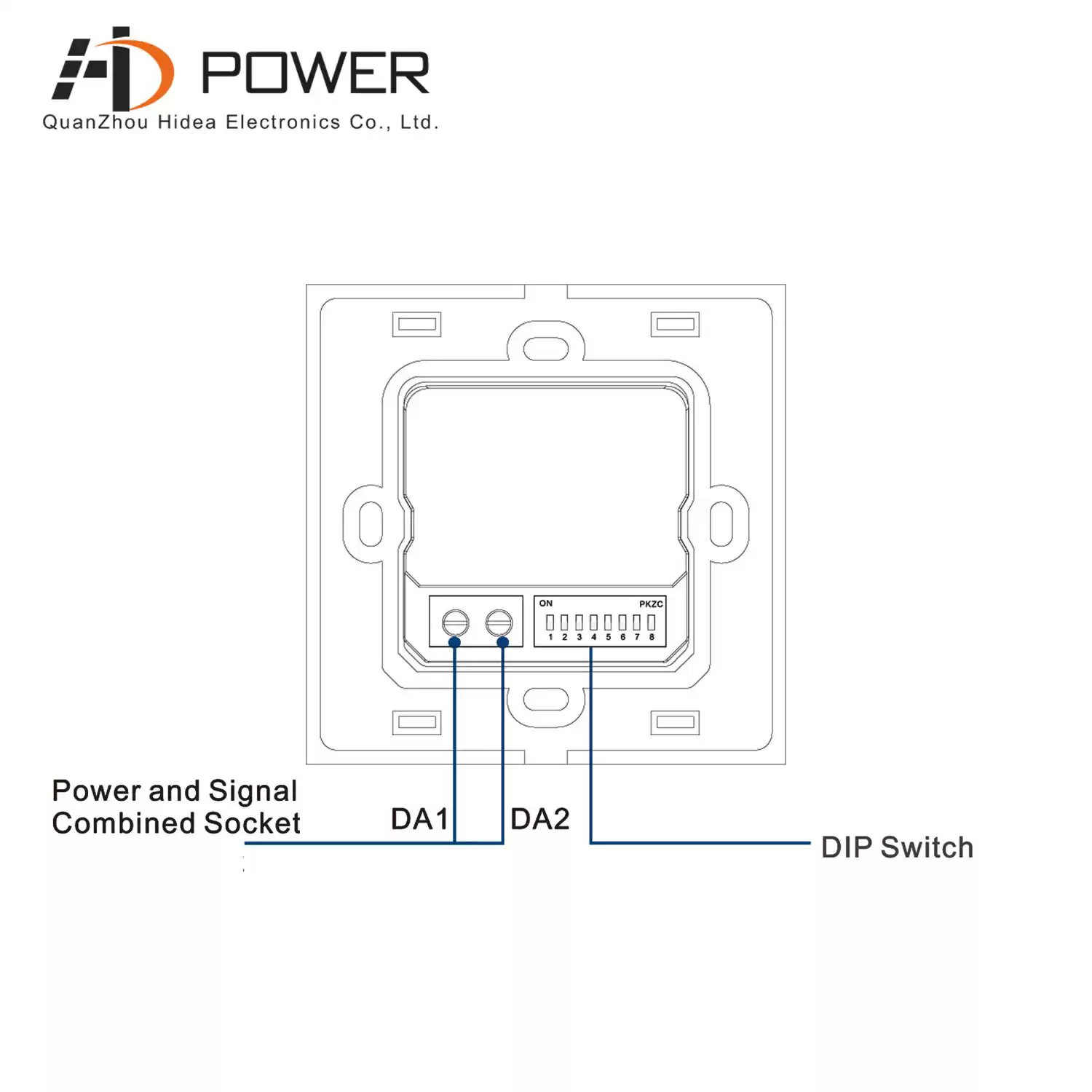

Power Supply :Provided by DALI Bus
Output Signal:DALI Signal
Static power:<0.5W
Current Consumption:25mA±10%
Output channel:1 channel

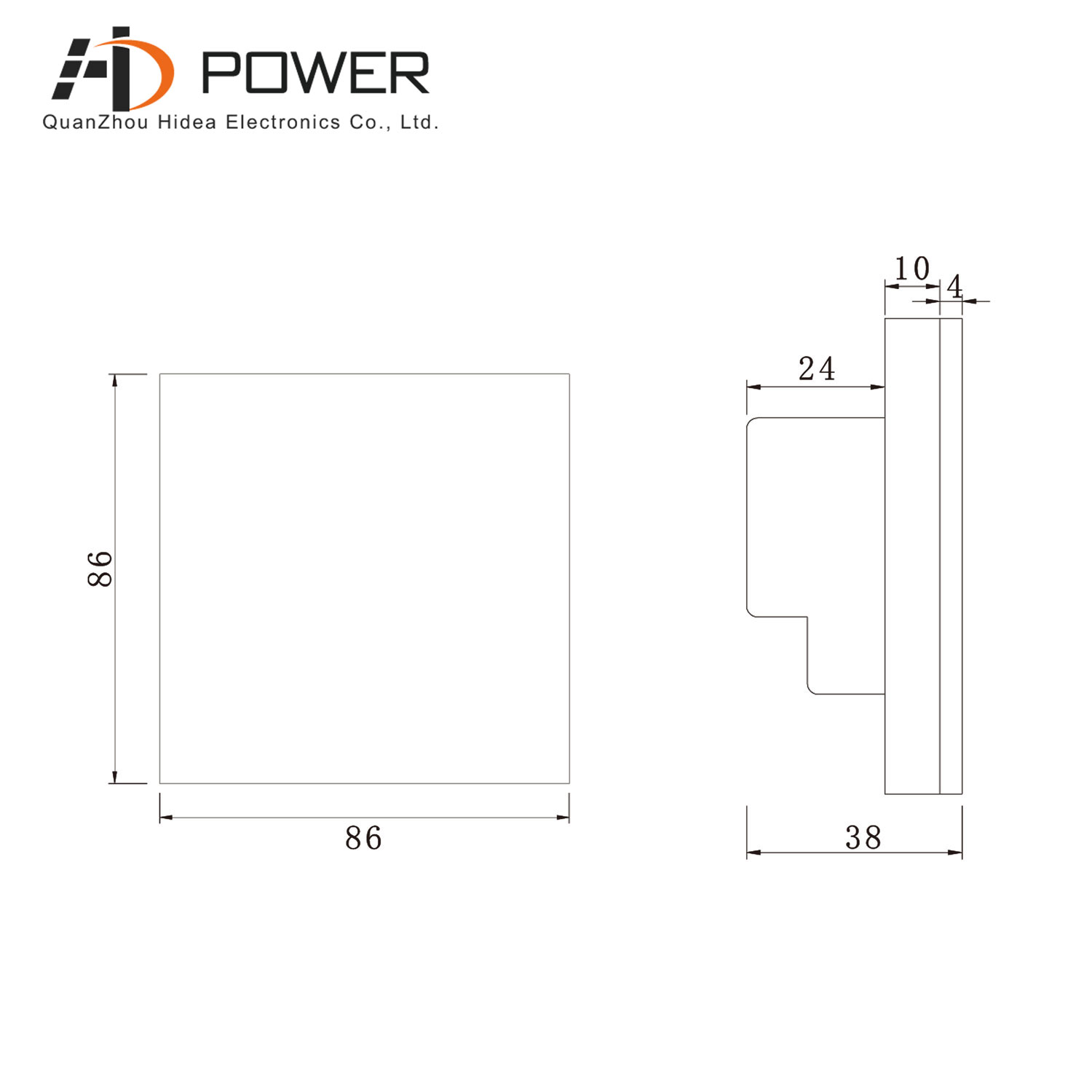

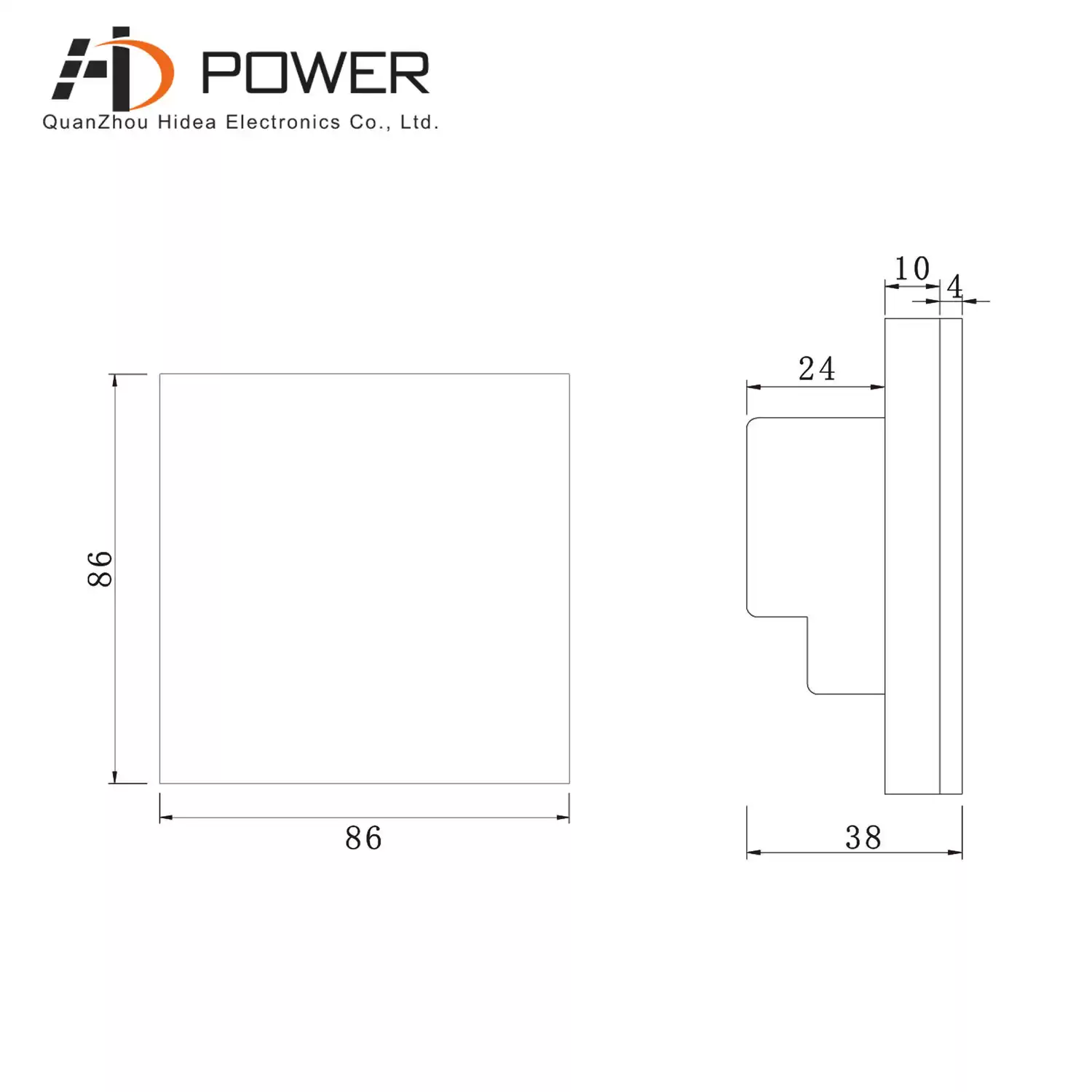

Product dimension:L86*W86*H38mm
Packing size:L116*W110*H51.5mm
Working temperature:-20℃-60℃
Net weight:170g
Gross weight:228g

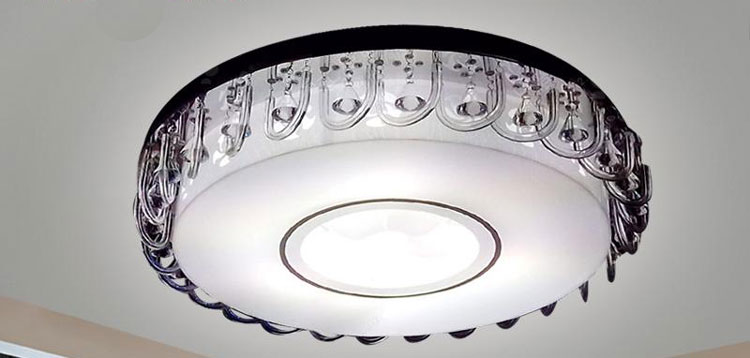

Compatible Light Type
SMT-M1 dali dimmer can be used with smarts dali led driver, it is a power supply series that can last longer
Related Products
|

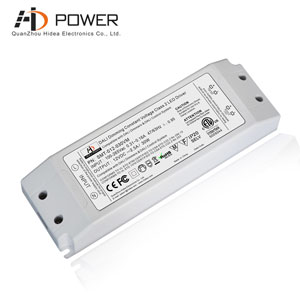

 Dali dimming 30W 12v led drive power has passed CE, ETL certification, complete certificates
Mode：SMT-012-030VM
Dimming Mode : Dali Dimming
Output Power : 30W
intput voltage：100-265VAC
Size：140*45*28MM （L*W*H）
|
