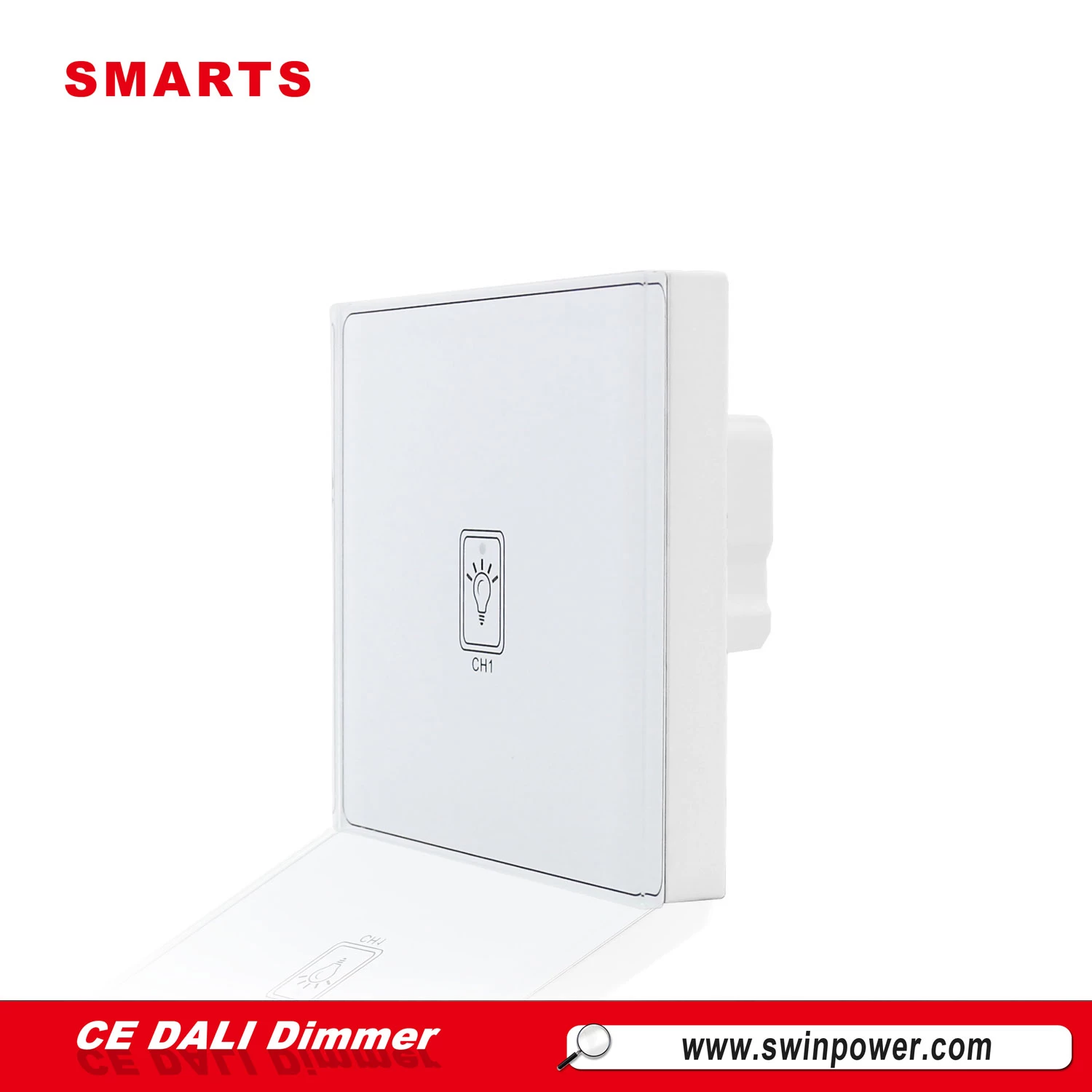

smart light switch dimmer Wall Switch 220v dimmer

SMT-M1 is the lamp dimmer switch. You can manually turn on or off your strip or touch the switch.


  • Certificationce,rohs
  • Size86*86*40mm
  • Dimming modedali
  • Input Voltage100-265vac

smart light switch dimmer Wall Switch 220v dimmer


Smarts Electronics has issued series touch dimmer which are suitable for Europen.  Those lamp dimmer switch are overload & overheat protections, make your home safer. Single live wire control, easy to install, replace the old switch directly.


1.Technical Parameters:
Power Supply :Provided by DALI Bus
Output Signal:DALI Signal
Static power:<0.5W
Current Consumption:25mA±10%
Output channel:1 channel
Product dimension:L86*W86*H38mm
Packing size:L116*W110*H51.5mm
Working temperature:-20℃-60℃
Net weight:170g
Gross weight:228g

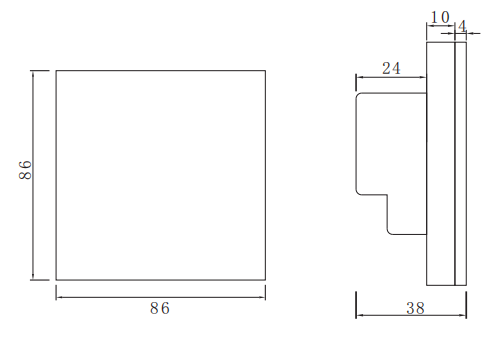

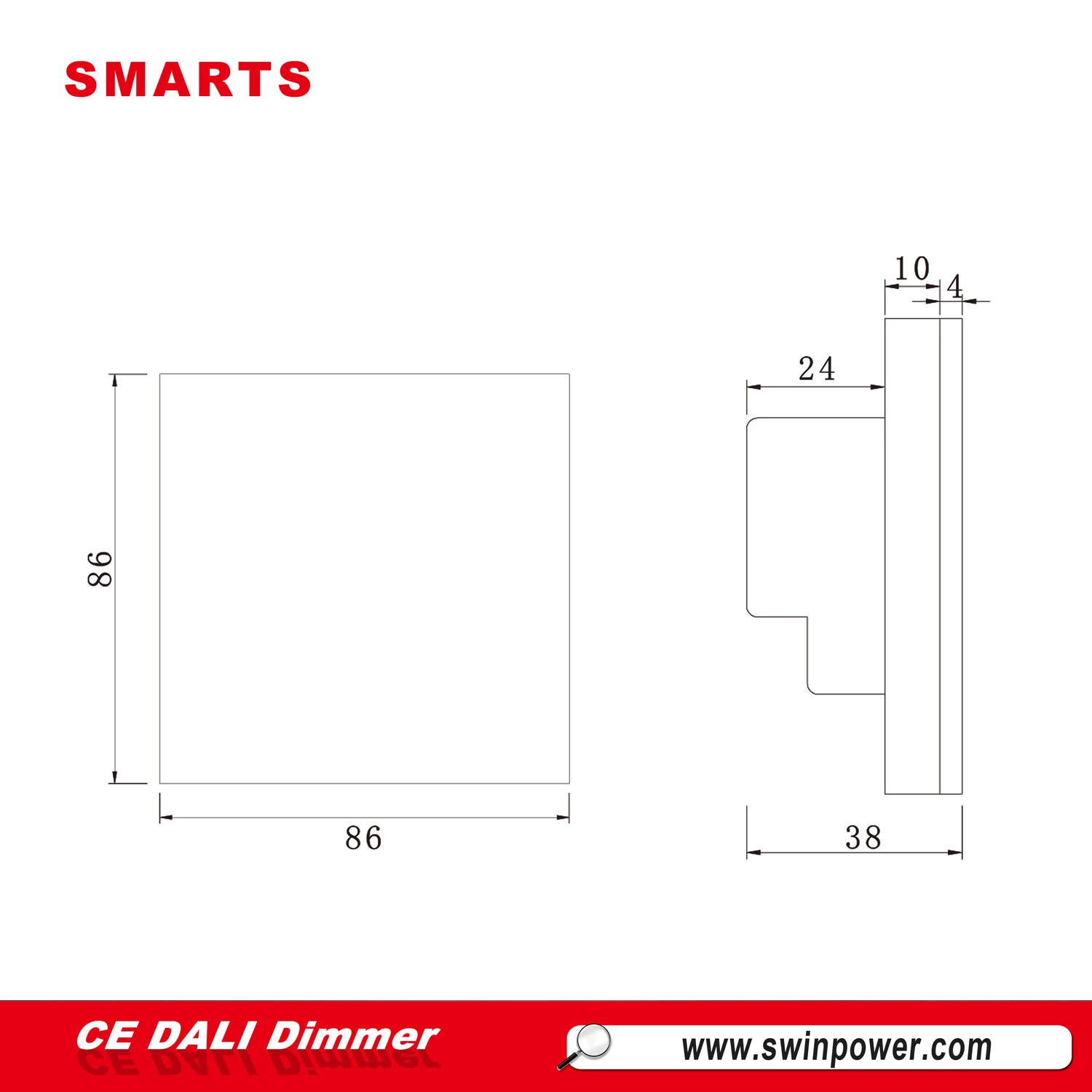

2.Product Size


smart light switch dimmer

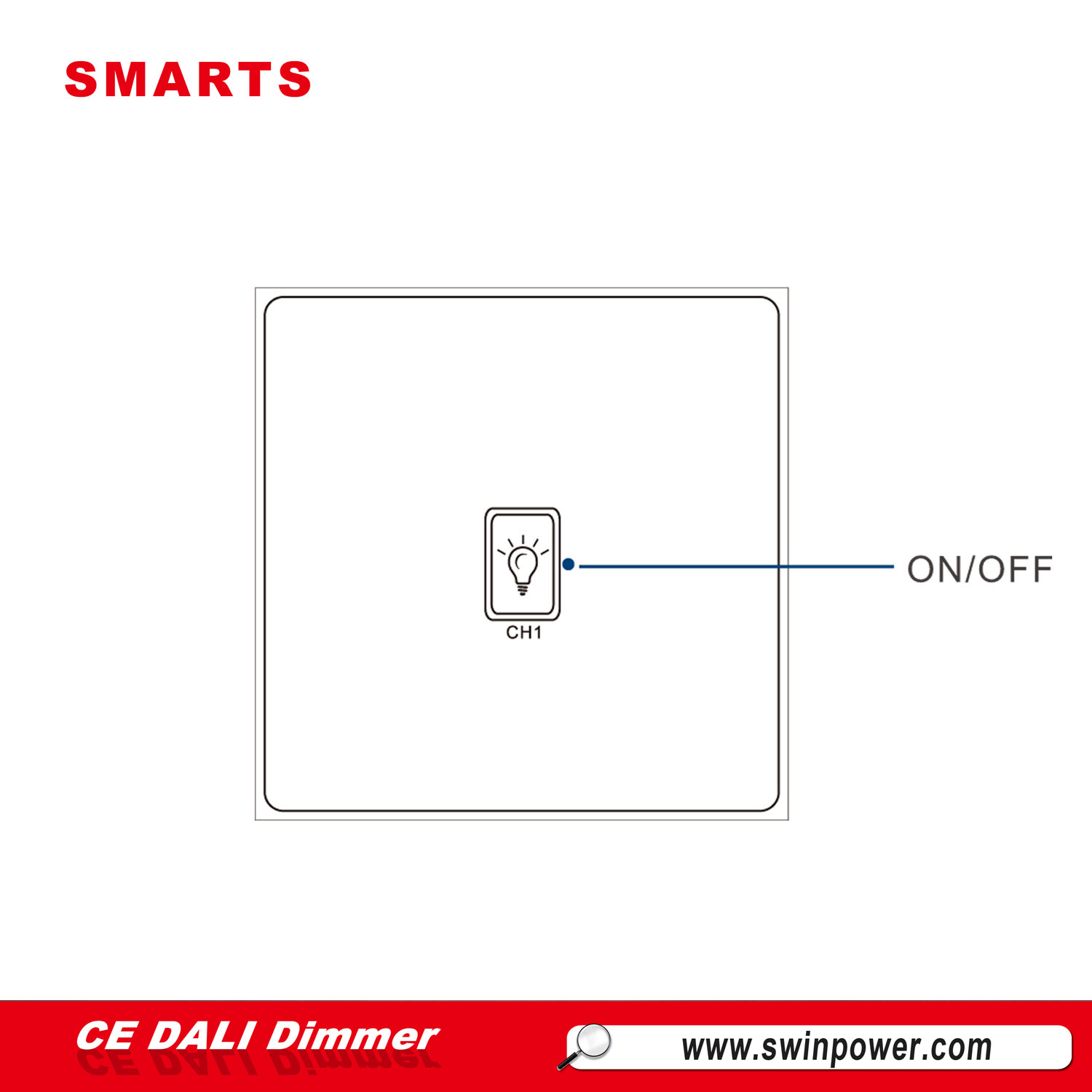

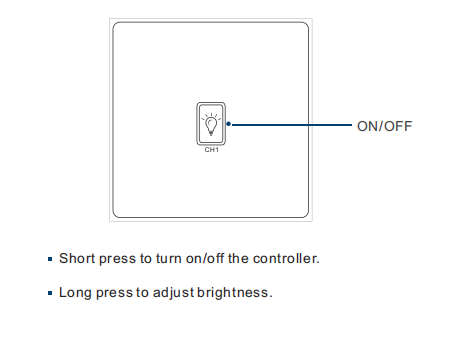

3.Funtion Description:


smart light switch dimmer

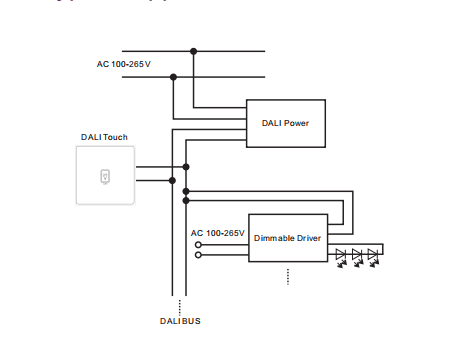

4.Typical Application:


smart light switch dimmer

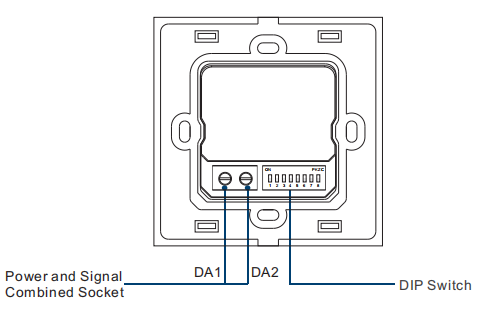

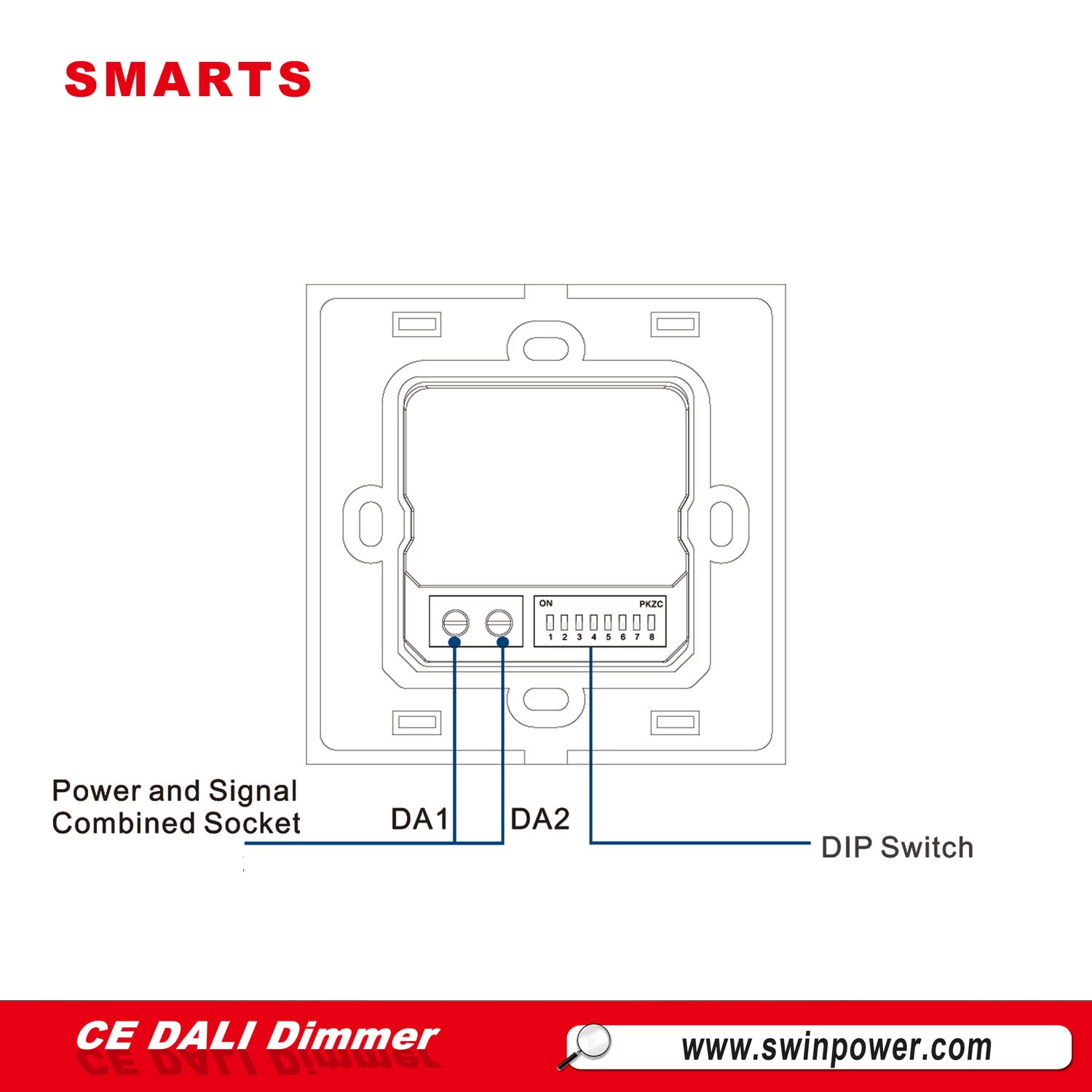

5.Interface Introduction



smart light switch dimmer

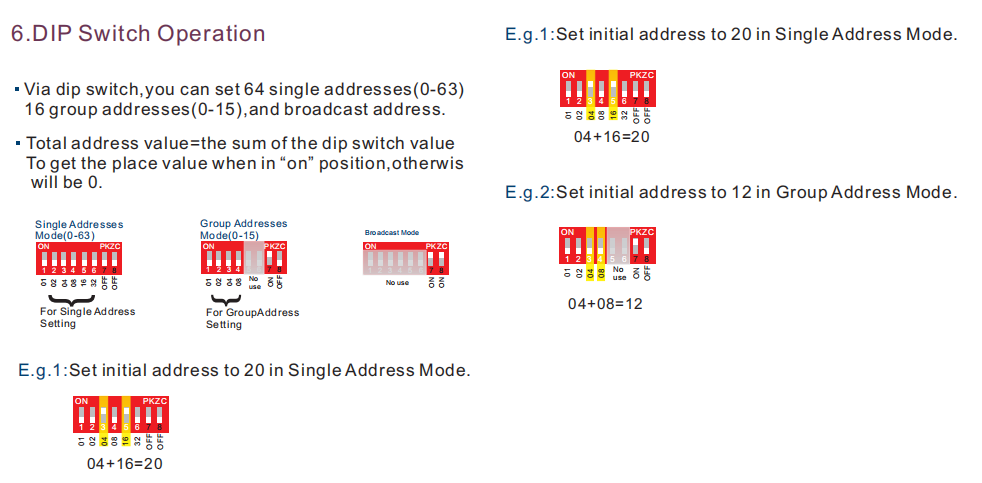

6.DIP Switch Operation


smart light switch dimmer

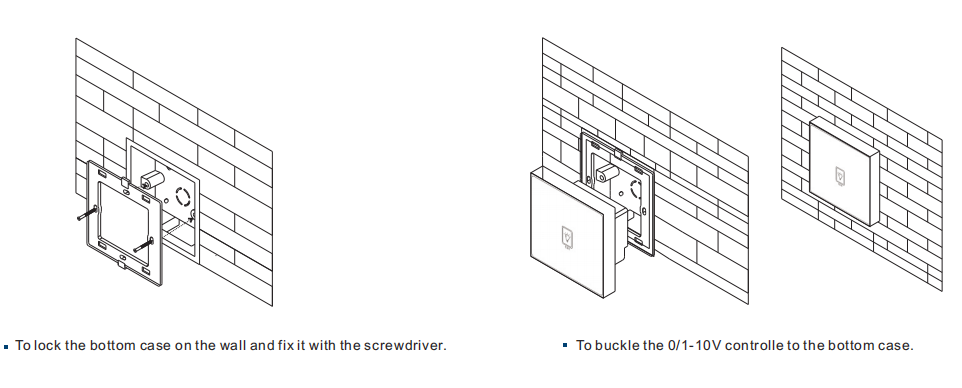

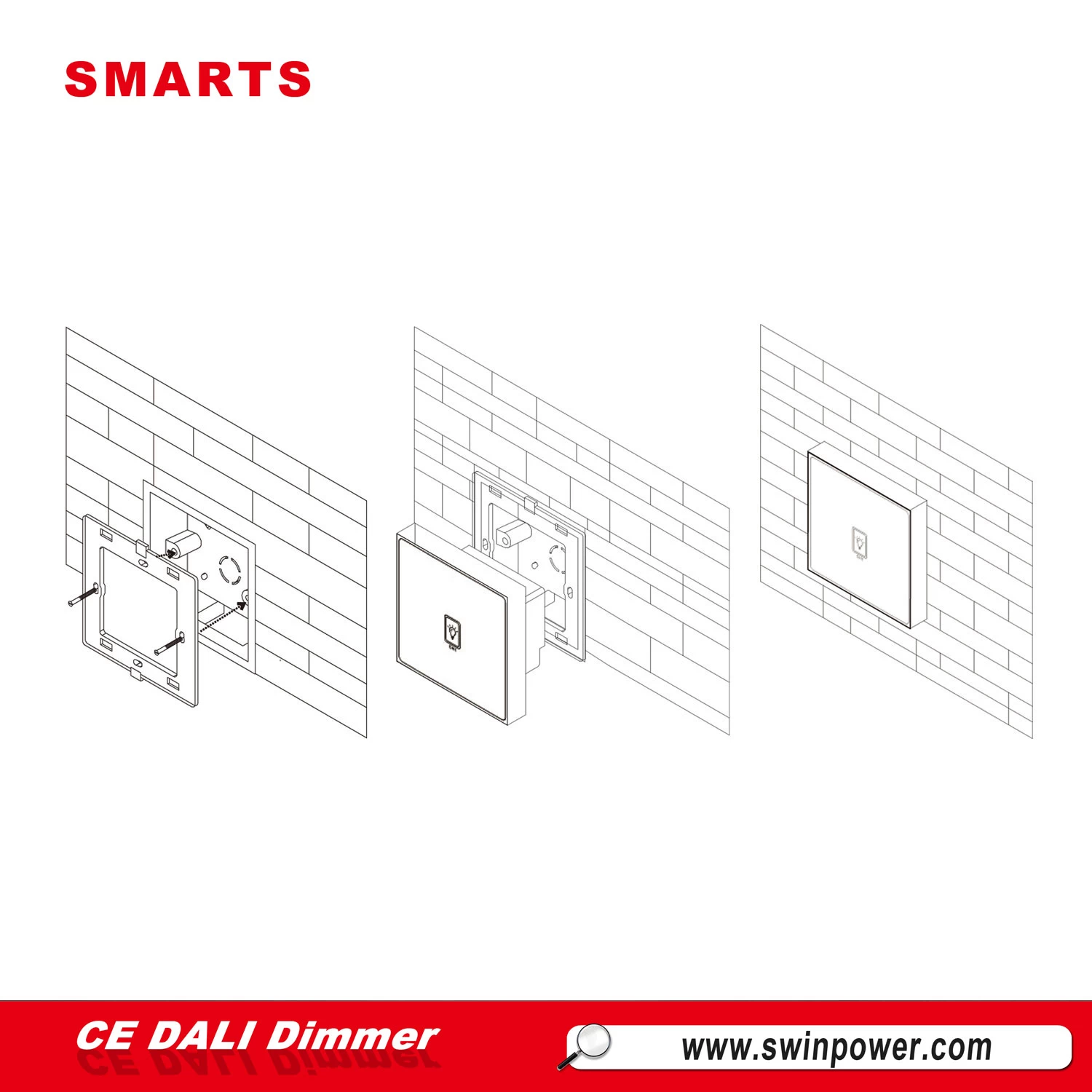

7.Installation Instruction:


smart light switch dimmer

Question:

Output channel: 2 channel (diverse output dimming), why are some DALI dimmers set to 1 channel (one-way output dimming)? What is the difference?

Answer:

Dali dimmer is a dimmer hanging on the dali bus. It is dimmed by transmitting digital signals. 1 channel, 2 channels, it only has 2 signal lines. It is only for 2 or 1 channel. Meet different needs. The difference is that 1 channel can only control 1 device or control all devices through broadcast; 2 channels can control 2 devices, or control all devices through broadcast.
