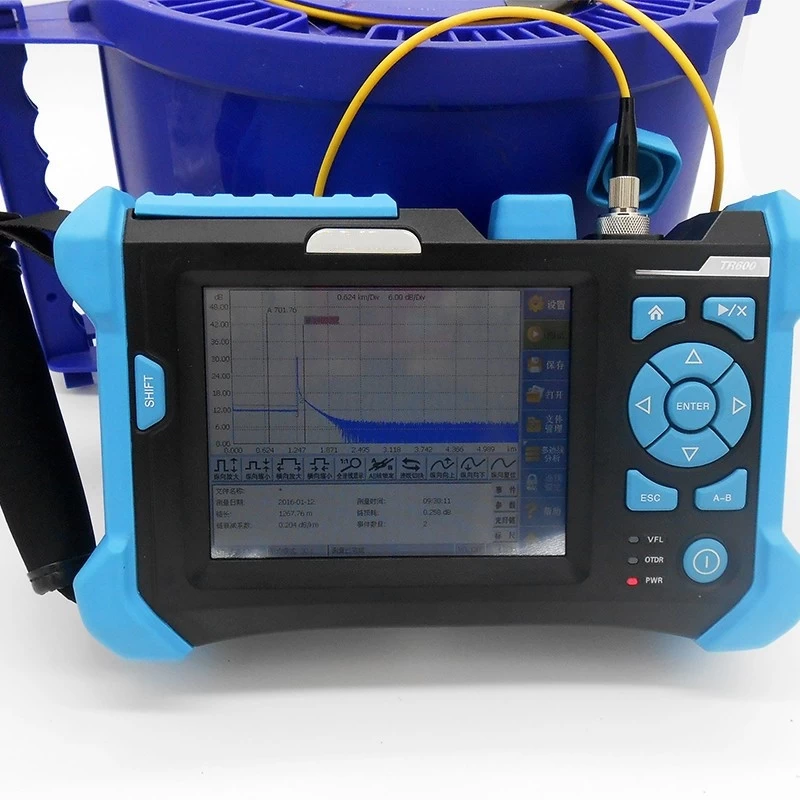

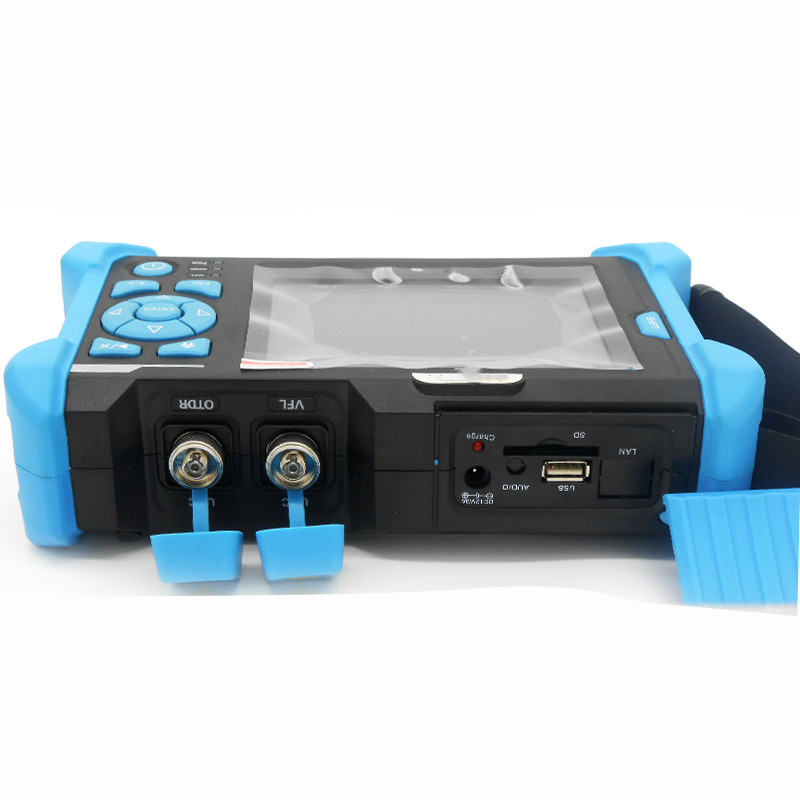

Smart Palm OTDR Tester S66B

Several wavelengths can be chosen.

S-66B series OTDR have CE and FCC certificates.

Precision measurement of test distance and the fiber loss.




Introduction

OTDR S66B  is a high performance measuring instrument with multifunction designed for testing FTTx networkonly one operator and instrument can qualify the link or find a fault in a network.


Features

  • Large touch screen + shortcut keys, easy to operate.
  • Large-capacity polymer lithium battery, with super long working hours.
  • Able to meet FTTx testing needs
  • Several wavelengths can be chosen
  • Intelligent testing, simple use, powerful function.
  • Media of Memory Card + SD card, with super large storage capacity of traces.
  • Solid casing design, dustproof and shockproof.
  • 24 months' warranty period provides you a great after service


Specifications

Technical Specifications¹

Wavelength (nm)

1310/1550

Dynamic range (dB)²

40/38, 38/36, 32/30

Pulse width (ns)

5,20,40,80,160,320,640,1280,2560,5120,10240,20480

Event blind zone (m)³

2m

Attenuation blind zone (m)³

9m

Linearity (dB/dB)

±0.05 dB/dB

Loss threshold (dB)

0.05

Loss resolution ratio (dB)

0.01

Sampling resolution ratio (m)

0.125 to 8

Sampling point

32K

Distance uncertainty (m)

± (1 m + 5×10-5× distance + sampling interval)

Distance scope (km)

0.3 to180

Typical real-time refreshing duration (s)

0.2

Memory capacity of trace

SD Card (2G), > 10000pcs

Duration of measurement

Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable

General specification

Dimension (H×W×D)

150×235×66

Weight

1.5kg

Temperature

Running temperature -10℃ to 50℃

Memory temperature -40℃ to 70℃

Relative humidity

0% to 95% (non-condensation)

Power supply

Lithium battery; continuing working duration ≥ 8 hours

Warranty period

24 months

Remarks

1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.

2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.

3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.


Standard Package

OTDR S-66B

1

Wrist Strap

1

12V/3A AC Power Adapter

1

 Software CD

1

Product Instruction

1

Manufacturer's Certificate Warranty

1

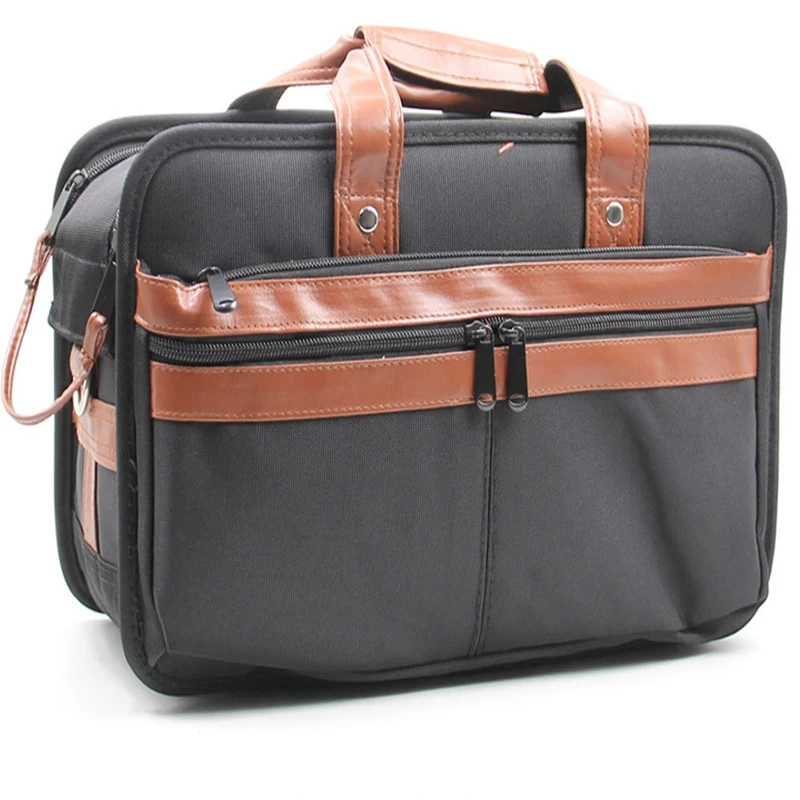

Carry Bag or Carry Case

1

Certificate of Calibration

1

USB Reader

1

SD Card

1

Battery Pack

1

Connector @ FC/PC

1
