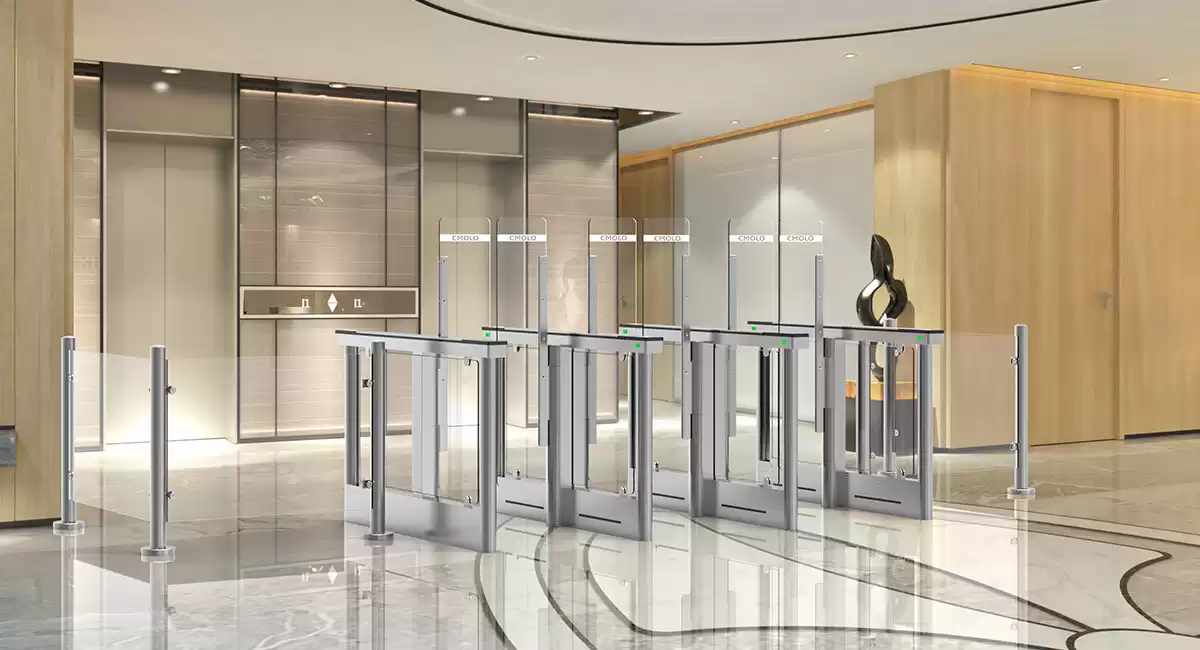

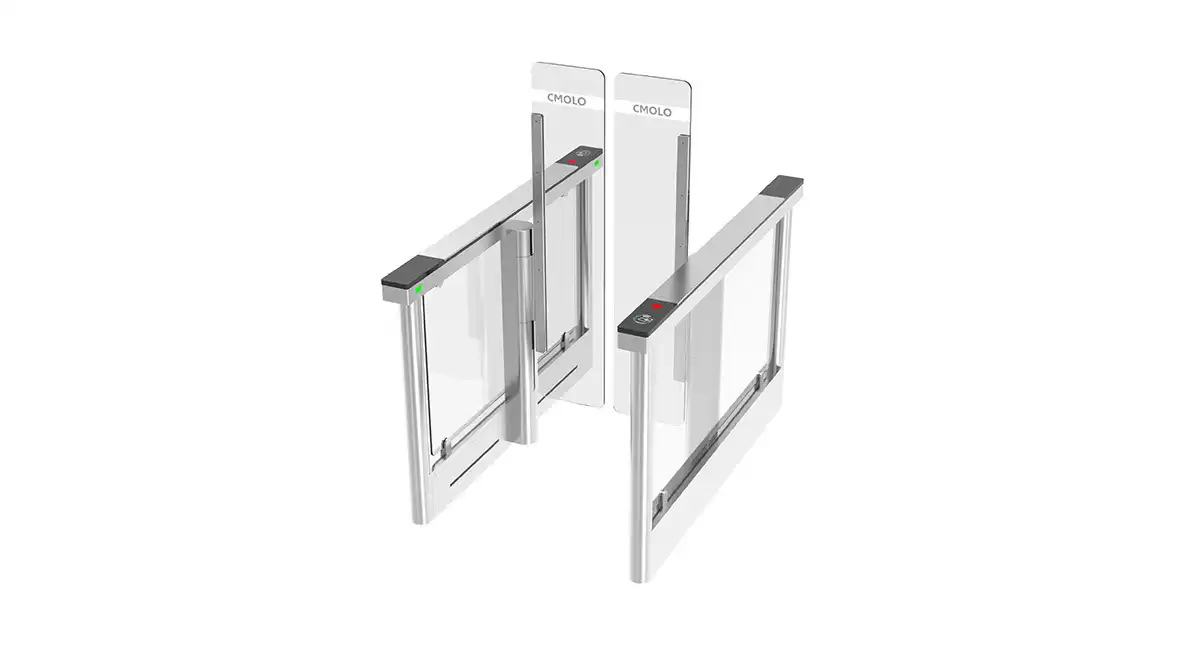

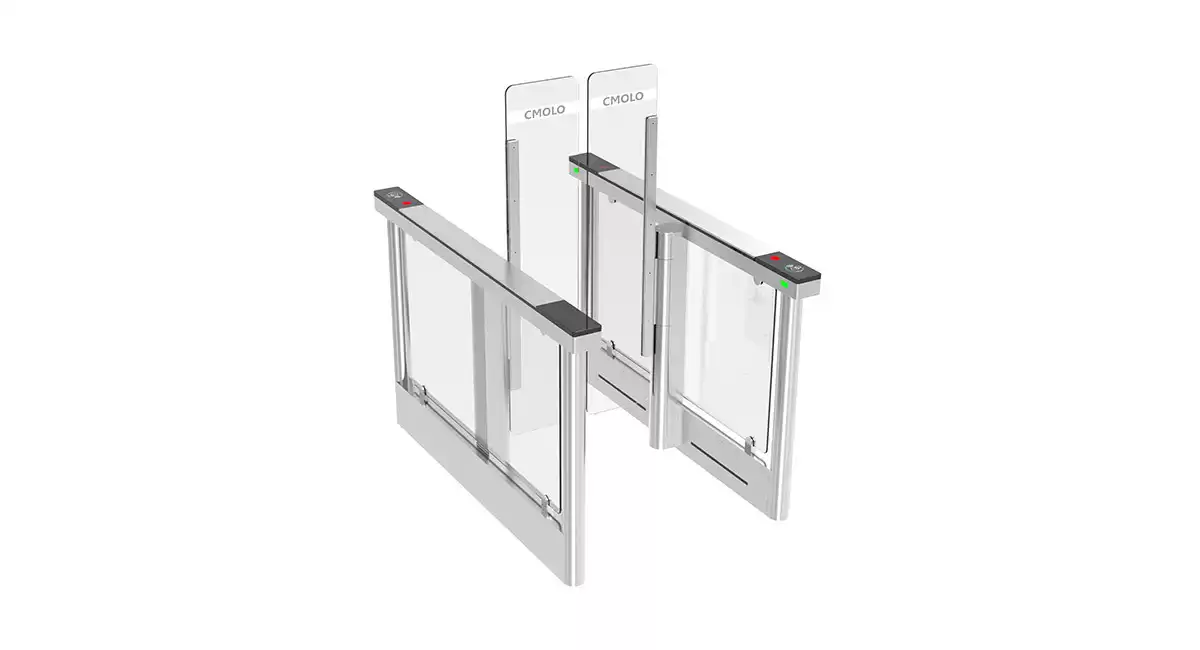

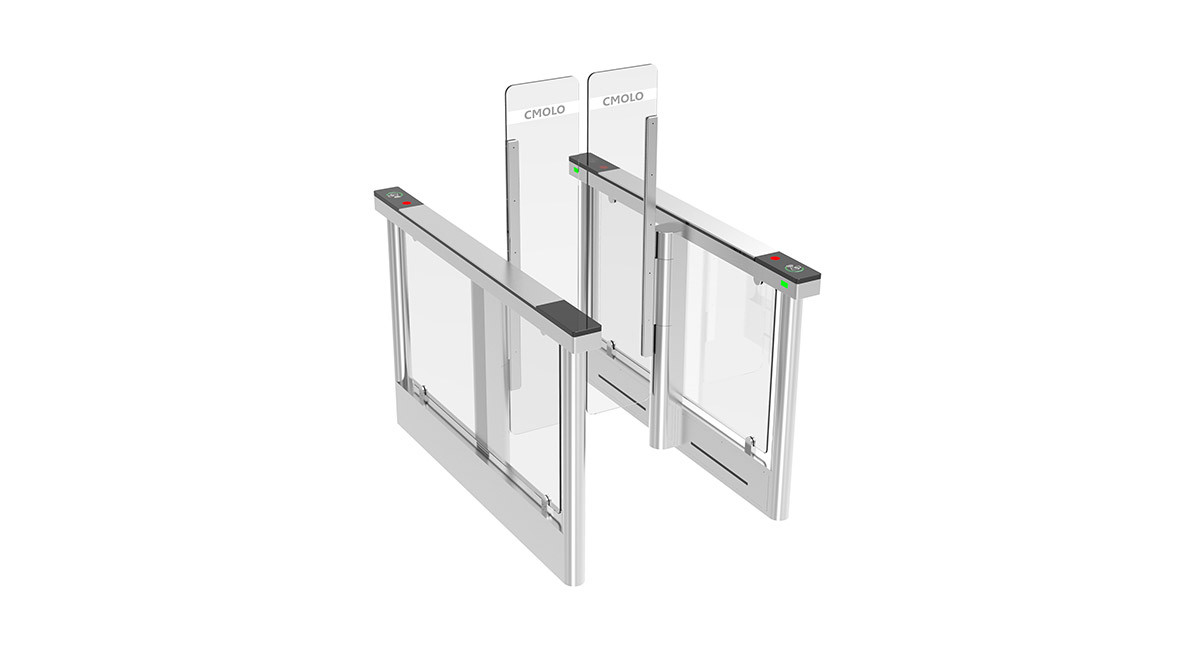

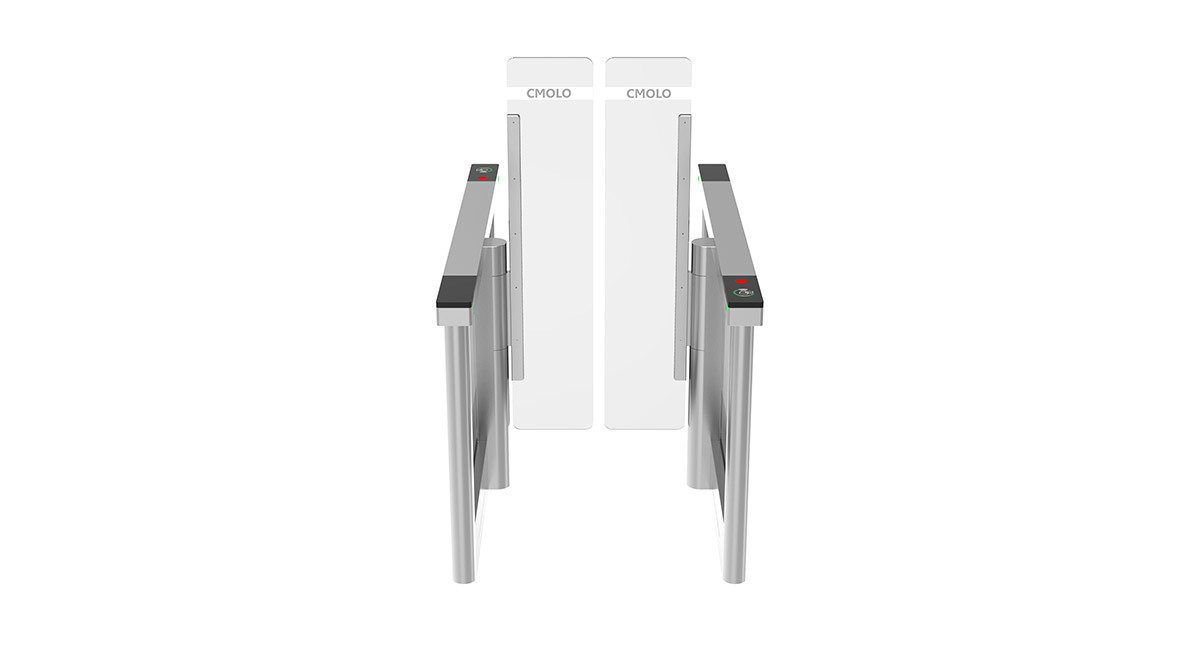

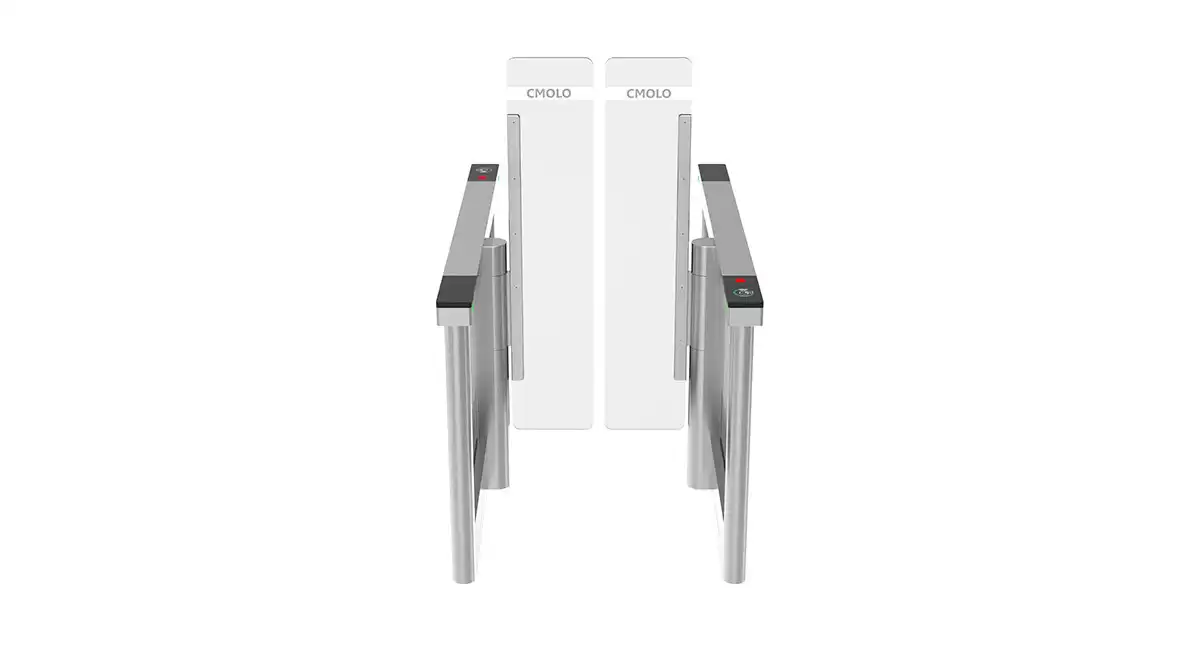

Smarter High Glass Security Turnstiles

With High Glass Design

Adopted the high glass design, the turnstile prevents pedestrians from jumping the swing gate, improving the security level greatly; While realizing the anti-crossing, its body is thinner and more beautiful, which can improve the image of the occasion and achieve a smaller occupied space.

Starting from mechanical structure optimization and drive control optimization, it successfully solves the problems of operation shaking and mechanism overload that may exist in the common high-panel speed gate turnstile, and achieves stable operation, anti-shaking and low noise, which not only ensures the stability and long service life of the high-panel speed gate turnstile, but also provides a good user experience.

Advanced And Intelligent Core Technology of Speed Gate Turnstile

Core logic algorithm

The speed gate turnstile adopts advanced servo control system and DSP+ARM motor control technology, combined with CMOLO's original motor control algorithm, to achieve precise control and positioning of the obstacle and maintain stable performance. Adopted CMOLO® patented passing detection algorithm and matrix photoelectric stereo detection technology, which can sensitively detect illegal intrusions such as reverse passing and tailgating, and can issue warnings in the form of sound and light, and can be linked with other security systems.

Strong mechanism structure

The lossless modular mechanism structure independently developed by CMOLO and the full CNC processing technology ensurethe precision, strength, concentricity of the mechanism, and the transmission ratio are accurate, efficient and stable, which can precisely control the rotation angle of the gate and reduce the loss to ensure the reliability of the mechanism, and enhance the service life of the mechanism.

Long service life

The mechanism and control system of the pedestrian speed gate turnstile have passed 10 million life tests.

All-around Pedestrian Safety Protection

Triple anti-clamping

With triple anti-clamping technologies such as infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, speed gate turnstile can protect pedestrian safety more comprehensively.

Over-force feedback control

When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.

Anti-electric shock

All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.

Turnstile opens when power failure

With the independently developed advanced mechanical structure, the system will automatically unlock the gate when the power is off, and the gate can be manually pushed to open, which is convenient for pedestrian evacuation.

Emergency open

The turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.
