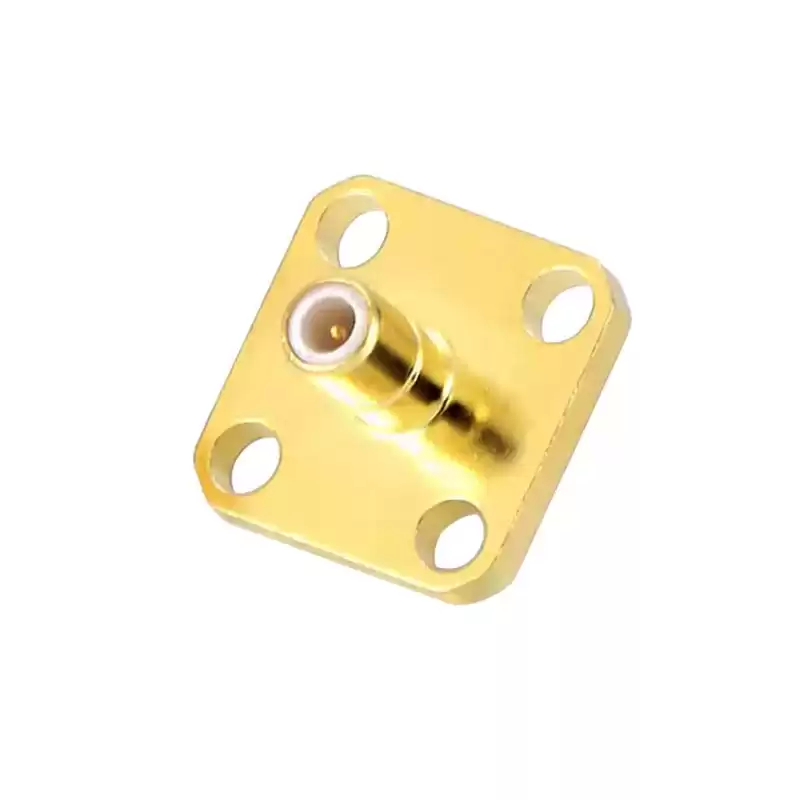

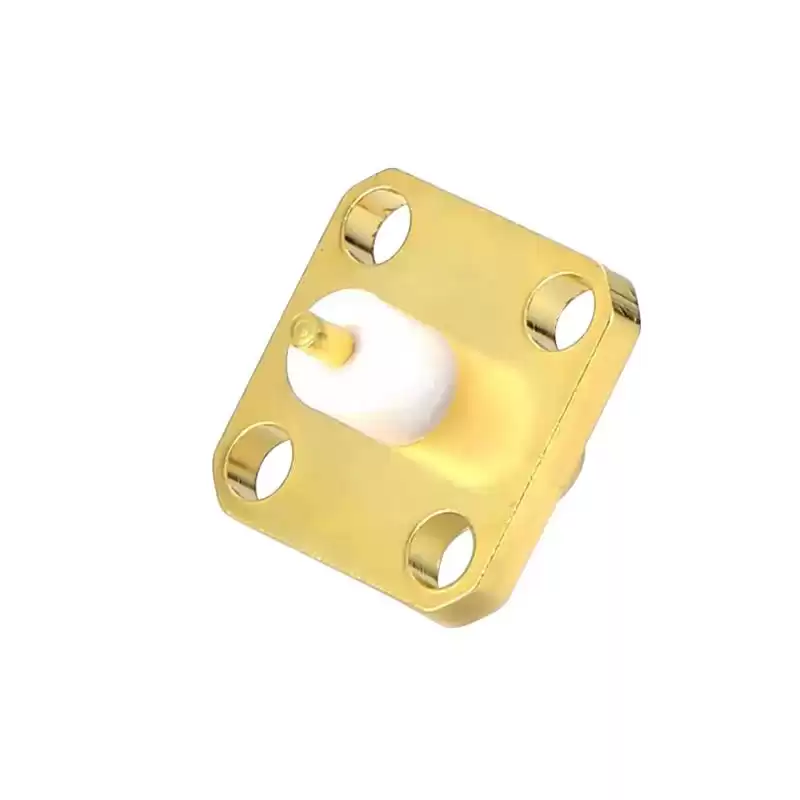

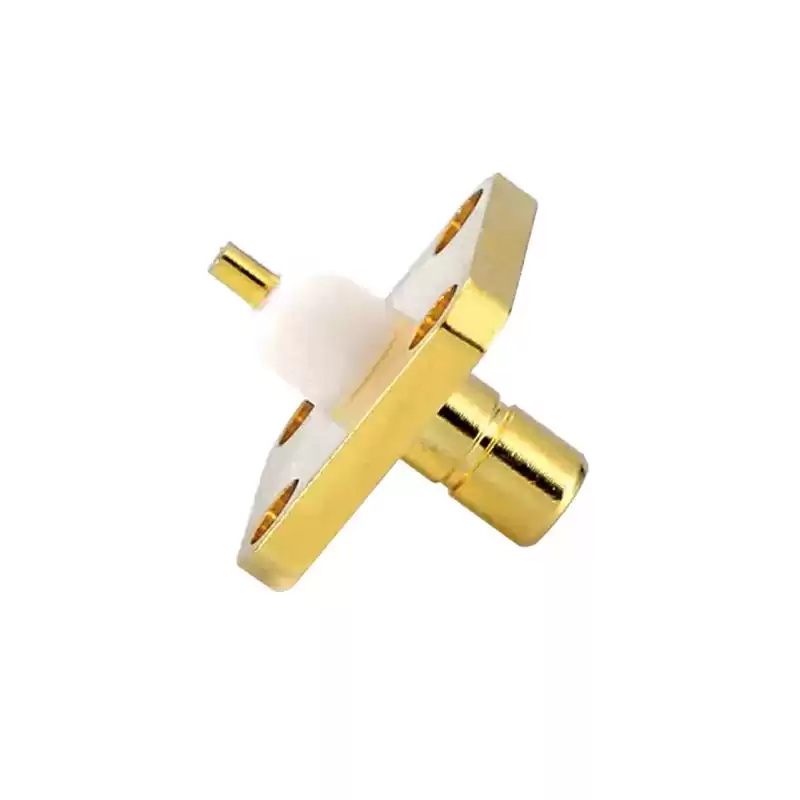

SMB Jack Male Connector Solder Attachment 4 Hole Flange Mount with Solder Pin
The SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.The SMB interface features a snap-on coupling mechanism and is available in 50 and 75 ohm configurations; SMB connectors are available in various materials including an option for die cast components on non-critical areas to provide a low-cost solution; this SMB female coaxial connector has an interface type of solder pin and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with gold plating.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency Range |
4GHz (DC - 10 GHz on Extended Range Designs) |
| Working Voltage |
250-335V,50Hz(sea level) |
| Withstand Voltage |
≥750,50Hz |
| Insulation Resistance |
≥1000mΩ |
| Contact Resistance |
Inner conductor: ≤5mΩ |
| Outer conductor: ≤2.5mΩ |
| RF leakage |
≥55dB |
| MECHANICAL DATA |
|
| Engagement force |
8N--63N / 1.8 lbs--14.2lbs |
| Disengagement force |
8N--63N / 1.8 lbs--14.2lbs |
| Contact captivation |
≥18N / 4.0 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Au plating / ternary alloy plating |
| Pin contacts |
Brass/Beryllium copper--Au plating |
| Socket contacts |
Beryllium copper / Phosphor bronze--Au plating |
| Springs and washers |
copper / beryllium alloy--Au plating |
| Crimp ferrules |
Brass--Au plating |
| Insulator |
PTFE |
Applications
- Base Stations
- Antennas
- Global Positioning System (GPS)
- Instrumentation
- Radio Boards
- PC/LAN
- Telecommunications
