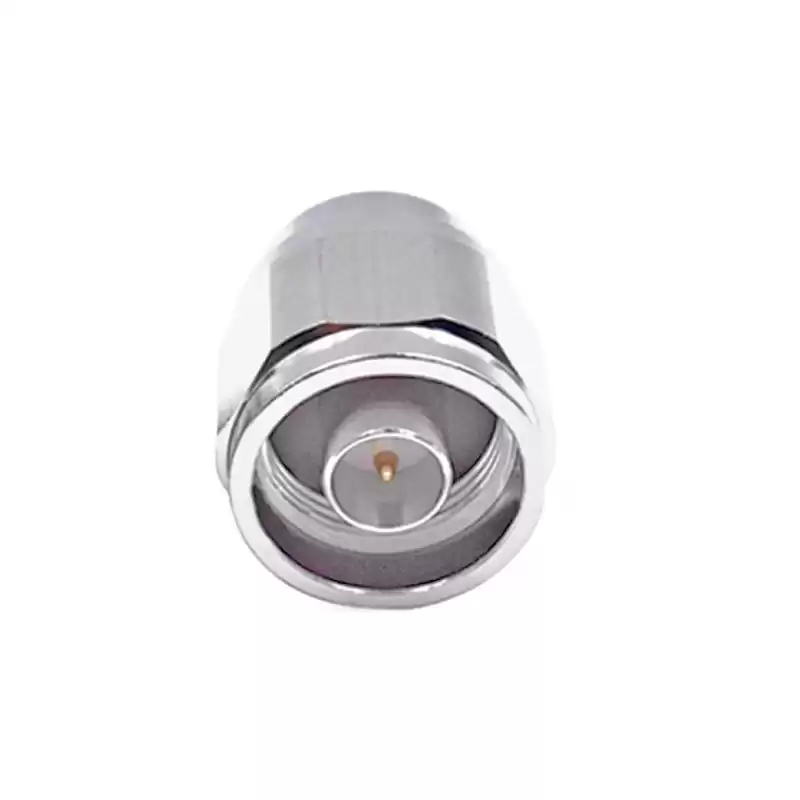

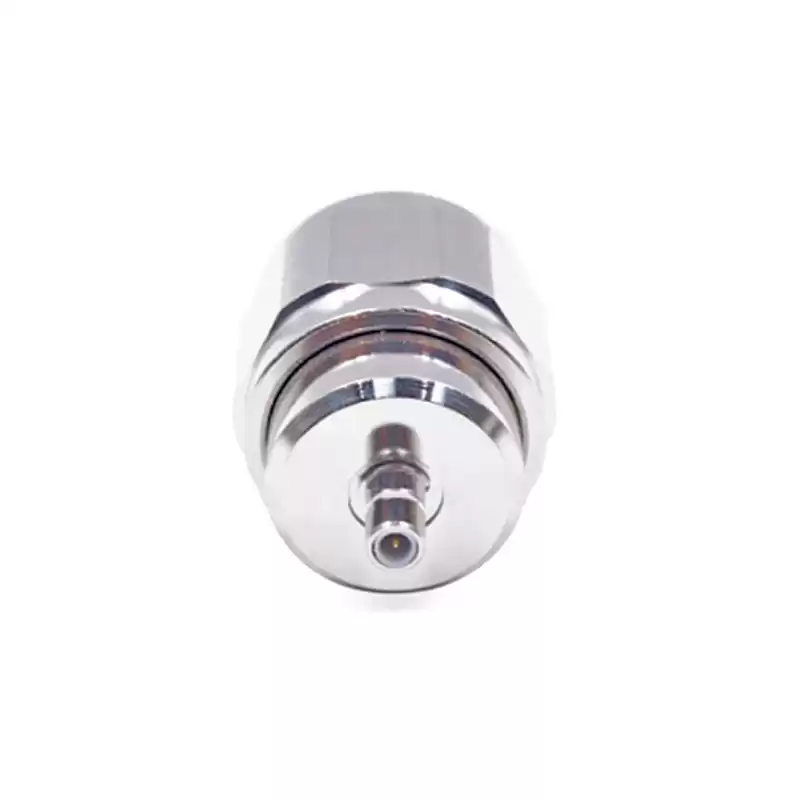

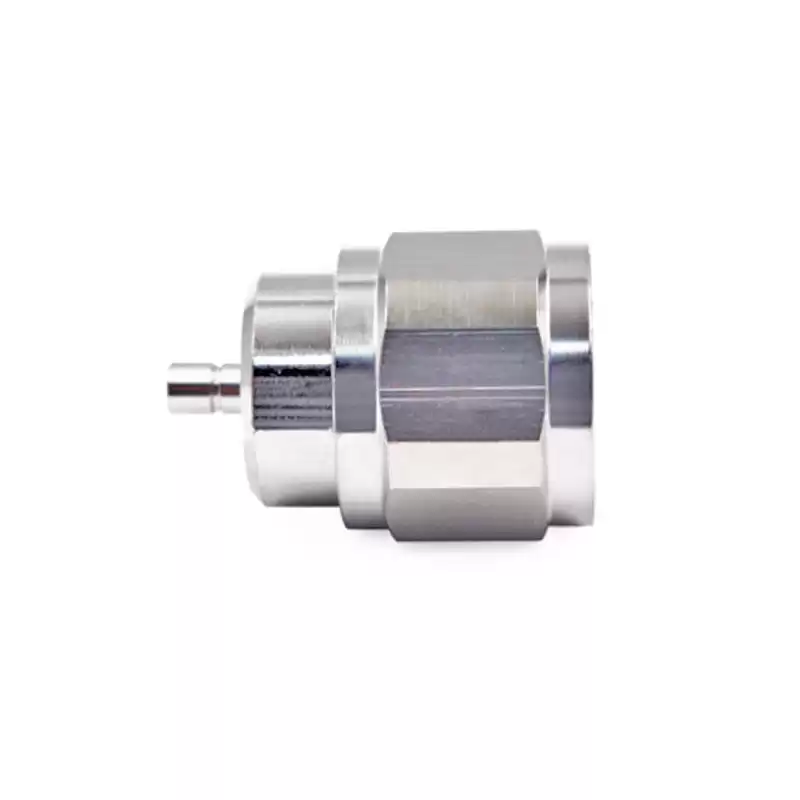

SMB Jack Male to N Male RF Coaxial Connector Adapter
The SMB Adapter has different SMB to N adapter gender, that is a between series coaxial adapter, The SMB to N adapters has jack to female, plug to female, jack to male or plug to male gender combinations. it has 50ohm or 75ohm impedance. This SMB jack to N male adapter has a maximum frequency of 4GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
SMB |
| Adapter Side 1 Style |
Jack |
| Adapter Side 2 Series |
N |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
4 |
| Impedance (Ohms) |
50 or 75 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antennas, CCTV
- Digital communication systems
- HAM radios,
- Microwave applications
- Wireless LAN devices
