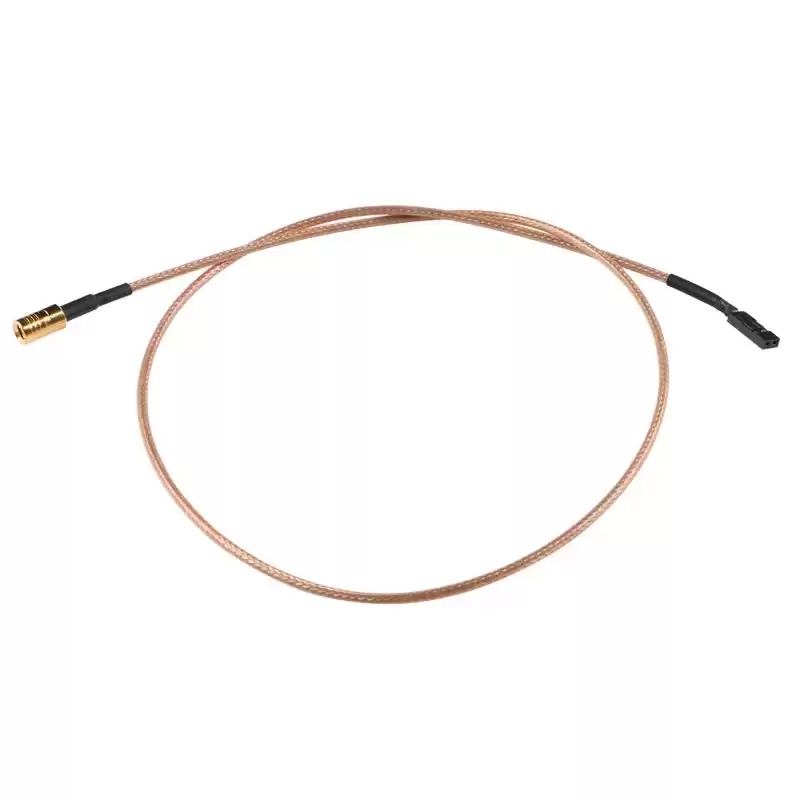

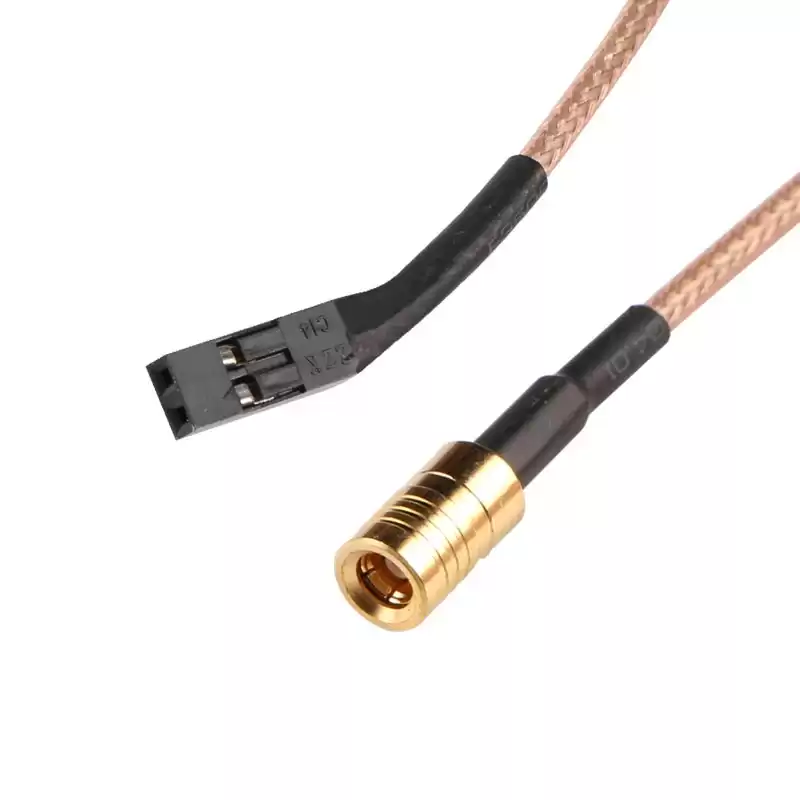

SMB Male RF Connector to PIN with RG316 Cable Assembly

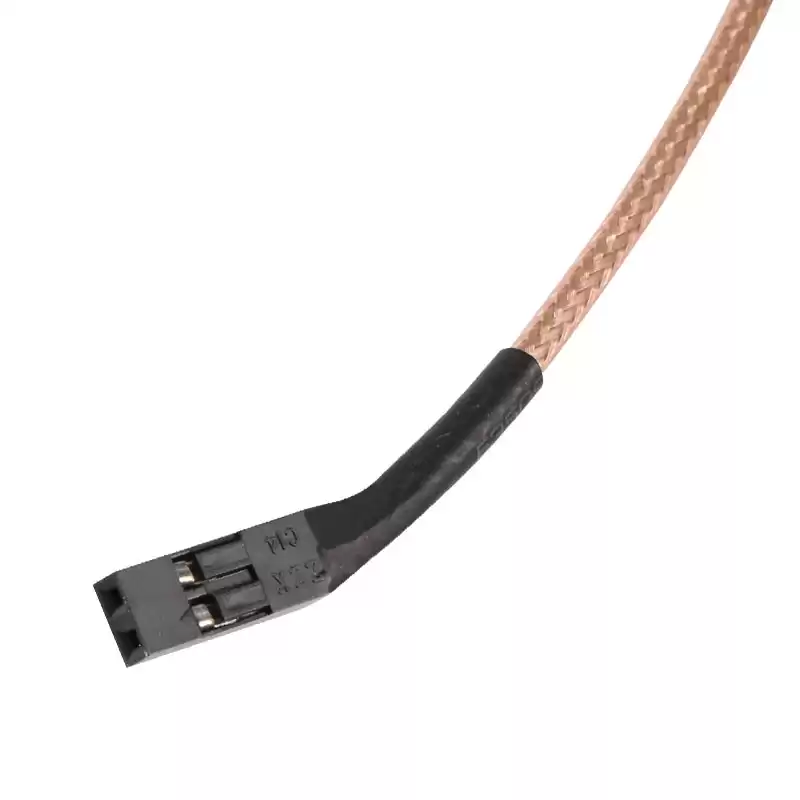

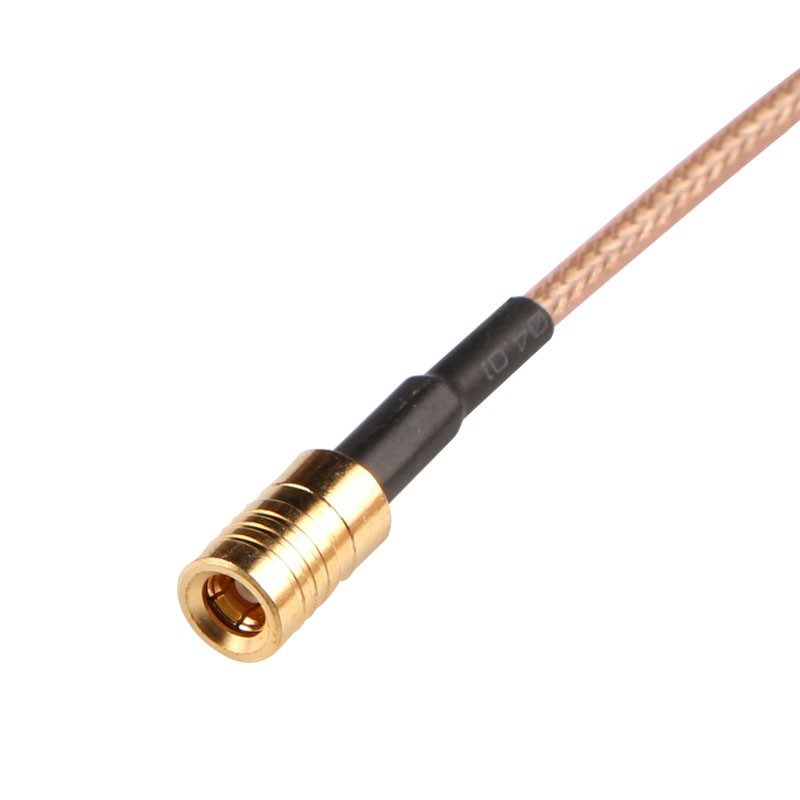

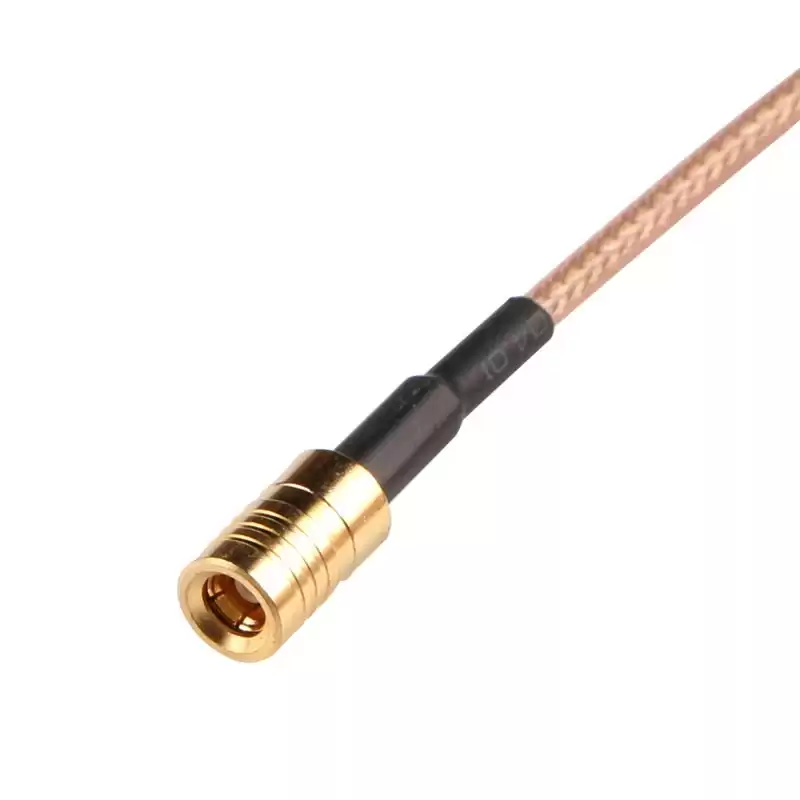

The SMB cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as LMR100, LMR195, RG141, RG142, RG174, RG178, RG179, RG180, RG188, RG196, RG223, RG316, RG400, RG405, RG58 or RG59 cable; the body of SMB to PIN cable assembly is right angle or straight connectors which is plug to pin or jack to pin gender. This SMB male to PIN cable assembly uses a 50ohm Straight SMB for connector 1 and a 50ohm PIN for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
SMB |
| Connector 1 Style |
Male |
| Cable Type |
RG316 |
| Connector 2 Series |
Test Pin |
| Connector 2 Style |
/ |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
NO |
| Max Frequency |
4 GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas
- Base Stations
- Radio Boards
- Global Positioning System (GPS)
- Instrumentation
- PC/LAN
