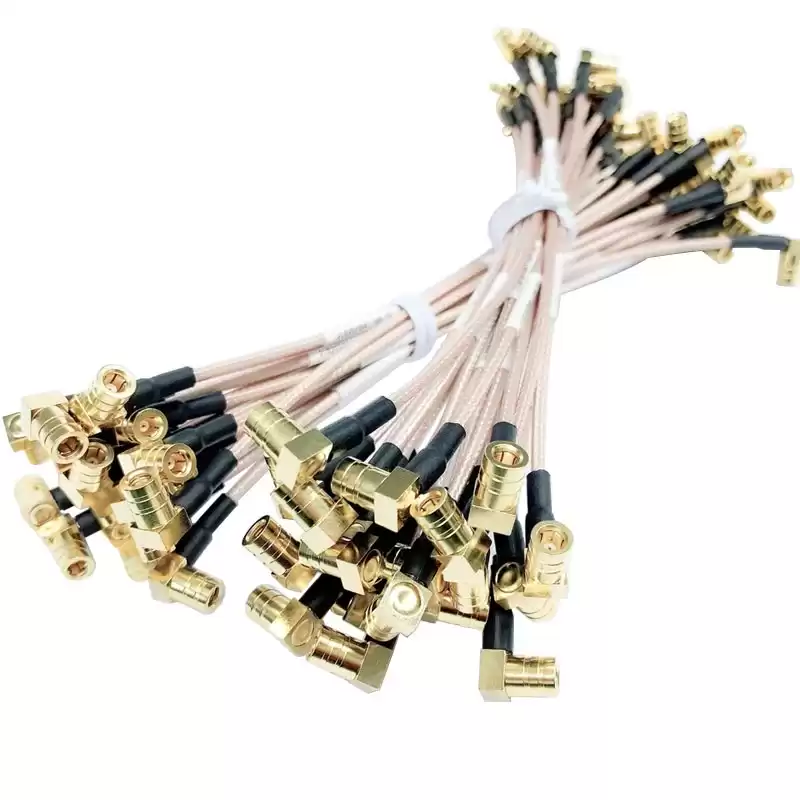

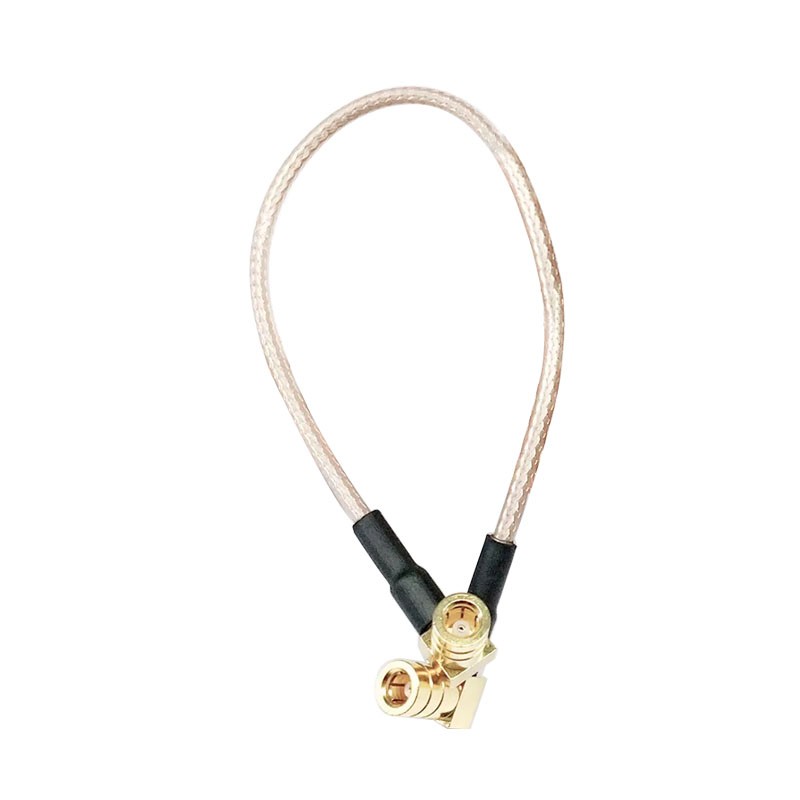

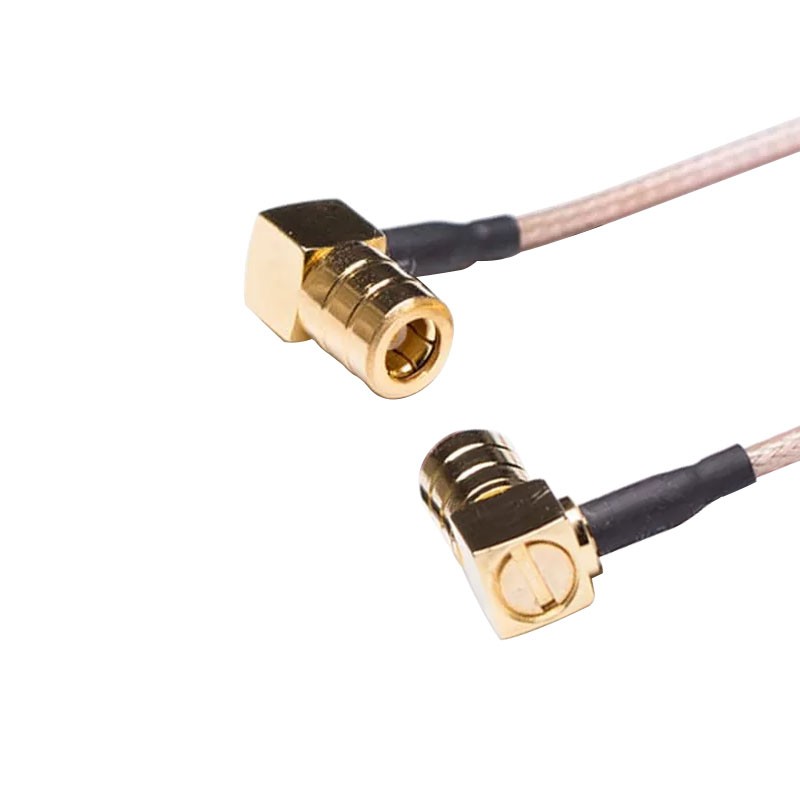

SMB Plug Female Right Angle to SMB Plug Female Right Angle Connector Assembly with RG178 Jumper Cable
The SMB cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as LMR100, LMR195, RG141, RG142, RG174, RG178, RG179, RG180, RG188, RG196, RG223, RG316, RG400, RG405, RG58 or RG59 cable; the body of SMB to SMB cable assembly is right angle or straight connectors which is plug to pin or jack to pin gender. This SMB plug to SMB plug cable assembly uses a 50ohm right angle SMB for connector 1 and a 50ohm right angle SMB for connector 2, Cable is 50ohm flexible cable type RG178.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
SMB |
| Connector 1 Style |
RA Plug |
| Cable Type |
RG178 |
| Connector 2 Series |
SMB |
| Connector 2 Style |
RA Plug |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
4GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas
- Base Stations
- Radio Boards
- Global Positioning System (GPS)
- Instrumentation
- PC/LAN
