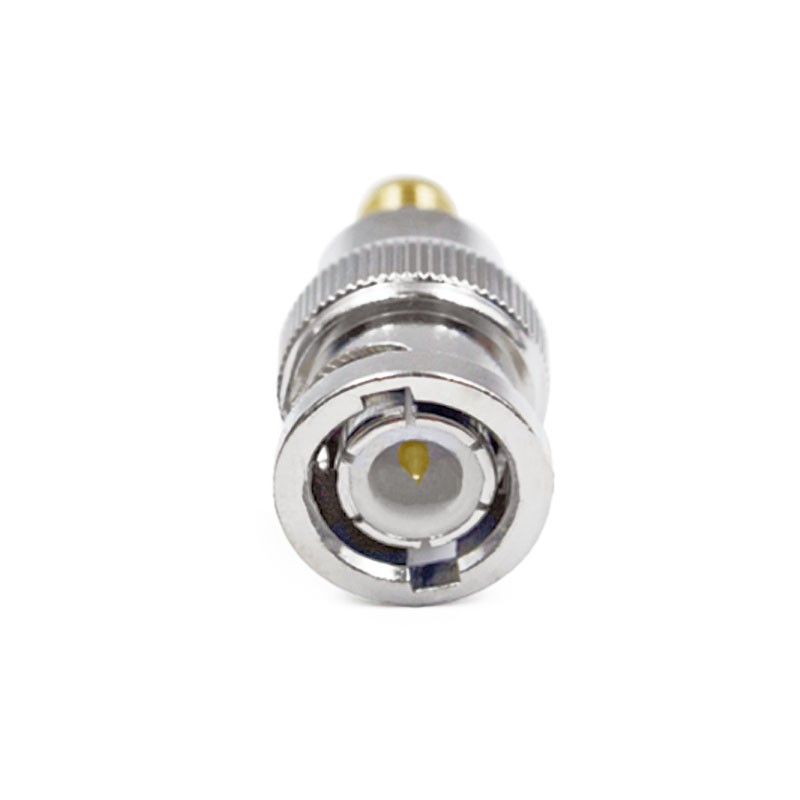

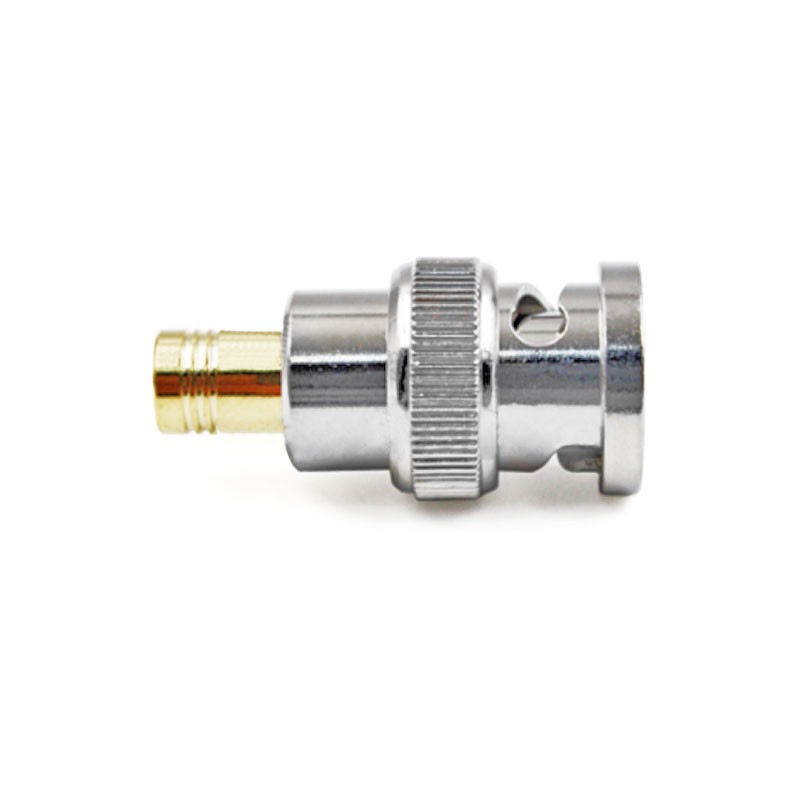

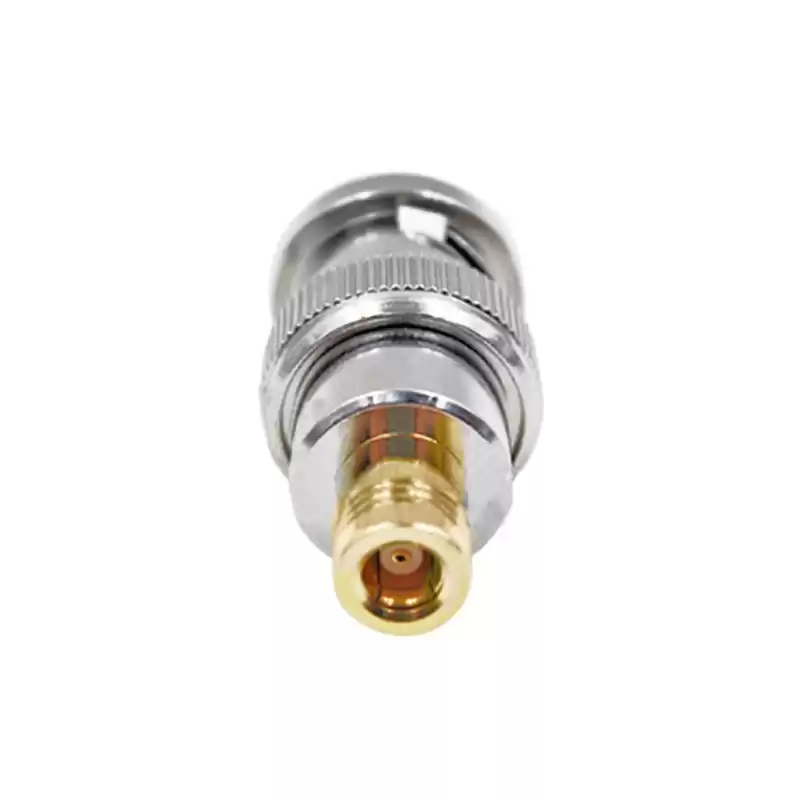

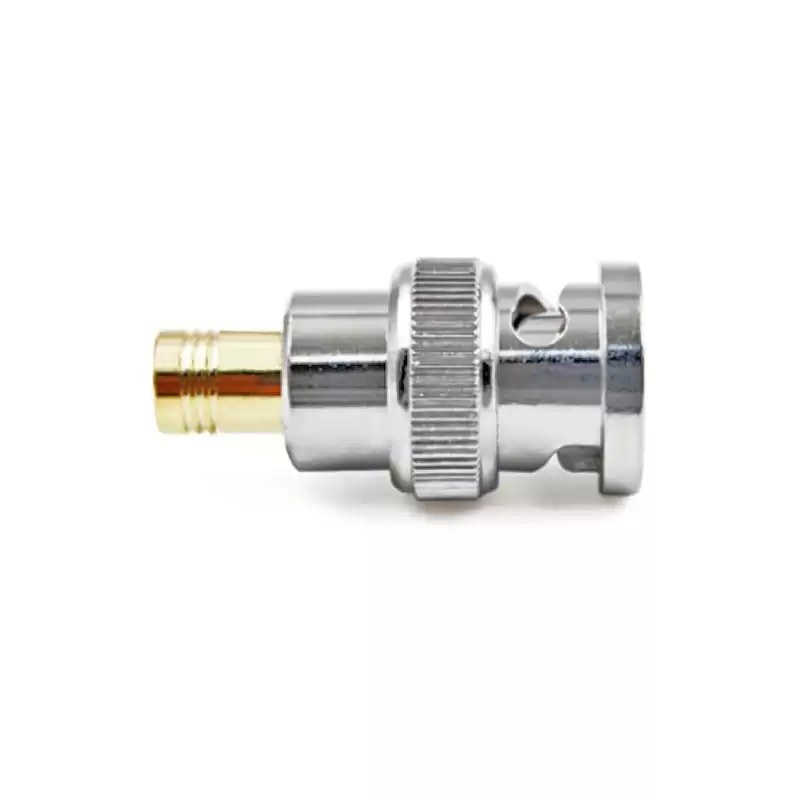

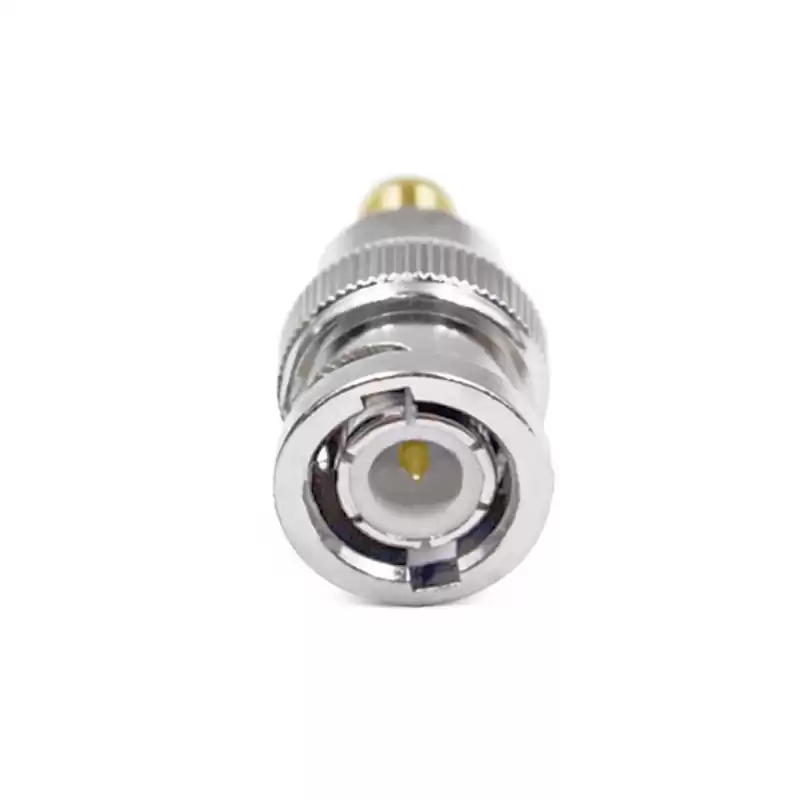

SMB Plug Female to BNC Male RF Coaxial Connector Adapter
The SMB Adapter has different SMB to BNC adapter gender, that is a between series coaxial adapter, The SMB to BNC adapters has jack to female, plug to female, jack to male or plug to male gender combinations. it has 50ohm or 75ohm impedance, ROHO's SMB to BNC has bulkhead or mountless configurations. This SMB plug to BNC male adapter has a maximum frequency of 4GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
SMB |
| Adapter Side 1 Style |
Plug |
| Adapter Side 2 Series |
BNC |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
4 |
| Impedance (Ohms) |
50 or 75 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antennas, CCTV
- Digital communication systems
- HAM radios,
- Microwave applications
- Wireless LAN devices
