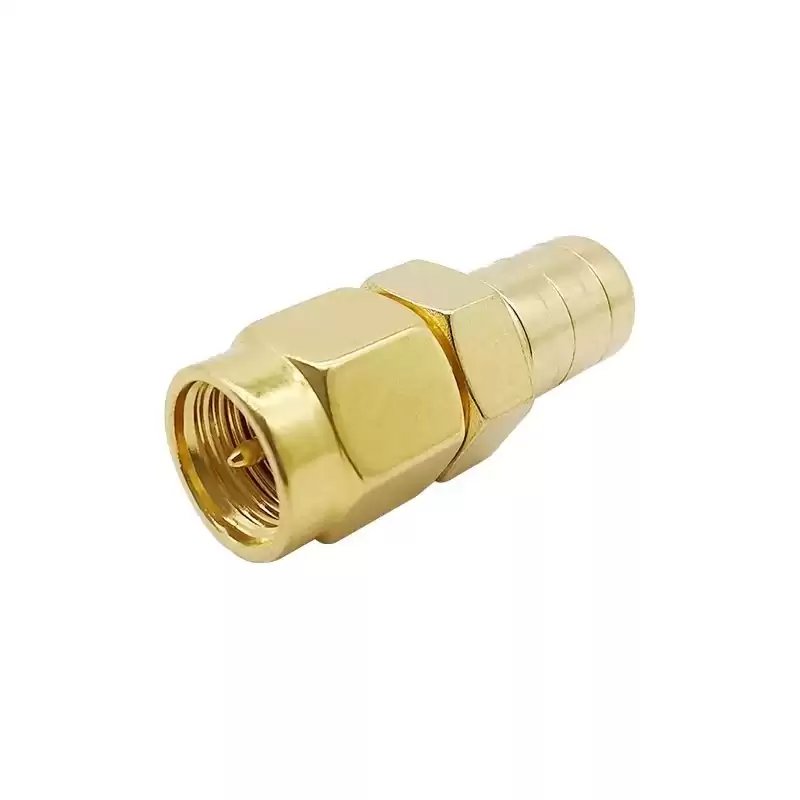

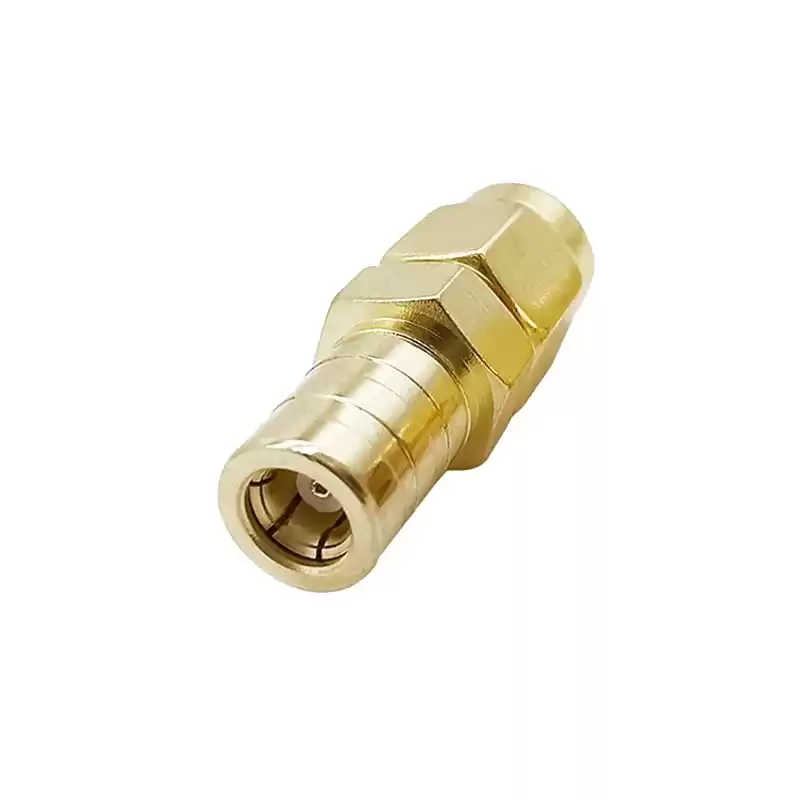

SMB Plug Female to SMA Male RF Coaxial Connector Adapter
The SMB Adapter has different SMB to SMA adapter gender, that is a between series coaxial adapter, The SMB to SMA adapters has jack to female, plug to female, jack to male or plug to male gender combinations. it has 50ohm impedance. This SMB plug to SMA male adapter has a maximum frequency of 4GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
SMB |
| Adapter Side 1 Style |
Plug |
| Adapter Side 2 Series |
SMA |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
4 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antennas, CCTV
- Digital communication systems
- HAM radios,
- Microwave applications
- Wireless LAN devices
