Maximising the yield
SMC high precision
ejecter minimises false rejects of good grain, delivering a very
highly-concentrated reject stream, besides ensuring longer service time and minimizing malfunction.
Due to minimal
loss of good grains on the first pass, most grain applications do not require a
re-sort; however a re-sort option is available if necessary.
High capacity solutions

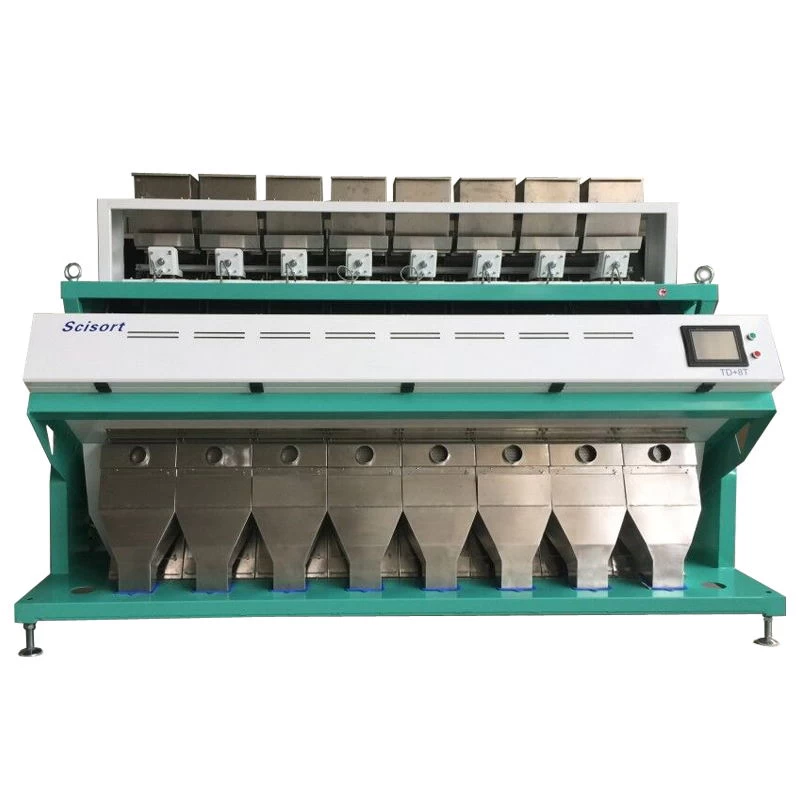

Throughput of SCISORT optical sorters is flexible and can be configured to cater for capacities of between 300kg
and 24t/h. Production volume
is maintained, with minimum down-time for cleaning or product configuration
change.
Consistent Performance
SCISORT optical
sorters deliver a stable and reliable operation with product tracking,
automatic calibration, and wiping of the viewing area.
The design of
SCISORT optical sorters helps maintain their performance in the long term.
The sealed optical boxes ensure that all optical components are kept clean
and dust free.
Fast payback and very low running costs
SCISORT optical
sorting can improve on the performance of mechanical cleaners and manual
operations, delivering better output with lower overall costs.
Main Technical Parameters
|
Model
|
TD+-2T
|
TD+-4T
|
TD+-6T
|
TD+-8T
|
|
Voltage
|
110~265V, 50~60HZ
|
|
Power (kw)
|
1.4
|
2.2
|
3.0
|
4.0
|
|
Air Consumption (L/min)
|
600~1400
|
1000~1800
|
1600~2800
|
2100~4000
|
|
Throughput (t/h)
|
0.5~1.6
|
1.0~3.2
|
1.5~4.8
|
2~6.5
|
|
Weight (kg)
|
600
|
850
|
1050
|
1400
|
|
Dimension LxWxH (mm)
|
1300x1630x2050
|
1920x1630x2050
|
2540x1630x2050
|
3160x1630x2050
|
