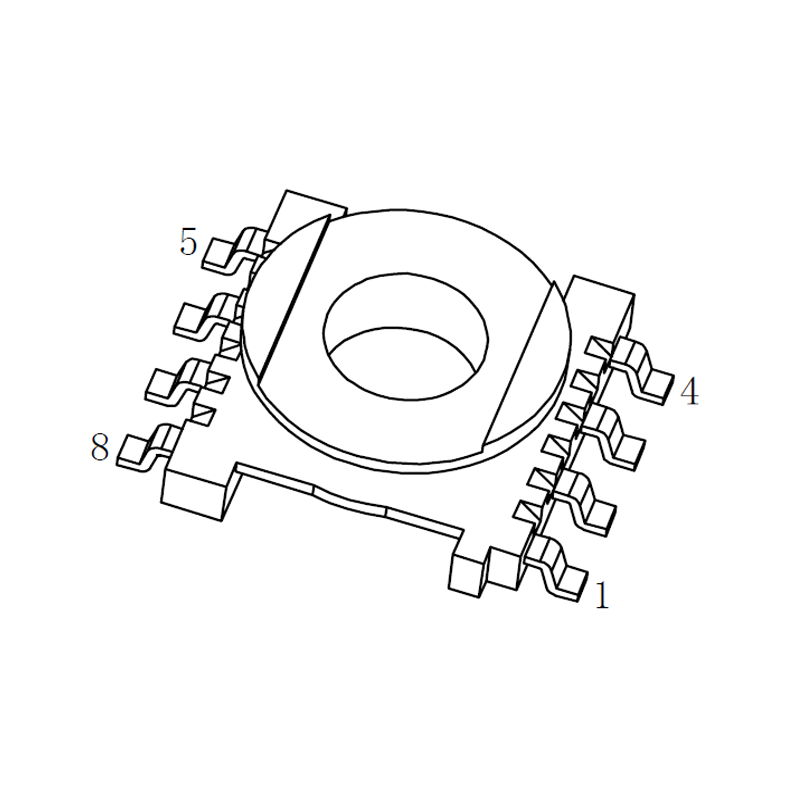

EOP7 Electronic Transformer Bobbin, 4+4 pins Horizontal bobbin

4+4 Pins Horizontal Bobbin, Phenolic Bobbin,UL REC:94V-0 SMD Bobbin,Pin Pitch=2.5mm Size=9.3mmX8.9mmX8.2mm

ER9.5 High Frequency Transformer SMD Bobbin 4+4Pin

4+4 Pins Bobbin,PM-9630 Material,UL REC:94V-0 Vertical Bobbin, Size=11.55mmX8.1mmX4.45mm

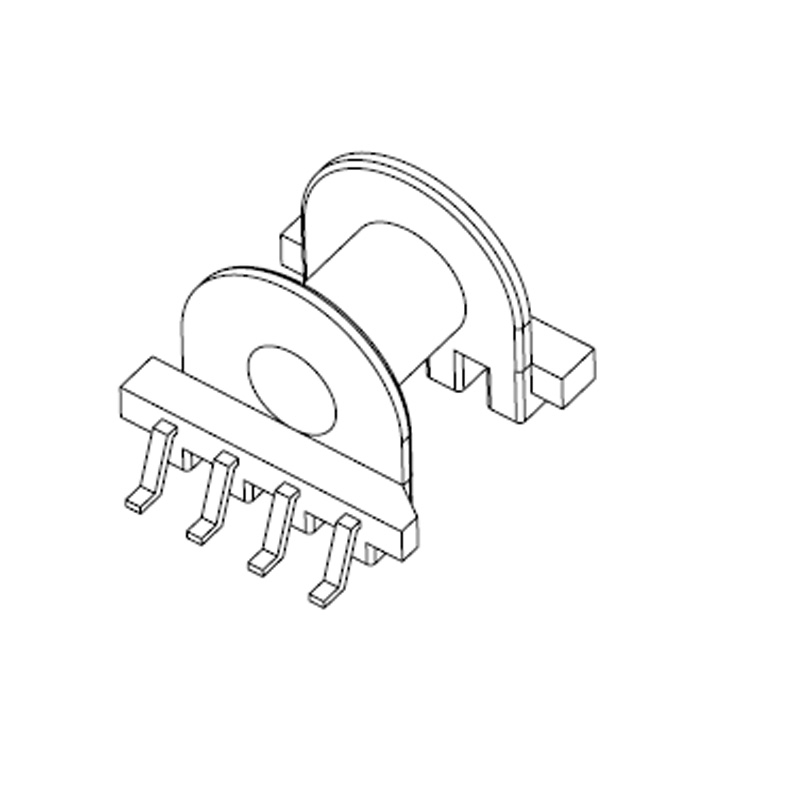

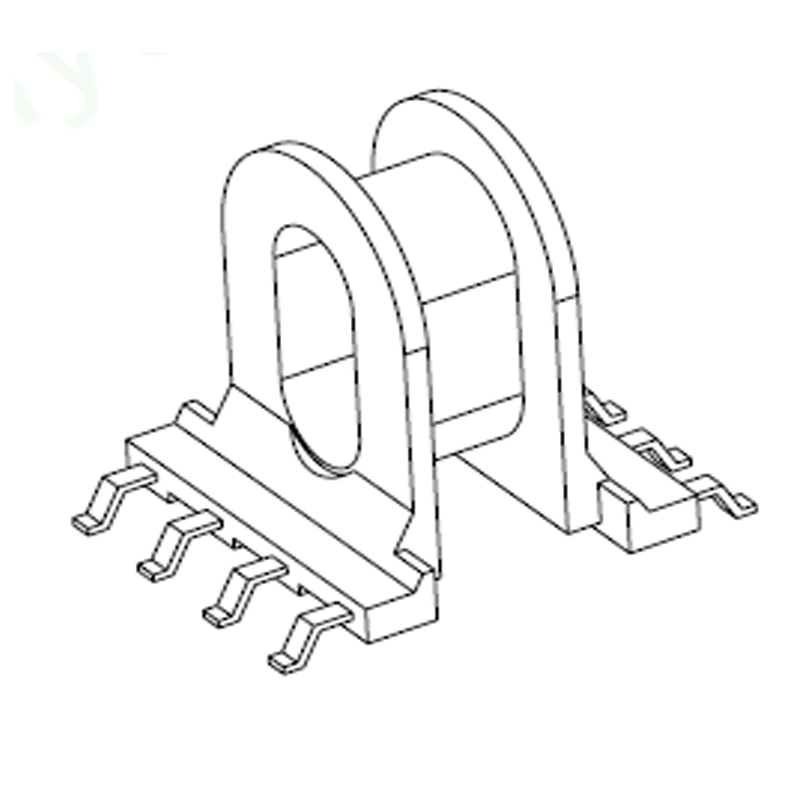

ER9.5 High Frequency Transformer Vertical Bobbin 4+4Pin

4+4 Pins PM-9630 Material Bobbin,UL REC:94V-0 SMD Bobbin, Size=10.8mmX8.05mmX3.1mm

SMD ER9.5 Vertical Transformer Bobbin 4+2Pin

4+2 Pins Vertical Bobbin,PM-9630 Material,UL REC:94V-0 SMD Bobbin, Size=10.8mmX8.05mmX3.1mm

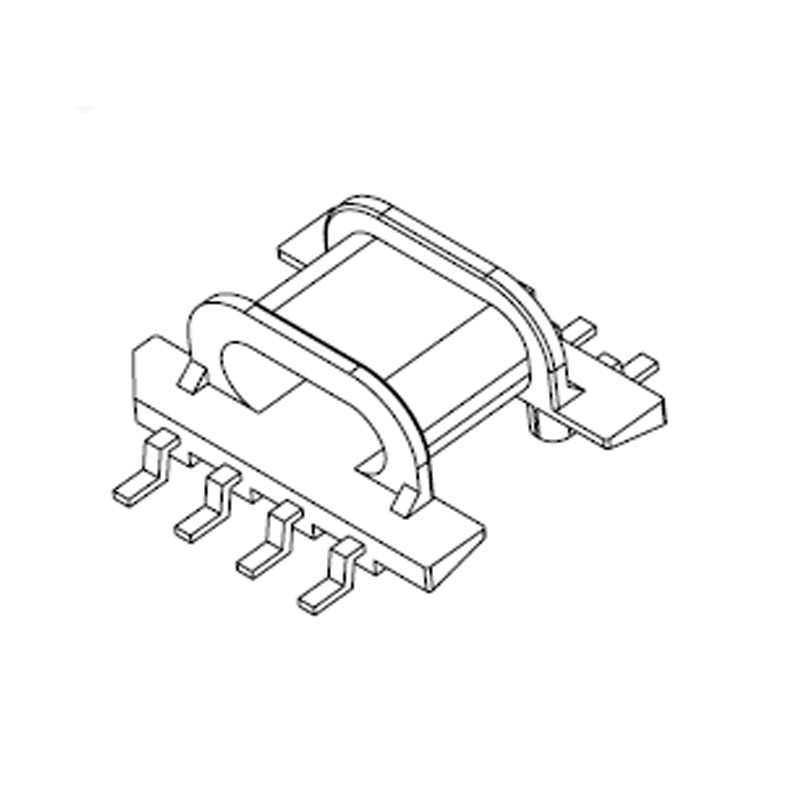

SMD ER9.5 Transformer Bobbin For Ferrite Core

4+4 Pins SMD Bobbin, PM-9630 Material Bobbin Size=10.8mmX8.5mmX3.3mm,UL REC:94V-0

SMD ER11.5 Phenolic Bobbin with 5+5 pin

5+5 Pins Bobbin,Phenolic Material Bobbin,UL REC:94V-0 SMD Bobbin, Size=12.2mmX8.4mmX4.3mm

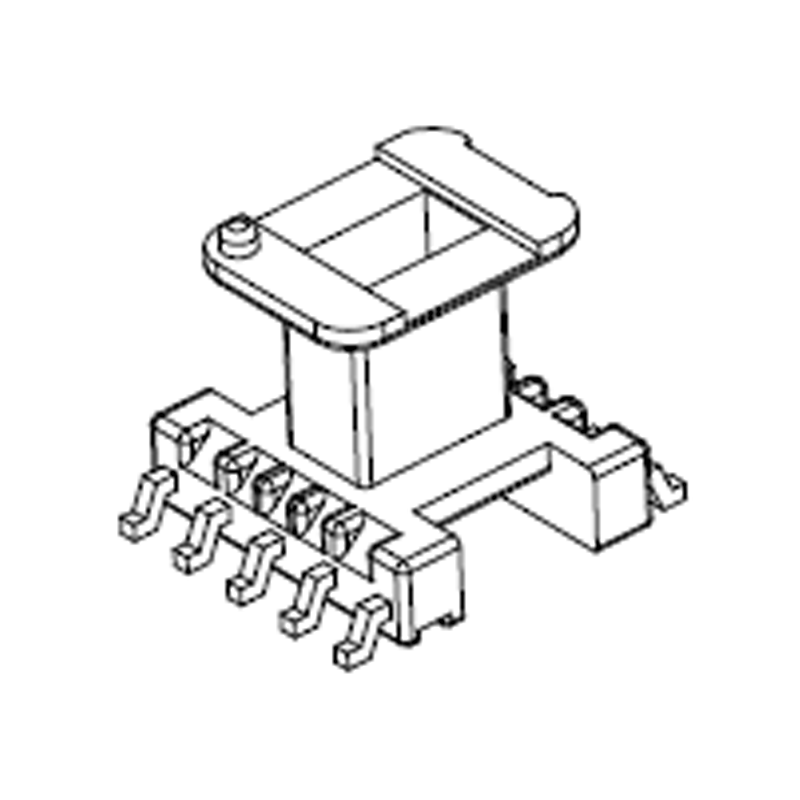

EE10 Electronic Transformer Bobbin for Lighting Transformer, SMD Bobbin

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 SMD Bobbin, Pin pitch=2.5mm, Parallel Distance=13.7mm Size=11.9mmX10.15mmX10.6mm

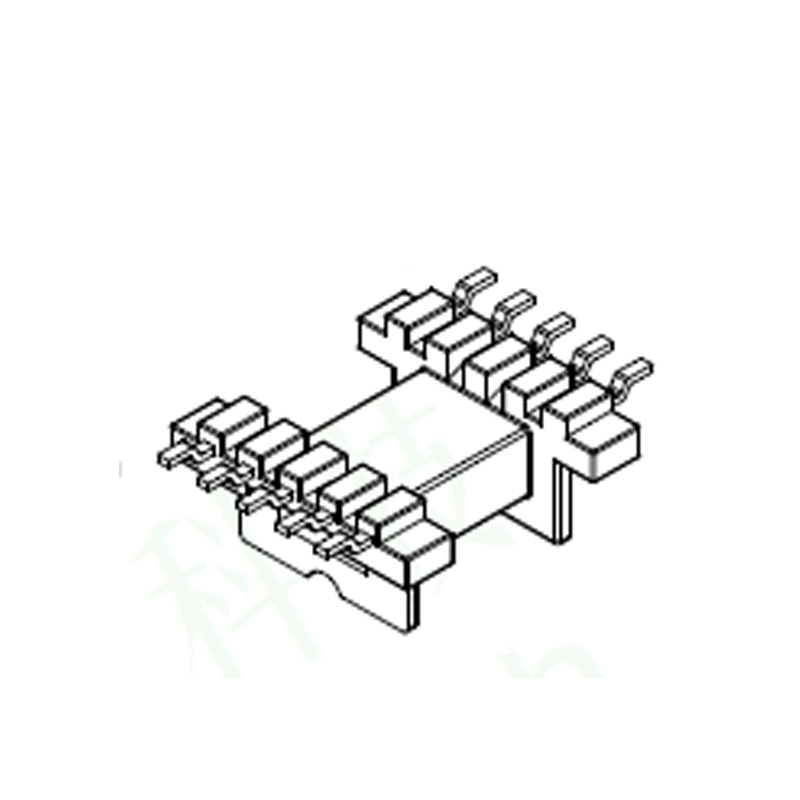

SMD EE10 Vertical Bobbin for Electronic Transformer

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.15mm, Parallel Distance=13.7mm Size=11.9mmX10.15mmX10.6mm

SMD Bobbin EP13 Transformer Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=13mm Size=17mmX12.8mmX10mm

Four Slots EP13 Transformer Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=13mm Size=17mmX12.8mmX10mm

EP13 Transformer Bobbin Horizontal Bobbin With 4+8 Pins

4+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch1=5.1mm,Pin pitch2=1.7mm Parallel Distance=12.9mm

EP13 Transformer Bobbin SMD Bobbin Phenolic Material

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=13mm Size=17mmX12.8mmX10mm

EPC13 Transformer Bobbin Horizontal Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=14.1mm Size=19.6mmX11.5mmX6.6mm

EPC13 Transformer Bobbin SMD Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=14.2mm Size=20mmX11.6mmX6.7mm

EPC Transformer Bobbin Horizontal SMD Bobbin 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=14.1mm

EFD15 Transformer Bobbin Horizontal Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=15mm Size=21.5mmX14.9mmX7.5mm

Four Slots EFD15 Transformer Bobbin Horizontal Bobbin

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=15mm Size=15mmX14.9mmX7.5mm

SMD Bobbin EFD15 Transformer Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.54mm, Parallel Distance=14.8mm Size=22mmX14.9mmX7.4mm

SMD Bobbin EFD15 Transformer Bobbin Phenolic Material

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.54mm, Parallel Distance=14.8mm Size=21.35mmX14.9mmX7.4mm

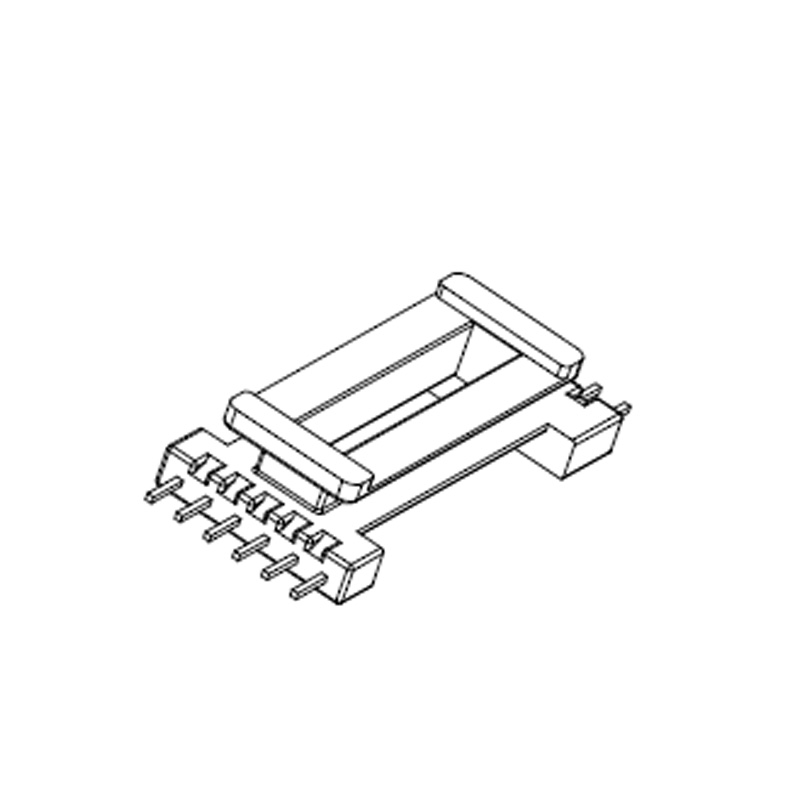

SMD Bobbin EW15 Transformer Bobbin With 6+6 Pins

6+6 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=32.6mm

EE10 High Frequency Electronic Transformer Bobbin 4+4 Pins SMD Bobbin

4+4 Pins Horizontal Bobbin, EE10 high frequency transformer bobbin LCP-E4008 Material Electronic Transformer Bobbin Customized designs are accepted,UL REC:94V-0

SMD Bobbin High Frequency Electronic Transformer with 4+4 Pins EP10 Bobbin

4+4 Pins Horizontal EP10 Bobbin,UL REC:94V-0 LCP-E4008 Material Electronic Transformer Bobbin Pin Pitch=2.5mm Parallel Distance=10.5mm Size=14.6mmX11.5mmX8.9mm. Customized designs are accepted

Double Slots EP10 Electronic Transformer Bobbin 4+4 Pins SMD Bobbin

4+4 Pins Horizontal Bobbin,double slots EP10 bobbin,LCP-E4008 Material, Pin Pitch=2.5mm Parallel Distance=10.5mm. UL REC:94V-0. Size=14.6mmX11.5mmX8.9mm.Customized designs are accepted.

4+4 Pins Horizontal EPC10 Bobbin for Electronic Transformer

4+4 Pins Horizontal Bobbin,EPC10 transformer bobbin,UL REC:94V-0. LCP-E4008 Material,Pin Pitch=2mm Parallel Distance=7.9mm. Size=11.4mmX10.7mmX4.6mm.

UI10 SMD Transformer Bobbin for PCB Mounting Transformers

UI10 electronic transformer bobbin, UL REC:94V-0. Nylon material transformer bobbin. Customized designs are accepted.

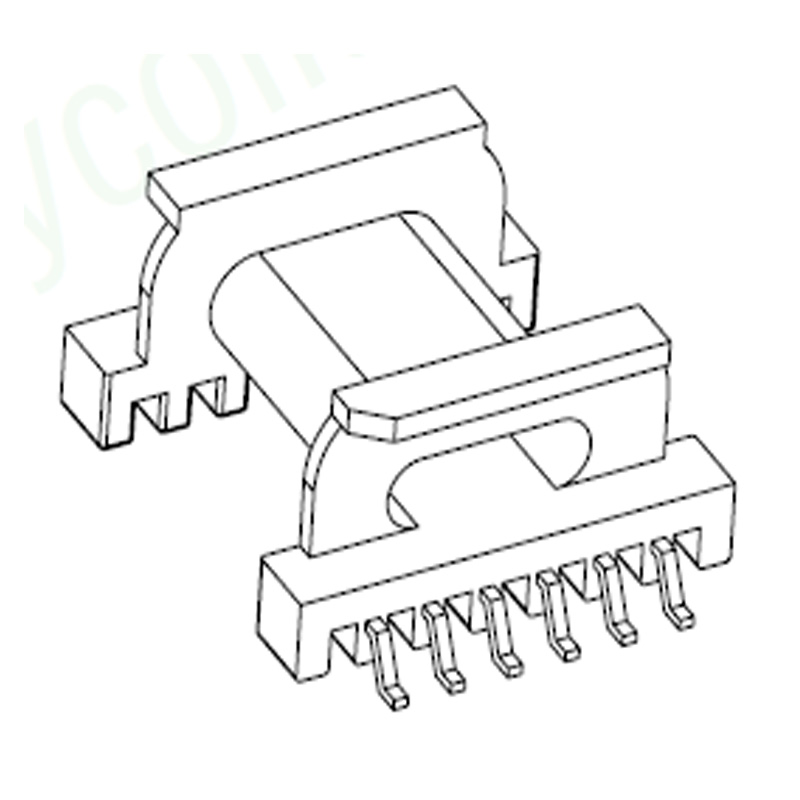

EPC19 SMD Horizontal Transformer Bobbin SMD 6+6 Pins Winding Bobbin

SMD 6+6 pin horizontal EPC Bobbin. UL REC:94V-0 Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=10.5mm. Bobbin Size=24mmX18.9mmX10mm. Customized designs are accepted.

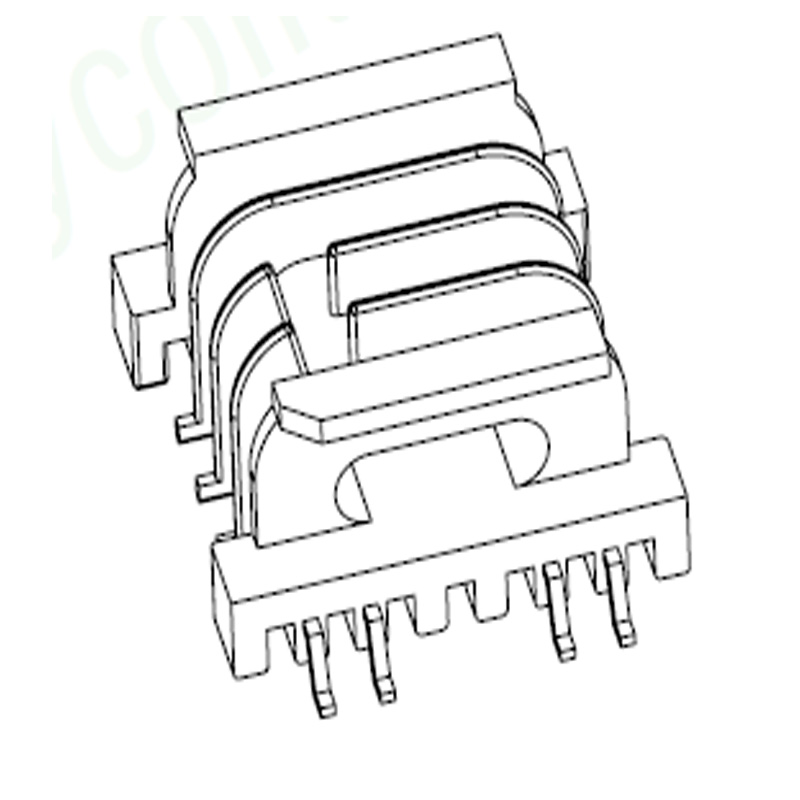

Four Slots EPC19 Transformer Bobbin 4+6 Pin SMD Horizontal Coil Bobbin

4+6 pin SMD Bobbin. Four slots horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=19mm. Bobbin Size=24mmX19mmX9.9mm. Customized designs are accepted.

EPC19 Six Slots Transformer SMD Horizontal Bobbin

EPC19 SMD winding bobbin. Six slots horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=18.9mm. Bobbin Size=24mmX19mmX9.5mm. Customized designs are accepted.

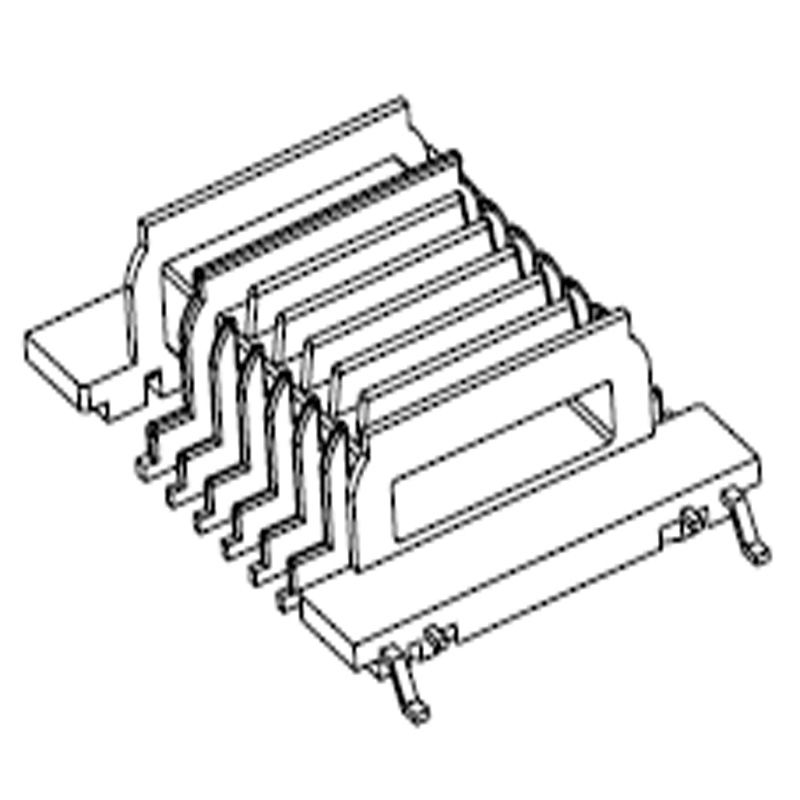

2+7 Pins EPC19 Transformer Bobbin Seven Slots SMD Coil Former

Seven slots EPC19 horizontal bobbin. 2+7 pins transformer bobbin. Pin Pitch1=2.5mm. Pin Pitch1=2.5mm. Bobbin Size=25mmX19mmX6.2mm. Bobbin material: LCP-E4008. Customized designs are accepted.

EPC19 SMD Coil Former 6+6 Pins Horizontal Transformer Bobbin

EPC 6+6 pins SMD Bobbin. Bobbin material: LCP-E4008. Horizontal type bobbin. Pin Pitch=2.5mm. Parallel Distance=19mm. Bobbin Size=19mmX19mmX9.4mm. Customized designs are accepted. UL REC:94V-0

Transformer Bobbin Six Slots Horizontal Bobbin 6+6 Pin SMD Coil Former

EPC19 SMD coil bobbin 6+6 pin. Six slots horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=19mm. Bobbin Size=19mmX19mmX9.4mm. Customized designs are accepted.

SMD EE19 Bobbin Four Slots Transformer Bobbin 4+6 Pin Horizontal Coil Former

Four slots EE19 transformer bobbin. SMD coil bobbin. 4+6 pin horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=19mm. Bobbin Size=20.5mmX19mmX11.2mm. Customized designs are accepted.

EEL19 Ferrite Core SMD Bobbin Pin 2+7

Multi section EEL19 bobbin. SMT coil former supply. 2+7 pins horizontal EEL19. Bobbin Size=29.85mmX19.5mmX8.95mm. Pin Pitch=2.5mm. Customized design available.. Bobbin material: LCP-E4008. P
