High quality ER11.5 SMD type high frequency transformers, switching mode power supply transformer ER11.5, competitive price and good after-sale, customized specifications and OEM service also accepted.
Quick Details
|
Part No: Flexible SMPS-Transformer ER11.5
|
Brand name: MCT
|
|
Insulation test voltage: 1000V
|
Custom made: Available
|
|
Low leakage inductance
|
Logo: Can be customized
|
|
Transformer with multi-winding
|
Packing: Carton, can custom
|
|
Operating temperature -40°C~+125°C
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information

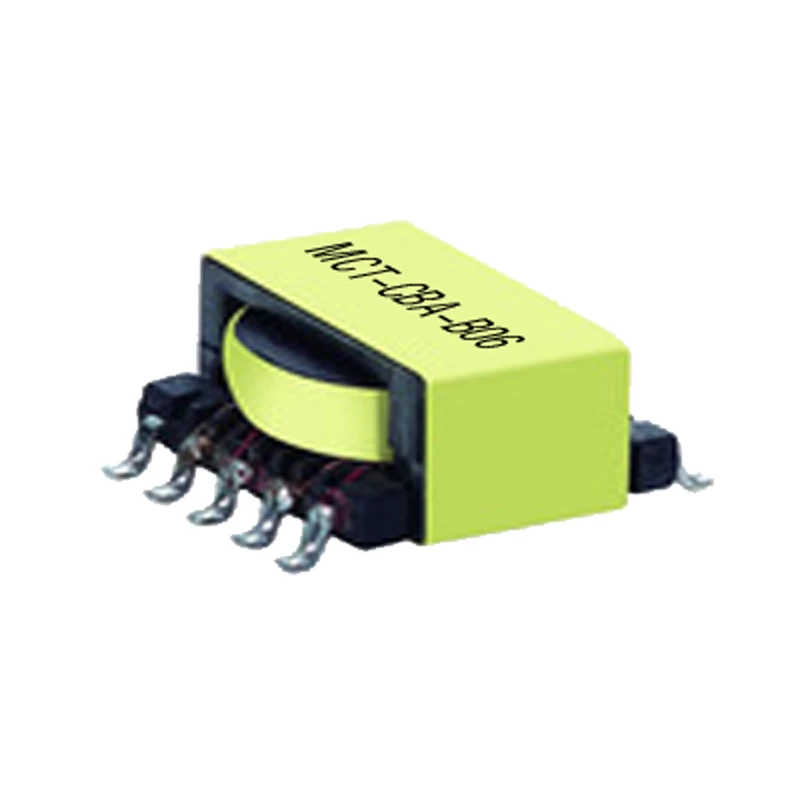

Product Name: SMD ER11.5 Flexible SMPS High Frequency Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

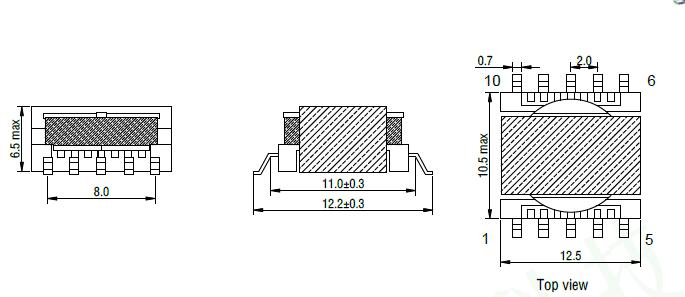

Product Specifications
Electrical Data and Part Number(PN)
|
L1 in uH
|
L1 in mA
|
Lsat in mA
|
RDC/mΩ
|
PN
|
|
27.0
|
550
|
200
|
350
|
MCT-ERA-B05
|
|
14.5
|
550
|
550
|
350
|
MCT-ERA-B06
|
|
11.0
|
550
|
700
|
350
|
MCT-ERA-B07
|
|
8.5
|
550
|
950
|
350
|
MCT-ERA-B08
|
