SMD LED 0603 Chip 0.8 Inch Single Digit 7 Segment LED Display Wholesale

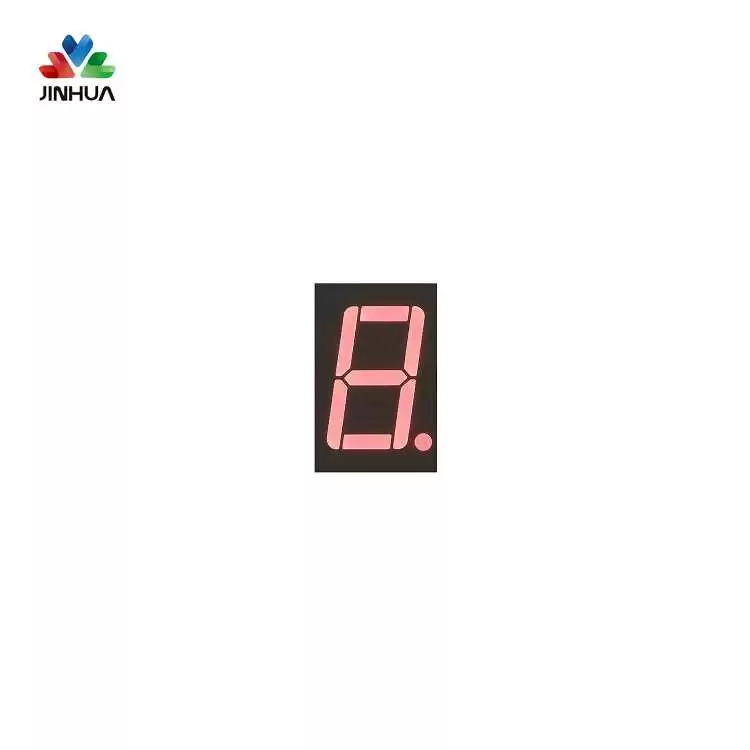

It is a SMD LED 0603 7 seg LED display, with a single 7 segment, it's able to display any number from 0 to 9 at any time which controlled by the electrical signal transmitt from main control board.
It'a 0.8 inch single digit segment led screen which able to display any colors of changeable number.

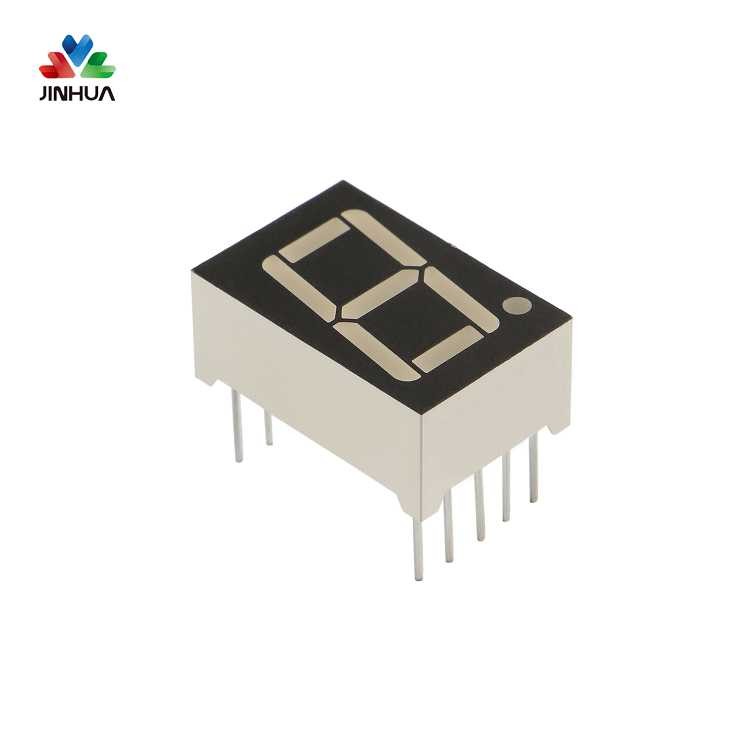

Small Size Seven Segment LED
Product Parameters
| Digit height |
0.8 inch (0.28 inch ~ 4 inch available) |
| Dimensions |
20 x 27.7 x 10mm |
| Digit quantity |
1 Digit |
| Available Emitting Color |
Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green |
| Surface Color |
Black/Gray (white epoxy) |
| Epoxy Colors |
Red, Milky, Blue, Green and more |
| Polarity |
Common Anode/Common Cathode |
| Connector |
Pin |
| Operating Temperature |
-20-80°C |
| Requirements On Environmental Protection |
ROHS HSF |

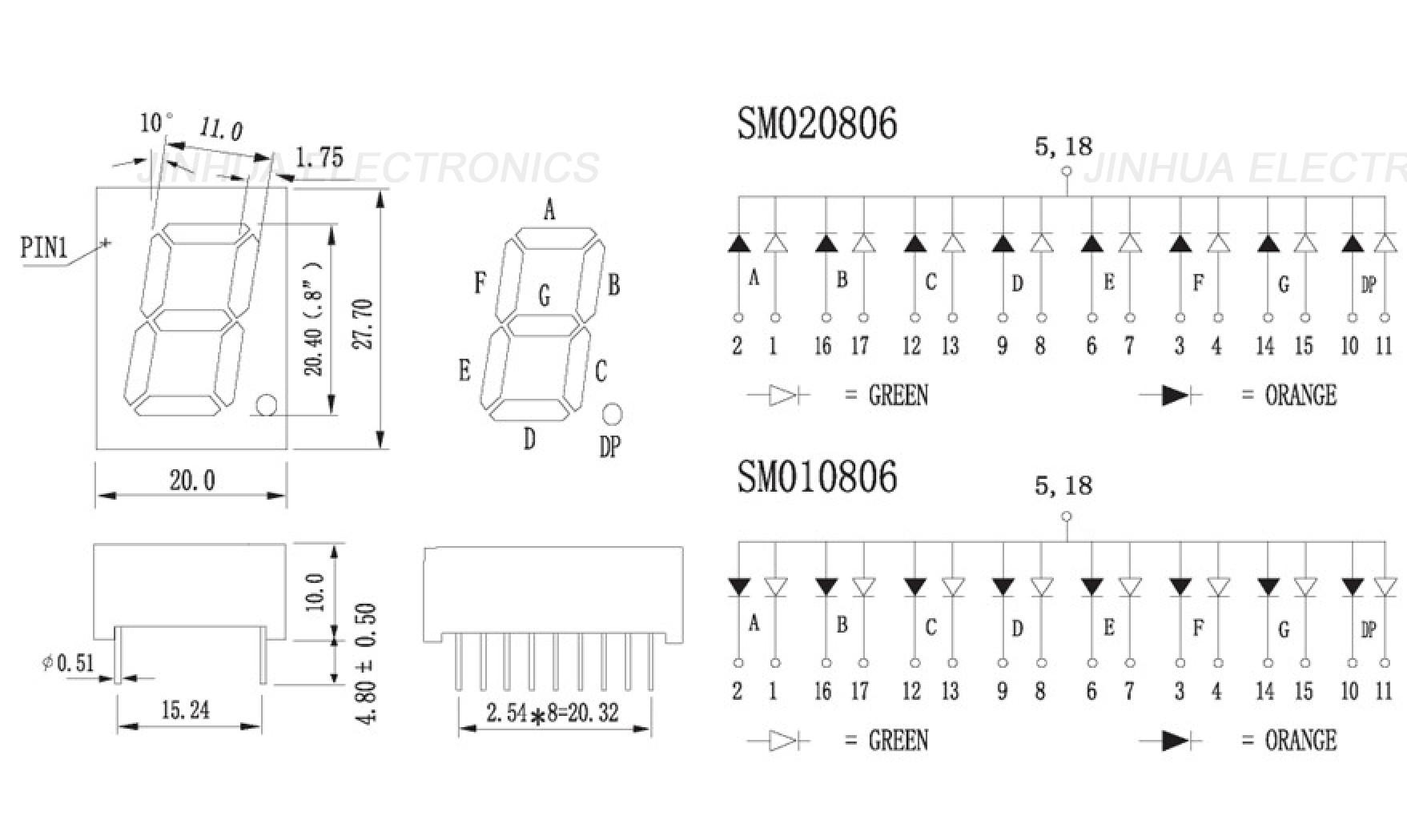

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
7 Segment LED comes with guaranteed minimum 3 years of lifespan. While it also influenced by the working condition. Let's take IF=5mA for example, lumen depreciation10% 5000H, lumen depreciation20% 10000H, lumen depreciation30% 15000H, lumen depreciation50% 50000H. With such long lifespan, LED segment screen is extensively used in many equipment such as cash counting machine, air purifier, running machine, etc.
