Typical 11.5×4.7×4.2mm Glass seal SMD crystal
RoHS compliant Lead free soldering

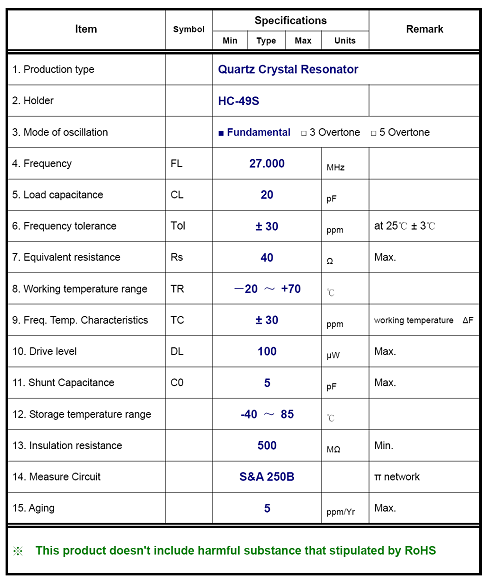

Electrical Parameters
Dimensions
Reflow
|
Profiles Feature
|
Pb-Free Assembly
|
|
Average
Ramp-up Rate (Ts max to Tp)
|
3℃/second max.
|
Preheat
■ Temperature Min
(Ts min)
■ Temperature
Max (Ts max)
■ Time (ts
min to ts max)
|
125℃
200℃
60~180 seconds
|
Time
maintained above
■ Temperature
(TL)
■ Time
(tL)
|
217℃
60~150 seconds
|
|
Peak/Classification
Temperature (Tp)
|
260℃
|
Time
within 5℃ of actual
Peak
Temperature (tp)
|
20~40 seconds
|
|
Ramp-down
rate
|
6℃/second max.
|
|
Time
25℃ to Peak Temperature
|
8 minutes max.
|
|
Suggest
reflow times
|
3 Times max
|
