SMD Quartz Crystal P5FA

Features

5032 size miniature SMD crystal resonator with a low profile of 1.0mm

Excellent heat resistance, high precision, and high reliability

Offers wide frequency range from a comparatively low 7MHz up to 70MHz.

AEC-Q200 Compliant

Suitable for PDA, car navigation systems, digital AV equipment as well as many other

Typical 5.0×3.2×1.0mm Glass seal SMD crystal

1. RoHS compliant Lead free soldering
2. Typical Frequency: 12MHz,16MHz, 20MHz,25MHz,27MHz,28MHz,40MHz

3. Typical application: Automotive, notebook,computer peripherals,hard disk,office automation, audio & video

Electrical Parameters

Item	Electrical Specification
Item	Min.	Type	Max.	Units
Nominal Frequency	8.000			MHz
Mode of Vibration	AT Fund
Frequency Tolerance	-20	-	20	ppm
Operating Temperature Range	-40	-	85	℃
Frequency Stability	-50	-	50	ppm
Storage Temperature	-40	-	85	℃
Load capacitance	-	12	-	pF
Equivalent Series Resistance	-	-	80	Ω
Drive Level	-	50	100	μW
Insulation Resistance	500	-	-	MΩ
Shunt Capacitance	-	-	5	pF
Aging Per Year	-3	-	3	ppm
Package type	P5FA

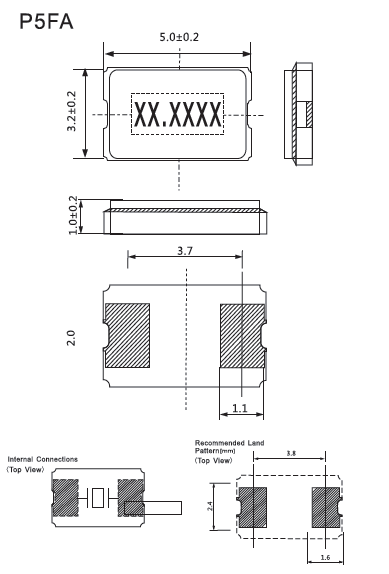

Dimensions

SMD Quartz Crystal MHz

Reflow

Profiles Feature	Pb-Free Assembly
Average Ramp-up Rate (Ts max to Tp)	3℃/Second max.
Preheat ■ Temperature Min (Ts min) ■ Temperature Max (Ts max) ■ Time (ts min to ts max)	125℃ 200℃ 60~180 seconds
Time maintained above ■ Temperature (TL) ■ Time (tL)	217℃ 60~150 seconds
Peak/Classification Temperature (Tp)	260℃
Time within 5℃ of actual Peak Temperature (tp)	20~40 seconds
Ramp-down rate	6℃/second max.
Time 25℃ to Peak Temperature	8 minutes max.
Suggest reflow times	3 Times max
