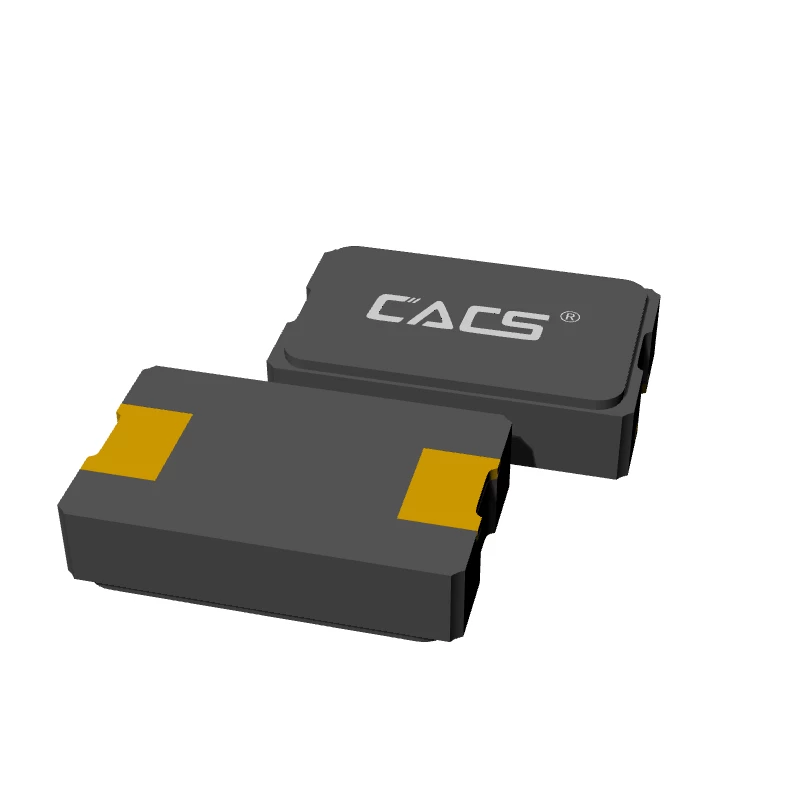

SMD Quartz Crystal P8FA
Features
8045 size miniature SMD crystal resonator with a low profile of 1.6mm
Excellent heat resistance, high precision, and high reliability
Offers wide frequency range from a comparatively low 7MHz up to 70MHz.
AEC-Q200 Compliant
Suitable for PDA, car navigation systems, digital AV equipment as well as many other
Typical 8.0×4.5×1.6mm Glass seal SMD crystal
1. RoHS compliant Lead free soldering
2. Typical Frequency: 12MHz,16MHz, 20MHz,25MHz,27MHz,28MHz,40MHz
3. Typical application: Automotive, notebook,computer peripherals,hard disk,office automation, audio & video
Electrical Parameters
| Item | Electrical Specification | |||
| Min. | Type | Max. | Units | |
| Nominal Frequency | 20.000 | MHz | ||
| Mode of Vibration | AT Fund | |||
| Frequency Tolerance | -30 | - | 30 | ppm |
| Operating Temperature Range | -40 | - | 85 | ℃ |
| Frequency Stability | -30 | - | 30 | ppm |
| Storage Temperature | -40 | - | 85 | ℃ |
| Load capacitance | - | 12 | - | pF |
| Equivalent Series Resistance | - | - | 50 | Ω |
| Drive Level | - | - | 50 | μW |
| Insulation Resistance | 500 | - | - | MΩ |
| Shunt Capacitance | - | - | 7 | pF |
| Aging Per Year | -5 | - | 5 | ppm |
| Package type | P8FA | |||

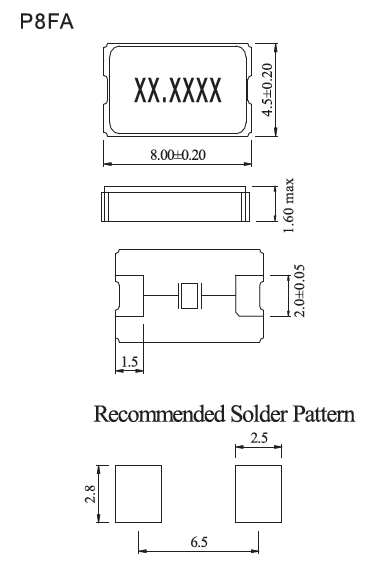

Dimensions
Reflow
| Profiles Feature | Pb-Free Assembly |
| Average Ramp-up Rate (Ts max to Tp) | 3℃/Second max. |
|
Preheat ■ Temperature Min (Ts min) ■ Temperature Max (Ts max) ■ Time (ts min to ts max) |
125℃ 200℃ 60~180 seconds |
|
Time maintained above ■ Temperature (TL) ■ Time (tL) |
217℃ 60~150 seconds |
| Peak/Classification Temperature (Tp) | 260℃ |
|
Time within 5℃ of actual Peak Temperature (tp) |
20~40 seconds |
| Ramp-down rate | 6℃/second max. |
| Time 25℃ to Peak Temperature | 8 minutes max. |
| Suggest reflow times | 3 Times max |
