3215 size 32.768kHz Watch Crystal
Highly competitive price for watch crystal with 3.2 x 1.5 x 0.65mm. PSX315 also with excellent reliability performance and ultra miniature package. And is available in a choice of circuit conditions at 32.768kHz which suitable for surface mount technology and IR reflow process.
Electrical Specifications
|
Parameter
|
Value
|
|
Frequency Range
|
32.768KHz
|
|
Frequency Tolerance
|
±20ppm
|
|
Temperature Coefficient
|
-0.034±0.006 ppm/(℃)2
|
|
Turnover temperature
|
25±5℃
|
|
Operating Temperature Range
|
-40℃ to 85℃
|
|
Storage Temperature Range
|
-55℃ to 125℃
|
|
Quality factory
|
60000Typ
|
|
Series resistance
|
50 KΩ
|
|
Shunt Capacitance
|
0.95pF Typ
|
|
Load Capacitance
|
12.5pF
|
|
Insulator Resistance
|
500 MΩ
|
|
Drive Level
|
0.5μW
|
|
Capacitance ratio
|
450Typ
|
|
Aging
|
±3ppm
|

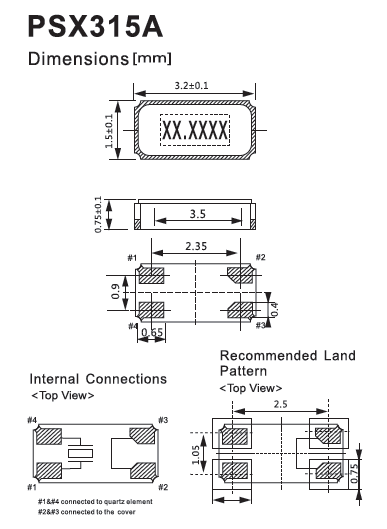

Dimension
Reflow
