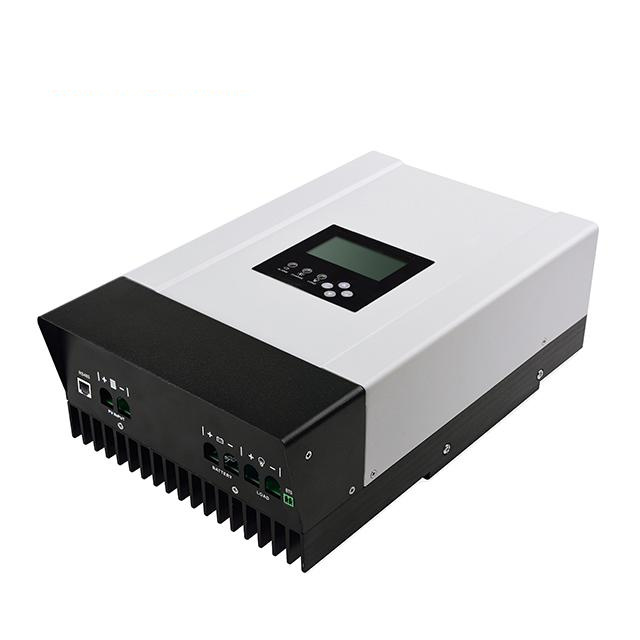

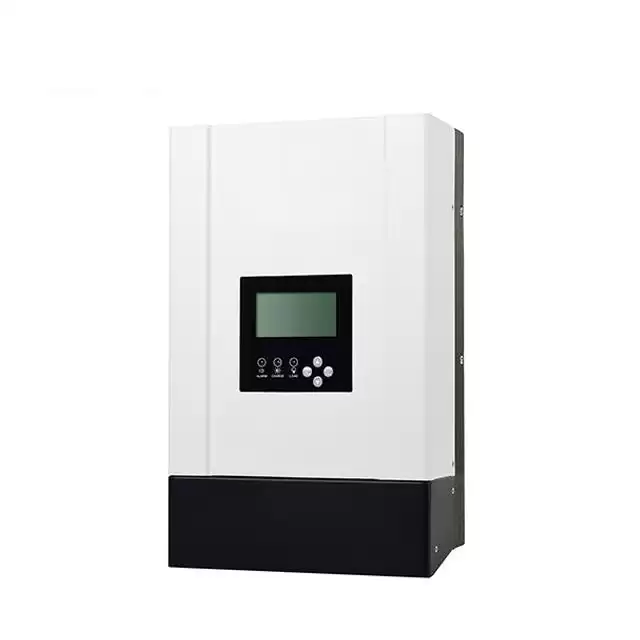

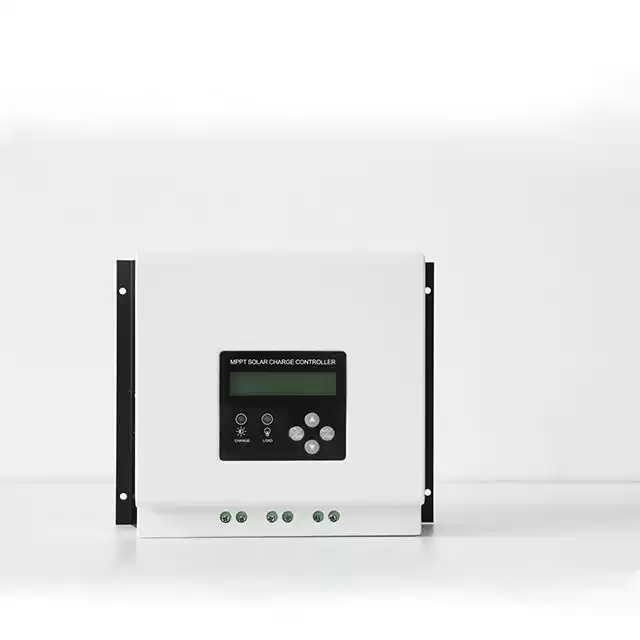

FOTOVO SMK 80A 100A MPPT Solar Charge Controller New Model 12/24/36/48V Controller
Product Description
Advantages
1. MPPT charge mode, conversion efficiency up to 99%.
2.12V/24V/36V/48V battery system automatic recognition, convenient for customers to use.
3. Maximum PV input voltage up to DC150V.
4. Controllers can be connected in unlimited parallels.
5. Charge mode: three stages (fast charge ,constant charge ,floating charge). To extend the life span of the battery
6. Discharge mode: ON/OFF mode, double time control mode, PV voltage control mode, PV voltage+time delay mode and so on .
7. Recommended battery types: sealed lead acid, Vented, Gel, NiCd battery. Other types of the batteries can also be defined, such as lithium battery etc.
8. CE, RoHS, FCC certifications approved, other certifications can also be made based on different requirements.
9. 2 years warranty and 2~10 years extended technical service.
Equipment Parameters
Product Name
|
GSC-Wiser
|
Style
|
MPPT Charge Controller
|
Brand
|
Greystone
|
Colour
|
White/Customize
|
Material
|
Metal
|
Place of Product
|
Guangdong Province,China
|
Net Weight
|
9kg
|
Packing
|
Packed in carton and Shockproof
|
|
Gross Weight
|
10kg
|
Mode Name
|
Wiser
|
|
Model
|
GSP-50A
|
GSP-60A
|
GSP-70A
|
GSP-80A
|
GSP-90A
|
GSP-100A
|
|
Solar System Voltage
|
12V/24V/36V/48V auto work
|
|
Electrical
|
|
Max PV Input Power
|
12V 700W
|
12V 900W
|
12V 1000W
|
12V 1200W
|
12V 1300W
|
12V 1400W
|
|
24V 1400W
|
24V 1800W
|
24V 2000W
|
24V 2300W
|
24V 2600W
|
24V 2800W
|
|
36V 2200W
|
36V 2600W
|
36V 3000W
|
36V 3300W
|
36V 3800W
|
36V 4200W
|
|
48V 2900W
|
48V 3400W
|
48V 4000W
|
48V 4600W
|
48V 5000W
|
48V 5400W
|
|
Rated Output Current
|
50A
|
60A
|
70A
|
80A
|
90A
|
100A
|
|
Rated DC Load Current
|
60A
|
|
Self Consumption
|
3W
|
|
Max.Conversion Efficiency
|
98.50%
|
|
Protection
|
PV array short circuit,over charging,battery reverse polarity,output short circuit
|
|
Battery Charging
|
|
Battery Type
|
Sealed Gel AGM Flooded Lithium
|
|
Charge Algorithm
|
4 stage:Bulk,Absorption,Float,Equalize charging
|
|
Bulk Charge Voltage
|
Sealed :14.4V AGM 14.2V Gel:14.2V Flooded:14.6V User defined:10-15V
|
|
Float Charger Voltage
|
Sealed:14.6v AGM:14.8V Flooed:14.9V
|
|
Load disconnect voltage
|
10.5V~12V adjustable
|
|
Load reconnect voltage
|
12.5V
|
|
Temperature Compensation
|
5mV/℃/2V with BTS
|
|
Communication
|
|
Communication Port
|
Rs485 (standard)Ethernet RS232 Optional with online monltoring system
|
|
Physical
|
|
Net weight
|
6.5kg
|
6.5kg
|
7.8kg
|
7.8kg
|
9kg
|
9kg
|
|
Gross weight
|
7.3kg
|
7.3kg
|
8.7kg
|
8.7kg
|
10kg
|
10kg
|
|
Dimension(mm)
|
310*230*110
|
370*230*110
|
405*230*110
|
|
Cooling
|

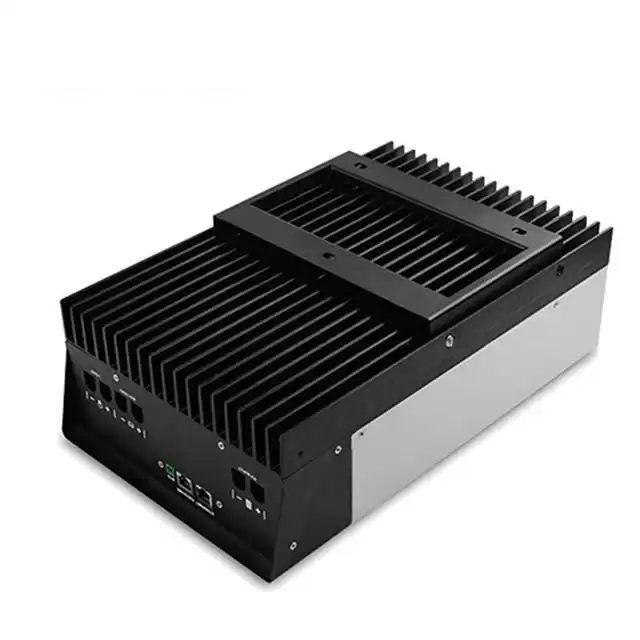

Heatsink cooling
|
|
Enclosure
|
IP 45
|
|
Environment
|
|
Ambient Operating
|
—25℃-60℃
|
|
Temperature
|
|
Storage Temperature
|
—40℃-80℃
|
|
Humidity
|
5%-95% non-condensing
|
|
Warranty
|
2 years
|

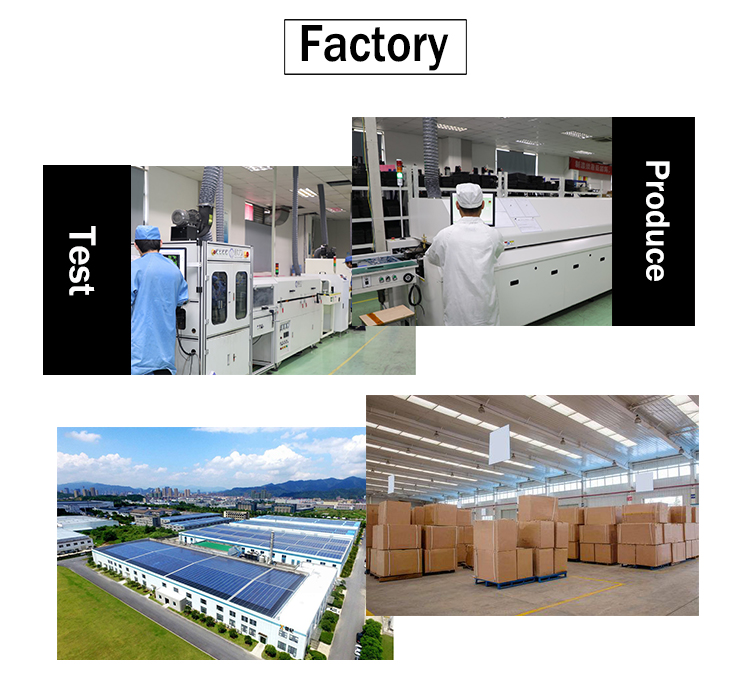

Factory and Delivery
FAQ
1. Can you provide OEM or ODM service for customers?
A: Yes. Customers should provide formal Letter of Authorization. We will keep our partnership strictly confidential and customized products will be not sold to any third party.
2. Can MPPT charge controller charge lithium battery? How to set it?
A: Yes. All series controllers can set up “User-defined” battery type for lithium battery by APP or PC software. Galaxy, Master, Mars series can be reset battery type on controller itself, too.
3. How to set up the parameter to charge lithium battery?
A:At present, the MPPT controller charging is mainly designed for the traditional conventional battery pack (12V is composed of serial and parallel series), and the battery system is automatically identified according to the battery voltage. Therefore, if the lithium battery pack needs to be charged, it needs to be converted into a conventional battery.
4. Is there a setting on the controller to tell it whether the batteries are sealed lead-acid or gel?
A: Yes, all of our MPPT charge controller can be checked and set up the conventional battery types (Sealed/Gel/Flooded) by LCD screen, APP and even PC software.
5. If the bulk charge voltage is 14.7V, does the charging voltage is the same 14.7V or other lower voltage?
A: When the bulk charge voltage of battery is set to 14.7V, the MPPT controller charge voltage will also be control within the range of 14.7V. It will charged the battery in three stages through constant current charge mode CC → constant voltage charge mode CV → floating charge mode CF.
In CC mode, the charging voltage is equal to the battery voltage;
In CV mode, the charging voltage is equal to the bulk voltage set value of 14.7V;
In CF mode, the charging voltage is equal to the floating voltage set value, like 14.5V.
6. Could i charge my golf cart acid battery with your MPPT controller?
A: Yes, you can set the MPPT controller charge parameter according to the specific charging parameters of golf cart acid battery (such as the bulk voltage and floating voltage value).
7. After shut down and restarted MPPT controller, will the setting parameters keep retain or revert to default setting?
A: All of our MPPT charge controller have storage memory function, it will keep the original setting parameters after shut down and restart.
