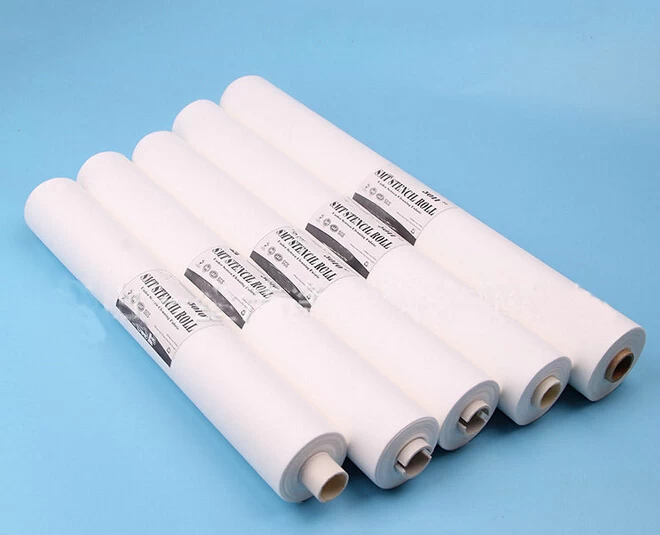

Product Name: The SMT stencil wiping paper/wipe
Model: DW-5010B
Material: Non-woven
Color: white
Composition: 55% Wood pulp + 45% polyester fiber
Certification: ISO, SGS, RoHs
Shape: Roll
Gram Weight: 50-68gsm
The SMT stencil wiping paper/wipe is made by the 55% wood pulp & 45% polyester , or 100% polypropylene, or viscose & polyester. 3 kinds of wipe material for option.
The gram weight of wipe could be: 50gsm, 56gsm, 68gsm, etc different material for choosing.

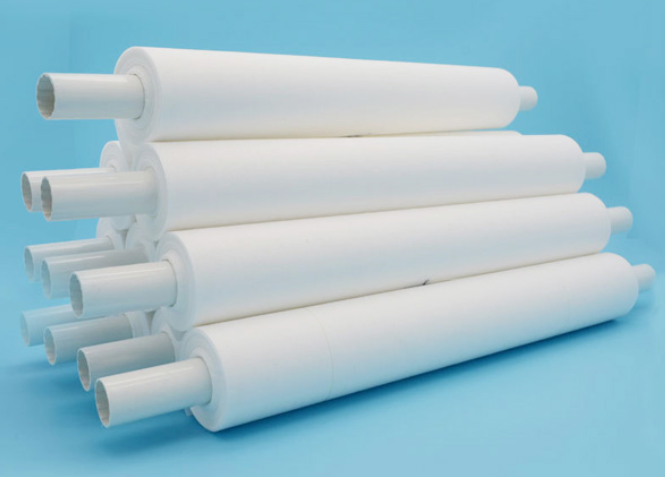

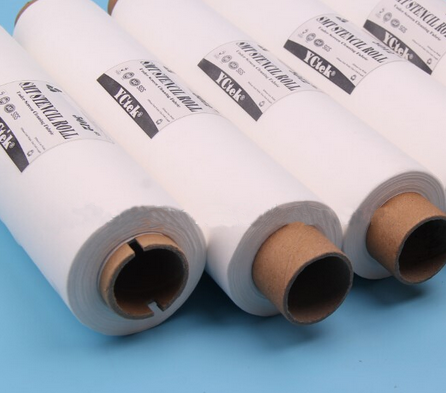

SMT Stencil Cleaning Roll Core: Card Paper Core/ Plastic core
Paper Roll Cloth Width and Length: different size could be customized.
Different machine SMT Stencil Cleaning Wiper Paper Roll is available, such as DEK, Panasonic, MPM, MINAMI, EKRA, etc.
Product Features of the SMT stencil cleaning wipes
1. The SMT stencil cleaning wipes is very tough and durable, high water and oil absorption, soft, Lint free and anti-static properties.
2. The material is very soft make sure no any scratches and damage the surface of the object.
3. Compatible with the cleaning solution.
4. Super absorbent ability four times faster than ordinary cotton rag.
5. Efficient removal of stains, degreasing ability, The SMT cleaning wipes did not contain any chemical adhesives.
Application
It is a high standard SMT stencil cleaning wipe, It is a professional SMT cleaning wiper for the the electronics industry dedicated printed circuit board SMT . The wiper can effectively remove the buildup in the press stencil, circuit boards excess solder paste, red plastic, holding an electronic circuit board spotless, thereby greatly reducing the scrap rate.
It greatly improve production efficiency and product quality.
It can be used for cleaning the brand of MPM, DEK, KME, YAMAHA, MINAMI, JUKI, EKRA, PANASERT, FUJI, SANYO and all other automatic printing models.
Such as below:
| Model |
Size |
Liner pipe |
| PANASONIC |
350㎜×20m |
Φ38㎜×355㎜ |
| PANASONIC |
360㎜×10m |
Φ38㎜×360㎜ |
| PANASONIC |
270㎜×10m |
Φ38㎜×280㎜ |
| YAMAHA |
410㎜×30m |
Φ25.5㎜×420㎜ |
| YAMAHA |
350㎜×10m |
Φ25.5㎜×350㎜ |
| MINAMI |
270㎜×5m |
Φ8㎜×290㎜ |
| MINAMI |
350㎜×6m |
Φ8㎜×370㎜ |
| EKRA |
300㎜×8m |
Φ13.5㎜×300㎜ |
| EKRA |
450㎜×8m |
Φ13.5㎜×450㎜ |
| ASKA |
350㎜×10m |
Φ14㎜×450㎜ |
| ASKA |
430㎜×10m |
Φ14㎜×450㎜ |
| MPM |
300㎜×10m |
Φ19.5㎜×455㎜ |
| MPM |
443㎜×10m |
Φ19.5㎜×455㎜ |
| MPM |
600㎜×10m |
Φ19.5㎜×615㎜ |
| DEK |
300㎜×10m |
Φ20㎜×530㎜ |
| DEK |
500㎜×10m |
Φ20㎜×530㎜ |
| SAMSUNG |
400㎜×7m |
Φ20㎜×460㎜
|
specification
OEM SIZE AND SERVICE IS AVAILABLE
The width, length and lined pipe diameter, length can be customized by the customer requirement and SMT model.
Welcome to send us a inquiry.
