HCET-A temperature switch for medical equipment
In order to ensure the reliable and safe performance of medical equipment, temperature controllers are very important. These temperature switches are commonly used to control and protect compressors, battery packs, motors, and coils from excessive temperature in medical devices.HCET-A/TB02 series precise temperature control switch is small in size, but sensitive to temperature and more flexible in installation.
Features
Small size.
Installation is more flexible and convenient.
Snap action.
Nickel and wires are optional.
Each type of parts strictly implemented European ROHS environmental standards.
Contacts are optional with normally closed Model B and normally open Model K.
Specifications
|
Item No.
|
HCET-A/TB02
|
|
Electrical specifications
|
2.5A/250VAC
|
|
5A/120VAC
|
|
10A/12VDC
|
|
5A/24VDC
|
|
Operating temperature range
|
30°C-155°C
|
|
Temperature tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Plastic and metal
|
|
Case size(mm)
|
12*5.4*2.4
|
|
Wire
|
3398 22#
|
Applications
 |
 |
 |
 |

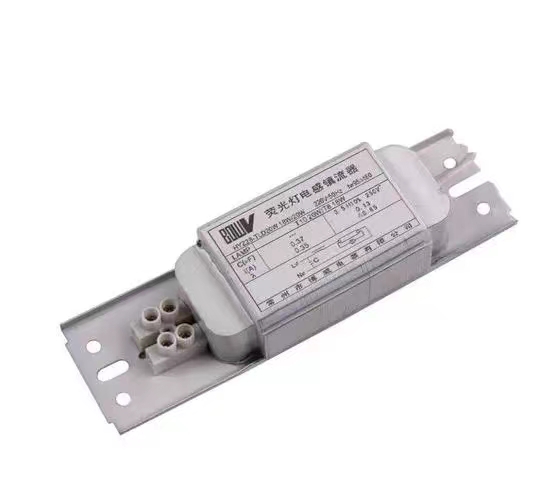

| Ballasts |

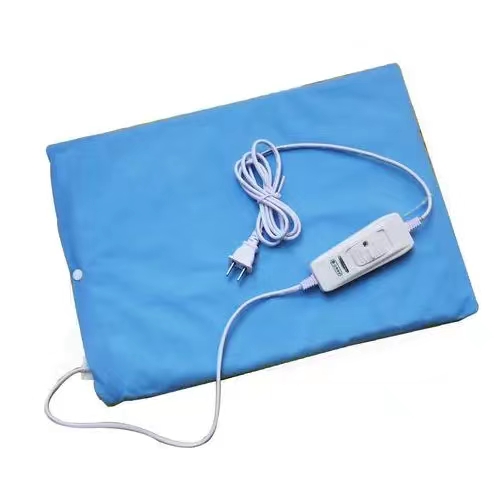

Heating pads |

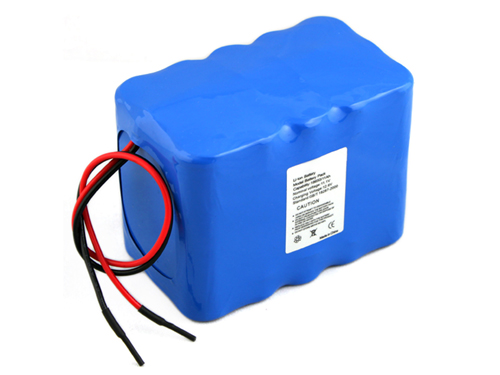

Lithium batteries |

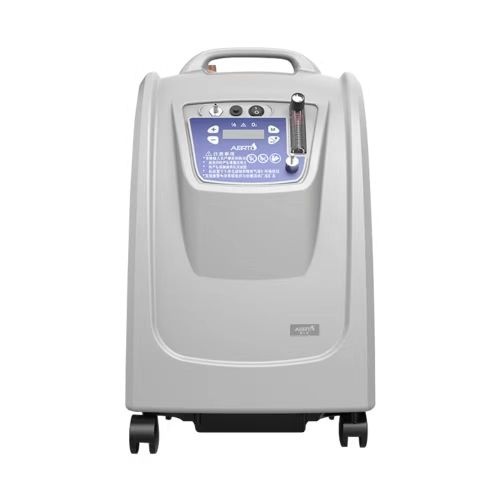

Oxygen machines |
 |
 |
 |
 |

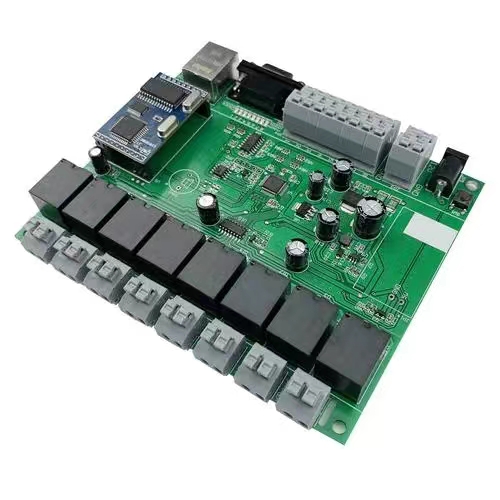

| PC circuit boards |

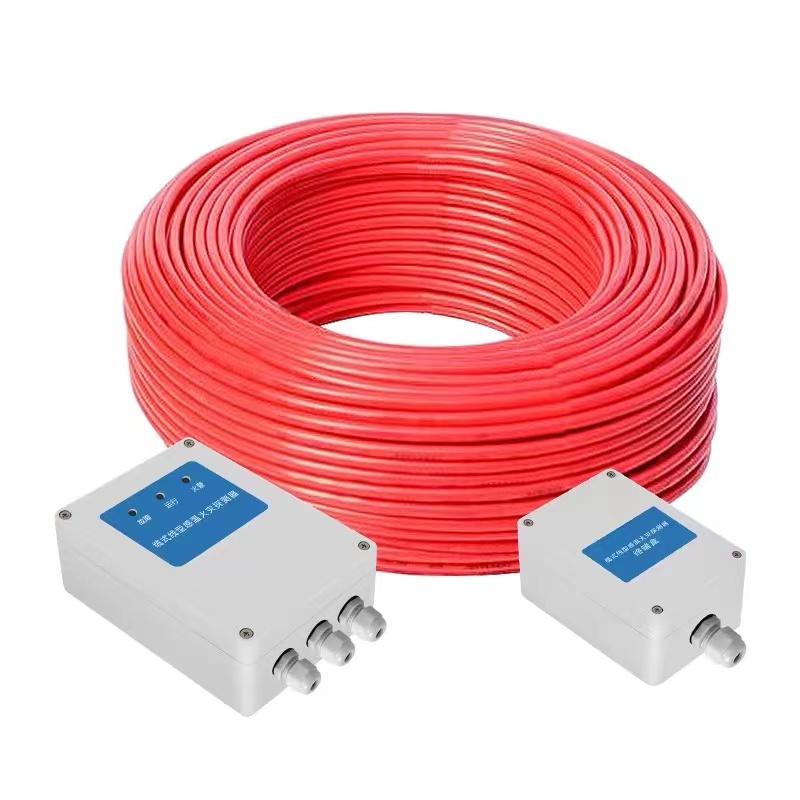

Temperature sensing cables |

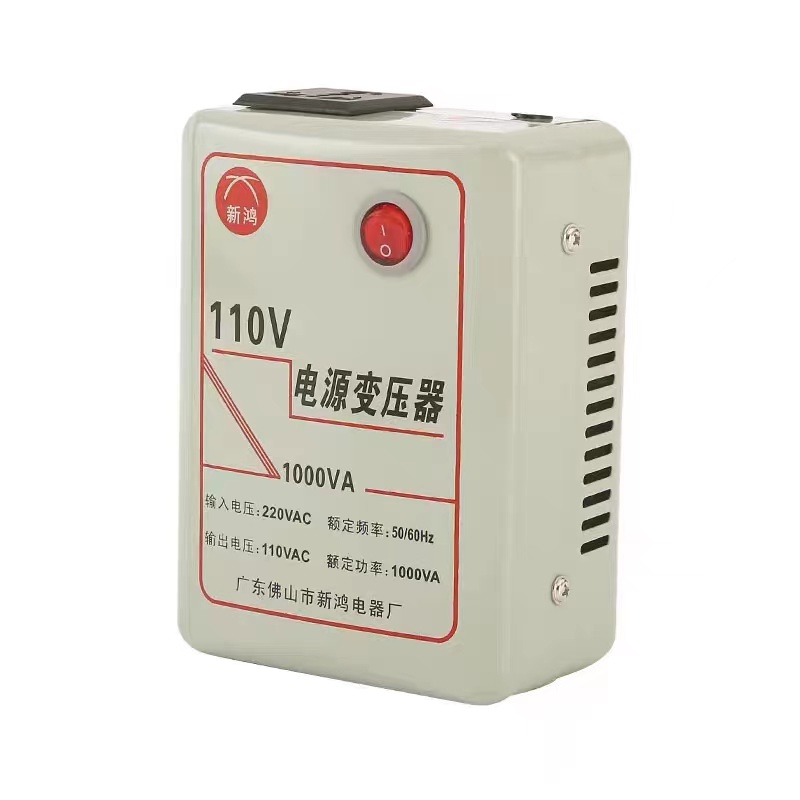

Transformers |

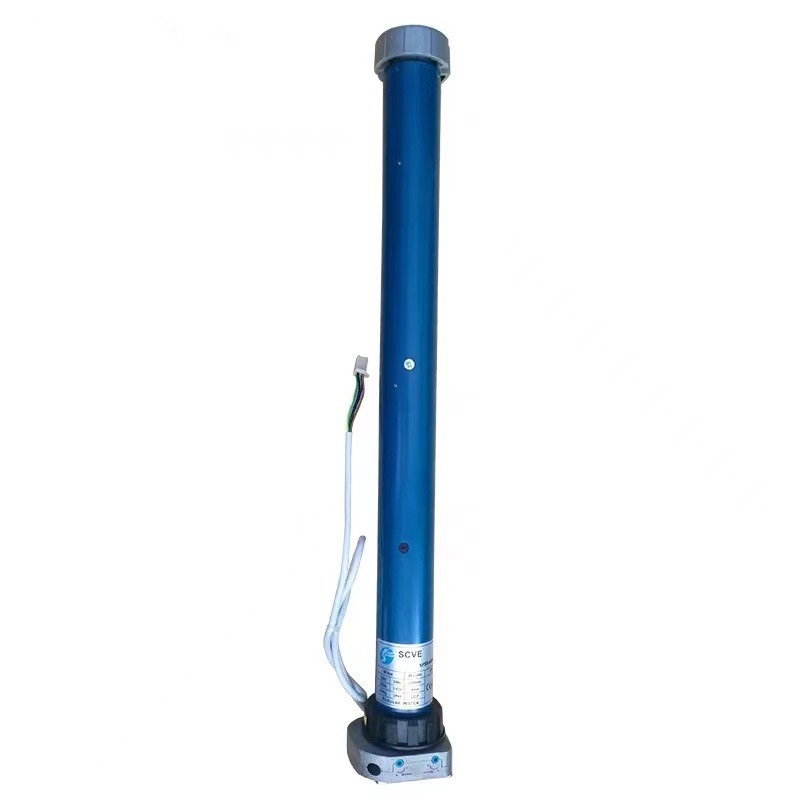

Tubular motors |

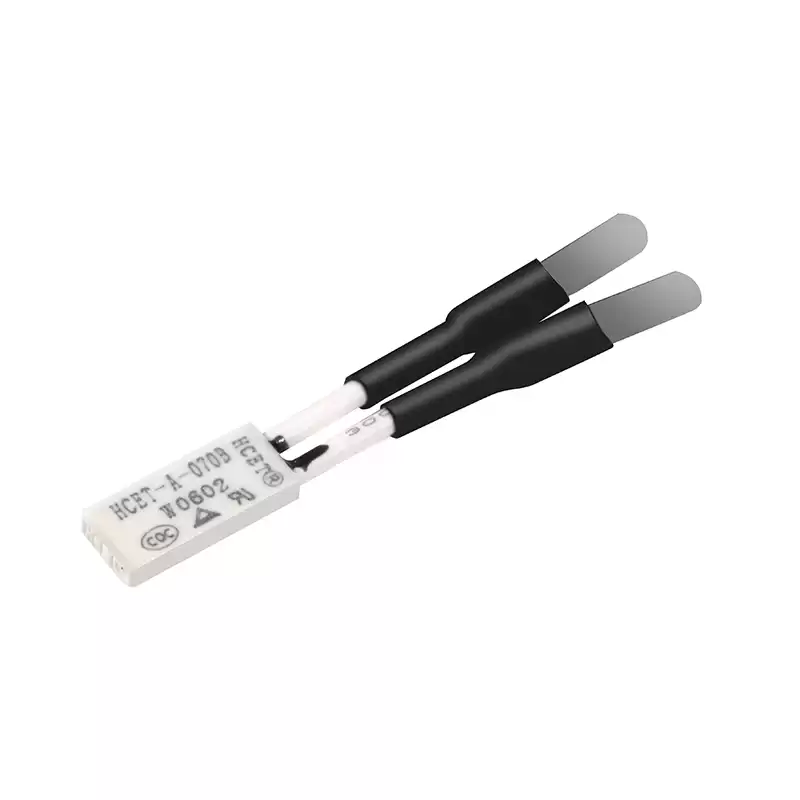

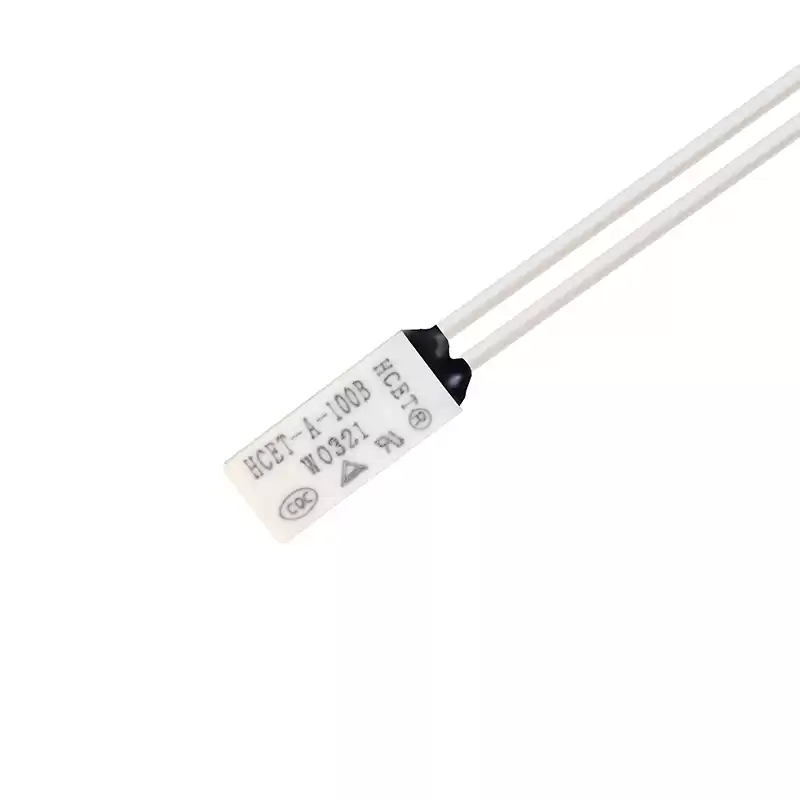

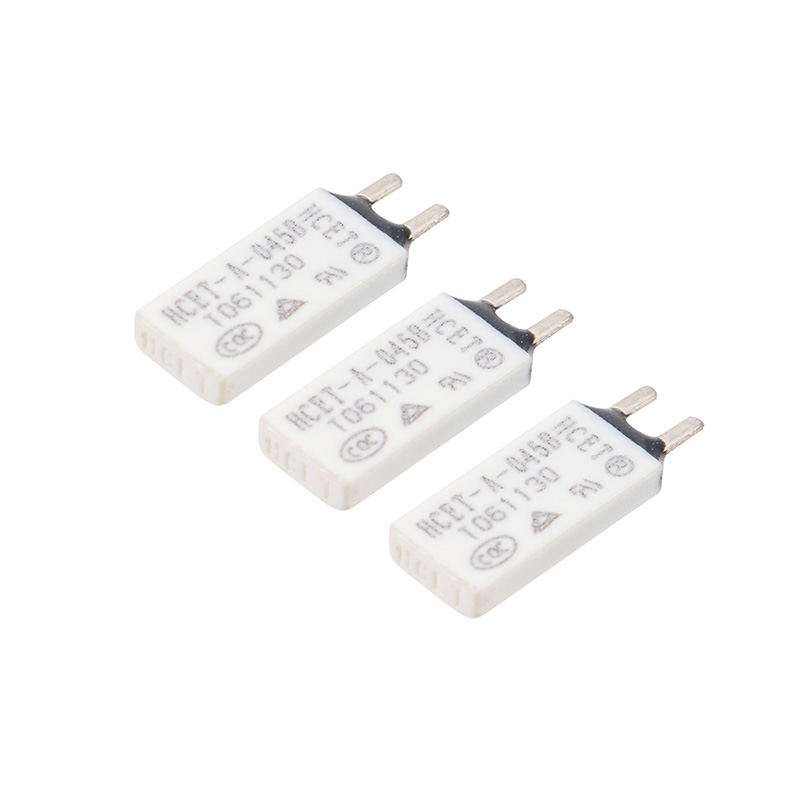

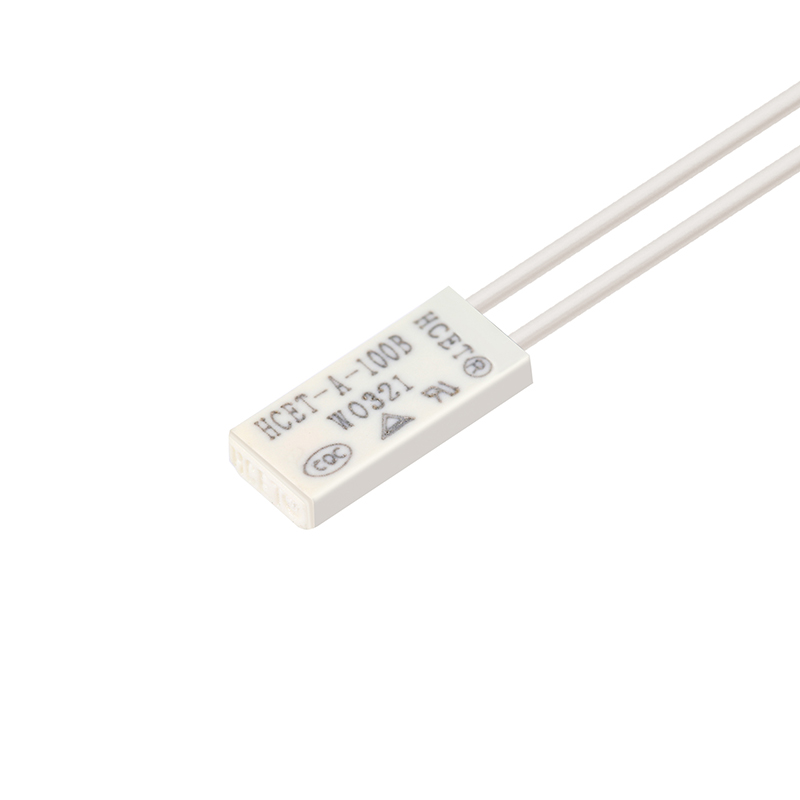

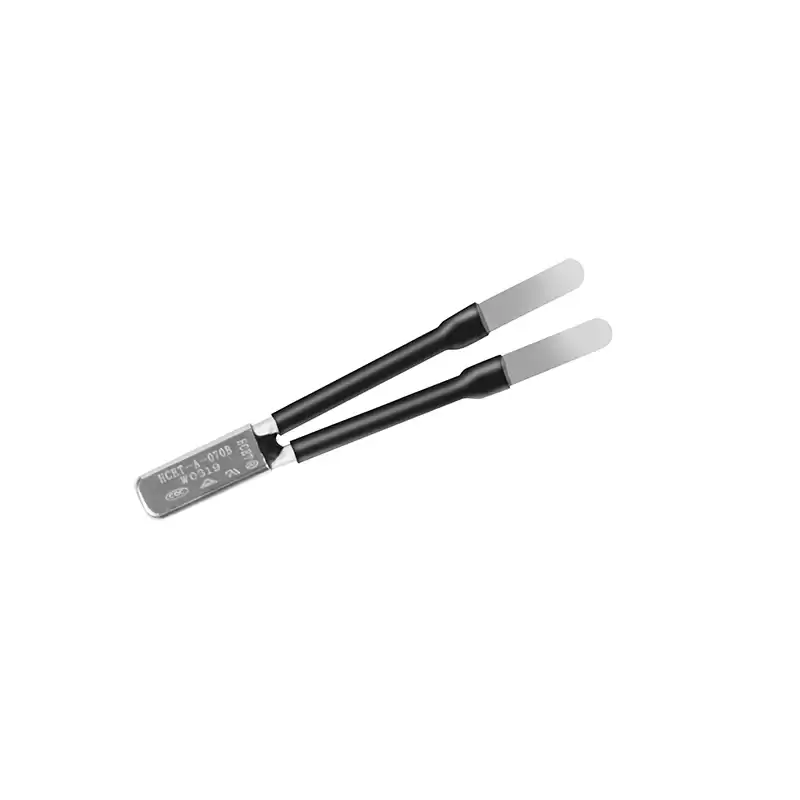

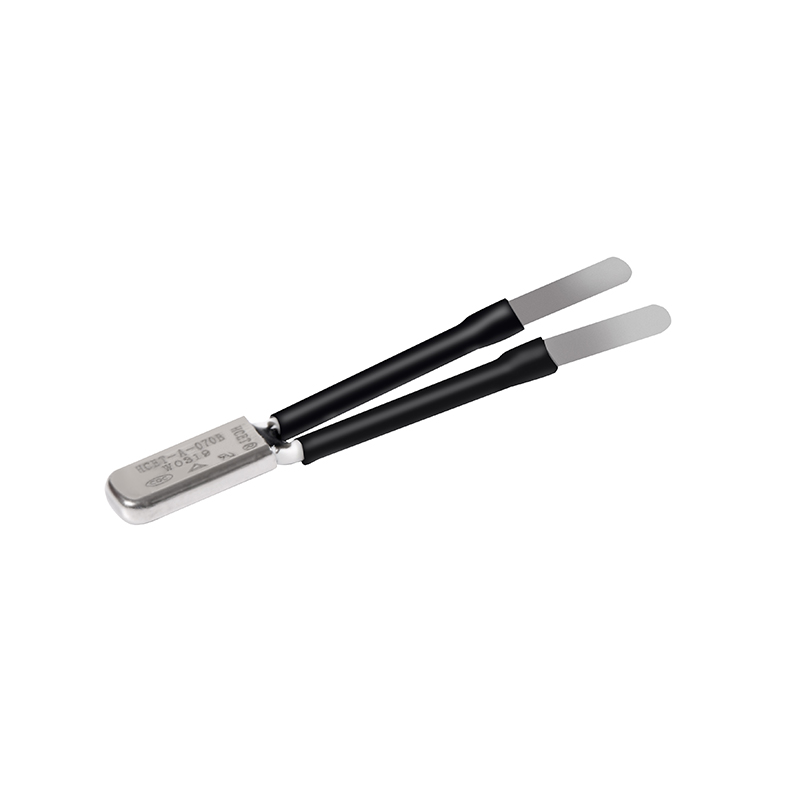

Product display

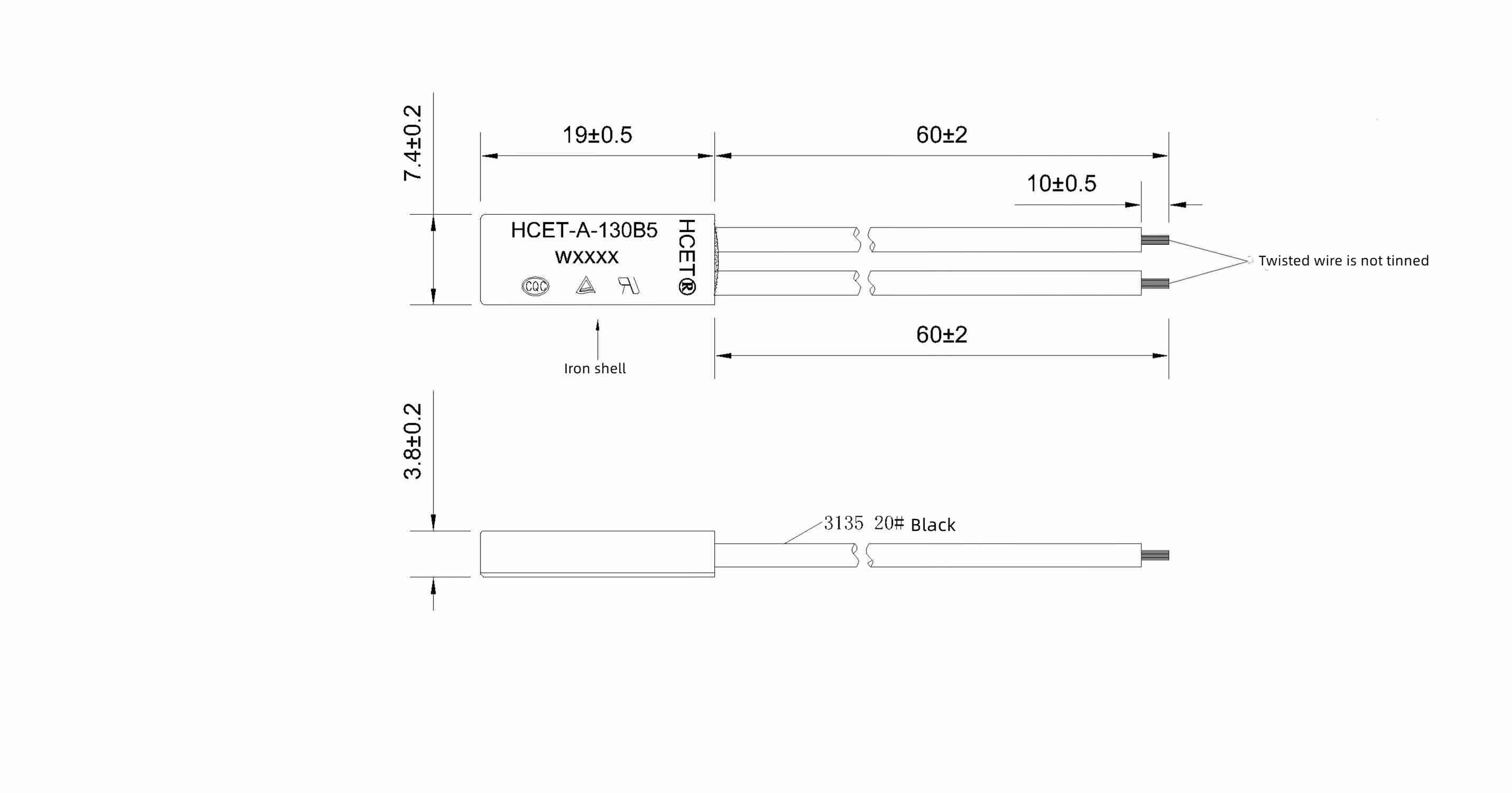

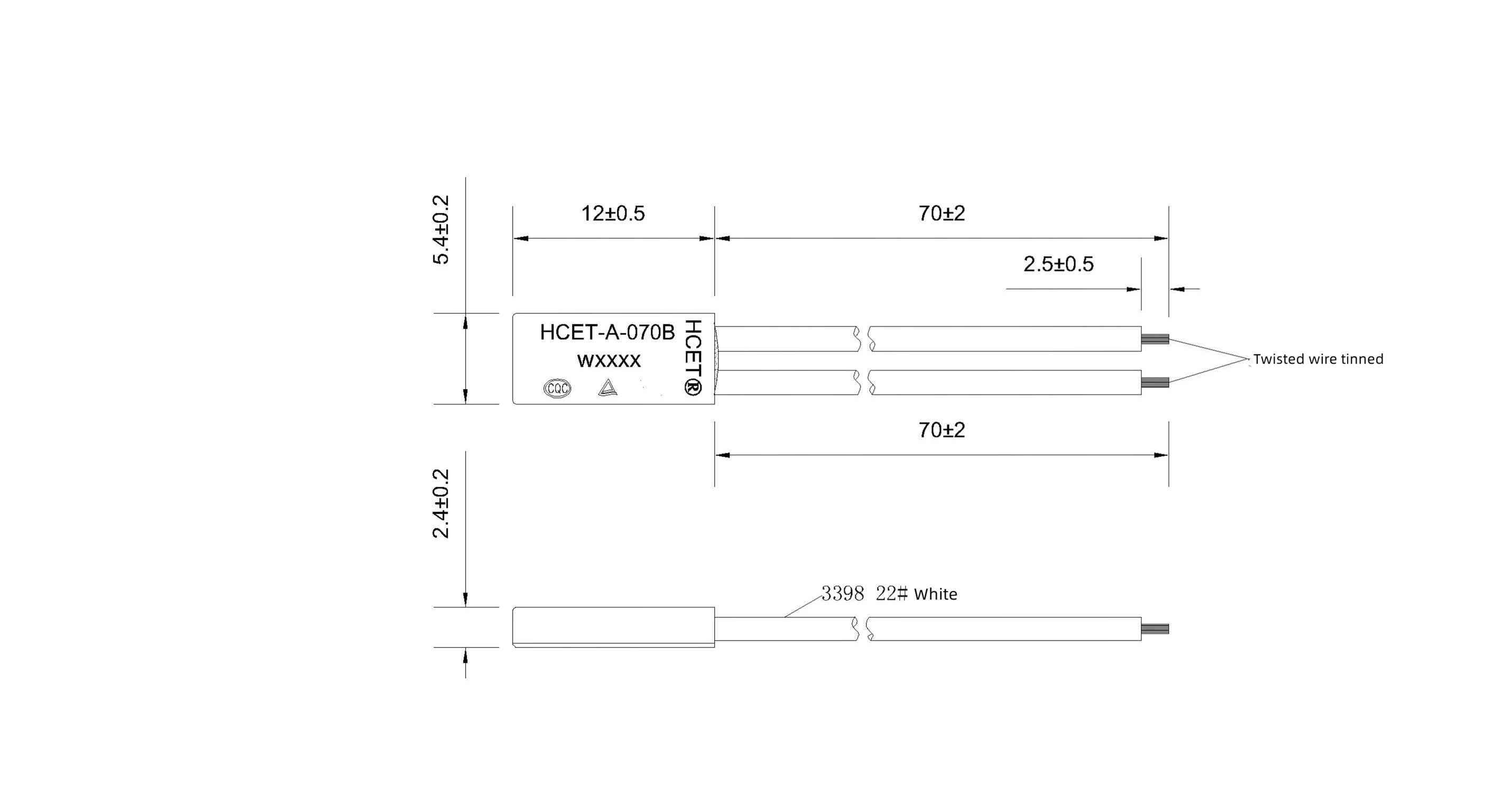

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

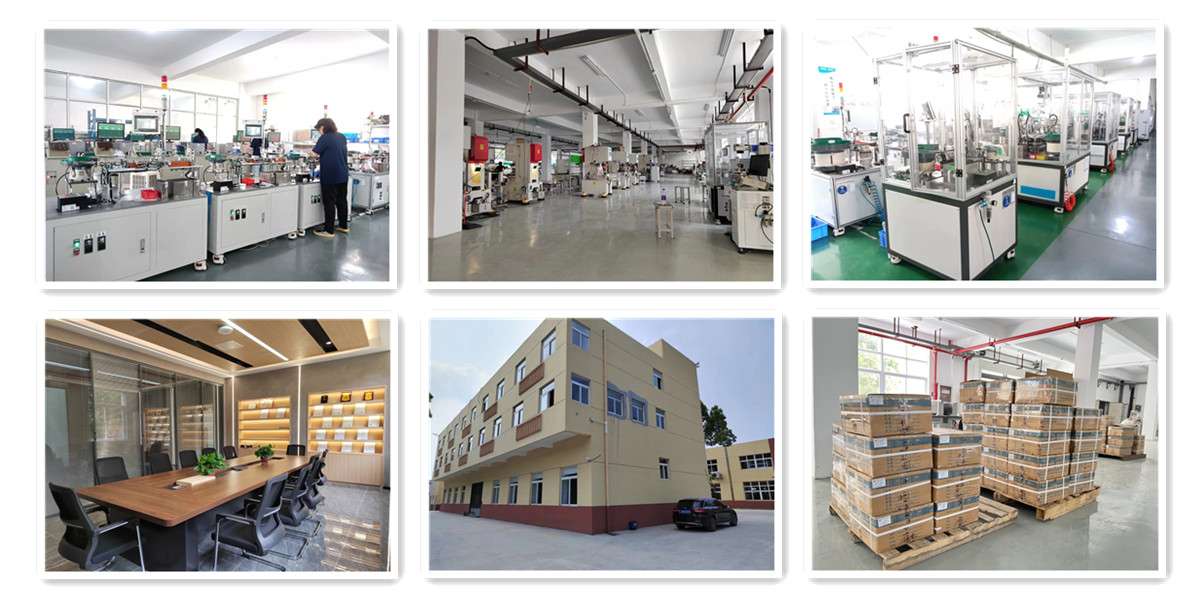

Factory display
