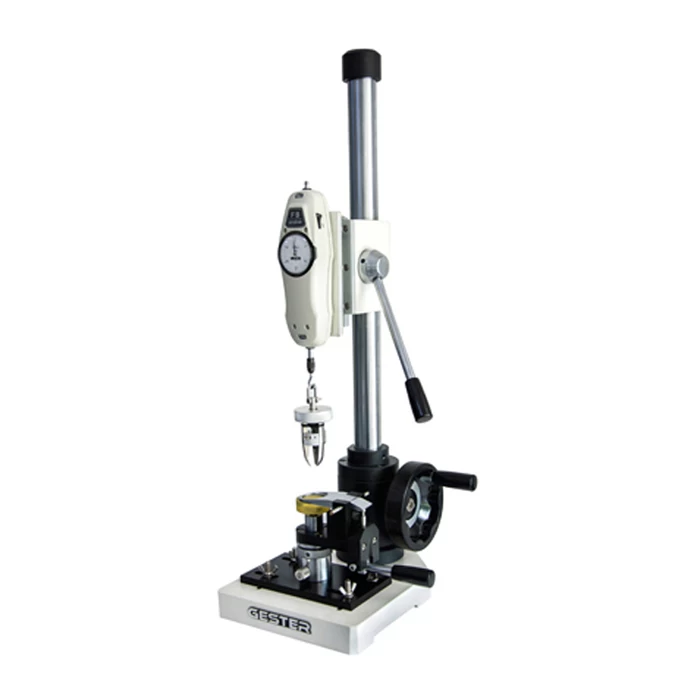

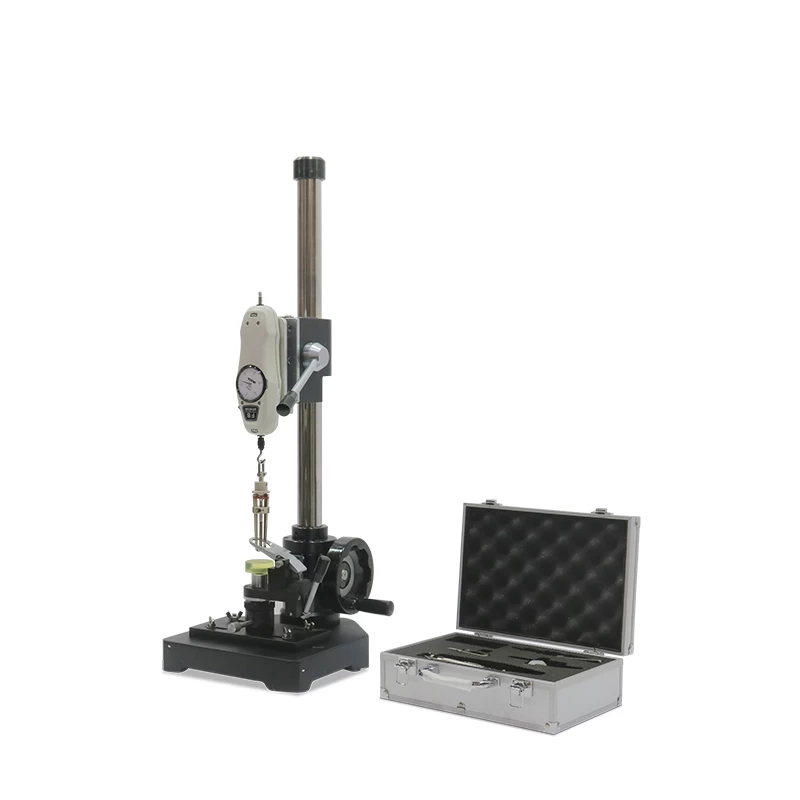

Snap Button Pull Strength Tester GT-C09

Snap Button Tester is defined responsibility of garment manufacturer, make sure button, push-button and fixed accessories can fixed on garments suitable.

  • standard16 CFR 1500.51-53, ASTM PS79-96, D4846
  • certificateISO 9001, UKAS, CE
Facebook Twitter Pinterest LinkedIn 分享


Snap Button Pull Strength Tester

Applications:

The aim of snap button tester is defined responsibility of garment manufacturer, make sure button, push-button and fixed accessories can fixed on garments suitable. To avoid button fall off garments & risk of infant eating. So, all the button, push-button & fixed accessories on garments must pass snap button strength test. This machine can do even and vertical tensile test of all kinds of buttons on garments. Test fastness degree of button reach relative security standard or not.


Standards:

16 CFR 1500.51-53,

ASTM PS79-96,

D4846



Feature

Snap button testing machine is a simple but effective design mainly consisting of a high precision gauge, a sturdy required by standards & regulations is be fixed horizontally (constant force is applied to secure the sample) so that snap or other accessories attached in fabric can be clamped into. Moreover, a standard weight is also offered so that it can be regularly checked if it meets the safety requirements.



Specification

Dimensions:     26 x 31 x 82 cm
Net Weight:     32kg



Snap Button Tester Instructions

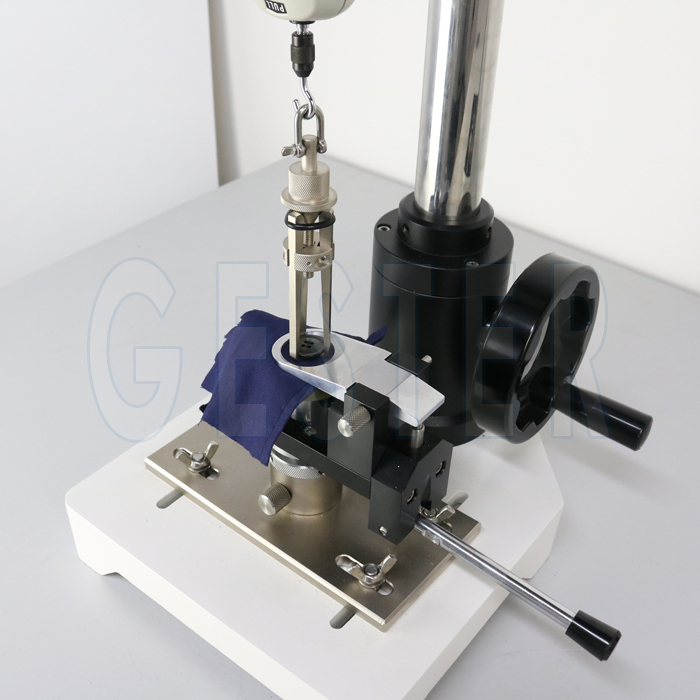

1. Install the clamp and match the test button to lock the test sample to the base.

2. Lower the clamp, grasp the button and pull it up. Each set of buttons should be able to withstand a

minimum of 17 pounds of tension (7.72kg) and need to be kept for 10 seconds without any signs of

looseness or breakage. At the same time, test at least 20 capsules per 20 The grain button is qualified.
3. If one of the buttons is loose or damaged, or must be retested after replacement.


Snap Button Tester

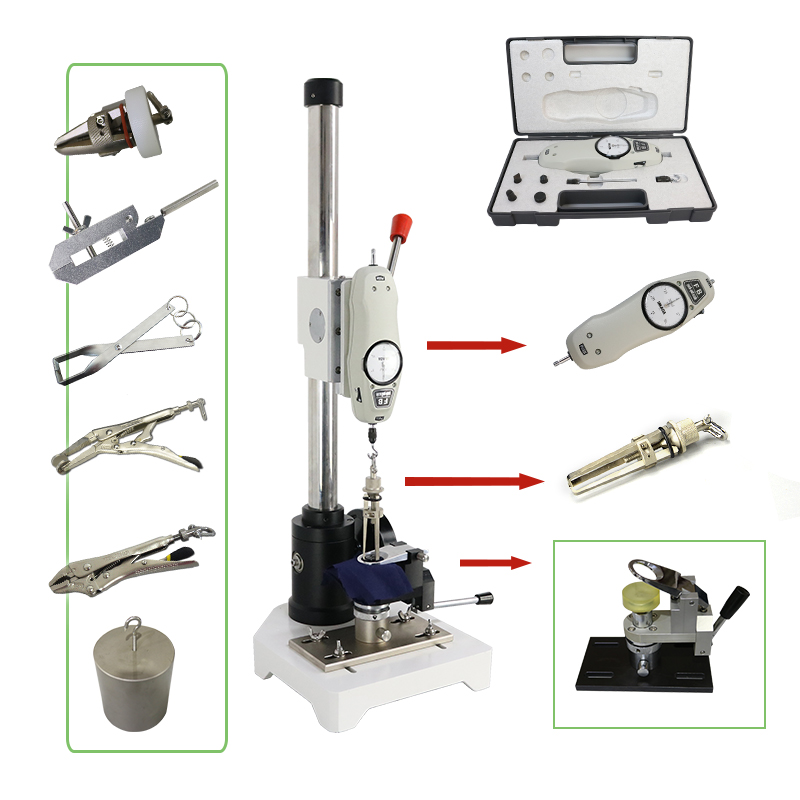

Accessories

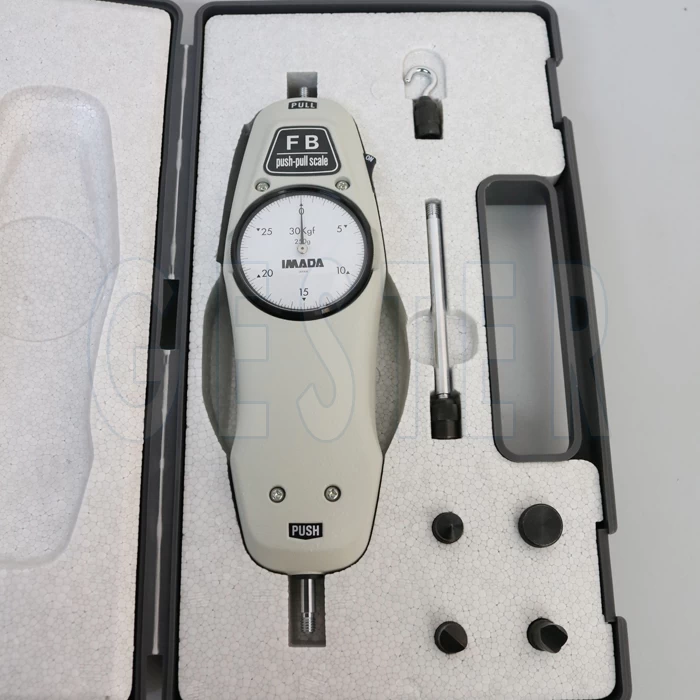

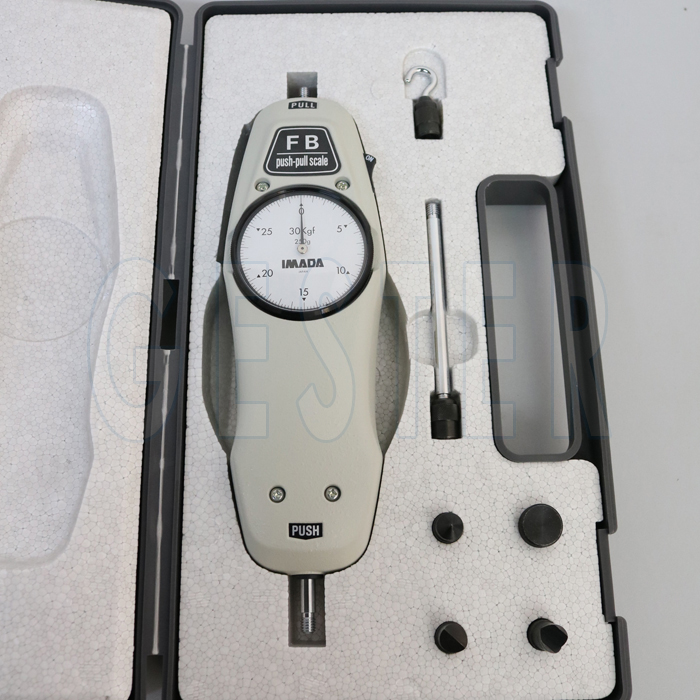

IMADA Force Gauge FB-30K

1pc



GT-MC01 Upper Universal Grip

1pc



GT-MC02 Upper stud Grip

1pc

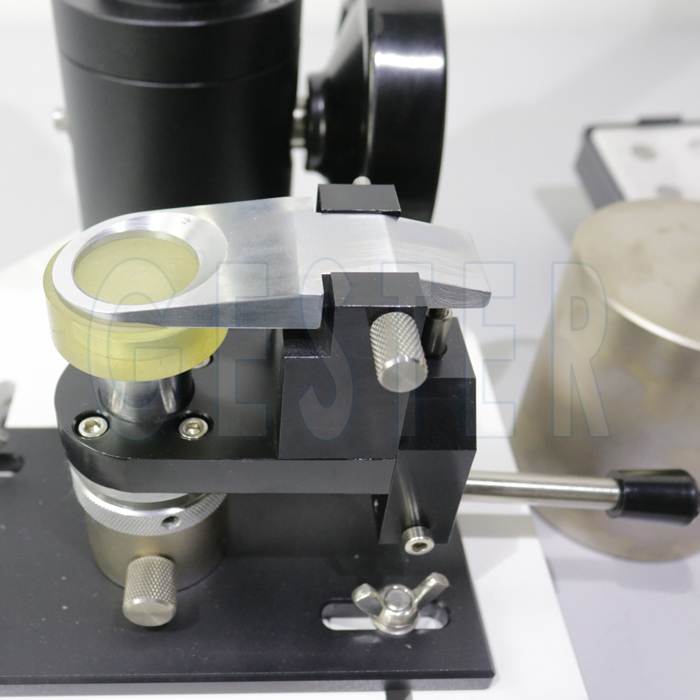

GT-MC03 Lower Fabric Clamp & Level Arm Locking

1pc



GT-MC04 Lower Grasp Button Accessory Kit

1pc



GT-MC05 Calibration Weight 15LB

1pc



GT-M37 Three Pronged Grip

1pc



GT-M43 Upper Long Nose Vise Grip

1pc



GT-M36 Two Pronged Clamp

1pc

Optional

GT-M39 Flat Clamp

1pc

Optional

GT-M49 Short - Mouth Clamp

1pc

Optional

GT-M50 Seam Clamp

1pc

Optional

GT-M53 Wide - Mouth Clamp

1pc

Optional

GT-MC06 Multifunction Vise Clamp

1pc

Optional

GT-MC07 ASTM Zipper Test Kit

1pc

Optional



Applications Industry

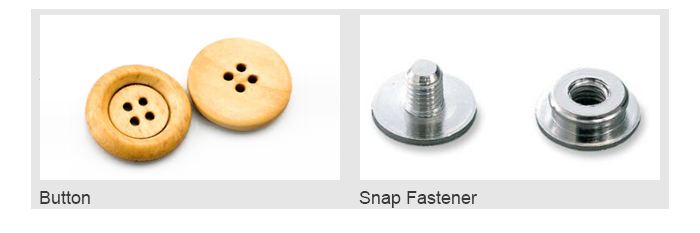

All kinds of below items (button & Snap buckle) can be tested on the Snap Button Pull Tester GT-C09

snap button pull test machine
