Description
|
|
Model
|
SNT401
|

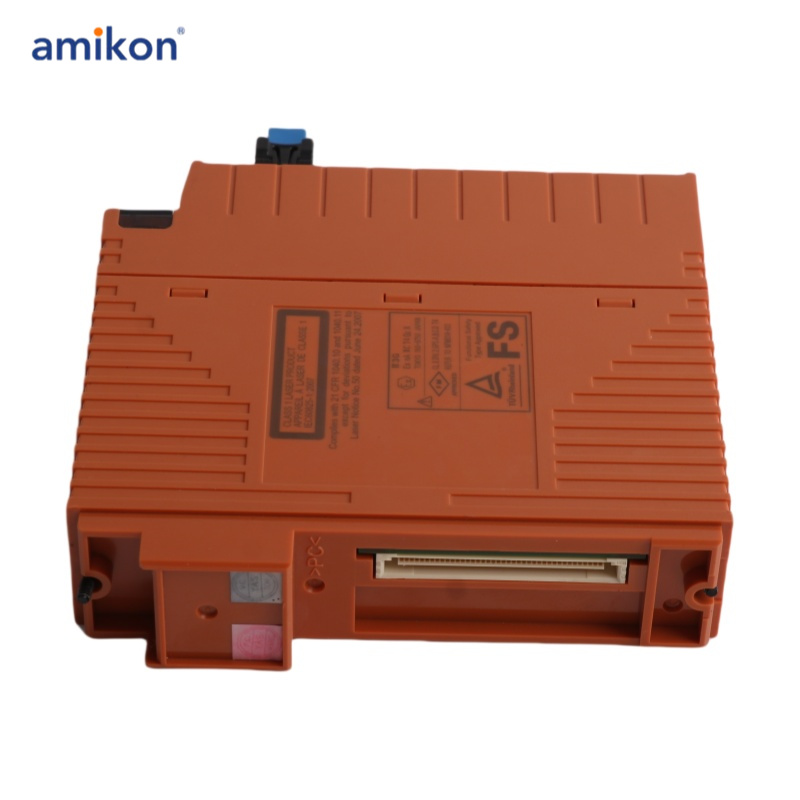

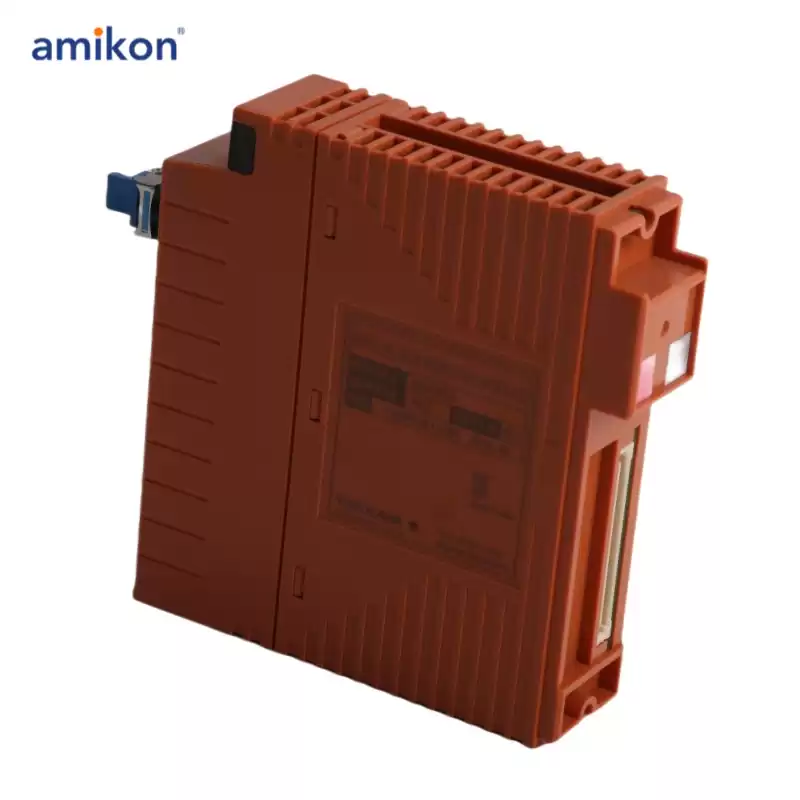

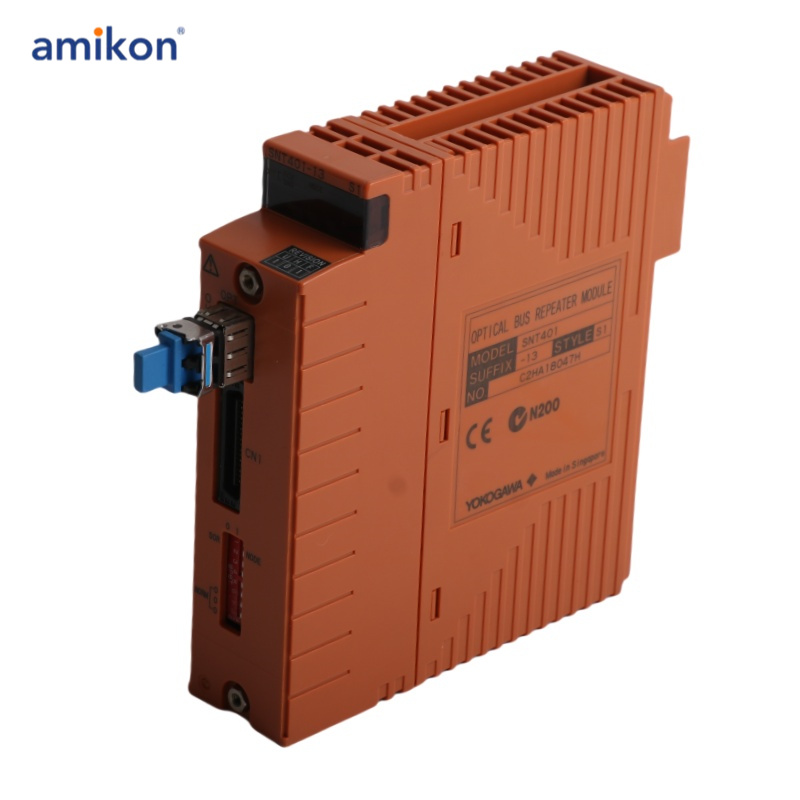

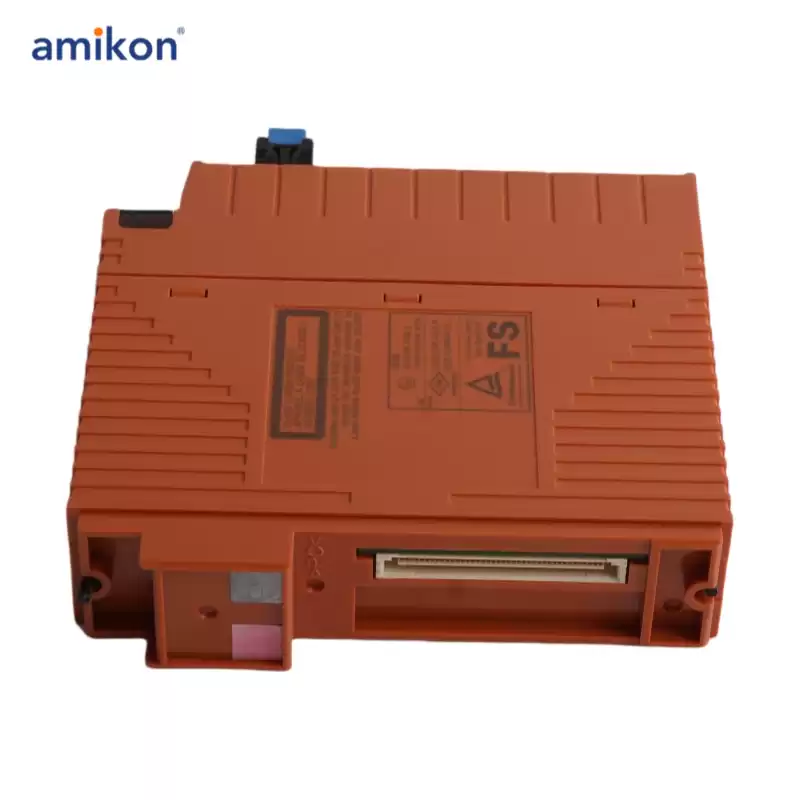

Optical ESB Bus Repeater Master Module
|
|
Suffix Codes
|
-5
|
With no explosion protection
|
|
-E
|
With explosion protection
|
|
3
|
ISA Standard G3 and temperature (–20 to 70 °C)
|
|
F
|
ISA Standard G3 and temperature (–20 to 70 °C)
|
|
Option Codes
|
/CU1N
|
Connector unit for ESB Bus
|
|
/CU1T
|
Connector unit with terminator for ESB Bus
|
Note: The suffix code of the module for bus 1 and the module for bus 2 must be same.
Note: When optical ESB bus repeater modules are connected via fiber-optic cable, the master side must be paired with the slave
side as described below.
|
Master Side
|
Slave Side
|
|
SNT401-3
|
SNT501-3
|
|
SNT401-F
|
SNT501-F
|
|
SNT401-F
|
S2EN501-1
|
|
S2EN501-1
|
SNT501-F
|
