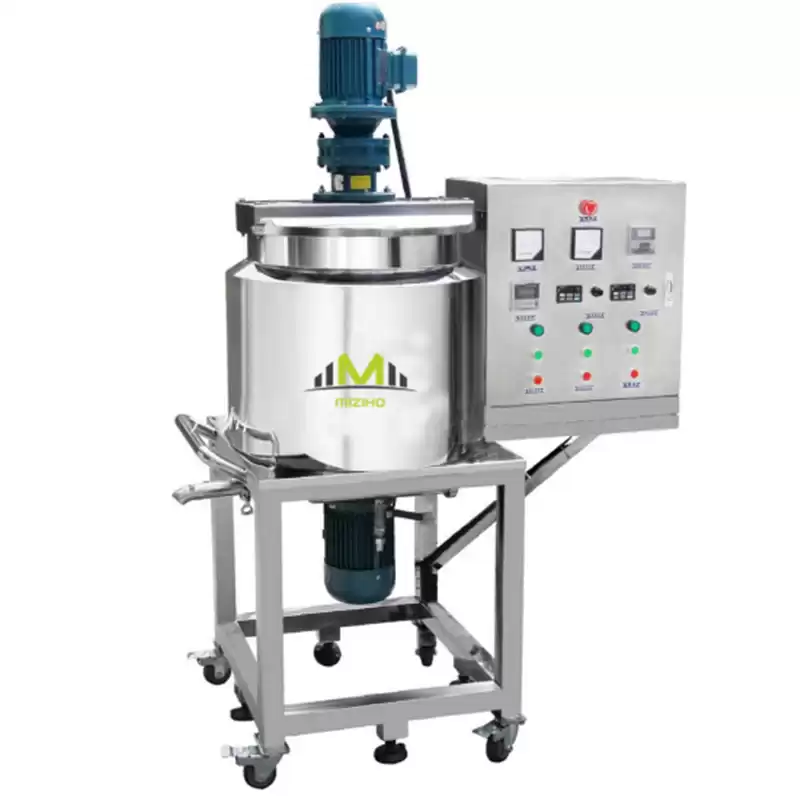

Soap lotion liquid homogenizing heating mixer machine
Customized And OEM Service Available
Details Introduced
This Homogenizer Mixer mainly used for heating, emulsifying, homogenizing chemical liquid, medicinal liquid, food liquid such as milk or other fresh liquid.
Is also shampoo, cream, soap, milk, food and beverage factory, pharmaceutical and other industries ideal heating homogenization storage equipment.
Accessories included
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer water Inlet/outlet,
(4) Temperature probe,
(5) Heating tube,
(6) Electric cabinet,
(7) Reduction gears,
(8) Rack & blender.
Technical parameters
|
Tank Capacity(L)
|
200L
|
|
Thickness Inner,middle and outer layer
|
2mm/2mm/1.5mm
|
|
The Electric motor
|
3KW,380V,50HZ,3phz
|
|
Homogenizing agitator
|
2800r/min, 3kw
|
|
Homogenizing pump power
|
2.2KW , 380V,50HZ,3PHZ,2900RPM
|
|
Heating Area（M2）
|
1.1
|
|
stainless steel pipe fittings pipes and valves
|
ss316
|
|
Electric heating tubes power
|
12KW,380V,50HZ,3phz
|
|
Material Input/output（DN MM）
|
38
|
|
Outside Wooden Box Dimension(L*W*H) CM
|
90*90*160
|
|
Weight KGs
|
200
|
